Bently Nevada 31000-16-05-35-026-03-02 Spare 3300 XL

Bently Nevada 31000-16-05-35-026-03-02 Spare 3300 XL: Precision Spare Parts Replacement for Industrial Downtime Control

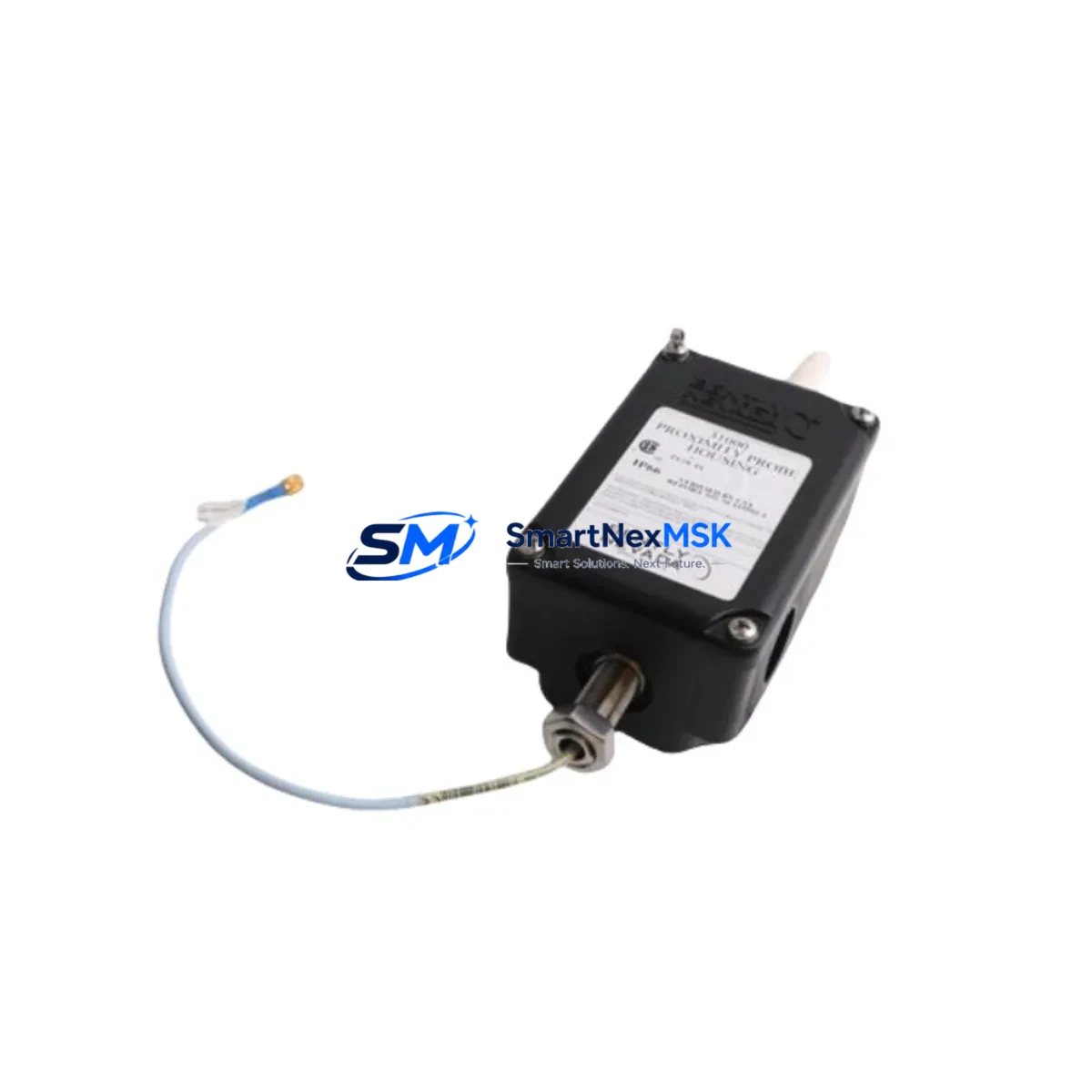

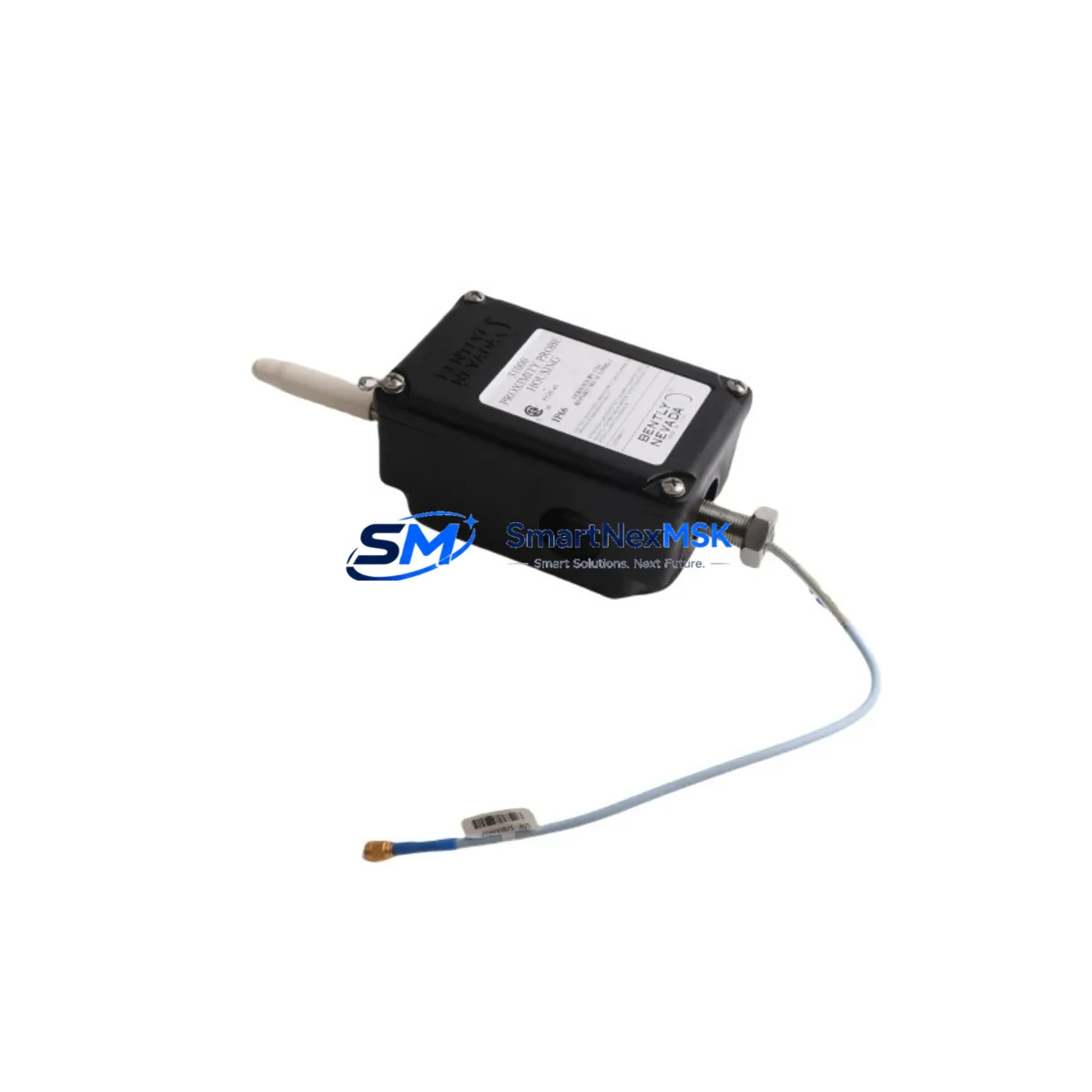

The Bently Nevada 31000-16-05-35-026-03-02 is an original proximity probe housing assembly engineered for the 3300 XL Series continuous vibration monitoring system. In rotating machinery protection environments — turbines, compressors, pumps, and gearboxes — this probe assembly forms the front-end sensing element of a complete vibration loop. When this component degrades or fails, the entire protection channel is compromised, triggering unplanned shutdowns or, worse, masking real machinery faults. Maintaining a verified spare on the shelf is not optional; it is a core element of any credible predictive maintenance strategy.

This unit is sourced as an original Bently Nevada component, fully tested prior to shipment, and backed by a 12-month warranty. Each unit undergoes dimensional and electrical verification to confirm probe gap sensitivity, cable integrity, and connector seating before dispatch. Fast worldwide shipping ensures that your maintenance team can restore full protection coverage with minimal delay.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer identifies a degraded or failed 31000-16-05-35-026-03-02 probe assembly, the replacement event should be treated as a full proximity loop audit — not a single-component swap. The 3300 XL proximity transducer system is a three-component chain: probe, extension cable, and driver/monitor. Replacing only the probe while leaving an aged 3300 XL extension cable (such as the 330130 series) in service introduces a new failure point within the same maintenance window.

The matched 3300 XL proximitor/driver (e.g., 3300 XL 11 mm proximitor, part series 330180) should be inspected for output voltage stability and housing seal integrity at the same time. If the control cabinet houses a 3500 Series rack with a 3500/42M Proximitor/Seismic Monitor module, verify that the channel configuration and OK relay logic remain consistent with the new probe’s gap voltage range.

Beyond the transducer loop itself, the replacement window is the right time to inspect adjacent components in the same control cabinet bay. 3500/15 Power Supply modules powering the monitor rack should be checked for output ripple and terminal tightness. 3500/20 Rack Interface Modules and their communication links to the DCS or safety system should be confirmed operational. If the machine train uses a Keyphasor transducer (e.g., 3300 XL 8 mm Keyphasor probe, 330104 series), its gap and signal quality should be verified simultaneously, as Keyphasor reference signals affect all vibration and phase measurements across the rack.

For facilities running older 3300 Series (non-XL) monitors, confirm that the 31000-16-05-35-026-03-02 probe is used with a compatible driver. Mixing XL and non-XL components without sensitivity matching will produce erroneous gap voltages and may cause nuisance trips or missed alarms. Stocking a spare 3300 RAM (Rack Adapter Module) or 3300/16 monitor card alongside the probe assembly is recommended for sites with aging 3300 Series infrastructure.

Terminal blocks and field wiring at the junction box should be inspected for corrosion, especially in high-humidity or offshore environments. Phoenix Contact or equivalent DIN-rail terminal blocks used in the probe cable junction box are a low-cost, high-impact item to include in the spare parts kit. Fuse holders protecting the 24 VDC supply to the proximitor should also be checked and spare fuses stocked.

Site Replacement Workflow

Step 1 — Isolation and documentation: Before removing the probe, record the existing gap voltage (typically -10 V to -18 V DC) from the monitor front panel or DCS historian. This baseline confirms the original installation gap and provides a reference for the new probe setup.

Step 2 — Component removal: Loosen the locknut and unthread the probe from the bracket. Disconnect the extension cable at the probe connector. Inspect the connector pins and cable jacket for damage. If the extension cable shows any sign of insulation cracking or connector corrosion, replace it together with the probe — do not reinstall a suspect cable with a new probe.

Step 3 — New probe installation: Thread the 31000-16-05-35-026-03-02 into the bracket and set the gap per the Bently Nevada installation drawing for the target machine (typically 1.0–1.5 mm for 8 mm probes on steel targets). Torque the locknut to specification. Reconnect the extension cable.

Step 4 — Gap voltage verification: Power the proximitor and measure the DC output voltage at the driver output terminals. Confirm the reading falls within the linear range specified for the probe/driver combination. Adjust gap as needed.

Step 5 — System functional check: Confirm OK relay status on the 3500 monitor module. Verify that the DCS or safety system receives a valid signal and that no latched alarms remain. Document the final gap voltage and installation date in the maintenance management system.

This workflow minimizes downtime by eliminating back-and-forth troubleshooting after reassembly. A pre-tested, warranted spare from stock — rather than a field-repaired or unverified unit — is the single most effective way to compress the replacement window from hours to minutes.

Spare Parts Support FAQ

Q1: Is the 31000-16-05-35-026-03-02 still in production, and can I source it long-term?
Bently Nevada 3300 XL series components remain available through authorized distributors and specialist industrial spare parts suppliers. For legacy installations where OEM supply has become constrained, specialist suppliers maintain buffer stock specifically to support long-term plant maintenance contracts. We maintain ongoing inventory of this SKU and can advise on minimum order quantities for multi-year stocking agreements.

Q2: How do I verify compatibility before installation?
Compatibility is confirmed by matching three parameters: probe diameter (8 mm), series (3300 XL), and driver/extension cable sensitivity (7.87 V/mm). The full SKU suffix encodes cable length and connector type — confirm that the suffix matches your existing installation drawing. If you are replacing a non-XL 3300 series probe, contact us before ordering to confirm driver compatibility.

Q3: What pre-shipment testing is performed on each unit?
Every 31000-16-05-35-026-03-02 unit is tested for dimensional conformance (probe tip geometry, thread pitch), electrical output (DC bias voltage within specification), and connector integrity before dispatch. A test report is available on request. Units are shipped in anti-static, padded packaging to prevent transit damage to the probe tip and cable connector.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and electrical performance failures under normal operating conditions. It does not cover damage resulting from incorrect installation gap, mechanical impact, or use outside the specified temperature and chemical environment. Warranty claims are supported with replacement unit dispatch upon receipt of the failed component for inspection.
