Bently Nevada 31000-16-10-15-201-02-02 Spare 3300 XL

Bently Nevada 31000-16-10-15-201-02-02 Maintenance-Ready Spare for 3300 XL Automation

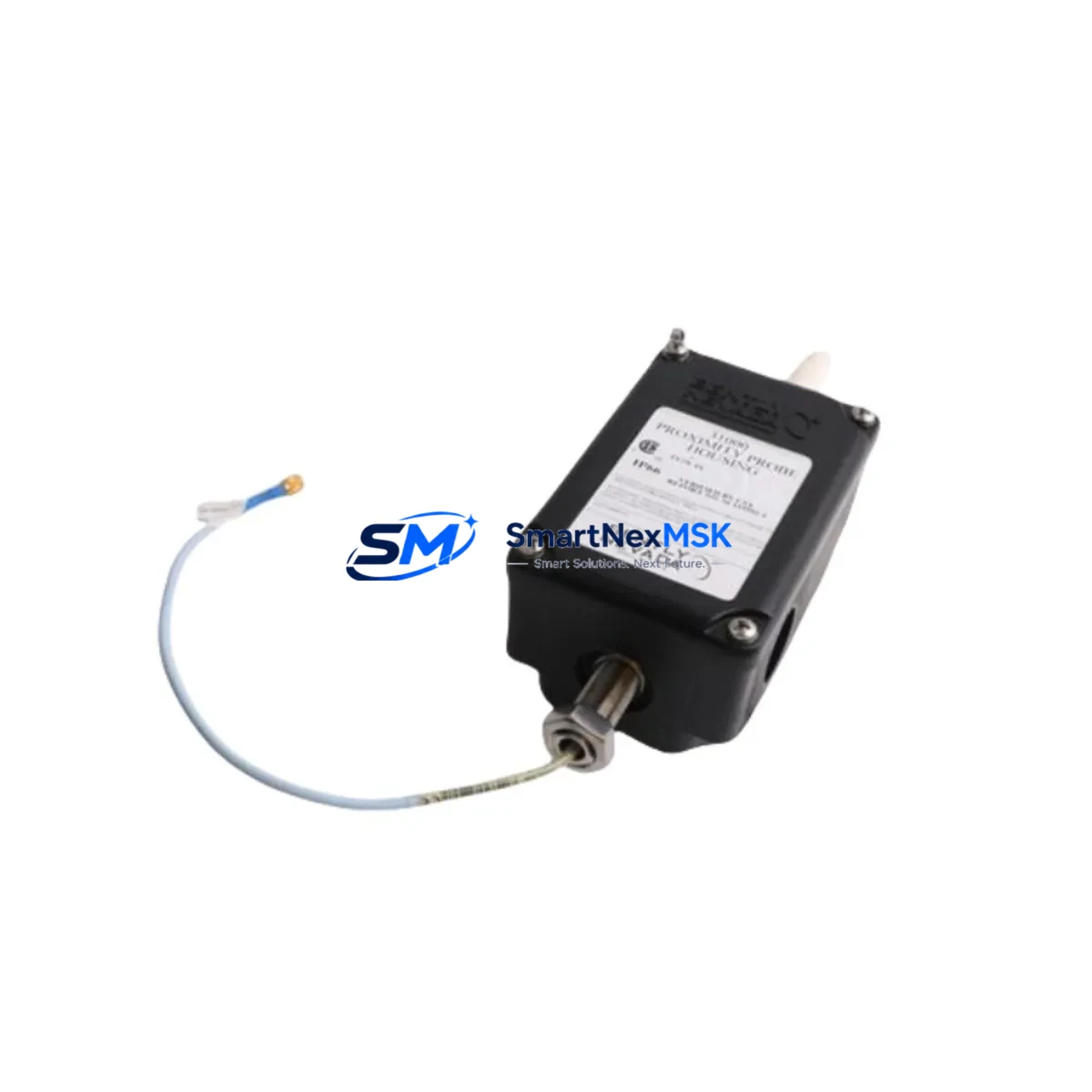

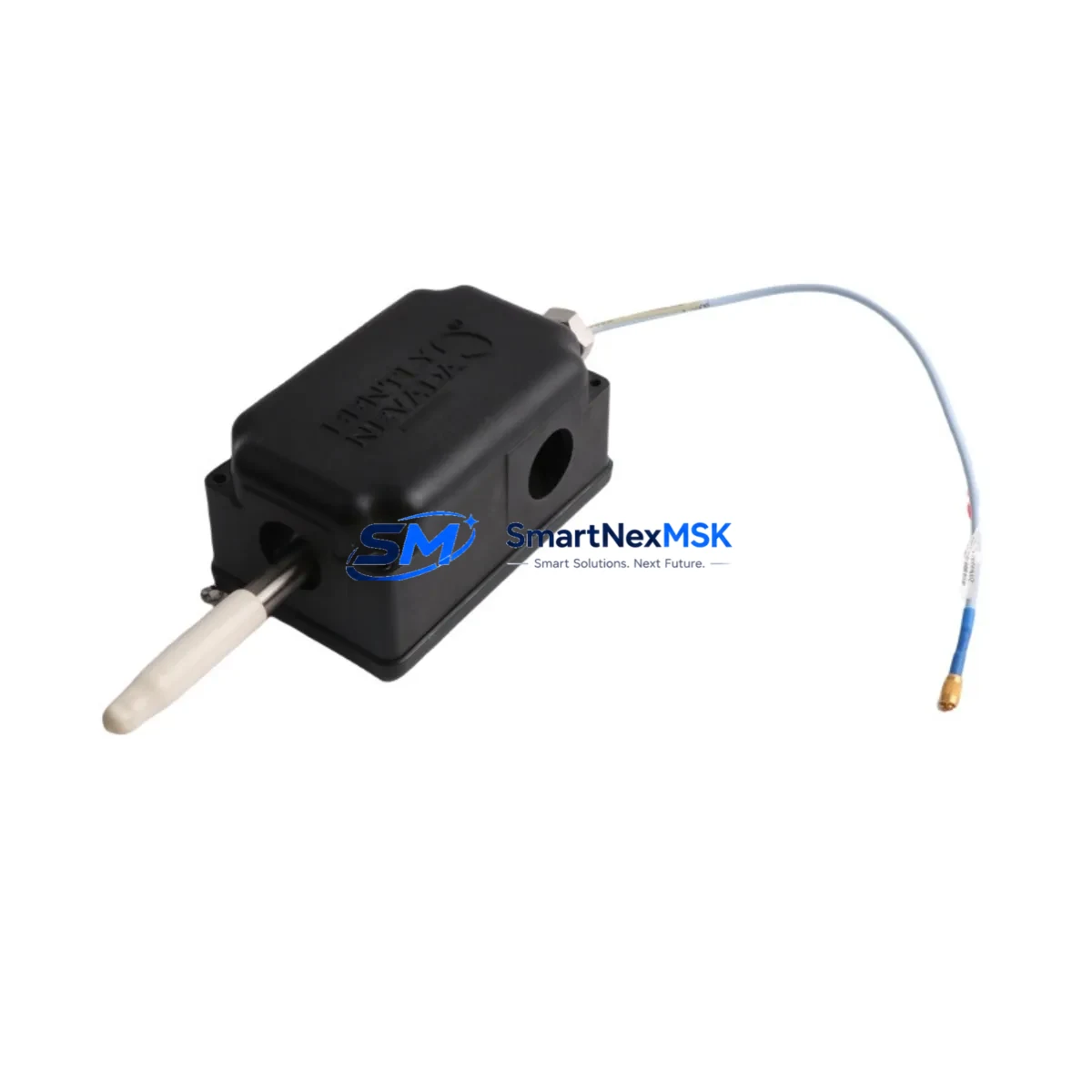

The Bently Nevada 31000-16-10-15-201-02-02 is an original proximity probe housing assembly engineered for the 3300 XL Series continuous vibration monitoring system. Designed for rotating machinery protection in turbines, compressors, pumps, and motors, this spare part is a critical component in any industrial maintenance inventory. Whether you are managing a planned shutdown, responding to an unplanned trip, or conducting a routine control cabinet inspection, having a verified replacement on hand eliminates costly procurement delays and minimizes unplanned downtime.

This unit ships tested and verified, backed by a 12-month warranty, and is available for fast global dispatch. It is compatible with standard 3300 XL probe driver and extension cable configurations, making it a direct drop-in replacement for aging or damaged housings in existing installations.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 31000-16-10-15-201-02-02 housing assembly in a 3300 XL installation, a thorough maintenance engineer will treat the replacement as an opportunity to audit the entire vibration monitoring loop. Begin by inspecting the 3300 XL Proximitor® sensor module (e.g., 330180 or 330100 series) for signal drift or housing damage. Verify the extension cable (typically 330130 series) for continuity and insulation integrity — a degraded cable is a common root cause of false trips that is often misattributed to the probe housing itself.

Check the barrier terminal blocks and field wiring terminal strips within the control cabinet for corrosion, loose terminations, or heat discoloration. Inspect the 3300 XL rack power supply module to confirm stable ±24 VDC output; a marginal power supply will cause intermittent probe signal errors that are difficult to diagnose in the field. If the system includes a 3300/16 or 3300/20 monitor module, verify that the OK relay output and alarm setpoints are correctly configured after the probe replacement.

For installations where the 3300 XL system interfaces with a DCS or safety PLC, confirm that the 4–20 mA output signal from the monitor module is within calibrated range after reinstallation. If a signal isolator or signal conditioner is present in the loop, test its output before returning the machine to service. In older installations, it is also advisable to inspect the Keyphasor® module (e.g., 3300/25) and its associated probe for wear, as Keyphasor signal quality directly affects vibration vector accuracy.

Procurement engineers building a spare parts kit around the 31000-16-10-15-201-02-02 should also stock the matching Proximitor® sensor, at least one spare extension cable assembly, a set of barrier strips or Zener barriers for intrinsically safe zones, and the relevant monitor module for the rack slot. Maintaining a minimum of one complete probe-cable-sensor assembly per critical machine significantly reduces mean time to repair (MTTR) during unplanned outages.

Site Replacement Workflow

Before removing the 31000-16-10-15-201-02-02 from service, document the existing probe gap voltage using the system’s OK meter or a calibrated voltmeter at the Proximitor® sensor connector. This baseline reading is essential for verifying correct installation of the replacement housing. Follow the 3300 XL installation manual for thread engagement depth and locking nut torque to avoid mechanical stress on the new housing.

After physical installation, reconnect the extension cable and power the Proximitor® sensor. Adjust the probe gap to achieve the target gap voltage specified in the machine’s vibration monitoring datasheet — typically between -10 VDC and -18 VDC for standard 3300 XL configurations. Confirm the OK relay is energized and that vibration and position readings are within normal operating range before releasing the machine to operations.

For systems where the 31000-16-10-15-201-02-02 is replacing a long-service or obsolete housing, verify that the replacement part’s thread pitch and body length match the original to maintain correct probe-to-target gap geometry. If the machine has been in service for more than five years without a probe replacement, consider scheduling a full vibration loop calibration as part of the same maintenance window to extend system service life and defer costly control system upgrades.

Spare Parts Support FAQ

Q1: Is the 31000-16-10-15-201-02-02 compatible with all 3300 XL monitor configurations?
A: This housing assembly is designed for the Bently Nevada 3300 XL series and is compatible with standard Proximitor® sensor and extension cable configurations used in that platform. Always confirm the probe body thread specification and cable connector type against your site’s existing installation drawings before ordering.

Q2: What is the recommended spare parts inventory strategy for this component?
A: For critical rotating machinery (turbines, compressors), we recommend maintaining a minimum of two probe housing assemblies per machine train in your on-site spare parts inventory. For non-critical applications, one spare per machine type is generally sufficient. Pairing this spare with a matching Proximitor® sensor and extension cable ensures a complete replacement kit is available for rapid deployment.

Q3: How is the part tested before shipment?
A: Each 31000-16-10-15-201-02-02 unit undergoes functional verification prior to dispatch, including dimensional inspection and, where applicable, electrical continuity checks. A 12-month warranty covers defects in materials and workmanship from the date of shipment.

Q4: Can this part replace older or discontinued Bently Nevada probe housing models?
A: In many cases, yes — the 3300 XL series was designed with backward compatibility in mind for common probe body dimensions. However, always verify thread pitch, body length, and connector type against the original part number before installation. Our technical team can assist with cross-reference verification prior to order confirmation.
