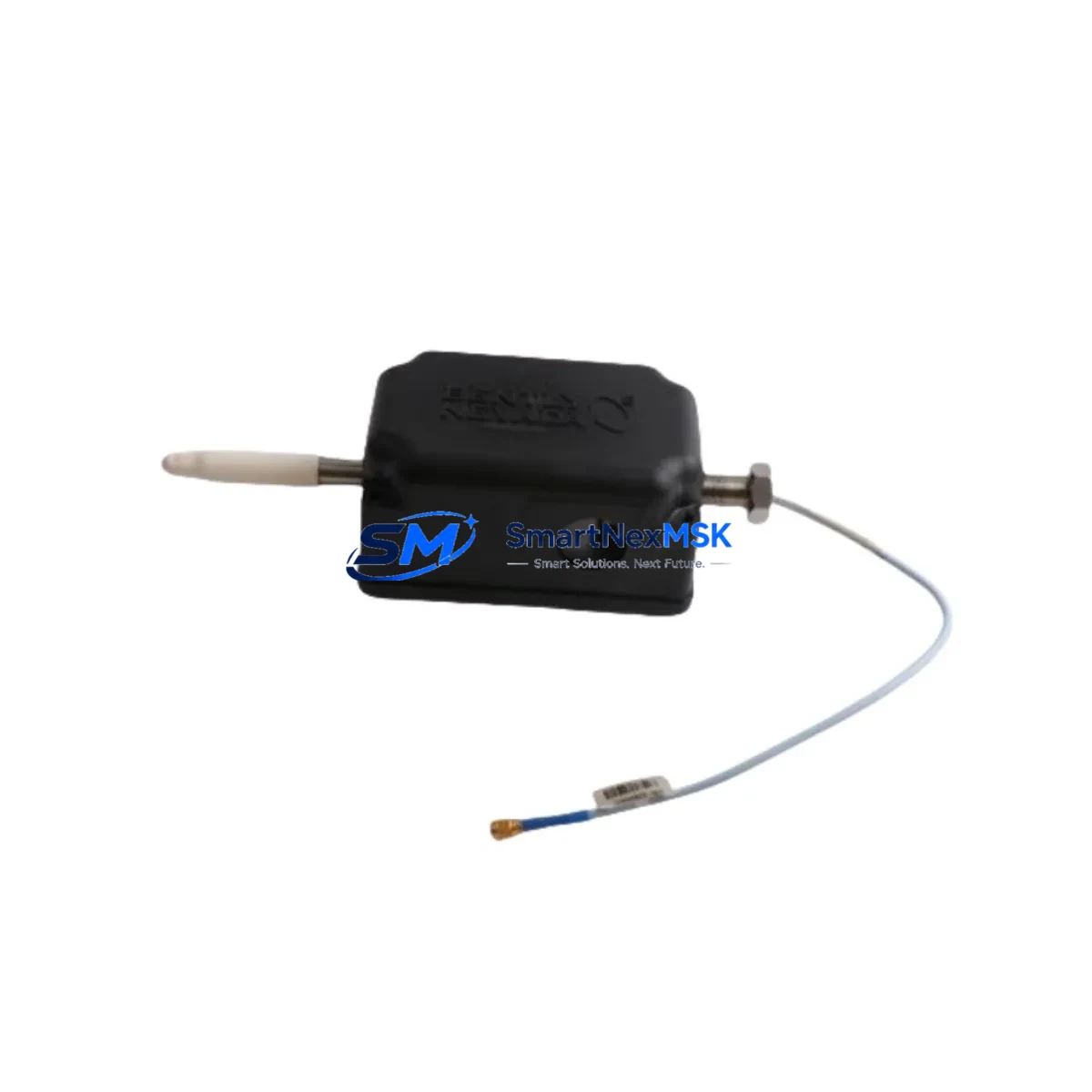

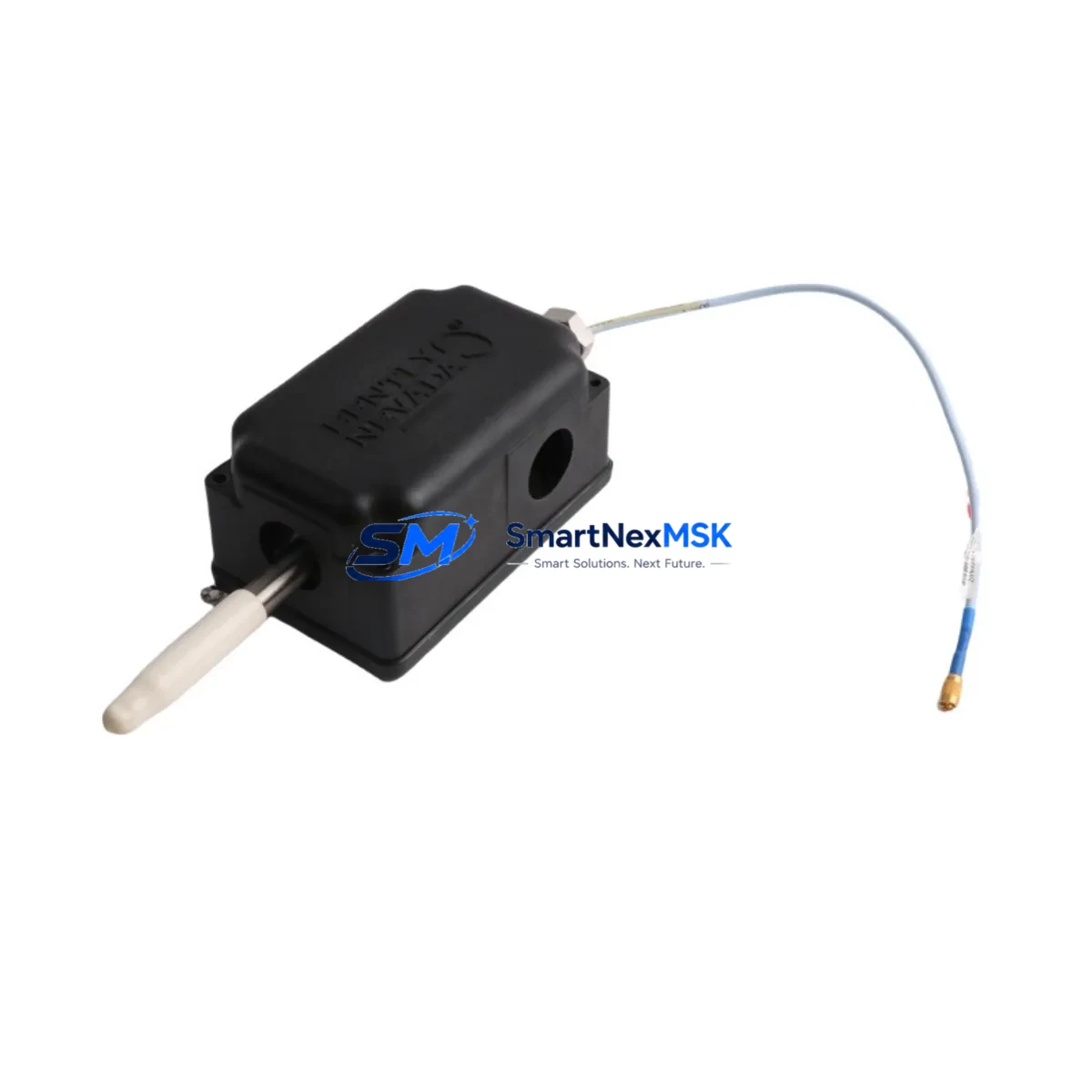

Bently Nevada 31000-28-05-50-050-03-02 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 31000-28-05-50-050-03-02 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

The Bently Nevada 31000-28-05-50-050-03-02 is a 3300 XL Series eddy-current proximity probe engineered for continuous shaft vibration and position monitoring in rotating machinery. As legacy 3300 Series installations approach end-of-service life, this probe serves as the primary retrofit solution for facilities upgrading from discontinued 3300 standard probes to the 3300 XL platform — delivering improved signal linearity, extended temperature range, and direct compatibility with existing 3300 XL extension cables and proximitor sensors without requiring panel rewiring or software reconfiguration.

Designed for drop-in replacement in turbines, compressors, pumps, and gearboxes, the 31000-28-05-50-050-03-02 integrates seamlessly with the Bently Nevada 3300 XL 8mm Proximitor Sensor (typically the 330180 series) and standard 3300 XL extension cables. The probe’s 28 mm body length, 5 mm tip diameter, and 50 mm cable configuration match the mechanical envelope of the original 3300 standard probes it replaces, allowing direct installation into existing probe holders and conduit runs without machining or bracket modification.

When planning a retrofit from a legacy 3300 standard system, engineers must verify several critical parameters before commissioning. Power supply capacity at the proximitor sensor rack — typically the 3300/20 or 3300/25 power supply module — must be confirmed to support the full channel load after adding or replacing probes. Terminal block wiring at the junction box should be inspected against the original loop drawing; the 31000-28-05-50-050-03-02 uses the same three-wire configuration (power, common, output) as its predecessors, but polarity and shield grounding must be confirmed at the field terminal strip. Backplane slot assignments in the 3500 Series rack — if the site has already partially migrated to the Bently Nevada 3500 platform — must be mapped to ensure the new probe’s channel address does not conflict with existing I/O assignments in the 3500/42M or 3500/45 position monitor modules.

Program compatibility is a key concern during any 3300 XL retrofit. If the plant historian or DCS — such as a Honeywell Experion PKS or Emerson DeltaV system — is configured to receive vibration data via a 3500 rack’s Modbus TCP or OPC DA gateway, the tag mapping for the replaced channel must be verified in the communication driver before the probe is energized. HMI faceplate graphics on the operator workstation should be reviewed to confirm that the vibration trend display and alarm setpoints reflect the new probe’s sensitivity factor (typically –7.87 V/mm for 3300 XL probes), which may differ slightly from the original 3300 standard probe’s calibration curve.

For sites still operating on the legacy 3300 Series rack with a 3300/16 or 3300/20 monitor, the retrofit path typically involves replacing the probe and extension cable assembly together, then recalibrating the proximitor output at the field junction box using a Bently Nevada calibration fixture or a precision gap simulator. The 3300 XL Proximitor Sensor’s output voltage at the nominal gap (typically 1.0 mm to 2.0 mm depending on shaft material) must be verified against the monitor’s input range before the machine is returned to service.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit using the 31000-28-05-50-050-03-02 begins with a full channel audit of the existing 3300 Series rack. Identify each occupied slot in the 3300/16 or 3300/20 monitor and document the probe type, extension cable length, and proximitor model currently installed. Where the existing probe is a discontinued 3300 standard model, the 31000-28-05-50-050-03-02 provides a direct mechanical and electrical replacement. The 3300 XL extension cable — typically a 330130 or 330140 series cable — must be confirmed to be in serviceable condition; if the cable jacket shows cracking or the connector pins are corroded, replace the cable assembly at the same time as the probe to avoid introducing a new fault point after commissioning.

Power budget verification is essential before energizing the new probe. The 3300/20 power supply module provides a fixed DC output to the proximitor sensors; adding or replacing probes changes the total current draw on the supply rail. Calculate the aggregate load across all channels and confirm it remains within the power supply’s rated output. If the site is running a mixed rack with both 3300 standard and 3300 XL probes during a phased migration, the power supply loading must account for both probe types simultaneously.

For facilities that have partially migrated to the Bently Nevada 3500 platform, the 31000-28-05-50-050-03-02 is compatible with the 3500/42M Proximitor/Seismic Monitor and the 3500/45 Position Monitor. The I/O module address must be set correctly in the 3500 rack configuration software (Rack Configuration Software, RCS) before the probe is connected. If the plant DCS — such as an ABB System 800xA or Siemens PCS 7 — receives vibration data from the 3500 rack via a 3500/92 or 3500/94 communication gateway, the channel tag in the DCS historian must be updated to reflect the new probe’s sensitivity factor and alarm setpoints.

HMI screen updates are often overlooked during probe retrofits. The operator workstation — whether running Wonderware InTouch, FactoryTalk View SE, or a custom SCADA display — must have its vibration trend faceplate updated to reflect the correct engineering units and alarm thresholds for the 3300 XL probe. Failure to update the HMI can result in nuisance alarms or, more critically, missed alarms if the old probe’s sensitivity factor is still embedded in the display scaling.

Programming cable access is required if the 3500 rack’s configuration needs to be modified during the retrofit. The Bently Nevada 3500 rack uses a dedicated RS-232 or USB programming cable to connect to the RCS software on a laptop. Confirm that the programming cable and a licensed copy of RCS are available on-site before scheduling the retrofit outage, as configuration changes cannot be made without them.

Downtime Control During System Migration

Minimizing unplanned downtime during a 3300 XL probe retrofit requires a structured pre-outage preparation process. Before the machine is taken offline, complete all documentation tasks: print the current rack configuration from RCS, export the DCS tag list for the affected channels, and photograph the existing terminal block wiring at the field junction box. This documentation serves as the baseline for post-installation verification and allows the commissioning team to restore the original configuration quickly if an issue is encountered during startup.

The physical probe swap on a 31000-28-05-50-050-03-02 installation is typically completed in under 30 minutes per channel, assuming the probe holder is accessible and the extension cable is in good condition. The critical path item is gap setting: the probe tip must be positioned at the correct gap distance from the shaft surface — typically 1.0 mm to 2.0 mm depending on shaft material and the proximitor’s linear range — and the output voltage must be verified at the junction box before the monitor channel is re-enabled. Use a calibrated digital voltmeter and a non-ferrous feeler gauge or a precision gap simulator to confirm the gap setting without rotating the shaft.

Once the probe is installed and the gap is set, re-enable the monitor channel in the 3500 rack (or 3300 monitor) and verify that the channel reads a stable DC voltage within the proximitor’s linear range. Check the DCS historian to confirm that the vibration tag is updating correctly and that the value is consistent with the machine’s known baseline vibration level at rest. If the machine has a slow-roll reference stored in the 3500 rack’s memory, verify that the slow-roll vector is still valid for the new probe’s installation position before returning the machine to full-speed operation.

All units supplied by SMARTNEXMSK are tested prior to shipment. Each 31000-28-05-50-050-03-02 probe is verified for output voltage linearity and tip impedance before packaging. A 12-month warranty covers manufacturing defects from the date of shipment, providing assurance for both planned retrofit projects and emergency replacement scenarios.

Retrofit Support FAQ

Q: Is the 31000-28-05-50-050-03-02 a direct drop-in replacement for legacy 3300 standard proximity probes?
A: Yes. The 31000-28-05-50-050-03-02 shares the same mechanical envelope — 28 mm body length, 5 mm tip diameter — as the legacy 3300 standard probes it replaces. It installs directly into existing probe holders and conduit runs without modification. The 3300 XL extension cable and proximitor sensor must also be 3300 XL compatible; if the existing extension cable is a legacy 3300 standard type, it should be replaced with a 330130 or 330140 series 3300 XL cable at the same time.

Q: What commissioning steps are required after installation?
A: After physical installation, set the probe gap to the specified distance (typically 1.0–2.0 mm) using a feeler gauge or gap simulator, then verify the proximitor output voltage at the field junction box with a calibrated voltmeter. Re-enable the monitor channel in the 3300 or 3500 rack, confirm the DCS tag is updating correctly, and validate alarm setpoints against the 3300 XL probe’s sensitivity factor of –7.87 V/mm. Update HMI display scaling if the previous probe used a different sensitivity value.

Q: Can this probe be used with the Bently Nevada 3500 Series rack?
A: Yes. The 31000-28-05-50-050-03-02 is compatible with the 3500/42M Proximitor/Seismic Monitor and the 3500/45 Position Monitor when paired with a 3300 XL Proximitor Sensor. The 3500 rack channel must be configured in RCS with the correct probe type and sensitivity factor before commissioning. Communication to the DCS via the 3500/92 or 3500/94 gateway is unaffected by the probe replacement, but channel tag mapping should be verified after any rack configuration change.

Q: What does the 12-month warranty cover, and what is included with shipment?
A: The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Each unit is tested for output voltage linearity and tip impedance before dispatch. Shipment includes the probe assembly, a test report, and packaging suitable for international freight. For warranty claims or technical support, contact SMARTNEXMSK at sales@smartnexmsk.com or +86 18259474341.
