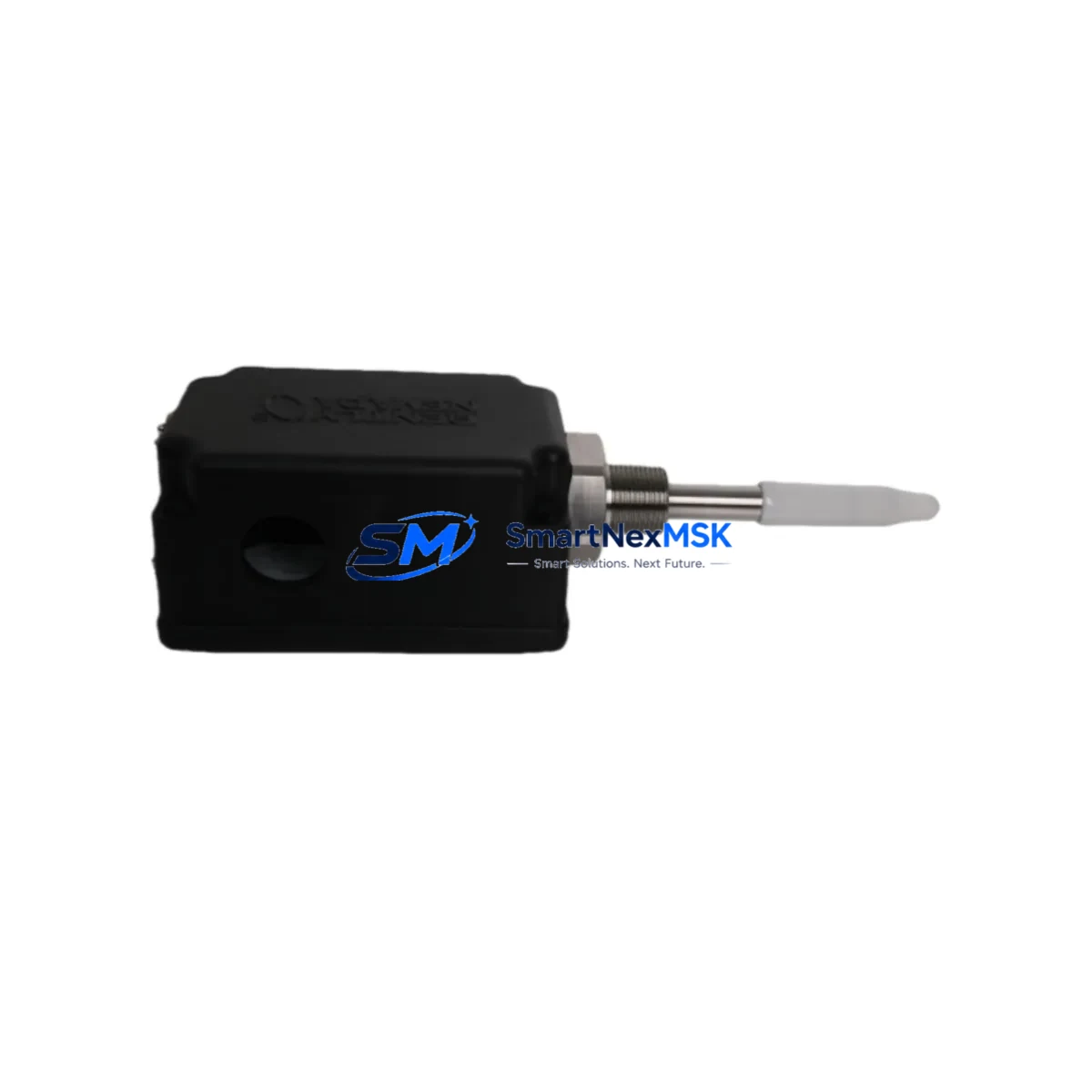

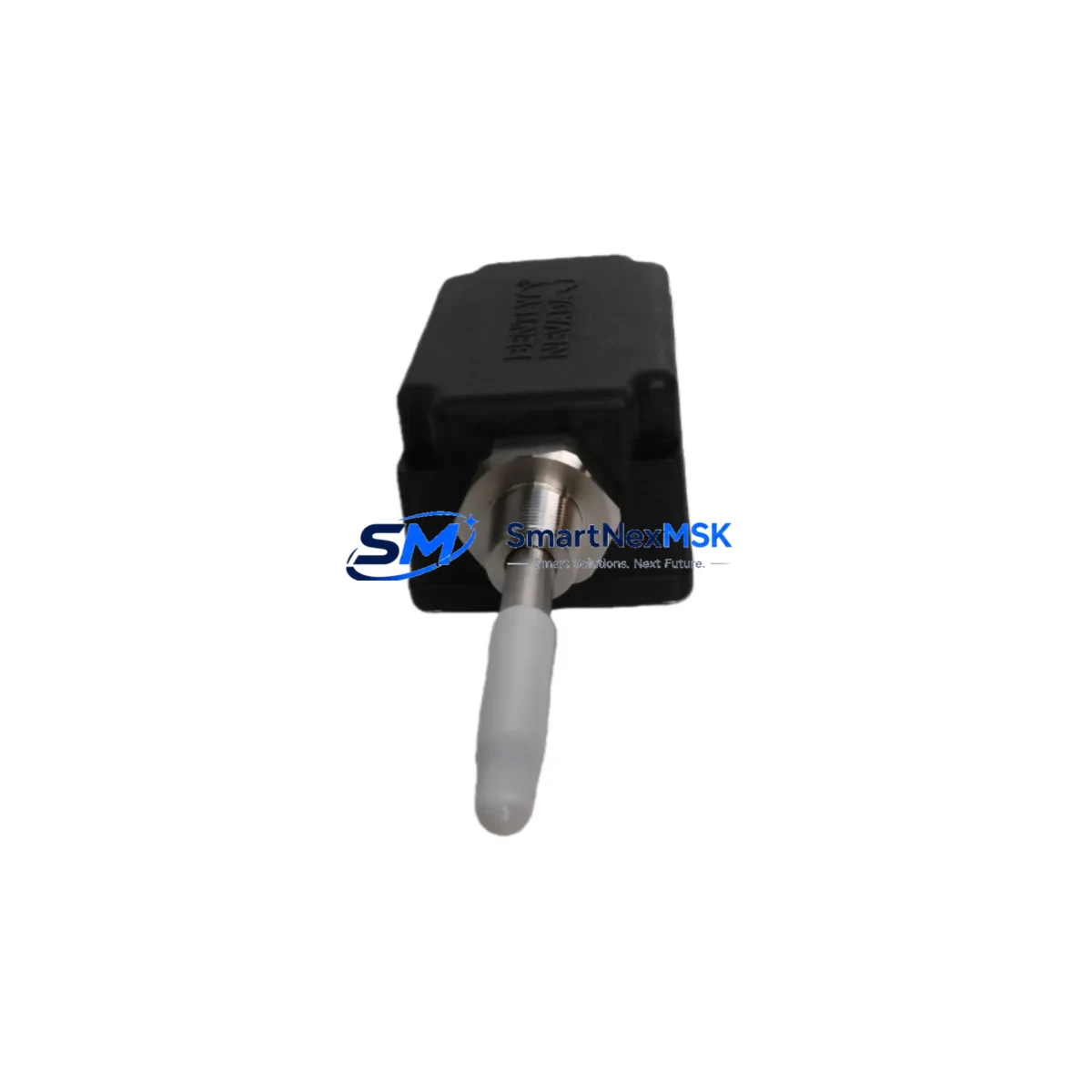

Bently Nevada 31000-29-05-15-033-03-02 Safety Probe

Bently Nevada 31000-29-05-15-033-03-02 Safety-Enhanced Proximity Probe for Harsh Industrial Sites

The Bently Nevada 31000-29-05-15-033-03-02 is a ruggedized proximity probe engineered for safety-critical vibration and position monitoring in the most demanding industrial environments. Designed as a core component of the Bently Nevada 3300 XL Proximity Transducer System, this probe delivers continuous, high-accuracy non-contact measurement of shaft radial vibration, axial position, and differential expansion — functions that are indispensable in protecting rotating machinery from catastrophic failure. Whether deployed in a petrochemical compressor train, a power generation turbine hall, or a metallurgical rolling mill, the 31000-29-05-15-033-03-02 provides the signal integrity and mechanical resilience that safety interlock systems demand.

In high-load, high-interference production environments, proximity probe reliability is not a convenience — it is a safety requirement. Signal drift, connector corrosion, cable shield degradation, or mechanical misalignment can trigger false trips or, worse, mask genuine machinery faults. The 31000-29-05-15-033-03-02 addresses these risks through its ruggedized housing construction, precision-wound coil assembly, and tight dimensional tolerances that ensure consistent gap voltage output across the full operating temperature range. When paired with the Bently Nevada 3300 XL Extension Cable and a calibrated 3300 XL Proximitor Sensor, the system maintains a linear output characteristic that safety logic solvers and DCS platforms can trust without recalibration drift over extended service intervals.

Safety Reliability Table

Control Cabinet Protection Strategy

In a well-engineered machinery protection cabinet, the 31000-29-05-15-033-03-02 probe is never an isolated component — it is the field-sensing front end of a layered protection architecture. The probe connects via a matched Bently Nevada 3300 XL Extension Cable (330130 series) to a 3300 XL Proximitor Sensor mounted inside the control enclosure. The Proximitor conditions the raw eddy-current signal into a calibrated DC voltage that feeds directly into a Bently Nevada 3500/42M Proximitor Monitor or equivalent rack-mounted monitor card. This monitor card interfaces with the plant’s DCS I/O module — typically a redundant analog input card — and simultaneously drives the safety logic solver for high-vibration trip and alarm functions.

Power supply stability is critical to probe system accuracy. Fluctuations on the –24 VDC Proximitor supply rail — often sourced from a Bently Nevada 3500/15 Power Supply Module — can introduce offset errors in the gap voltage output, leading to false alarms or missed fault detection. Installing a dedicated DC/DC isolation converter or a redundant power supply module upstream of the Proximitor supply bus significantly reduces this risk in environments with heavy motor-drive switching or welding interference.

For installations in classified hazardous areas (Zone 1 or Zone 2), the probe circuit must be routed through a certified Zener barrier or galvanic isolator to maintain intrinsic safety compliance. The signal cable should be run in a dedicated instrumentation cable tray, physically separated from power cables, and terminated with EMI-suppression ferrite cores at the cabinet entry point to prevent conducted interference from corrupting the vibration signal. Grounding the cable shield at a single point — typically at the Proximitor — prevents ground loop currents that are a common source of signal noise in large industrial facilities.

Where the 31000-29-05-15-033-03-02 is used in a critical interlock loop — for example, a high-high vibration trip that initiates an emergency shutdown sequence — the probe and its associated Proximitor should be treated as safety instrumented system (SIS) elements. This means periodic proof testing, documented calibration records, and spare probe availability. Maintaining a stocked spare of the 31000-29-05-15-033-03-02 alongside a spare 3300 XL Proximitor Sensor and a set of 330130 extension cables ensures that mean time to repair (MTTR) remains within acceptable SIL 2 loop targets.

Critical Industrial Safety Applications

Petrochemical and Refinery Compressor Trains: In centrifugal and reciprocating compressor applications, the 31000-29-05-15-033-03-02 monitors shaft radial vibration at both drive-end and non-drive-end bearing positions. Continuous vibration trending enables early detection of rotor imbalance, bearing wear, and surge events — all of which can escalate to catastrophic mechanical failure if undetected. The probe’s ruggedized housing withstands the hydrocarbon-laden, high-humidity atmospheres common in refinery compressor houses.

Power Generation Turbines: Steam and gas turbines operating at 3000 or 3600 RPM demand sub-micron measurement resolution for shaft eccentricity and differential expansion monitoring. The 31000-29-05-15-033-03-02, as part of the 3300 XL system, meets the API 670 standard requirements for turbine protection, providing the measurement accuracy needed to protect multi-million-dollar rotating assets and maintain grid stability.

Mining and Mineral Processing: Ball mills, SAG mills, and large slurry pumps in mining operations subject proximity probes to extreme vibration, dust ingress, and wide temperature swings. The ruggedized construction of the 31000-29-05-15-033-03-02 makes it suitable for these harsh conditions, where probe failure can halt an entire processing line and result in significant production losses.

Water and Wastewater Treatment: Large centrifugal pumps and blowers in water treatment facilities require reliable vibration monitoring to prevent unplanned outages that could compromise public health infrastructure. The 31000-29-05-15-033-03-02 provides the continuous monitoring capability needed for predictive maintenance programs in these critical utility applications.

Metallurgy and Steel Production: Rolling mills, continuous casters, and large induction furnace drives operate in environments with intense electromagnetic interference from high-current bus bars and variable-frequency drives. The shielded coaxial construction of the 31000-29-05-15-033-03-02 provides the EMI immunity needed to maintain signal integrity in these electrically hostile environments.

Port and Marine Terminal Equipment: Ship-to-shore cranes, bulk material handling conveyors, and large harbor tugboat propulsion systems increasingly use vibration monitoring for condition-based maintenance. The wide operating temperature range and ruggedized housing of the 31000-29-05-15-033-03-02 make it suitable for the salt-air, high-humidity conditions found in port environments.

Safety and Quality FAQ

Q1: What warranty coverage is provided for the 31000-29-05-15-033-03-02?
All units supplied by SMARTNEXMSK carry a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are supported with replacement or repair, and our technical team provides application guidance to assist with root-cause analysis if a field issue arises.

Q2: What pre-shipment testing is performed on each unit?
Every 31000-29-05-15-033-03-02 unit undergoes a full functional inspection prior to dispatch, including coil impedance verification, dimensional checks against OEM specifications, and visual inspection of the housing, cable, and connector. Units that do not meet acceptance criteria are quarantined and not shipped. A test report is available upon request.

Q3: Is this probe compatible with existing Bently Nevada 3300 XL Proximitor Sensors and monitors?
Yes. The 31000-29-05-15-033-03-02 is designed to be fully compatible with the Bently Nevada 3300 XL Proximitor Sensor family and the 3500 series rack monitors. It uses the standard 3300 XL coaxial connector interface and is calibrated to the 200 mV/mil sensitivity standard. No recalibration of the Proximitor or monitor is required when replacing a like-for-like probe in an existing installation.

Q4: Can long-term supply and replacement support be guaranteed?
SMARTNEXMSK maintains stock of the 31000-29-05-15-033-03-02 and related 3300 XL system components to support both planned maintenance programs and emergency replacement requirements. We supply to customers globally and can provide expedited shipping for critical plant situations. For customers with large installed bases, we recommend discussing a consignment stock or scheduled supply agreement to ensure parts availability aligns with your planned maintenance intervals.
