Bently Nevada 31000-30-05-40-014-03-02 Retrofit-Ready Proximity Probe Housing for 3300 XL

Bently Nevada 31000-30-05-40-014-03-02 Retrofit-Ready Proximity Probe Housing for 3300 XL Control Systems

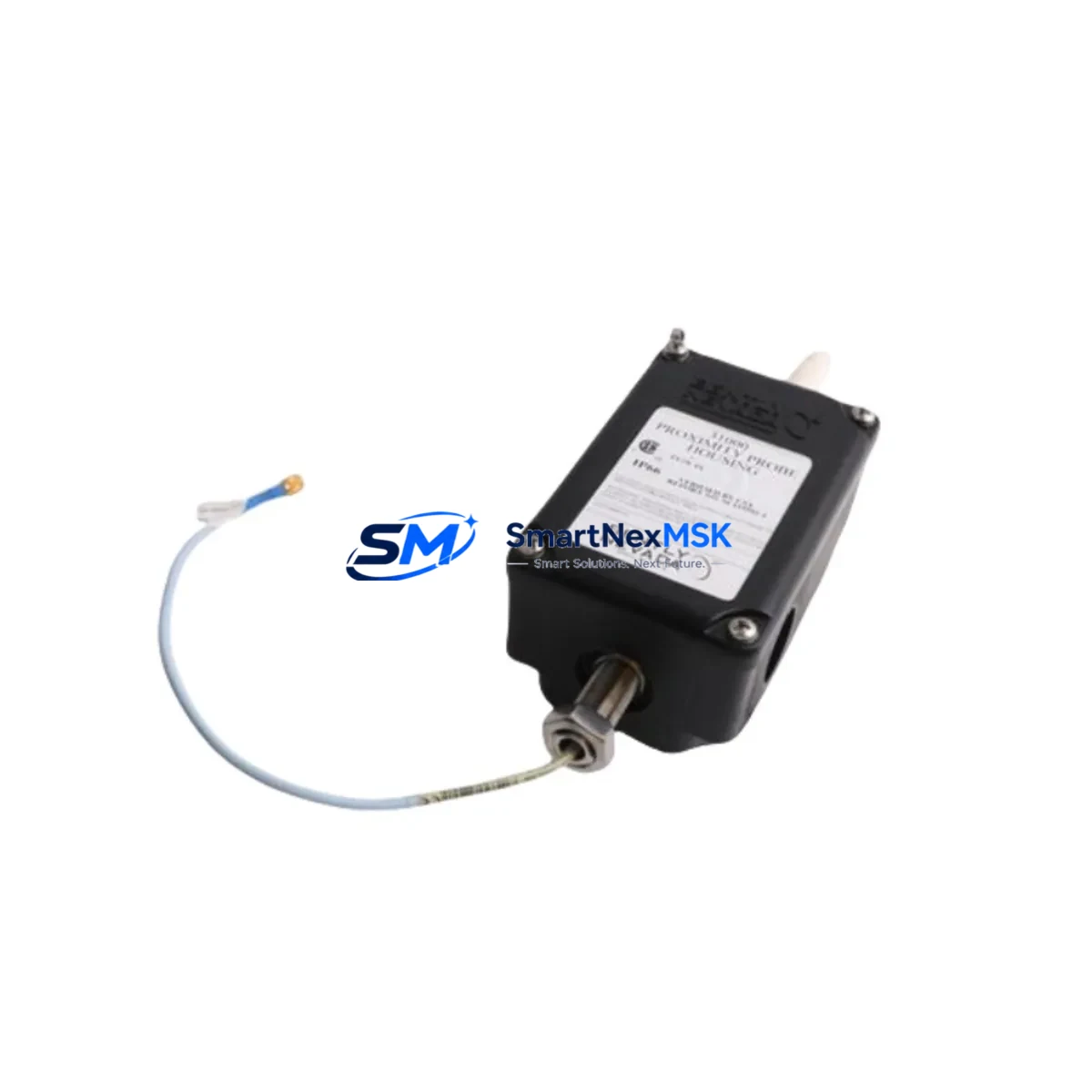

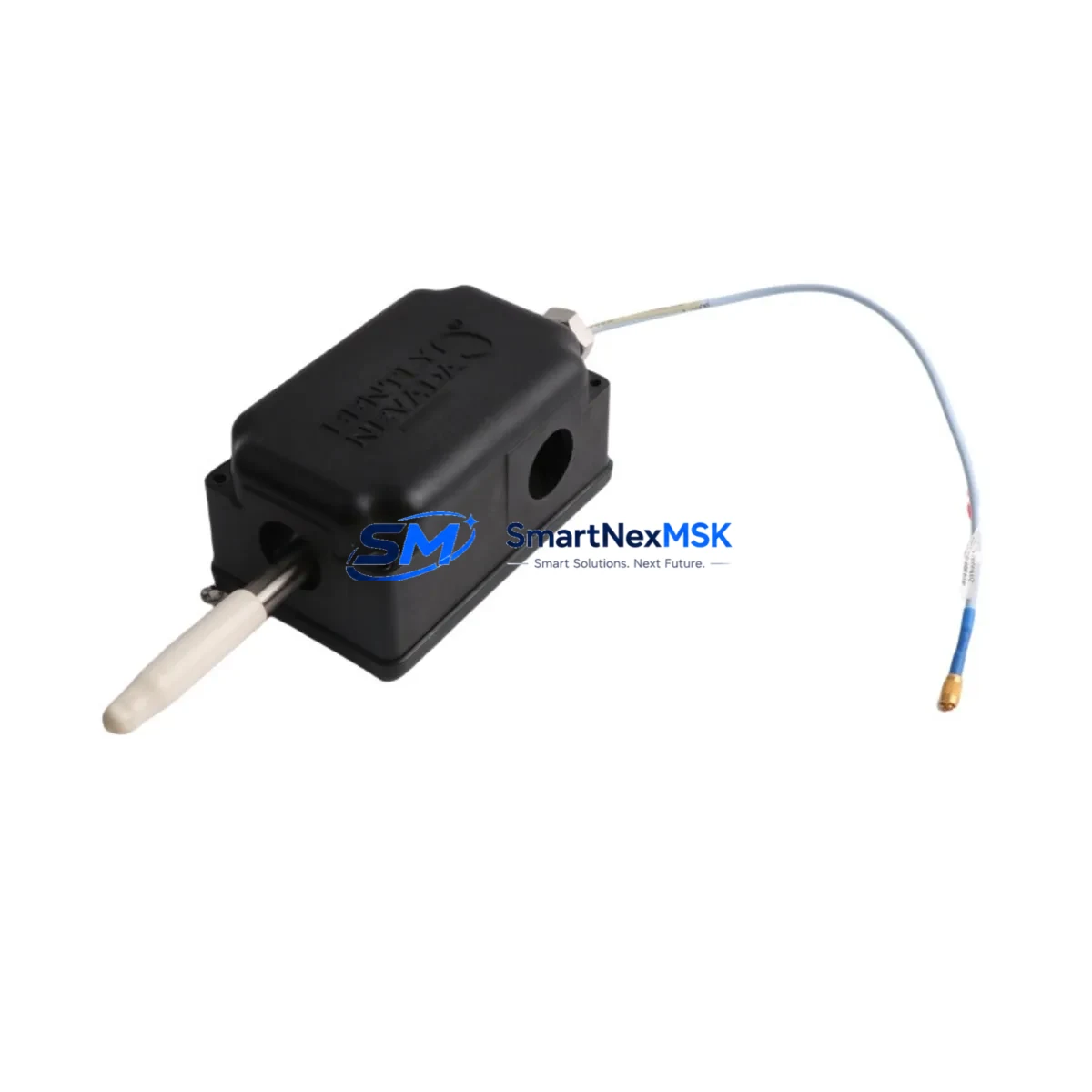

The Bently Nevada 31000-30-05-40-014-03-02 is a retrofit-ready proximity probe housing assembly engineered for seamless integration into existing 3300 XL Series vibration monitoring systems. As legacy Bently Nevada installations age and original components approach end-of-life, this housing assembly provides a verified drop-in replacement path that preserves signal integrity, maintains system calibration, and eliminates the need for full panel redesign. Whether you are managing a planned upgrade cycle or responding to an unplanned component failure, this part is stocked and ready for immediate dispatch with a 12-month warranty covering manufacturing defects and functional performance.

Industrial facilities running continuous rotating machinery — including turbines, compressors, pumps, and gearboxes — depend on the 3300 XL platform for real-time shaft displacement and vibration monitoring. The 31000-30-05-40-014-03-02 housing is compatible with the standard Bently Nevada 3300 XL proximitor/sensor signal conditioning chain, accepting the same probe tip geometry and maintaining the required 5 mm nominal gap range. Engineers replacing worn or damaged housings should verify the existing cable assembly, typically a 330130 or 330180 series extension cable, remains within specification before reuse. In most retrofit scenarios, the extension cable and proximitor — such as the 3300 XL 8 mm proximitor module — can be retained, reducing total replacement cost and commissioning time.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 31000-30-05-40-014-03-02 begins with a thorough audit of the existing monitoring loop. Technicians should document the current gap voltage reading at the proximitor output before disassembly — this baseline is critical for post-installation verification. The 3300 XL rack, which typically houses the 3300/16 or 3300/20 monitor cards alongside I/O terminal blocks, should be de-energized at the local panel disconnect before any probe housing work begins. Confirm that the 24 VDC power supply feeding the proximitor rail is within tolerance, as voltage sag can cause false gap readings after reinstallation.

In multi-channel monitoring cabinets, the probe housing replacement is often performed alongside related maintenance on the 3300 XL I/O module, the Keyphasor module (such as the 3300/55 Keyphasor monitor), and the associated barrier or isolator assemblies. Where the facility uses a System 1 condition monitoring software interface, the channel configuration — including probe scale factor, full-scale range, and alert/danger setpoints — must be backed up before any hardware swap. This ensures that the DCS or safety system receiving 4–20 mA vibration signals from the 3300 XL rack does not trigger spurious alarms during the replacement window.

For plants migrating from older 7200 Series or 3500 Series Bently Nevada platforms to the 3300 XL architecture, the 31000-30-05-40-014-03-02 housing is a key component in the probe-level upgrade path. The migration typically also involves replacing the 3500/42M Proximitor I/O module, updating the rack backplane wiring, and reconfiguring the Modbus or FOUNDATION Fieldbus communication links between the vibration monitoring rack and the plant DCS. HMI faceplate updates in the control room — particularly alarm group assignments and trend display tags — should be completed and tested in simulation mode before the physical cutover.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe housing replacement requires pre-staging all components before the maintenance window opens. The 31000-30-05-40-014-03-02 should be bench-tested against a reference proximitor and a calibrated target disk to confirm the gap-voltage curve matches the 3300 XL specification sheet before it enters the field. This pre-shipment functional test is part of our standard outgoing quality check, and test records are available upon request.

During the physical swap, the original program logic in the connected PLC or DCS — including the vibration trip interlock rungs and the OK relay output wiring from the 3300 XL monitor — must remain active on the redundant channel if the machine is running at reduced load. Where a hot-swap is not possible, coordinate with the operations team to schedule a controlled shutdown, capture the last-known gap voltage and vibration trend data from System 1 or the historian, and document the as-found condition before disassembly. After reinstallation, perform a full loop check: verify the OK relay closes, confirm the 4–20 mA output tracks correctly across the gap range, and validate that the DCS faceplate reflects live data before returning the machine to service.

Retrofit Support FAQ

Q1: Is the 31000-30-05-40-014-03-02 a direct replacement for the original Bently Nevada part?
A: Yes. This housing assembly is manufactured to the same dimensional and material specification as the original 3300 XL proximity probe housing. It is a direct mechanical replacement requiring no modification to the existing probe mount, extension cable, or proximitor wiring.

Q2: What commissioning steps are required after installation?
A: After mechanical installation, set the probe gap to the nominal 5 mm target using a non-conductive feeler gauge or the proximitor output voltage method. Verify the gap voltage reads within the linear range specified on the 3300 XL calibration curve (typically –10 VDC ±0.5 V at nominal gap). Confirm the OK relay output is active and that the monitor channel is not in a latched alert or danger state before returning to service.

Q3: Can this housing be used with Bently Nevada 3500 Series monitors?
A: The 31000-30-05-40-014-03-02 is optimized for the 3300 XL platform. Compatibility with 3500 Series monitors depends on the specific probe tip diameter and cable assembly in use. Contact our technical team with your 3500 Series monitor card part number for a confirmed cross-reference before ordering.

Q4: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects, dimensional non-conformance, and functional failure under normal operating conditions. It does not cover damage resulting from incorrect installation, over-torquing of the housing threads, or exposure to fluids outside the specified chemical compatibility range. Warranty claims are processed within 5 business days of receipt of the returned part.
