Bently Nevada 32000-16-05-08-130-03-02 3300 XL Spare Probe

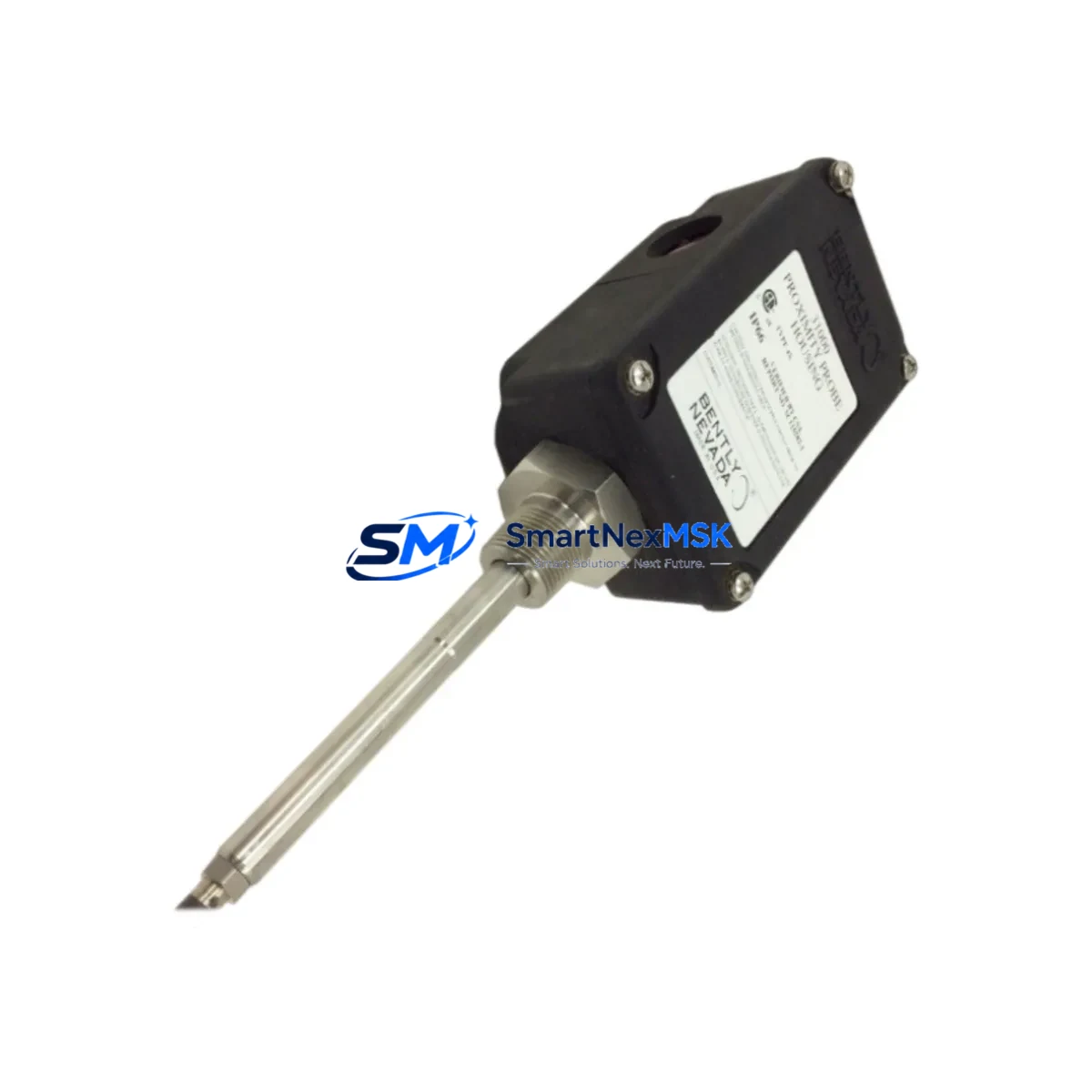

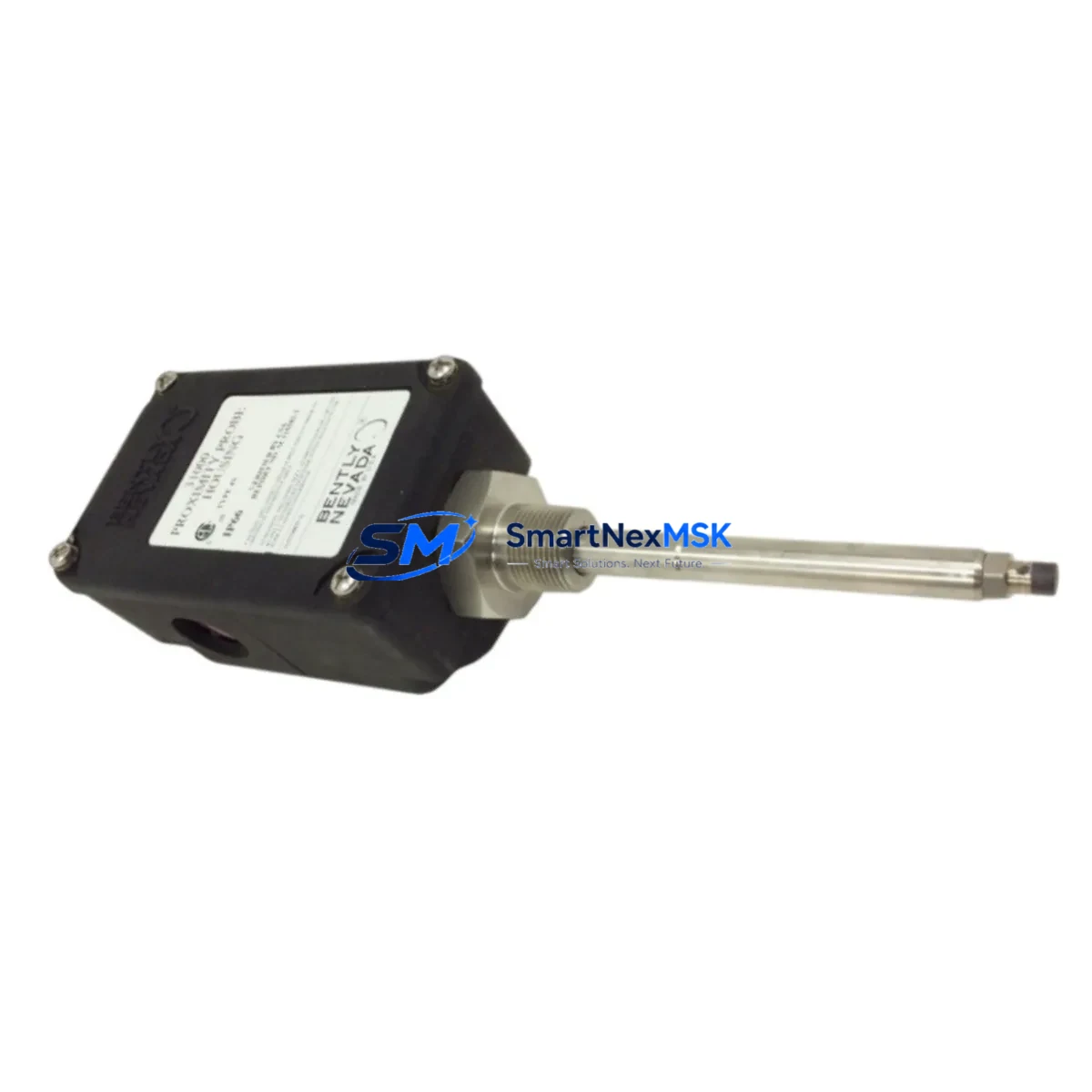

Bently Nevada 32000-16-05-08-130-03-02 3300 XL Spare Probe: Precision Replacement for Industrial Vibration Monitoring

The Bently Nevada 32000-16-05-08-130-03-02 is an original eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. Designed for shaft displacement and radial vibration measurement in rotating machinery, this probe is a critical spare for turbines, compressors, pumps, and gearboxes operating in oil & gas, power generation, petrochemical, and heavy industrial environments. Maintaining a verified stock of this probe directly reduces unplanned downtime risk and supports rapid fault isolation during scheduled or emergency maintenance windows.

As a genuine Bently Nevada component, the 32000-16-05-08-130-03-02 is manufactured to OEM specifications and is fully compatible with the 3300 XL monitor rack, including the 3300/16 and 3300/20 series monitor cards. Each unit is tested prior to shipment and backed by a 12-month warranty, ensuring confidence in both performance and long-term supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 32000-16-05-08-130-03-02 proximity probe during a planned outage or emergency shutdown, maintenance engineers should treat the replacement as an opportunity for a comprehensive vibration loop audit. The probe alone does not operate in isolation — it functions as part of a complete measurement chain that includes the 3300 XL extension cable (typically 5 or 9 metre lengths), the 3300 XL proximitor/oscillator (driver module), and the 3300/16 or 3300/20 monitor card seated in the rack. Any degradation in the extension cable’s shielding or connector integrity will corrupt the probe’s output signal even if the probe itself is new.

During the same maintenance window, technicians should inspect the 3300 XL power supply module supplying -24 VDC to the proximitor. Voltage drift or ripple at the power supply output is a common root cause of false vibration alarms and should be verified with a calibrated multimeter before the new probe is commissioned. If the control cabinet also houses a 3500 Series rack for complementary machinery protection, confirm that the I/O module firmware and trip setpoints remain consistent with the updated probe sensitivity.

For facilities running legacy turbine control systems, the proximity probe replacement is also an appropriate time to inspect terminal blocks and field wiring in the junction box. Corroded or loose terminations on the signal pair introduce noise that mimics mechanical imbalance. Alongside the probe, consider stocking the 3300 XL proximitor (driver) as a matched spare — mismatched probe-driver combinations are a frequent source of calibration errors after field replacement.

In DCS-integrated environments where the 3300 XL feeds vibration data to a Bently Nevada System 1 software node or a third-party historian, verify that the analog output scaling on the monitor card matches the new probe’s sensitivity coefficient. If the plant uses signal isolators or barriers between the monitor rack and the DCS analog input card, inspect the isolator for drift — these components age independently of the probe and are often overlooked during spare parts planning. Fuse holders and miniature circuit breakers protecting the -24 VDC supply rail should also be checked for contact resistance as part of the cabinet inspection cycle.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. Confirm the machine is at rest and the monitor channel is bypassed or inhibited to prevent spurious trips during probe removal.

Step 2 — Gap Measurement: Before removing the old probe, record the existing gap voltage (typically -10 to -12 VDC for a correctly gapped 8 mm probe). This baseline confirms whether the previous probe had drifted out of calibration.

Step 3 — Probe Removal: Unthread the probe from the bracket. Inspect the probe tip for mechanical damage, pitting, or contamination from shaft material. Inspect the extension cable connector for corrosion or bent pins.

Step 4 — New Probe Installation: Install the 32000-16-05-08-130-03-02 into the existing bracket. Set the air gap per the 3300 XL installation manual (typically 1.0–1.5 mm for an 8 mm tip). Reconnect the extension cable and verify connector seating.

Step 5 — Calibration Verification: Power the proximitor and confirm gap voltage is within the linear range. Compare the output against the monitor card’s configured scale factor. Adjust gap if necessary.

Step 6 — Functional Test: Remove the bypass/inhibit. Observe the vibration reading at low-speed roll-through or during startup. Confirm the reading is stable and within expected baseline values before returning the machine to full load.

This workflow is compatible with direct replacement of legacy Bently Nevada probe assemblies using the same 8 mm tip diameter and 3-pin connector standard, minimising system reconfiguration and reducing total downtime to under two hours for a prepared maintenance team.

Spare Parts Support FAQ

Q1: Is the 32000-16-05-08-130-03-02 a direct drop-in replacement for older 3300 XL probe assemblies?
Yes. The 32000-16-05-08-130-03-02 maintains the same 8 mm tip diameter, 3-pin MIL-spec connector, and 200 mV/mil sensitivity as the standard 3300 XL probe family. It is a direct mechanical and electrical replacement for earlier-revision assemblies with the same base part number, provided the extension cable and proximitor driver are also from the 3300 XL series. No monitor card reconfiguration is required in most installations.

Q2: How should this probe be stored as a long-term spare?
Store the probe in its original packaging or an anti-static, moisture-resistant bag in a temperature-controlled environment (0°C to 40°C, <85% RH non-condensing). Avoid storing near strong magnetic fields or solvents. Inspect the connector and cable termination annually. Properly stored, the probe maintains full calibration integrity for 3–5 years without re-verification.

Q3: What pre-shipment testing is performed on each unit?
Each 32000-16-05-08-130-03-02 unit is functionally tested prior to dispatch. Testing includes gap voltage linearity verification across the full measurement range, connector continuity check, and cable insulation resistance test. A test report is available upon request. All units ship with a 12-month warranty covering manufacturing defects and calibration drift beyond OEM tolerance.

Q4: Can this probe be used with a 3500 Series monitor rack?
The 32000-16-05-08-130-03-02 is designed and calibrated for the 3300 XL monitor system. While the physical connector may be compatible with certain 3500 Series configurations, the sensitivity coefficient and gap range are optimised for 3300 XL proximitor drivers. Using this probe with a 3500 Series rack requires recalibration of the monitor channel and is not recommended without consulting the 3500 Series installation manual and confirming compatibility with your Bently Nevada system integrator.
