Bently Nevada 32000-28-05-00-060-03-02 3300 XL Probe Retrofit

Bently Nevada 32000-28-05-00-060-03-02 3300 XL Probe Retrofit: Compatible Modernization for Legacy Vibration Monitoring Systems

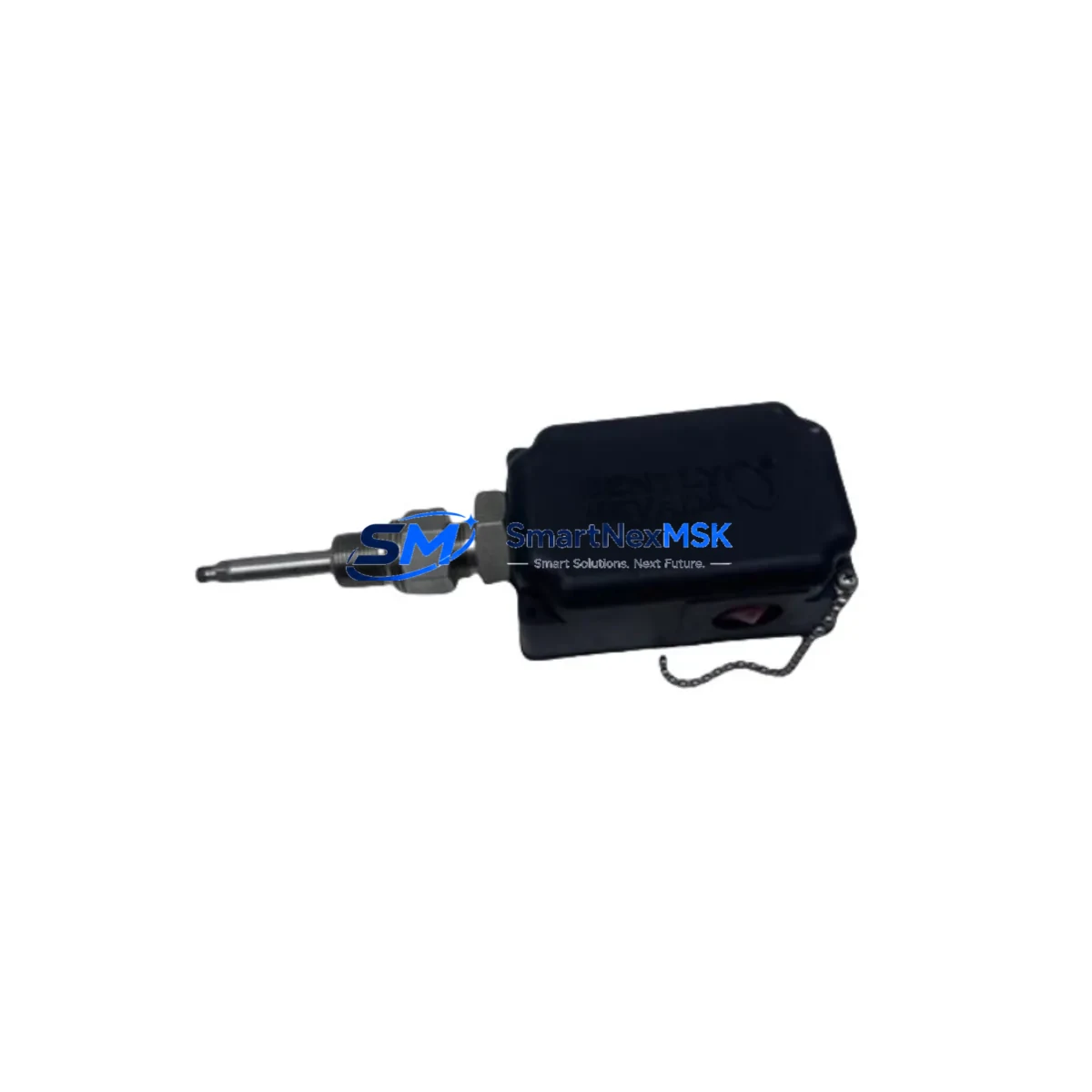

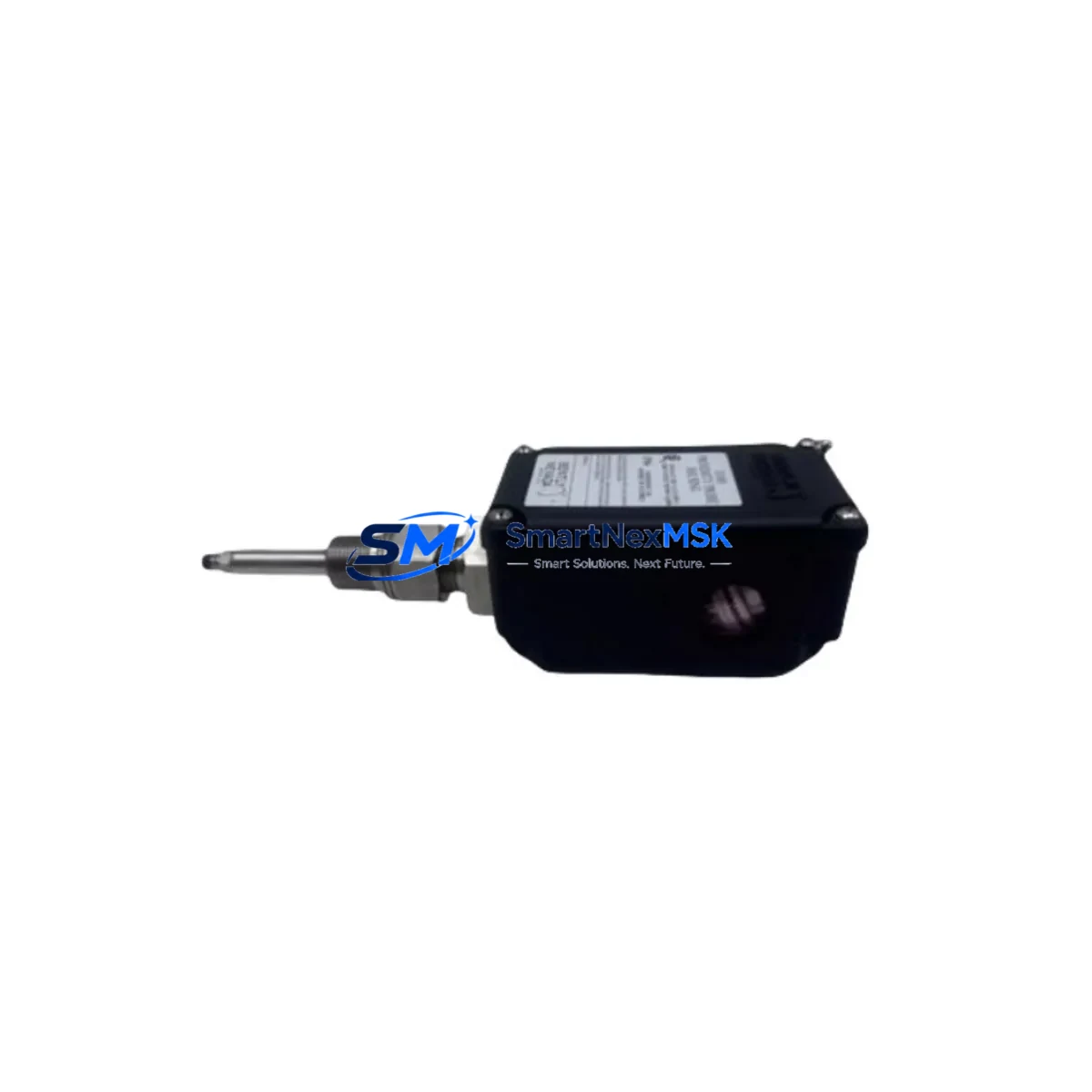

The Bently Nevada 32000-28-05-00-060-03-02 is a proximity probe housing assembly engineered for the 3300 XL series continuous vibration monitoring platform. As legacy installations age and original components reach end-of-life, this unit serves as a retrofit-ready replacement that preserves existing wiring infrastructure, maintains signal chain integrity, and eliminates the need for full-system overhauls. For plant engineers managing rotating machinery protection on turbines, compressors, pumps, and gearboxes, this probe assembly provides a validated drop-in path that minimizes engineering rework and keeps critical assets online.

The 3300 XL platform remains one of the most widely deployed vibration monitoring architectures in the oil and gas, power generation, and petrochemical industries. Many facilities continue to operate racks populated with 3300 XL monitors, proximitors, and I/O modules that were installed in the 1990s and early 2000s. When a probe housing fails or a spare is no longer available through the original channel, sourcing a compatible replacement becomes a critical path item. The 32000-28-05-00-060-03-02 addresses this need directly, offering a verified substitute that matches the original mechanical dimensions, connector pinout, and cable length specification.

Before installation, engineers should confirm power supply capacity at the proximitor driver — typically the 3300 XL Proximitor/Seismic Monitor or a dedicated 3300/16 I/O module — to ensure the eddy-current driver circuit can support the probe’s nominal gap voltage range of −10 VDC to −18 VDC. Terminal block wiring should be verified against the original loop drawing, paying particular attention to the shield drain wire routing and the barrier ground reference when installed in hazardous area classifications. Backplane slot addressing must be confirmed in the System 1 configuration database to avoid channel mapping conflicts, especially in racks that mix radial vibration, axial position, and speed channels across multiple 3300 XL Monitor modules.

Program compatibility is a key consideration during any probe swap. The System 1 Evolution software retains historical trend data and alarm setpoints tied to the physical channel address. After replacing the probe, a static calibration check — measuring gap voltage at the known mechanical clearance — should be performed and logged before returning the machine to service. If the facility uses a Bently Nevada 3500 rack in parallel for overspeed or redundant protection, the channel configuration in the 3500/42M Proximitor I/O Module should also be reviewed to confirm that the new probe’s sensitivity factor (typically 7.87 V/mm or 200 mV/mil) matches the programmed transducer scale factor.

For facilities transitioning from the 3300 XL architecture toward the newer 3500 series platform, the 32000-28-05-00-060-03-02 can serve as an interim solution while the full migration is planned. The probe’s standard TNC connector and Bently Nevada armored extension cable — commonly the 330130 series — remain compatible with both platform generations, allowing the field-side installation to remain unchanged while the rack-side electronics are upgraded in phases. This phased approach is particularly valuable in continuous-process plants where full shutdown windows are limited to scheduled turnarounds.

During system migration projects, it is common to encounter associated components that also require attention. The 3300 XL Proximitor driver, the 3300/16 I/O module, the 3300/55 Keyphasor module, and the 3300/93 Power Supply are frequently replaced as a coordinated set to ensure the entire signal chain is refreshed. HMI screens built in FixDMCS, Wonderware InTouch, or Emerson DeltaV that display vibration trend data from these channels may require tag remapping if the channel address changes during the rack reconfiguration. Communication links using Modbus RTU or OPC DA to the plant DCS should be tested after any rack-level change to confirm that the vibration data is being correctly polled and displayed at the control room level.

Field installation of the 32000-28-05-00-060-03-02 follows the standard Bently Nevada proximity probe mounting procedure: thread the probe into the housing until the tip is at the recommended gap from the shaft surface (typically 1.0 mm to 1.5 mm for a 25 mm probe), lock the jam nut, route the extension cable through the conduit, and terminate at the proximitor junction box. The gap voltage should be measured with a calibrated digital voltmeter before the machine is started. A gap voltage outside the linear range indicates either a probe installation error or a shaft material incompatibility that must be resolved before commissioning.

Every unit shipped by SMARTNEXMSK undergoes a pre-shipment functional test that verifies connector continuity, insulation resistance, and dimensional conformance to the original Bently Nevada specification. Units are supplied with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Inventory is maintained in Xiamen and can be dispatched within 1–3 business days for standard orders, with expedited options available for urgent plant maintenance requirements.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins with a complete audit of the existing rack configuration. In a typical 3300 XL installation, the rack may contain a mix of the 3300/16 Proximitor I/O Module, the 3300/55 Keyphasor Module for phase reference, the 3300/93 Power Supply, and one or more 3300 XL Monitor modules handling radial vibration, axial position, and differential expansion channels. Each of these components has its own firmware revision and calibration state that must be documented before any field work begins.

When the 32000-28-05-00-060-03-02 probe is being installed as part of a broader control cabinet upgrade, it is common to simultaneously address the 3300/93 Power Supply if it is showing signs of capacitor aging or output voltage drift. A degraded power supply can cause intermittent proximitor faults that are misdiagnosed as probe failures, so replacing both components in the same maintenance window eliminates ambiguity. Similarly, if the facility is upgrading the HMI from an older FixDMCS workstation to a modern Emerson Ovation or Honeywell Experion PKS node, the vibration channel tags should be remapped and tested as part of the same project scope.

For plants that are also migrating their PLC-based safety interlock logic — for example, moving from a legacy Allen-Bradley SLC 500 or PLC-5 platform to a ControlLogix or GuardLogix safety controller — the vibration trip signals from the 3300 XL rack are often hardwired into the safety I/O. These wiring connections must be traced, documented, and re-terminated carefully to avoid introducing nuisance trips or, more critically, undetected bypasses of the vibration protection logic. Programming cables such as the 1784-U2DHP USB-to-DH+ adapter may be needed to access legacy PLC programs during the transition.

I/O expansion during a retrofit is another common requirement. If the upgraded system needs to monitor additional measurement points — for example, adding bearing temperature channels alongside the existing vibration channels — a 3500/42M Proximitor I/O Module or a supplementary 3500/60 HVAC Monitor can be added to the rack without disturbing the existing probe wiring. The modular architecture of both the 3300 XL and 3500 platforms supports this kind of incremental expansion, which is one of the reasons these platforms remain the preferred choice for long-term asset protection strategies in rotating machinery applications.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational constraint in any probe replacement or system migration project. The recommended approach is to pre-stage all replacement components — including the 32000-28-05-00-060-03-02 probe assembly, the armored extension cable, and any associated proximitor or I/O module — and perform a bench-level functional test before the maintenance window opens. This confirms that the replacement unit is operational and eliminates the risk of discovering a defective spare after the machine has already been taken offline.

During the maintenance window, the original probe should be removed and the replacement installed without disturbing the conduit routing or the junction box terminations where possible. If the extension cable must also be replaced, the new cable should be pre-cut to the same length as the original to avoid introducing additional signal attenuation. After installation, the gap voltage should be measured and recorded before the machine is restarted. If the gap voltage is within the specified linear range, the channel can be returned to service immediately without requiring a full system recalibration.

To protect the original control program logic during the migration, a full backup of the System 1 configuration database should be taken before any rack-level changes are made. This backup preserves all alarm setpoints, transducer scale factors, channel descriptions, and historical trend data. If the migration involves a rack replacement or a platform upgrade from 3300 XL to 3500 series, the System 1 configuration can be exported and used as the reference document for rebuilding the new rack configuration, significantly reducing the engineering time required and ensuring that the protection logic is faithfully reproduced in the new system.

Field control continuity during the migration can be maintained by using a temporary bypass strategy: if the plant safety management system permits, the vibration channel can be placed in bypass mode in the safety interlock logic while the probe is being replaced, with the bypass logged and time-limited in accordance with the facility’s management of change procedure. This approach allows the machine to remain in service on adjacent protection channels while the affected channel is being serviced, reducing the total downtime to the minimum required for the physical probe swap and gap setting.

Retrofit Support FAQ

Q1: Is the 32000-28-05-00-060-03-02 a direct drop-in replacement for the original Bently Nevada part?
Yes. This unit is manufactured to match the original Bently Nevada 32000-28-05-00-060-03-02 specification in terms of mechanical dimensions, connector type, cable interface, and electrical characteristics. It is intended as a direct substitute for the original part in 3300 XL installations. As with any probe replacement, a static gap voltage check should be performed after installation to confirm correct positioning before the machine is returned to service.

Q2: What wiring checks are required before installing this probe in an existing 3300 XL rack?
Verify the shield drain wire routing and confirm that the barrier ground reference is correctly established, particularly in hazardous area installations. Check the terminal block assignments against the original loop drawing to ensure the probe, extension cable, and proximitor driver are connected in the correct sequence. Confirm that the power supply output voltage at the proximitor is within the specified range before energizing the new probe.

Q3: Can this probe be used during a phased migration from the 3300 XL platform to the 3500 series?
Yes. The 32000-28-05-00-060-03-02 probe and its associated 330130 series armored extension cable are compatible with both the 3300 XL and 3500 series proximitor drivers. This makes the probe suitable for use as an interim solution during a phased rack migration, where the field-side installation remains unchanged while the rack electronics are upgraded in stages. Confirm the transducer scale factor setting in the 3500 rack configuration matches the probe’s 7.87 V/mm sensitivity specification.

Q4: What does the 12-month warranty cover, and what is the pre-shipment testing process?
Every unit undergoes pre-shipment testing covering connector continuity, insulation resistance, and dimensional conformance before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Units that fail within the warranty period will be replaced or refunded. Contact sales@smartnexmsk.com with the order reference and a description of the failure mode to initiate a warranty claim.
