Bently Nevada 32000-28-05-00-120-03-02 Retrofit Probe | 3300 XL: Compatible Upgrade for Legacy Vibration Monitoring Systems

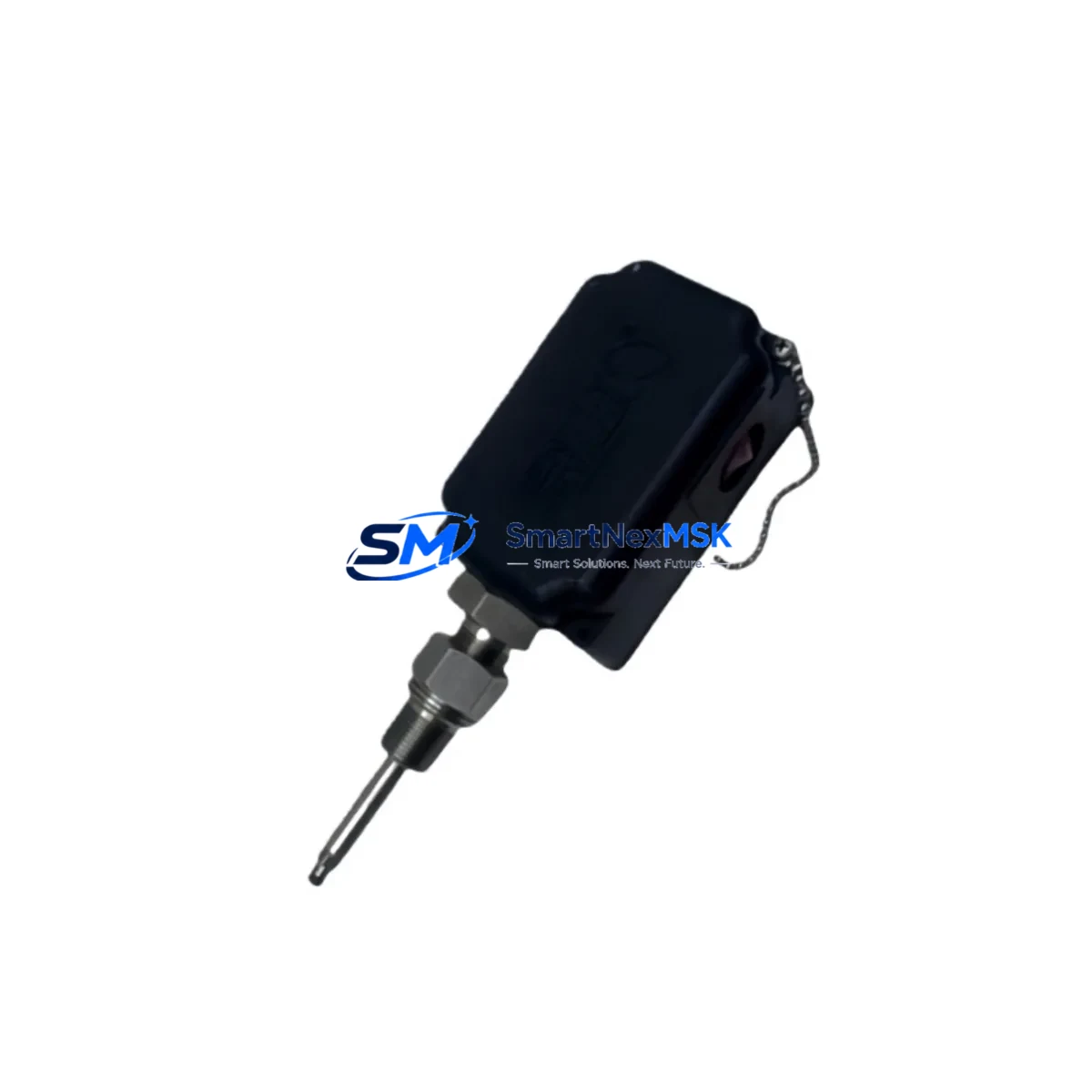

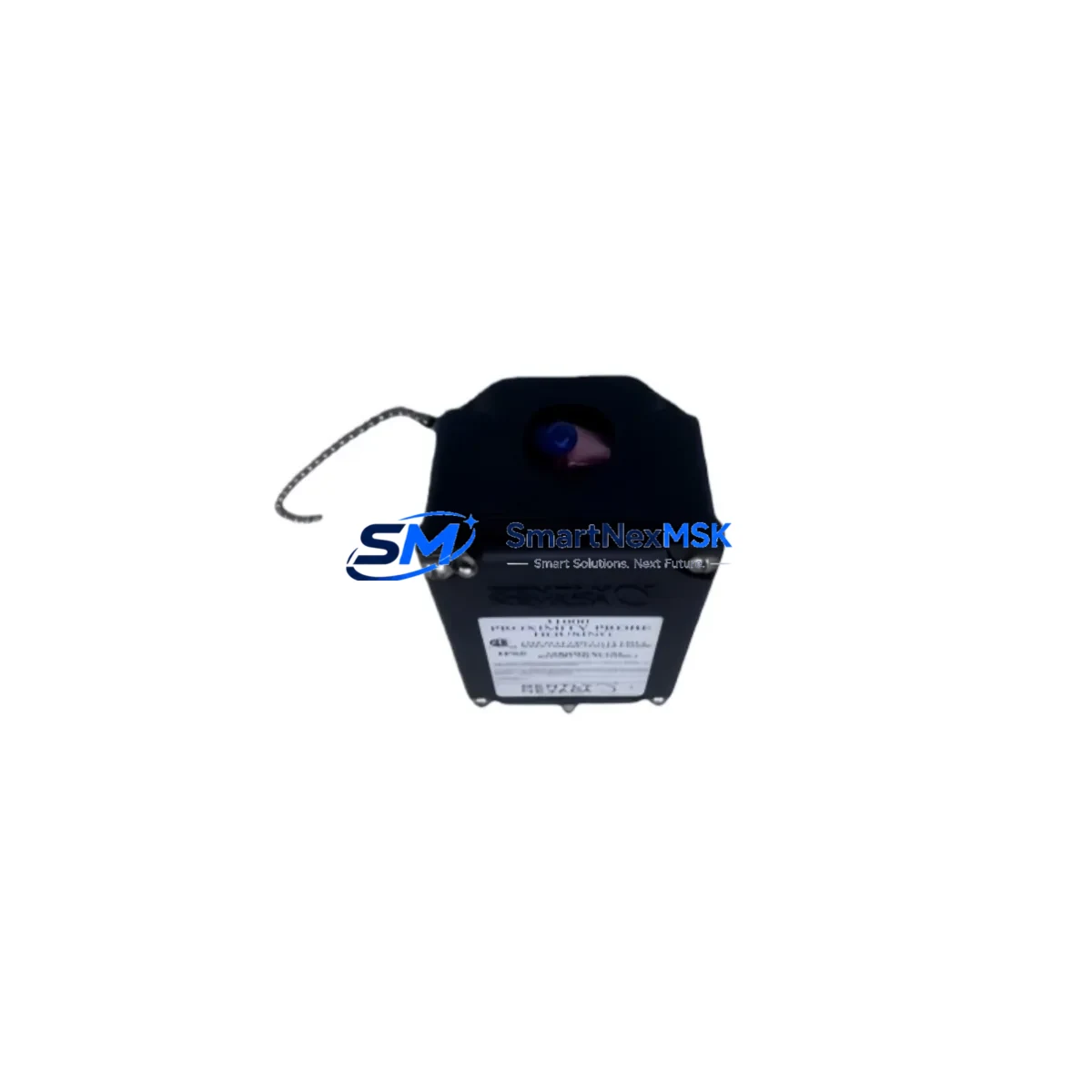

The Bently Nevada 32000-28-05-00-120-03-02 is a precision proximity probe housing assembly engineered for the 3300 XL Series vibration monitoring platform. As industrial facilities face increasing pressure to extend the operational life of legacy machinery protection systems, this component serves as a critical retrofit solution — enabling engineers to replace worn, damaged, or discontinued probe assemblies without requiring a full system overhaul. Whether you are managing a turbine protection panel, a compressor monitoring rack, or a rotating equipment control cabinet, this probe housing delivers the dimensional accuracy, signal integrity, and installation compatibility required for seamless integration into existing 3300 XL field wiring and monitor configurations.

Sourced from verified supply channels and subject to pre-shipment functional testing, each unit is backed by a 12-month warranty covering manufacturing defects and performance deviations. Fast dispatch and documented traceability make this component suitable for both planned maintenance windows and emergency replacement scenarios where minimizing downtime is paramount.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing a proximity probe assembly in a live 3300 XL installation requires careful coordination across multiple system layers. The 32000-28-05-00-120-03-02 interfaces directly with the proximitor module — typically a 3300/16 or 3300/20 proximitor — which converts the eddy-current signal into a voltage proportional to shaft displacement. Before removing the existing probe, engineers should document the current gap voltage (typically –10 VDC at the calibrated gap) and record the OK relay status to establish a baseline for post-installation verification.

Extension cable integrity is a frequently overlooked factor in retrofit projects. The 3300 XL system uses matched probe-and-cable sets, and substituting an unmatched extension cable — even one of the correct length — can introduce sensitivity errors that shift vibration alarm thresholds. Confirm that the existing 3300 XL extension cable (such as a 330130 series cable) is within specification before reusing it with the new probe housing. If the cable shows signs of jacket damage, connector corrosion, or impedance drift, replacement of the full probe-cable-proximitor set should be considered.

At the rack level, the 3300 XL monitor cards — including the 3300/15 RAM, 3300/25 dual-channel monitor, or 3300/46 position monitor — must be verified for firmware compatibility and channel configuration. If the retrofit is part of a broader control cabinet upgrade that also involves replacing a 3500 Series rack or migrating from a legacy 7200 Series system, the I/O mapping, channel address assignments, and DCS tag references will all require review. In multi-rack installations, the 3300 XL rack interface module and power supply modules (such as the 3300/05 power supply) should be inspected for output voltage stability, as degraded power supply performance can mask genuine probe signal anomalies.

For facilities integrating the 3300 XL into a broader DCS or safety instrumented system, the 4–20 mA output from the proximitor or the relay contacts from the monitor card may feed into a Rockwell Automation ControlLogix or Allen-Bradley PLC-5 I/O module, or into a Honeywell or Emerson DeltaV safety logic solver. Confirming that the analog input scaling and alarm setpoints in the receiving controller match the probe’s calibrated sensitivity is essential before returning the machine to service. HMI faceplate updates — particularly on systems running Wonderware InTouch or GE iFIX — should reflect any tag renaming or channel reassignment performed during the retrofit.

Where the retrofit involves migrating from an older 7200 Series proximity system to the 3300 XL platform, engineers should also account for differences in proximitor supply voltage (–24 VDC for 3300 XL vs. –18 VDC for some 7200 configurations) and ensure that the field junction box wiring is updated accordingly. Programming cable access to the 3300 XL monitor for setpoint changes typically requires a Bently Nevada 3300/93 communication gateway or direct RS-232 connection, depending on the monitor card generation.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement begins with pre-staging. Before the maintenance window opens, verify that the 32000-28-05-00-120-03-02 unit has passed pre-shipment testing and that all ancillary materials — thread sealant, torque specifications, calibration tools, and a calibrated gap-setting fixture — are on hand. Where the machine protection system permits, configure the 3300 XL monitor card to bypass the affected channel’s trip relay during the swap, preventing a spurious shutdown while the probe is disconnected.

If the installation is on a critical rotating machine where even a brief loss of vibration monitoring is unacceptable, consider a hot-standby approach: install the new probe in a spare bracket position, verify gap voltage and signal quality, then switch the monitor channel input before removing the old probe. This technique is particularly effective on large turbine-generator sets where the 3300 XL rack monitors multiple radial and axial positions simultaneously.

After installation, perform a full channel verification sequence: confirm gap voltage at the proximitor terminal, check the OK relay state, verify that the vibration reading on the 3300 XL monitor card matches the expected baseline for the machine’s normal operating condition, and confirm that the DCS or safety system is receiving the correct analog signal. Document all as-found and as-left values in the maintenance management system before closing the work order. This record supports future troubleshooting and demonstrates compliance with machinery protection standards such as API 670.

Retrofit Support FAQ

Q1: Is the 32000-28-05-00-120-03-02 a direct replacement for the original Bently Nevada part, or are there wiring modifications required?
A: This unit is a direct form-fit-function replacement for the same SKU within the 3300 XL system. No wiring modifications are required at the probe or extension cable connector. However, always verify the gap voltage after installation using the proximitor’s test point, as minor mechanical tolerances between individual probe housings may require a small gap adjustment to restore the calibrated –10 VDC reading.

Q2: What commissioning steps are required after installing this probe in a 3300 XL rack?
A: After mechanical installation, set the probe gap to the manufacturer’s specified distance using a non-conductive feeler gauge or a calibrated gap-setting tool. Measure the gap voltage at the proximitor terminal strip and adjust the probe position until the reading falls within the specified range. Verify the OK relay is energized, confirm the vibration reading on the monitor card is stable and consistent with the machine’s baseline, and check that all DCS and HMI alarm setpoints are active and correctly scaled.

Q3: Can this probe housing be used in a system that is being migrated from the Bently Nevada 7200 Series to the 3300 XL platform?
A: Yes, but the migration requires attention to supply voltage differences and sensitivity matching. The 3300 XL proximitor operates at –24 VDC, while some 7200 Series proximitors used –18 VDC. Ensure the field wiring and junction box are updated to the correct supply voltage before connecting the new probe. Sensitivity (mV/mil or mV/µm) should also be confirmed to match the 3300 XL monitor card’s configured scale factor.

Q4: What does the 12-month warranty cover, and what is the process for a warranty claim?
A: The 12-month warranty covers manufacturing defects, out-of-specification electrical performance, and physical defects present at the time of shipment. It does not cover damage resulting from incorrect installation, overvoltage, mechanical impact, or use outside the specified environmental ratings. To initiate a warranty claim, contact our sales team with the order reference, installation date, and a description of the observed fault. Units are subject to inspection upon return, and confirmed warranty cases are resolved by replacement or credit.
