Bently Nevada 32000-28-05-08-080-03-02 Spare for 3300 XL Automation

Bently Nevada 32000-28-05-08-080-03-02 Spare for 3300 XL Automation

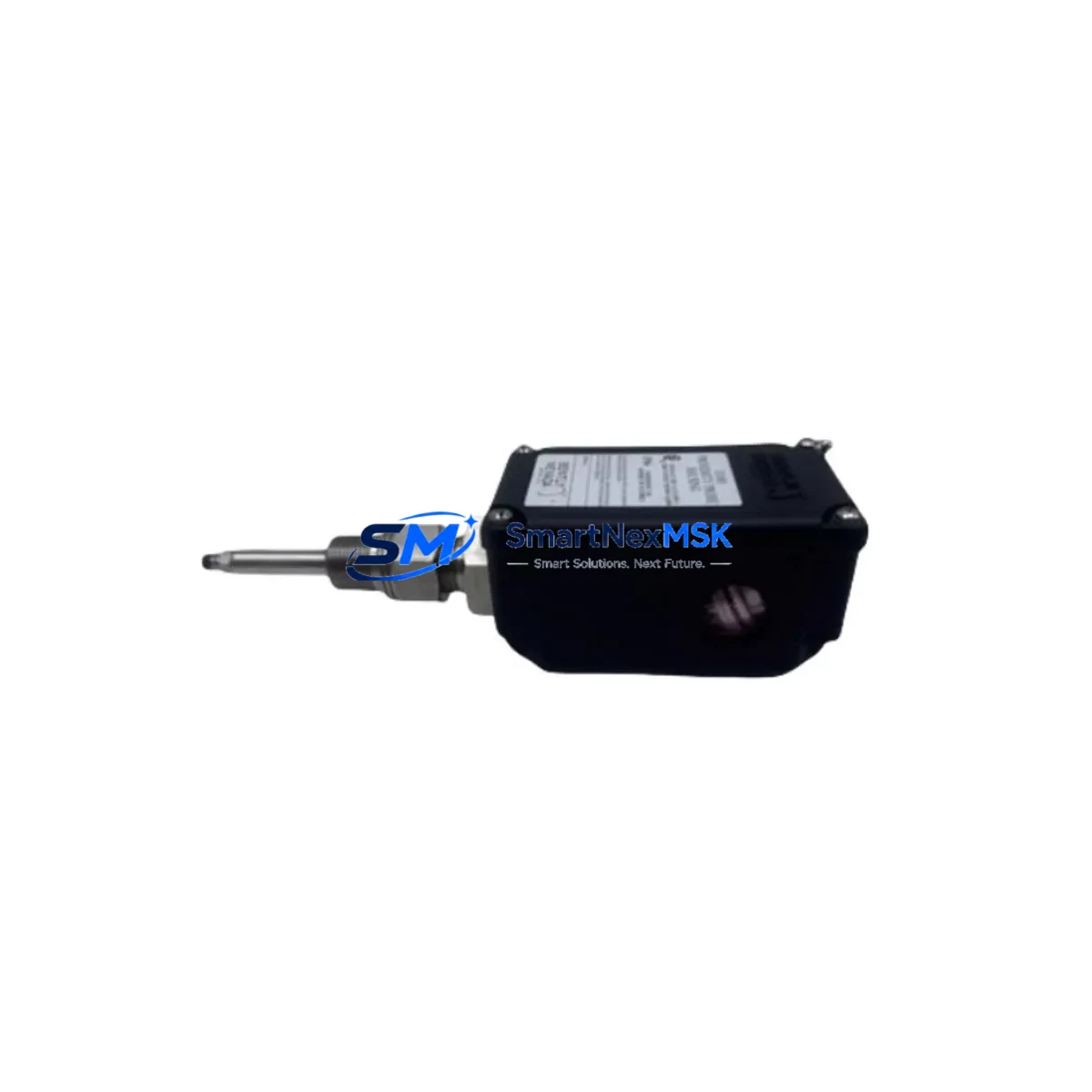

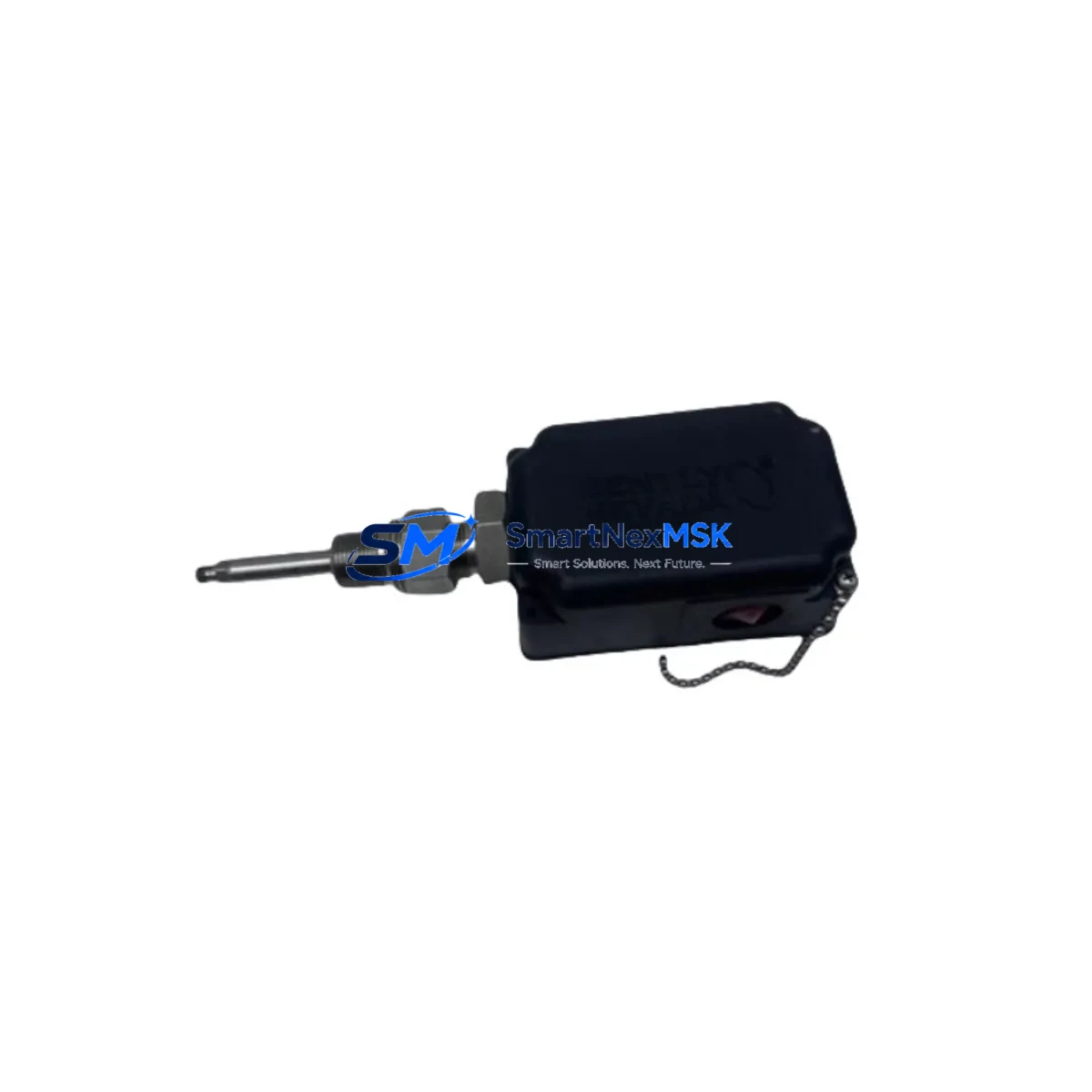

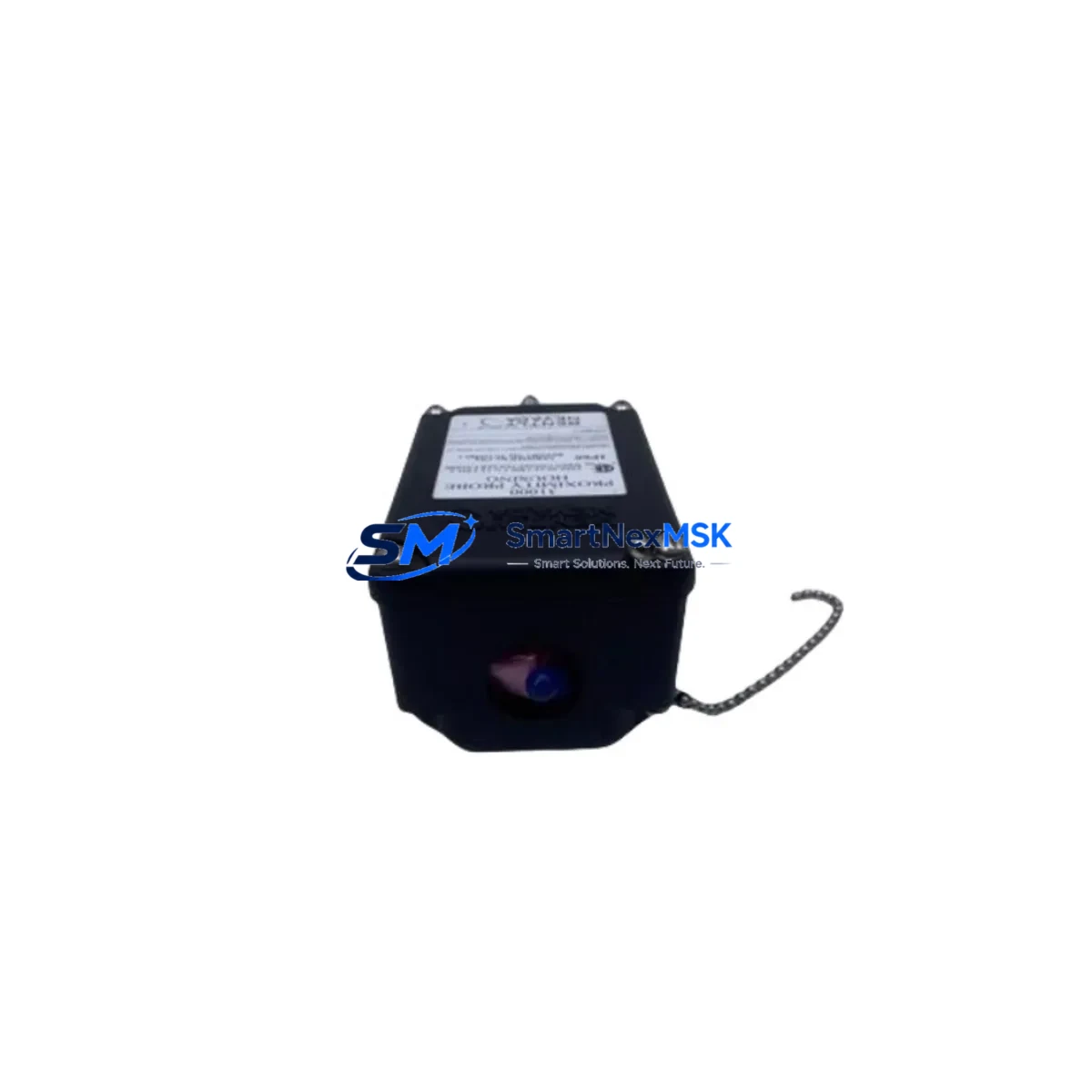

The Bently Nevada 32000-28-05-08-080-03-02 is an original proximity probe assembly engineered for the 3300 XL series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications worldwide. For maintenance engineers managing turbines, compressors, pumps, and gearboxes, this probe is a critical front-line sensor whose failure directly triggers unplanned shutdowns and costly downtime events. Holding a verified spare in your maintenance inventory is not optional — it is a fundamental requirement of any serious predictive maintenance or reliability-centered maintenance (RCM) program.

This unit ships as a tested, original-specification component with full dimensional and electrical verification prior to dispatch. Each assembly is inspected against Bently Nevada factory parameters to ensure drop-in compatibility with existing 3300 XL monitor racks, extension cables, and proximitor/driver modules. Whether you are executing a planned turnaround, responding to a vibration alarm, or replacing a probe damaged during routine inspection, this spare delivers the confidence of a known-good, specification-matched component.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 32000-28-05-08-080-03-02 probe is flagged for replacement — whether due to a gap voltage drift alarm, physical damage, or scheduled interval replacement — experienced maintenance engineers know that the probe itself is rarely the only component requiring attention. A thorough site inspection should encompass the complete signal chain and associated control cabinet components to prevent repeat failures and ensure the vibration monitoring loop is fully restored.

Begin with the 3300 XL extension cable (typically 5 m or 9 m armored coaxial), which connects the probe to the proximitor module. Extension cables are subject to mechanical fatigue, connector corrosion, and insulation breakdown in high-temperature or high-vibration environments — replace or test continuity and insulation resistance before reinstalling. The 3300 XL proximitor/driver module (such as the 3300/05 or 3300/16 proximitor) should be verified for correct bias voltage output (typically -18 VDC) and sensitivity calibration; a drifting proximitor will produce erroneous readings even with a new probe installed.

Inspect the 24 VDC power supply module feeding the monitor rack — voltage ripple or sag under load can introduce noise into proximity measurements and trigger nuisance alarms. Check the terminal blocks and field wiring terminations within the junction box and control cabinet for corrosion, loose connections, or moisture ingress, particularly in outdoor or coastal installations. If the system includes a Keyphasor® module (e.g., 3300/25 or 3300/55), verify its gap and signal output simultaneously, as Keyphasor faults can mask or corrupt vibration vector data.

For systems integrated with a Bently Nevada 3500 series rack or a DCS/PLC safety layer, confirm that the 4–20 mA output signal isolator or signal conditioner downstream of the monitor is functioning correctly — a failed isolator can cause the DCS to read a flat or saturated vibration signal, masking real machinery changes. Review the relay output module (alert and danger relay cards) for contact integrity, and test trip logic under simulated alarm conditions before returning the machine to service.

Where the 3300 XL system feeds into a System 1 Evolution or third-party condition monitoring platform via Modbus or Ethernet, verify communication module status and data polling integrity after probe replacement. Finally, update your spare parts register to reflect the consumed probe and schedule replenishment — maintaining at least one verified spare per critical machine train is the minimum standard for any ISO 55001-aligned asset management program.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a valid work permit and confirm the machine is in a safe, isolated state. Do not replace proximity probes on rotating equipment under power.

Step 2 — Document existing gap: Record the installed gap voltage of the outgoing probe using a calibrated voltmeter at the proximitor output terminals. This baseline confirms the target shaft surface condition and bracket position before removal.

Step 3 — Remove outgoing probe: Unscrew the probe from the mounting bracket using the correct spanner. Inspect the bracket threads and locking nut for wear or corrosion. Clean the mounting bore and verify concentricity.

Step 4 — Install 32000-28-05-08-080-03-02: Thread the new probe to the bracket, set the gap to the system-specified nominal (typically 1.0–1.5 mm / 40–60 mil for 8 mm probes on steel targets), and lock with the jam nut. Reconnect the extension cable and verify connector seating.

Step 5 — Verify gap voltage: With the proximitor powered, measure the DC bias voltage at the monitor input. Confirm it falls within the linear range (typically -10 to -18 VDC). Adjust gap if required.

Step 6 — Functional check: Confirm the monitor channel displays a valid vibration reading (near zero on a stationary shaft). Clear any latched alarms and verify relay outputs are in the correct state before releasing the machine for restart.

Step 7 — Documentation: Record the replacement in the maintenance management system (CMMS), update the spare parts inventory, and log the as-found and as-left gap voltages for trend analysis.

Spare Parts Support FAQ

Q1: Is the 32000-28-05-08-080-03-02 a direct drop-in replacement for older 3300 series probes?
A: The 32000-28-05-08-080-03-02 is designed for the 3300 XL system. Compatibility with earlier 3300 (non-XL) monitors depends on the proximitor module version and calibration. We recommend confirming the monitor rack model and proximitor part number before ordering. Our technical team can assist with cross-reference verification.

Q2: What pre-shipment testing is performed on each unit?
A: Every unit undergoes electrical continuity testing, coaxial cable insulation resistance measurement, gap voltage output verification against a reference steel target, and dimensional inspection of the probe tip and mounting thread. A test report is available upon request.

Q3: How should this spare be stored to maintain its condition?
A: Store in the original packaging or an anti-static, moisture-proof bag in a temperature-controlled environment (0°C to 40°C, <70% RH). Avoid coiling the cable tightly or placing heavy objects on the probe tip. Inspect the connector and tip annually if stored for more than 12 months.

Q4: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects, electrical parameter deviations from specification, and premature failure under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, chemical exposure, or operation outside the rated temperature and gap range. Warranty claims are processed with return of the defective unit and a completed failure report.
