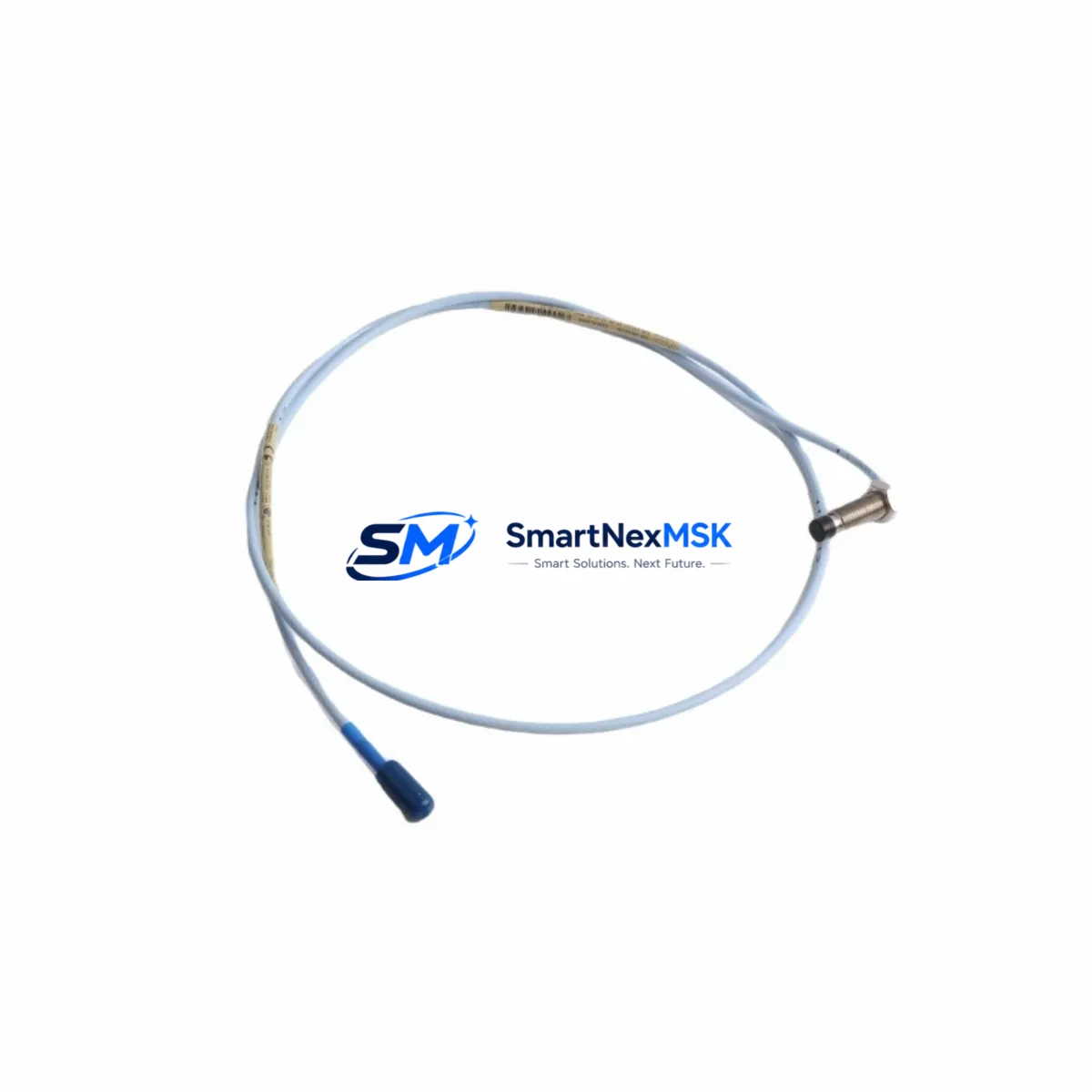

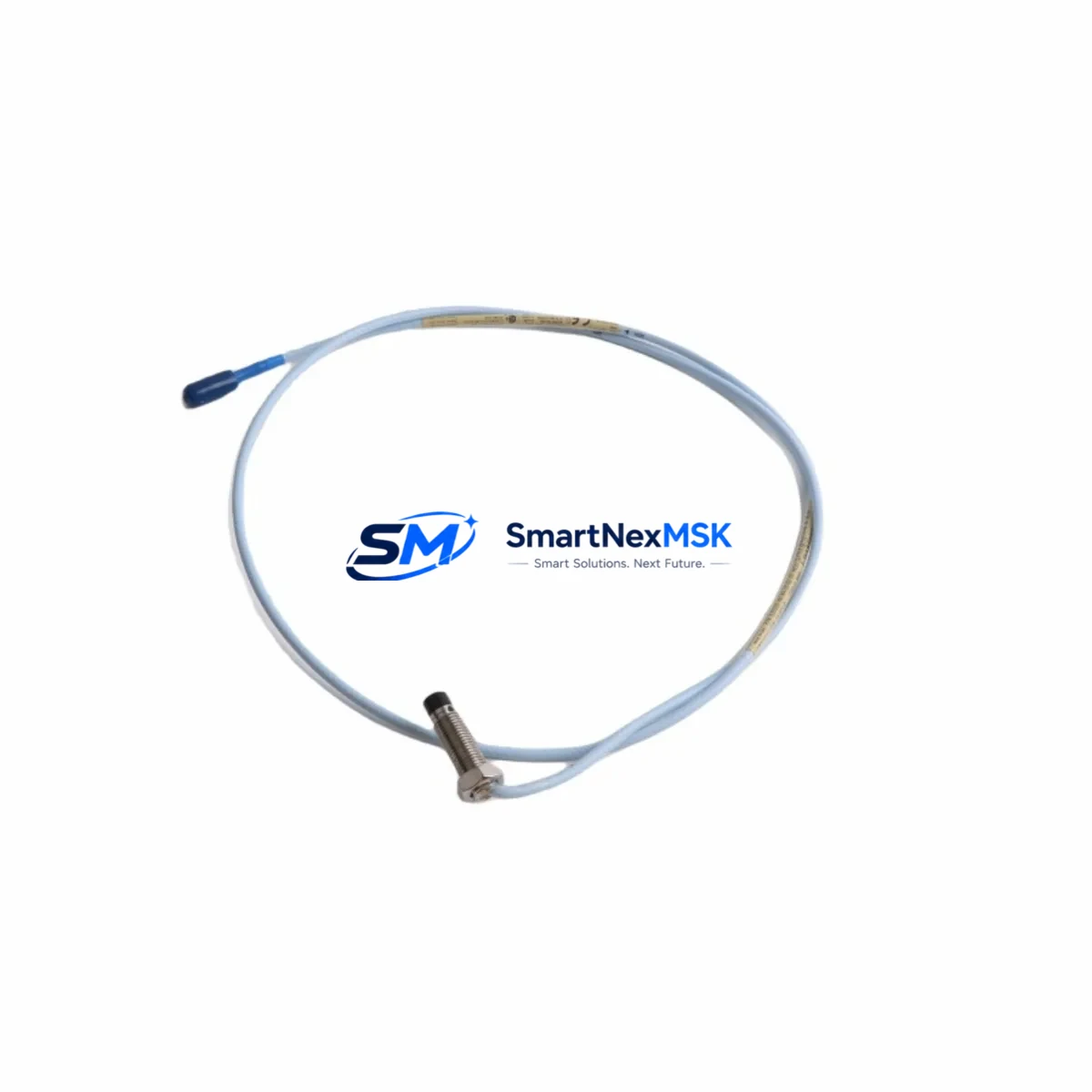

The Bently Nevada 330101-00-08-10-11-05 is an original eddy-current proximity transducer from the 3300 XL NSv Series, engineered for continuous shaft vibration and position monitoring in rotating machinery protection systems. For maintenance engineers managing turbines, compressors, pumps, and generators, this transducer is a critical front-line component — its failure directly triggers unplanned shutdowns and costly production losses. Stocking a verified original spare of the 330101-00-08-10-11-05 is the single most effective measure to minimize mean time to repair (MTTR) when a vibration channel goes offline.

This unit ships tested, calibrated, and packaged to OEM standards. Each unit carries a 12-month warranty covering manufacturing defects and functional performance. Compatibility is confirmed for the Bently Nevada 3300 XL NSv monitoring system, and the transducer integrates directly with standard 3300 XL extension cables and proximitor/oscillator drivers without system reconfiguration.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330101-00-08-10-11-05 proximity transducer is flagged for replacement during a planned outage or emergency shutdown, experienced maintenance engineers know that the transducer itself is rarely the only component requiring attention. A thorough inspection of the entire vibration monitoring loop is essential to restore full system integrity and prevent repeat failures.

Begin with the 3300 XL extension cable (typically the 330130 series) that connects the probe to the proximitor. Extension cables are subject to mechanical fatigue, jacket cracking, and connector corrosion — especially in high-temperature or high-vibration environments. A degraded cable will produce erratic gap voltage readings even with a new transducer installed. Simultaneously, inspect the 3300 XL proximitor/oscillator driver (such as the 330180 or 330190 series) for signs of overheating, moisture ingress, or connector pin damage; a faulty proximitor will invalidate the entire channel regardless of probe condition.

At the rack level, verify the 3500/42M Proximitor/Seismic Monitor or equivalent monitor card is reading within specification. Check the 3500/20 Rack Interface Module (RIM) for communication faults and confirm that the 3500/15 Power Supply Module is delivering stable ±24 VDC to all monitor cards — power supply degradation is a common root cause of intermittent vibration channel alarms. If the system uses a 3500/92 Communication Gateway Module for Modbus or Ethernet output to the DCS or historian, verify that the gateway is transmitting live data without dropouts.

For sites running older 3300 Series racks alongside newer 3500 Series hardware, also inspect 3300/16 I/O modules and any signal conditioning barriers or Zener barriers used in hazardous-area installations. These passive components degrade silently and can introduce offset errors that mask real machinery changes. Where 4–20 mA output isolators feed the DCS analog input cards, confirm loop integrity with a calibrator before returning the machine to service.

Finally, document the as-found and as-left gap voltage for the new 330101-00-08-10-11-05 transducer in the site CMMS, and update the spare parts inventory to trigger a reorder. Maintaining at least one verified spare per critical machine train is the industry-standard practice for Tier 1 rotating equipment protection.

Site Replacement Workflow

Step 1 — Isolation & Lockout: Follow site LOTO procedures. Confirm the machine is at rest and the monitoring rack channel is bypassed or inhibited to prevent spurious trips during probe removal.

Step 2 — As-Found Documentation: Record the existing gap voltage (target: –10.0 VDC ± 0.5 V for standard 3300 XL NSv setup), probe serial number, and any visible damage to the cable or connector. Photograph the installation before disassembly.

Step 3 — Probe Removal: Using the correct spanner, back out the 330101-00-08-10-11-05 probe from the bracket. Inspect the probe tip for impact marks or contamination. Inspect the bracket threads and locking nut for wear.

Step 4 — New Probe Installation: Thread the replacement 330101-00-08-10-11-05 into the bracket. Set the air gap to the manufacturer-specified starting point (typically 1.0 mm / 40 mil). Reconnect the extension cable and verify connector seating.

Step 5 — Gap Voltage Verification: With the proximitor powered, measure DC output voltage at the OK terminal. Adjust probe gap until output falls within the linear range center (–10.0 VDC ± 0.25 V). Tighten the locking nut and re-measure to confirm gap has not shifted.

Step 6 — System Functional Check: Remove the channel bypass/inhibit. Confirm the monitor card displays a valid vibration reading and the OK relay is energized. Verify DCS/historian is receiving the updated channel data.

Step 7 — Documentation & Closeout: Record as-left gap voltage, new probe serial number, and technician sign-off in the CMMS work order. Update the spare parts register and initiate a reorder for the consumed 330101-00-08-10-11-05 unit.

This workflow applies equally when upgrading from legacy 3300 Series probes to the current 3300 XL NSv standard, ensuring backward compatibility with existing extension cables and proximitor drivers without requiring rack reconfiguration.

Spare Parts Support FAQ

Q1: Is the 330101-00-08-10-11-05 compatible with both 3300 and 3300 XL Series monitoring systems?
The 330101-00-08-10-11-05 is designed and calibrated for the 3300 XL NSv system. While the physical connector and thread dimensions are shared with earlier 3300 Series probes, the NSv (Non-Standard Voltage) output characteristic is optimized for 3300 XL proximitor drivers. Use with legacy 3300 Series proximitors should be verified against the site-specific calibration record before installation.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-00-08-10-11-05 unit undergoes functional verification including coil continuity, insulation resistance, and static gap voltage output check against the published sensitivity specification (7.87 V/mm). Units that do not meet OEM performance criteria are quarantined and not shipped. A test report is available upon request for critical applications.

Q3: How should the 330101-00-08-10-11-05 be stored as a long-term spare?
Store in the original anti-static packaging in a dry, temperature-controlled environment (10°C – 40°C, <70% RH non-condensing). Avoid storage near strong magnetic fields or solvents. Inspect the probe tip and cable connector annually. Shelf life under proper storage conditions exceeds 5 years without performance degradation.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects, coil failure, cable jacket integrity, and out-of-specification sensitivity output under normal operating conditions. It does not cover damage resulting from incorrect installation gap, mechanical impact to the probe tip, or operation outside the rated temperature range. Warranty claims are processed with return of the defective unit and the original purchase documentation.
