Bently Nevada 330101-00-08-20-02-CN Retrofit Probe for 3300 XL

Bently Nevada 330101-00-08-20-02-CN Retrofit-Ready Proximity Probe for 3300 XL Control Systems

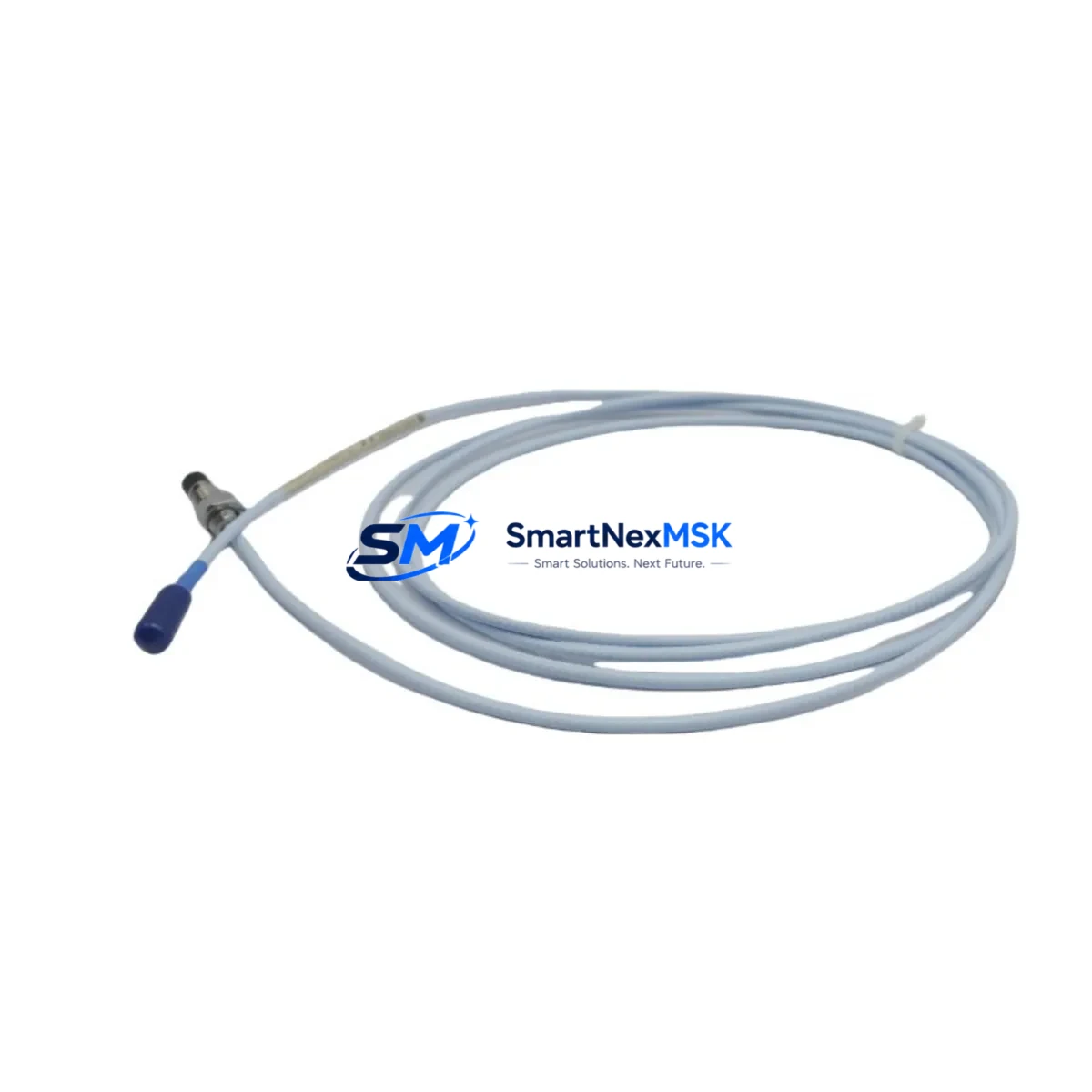

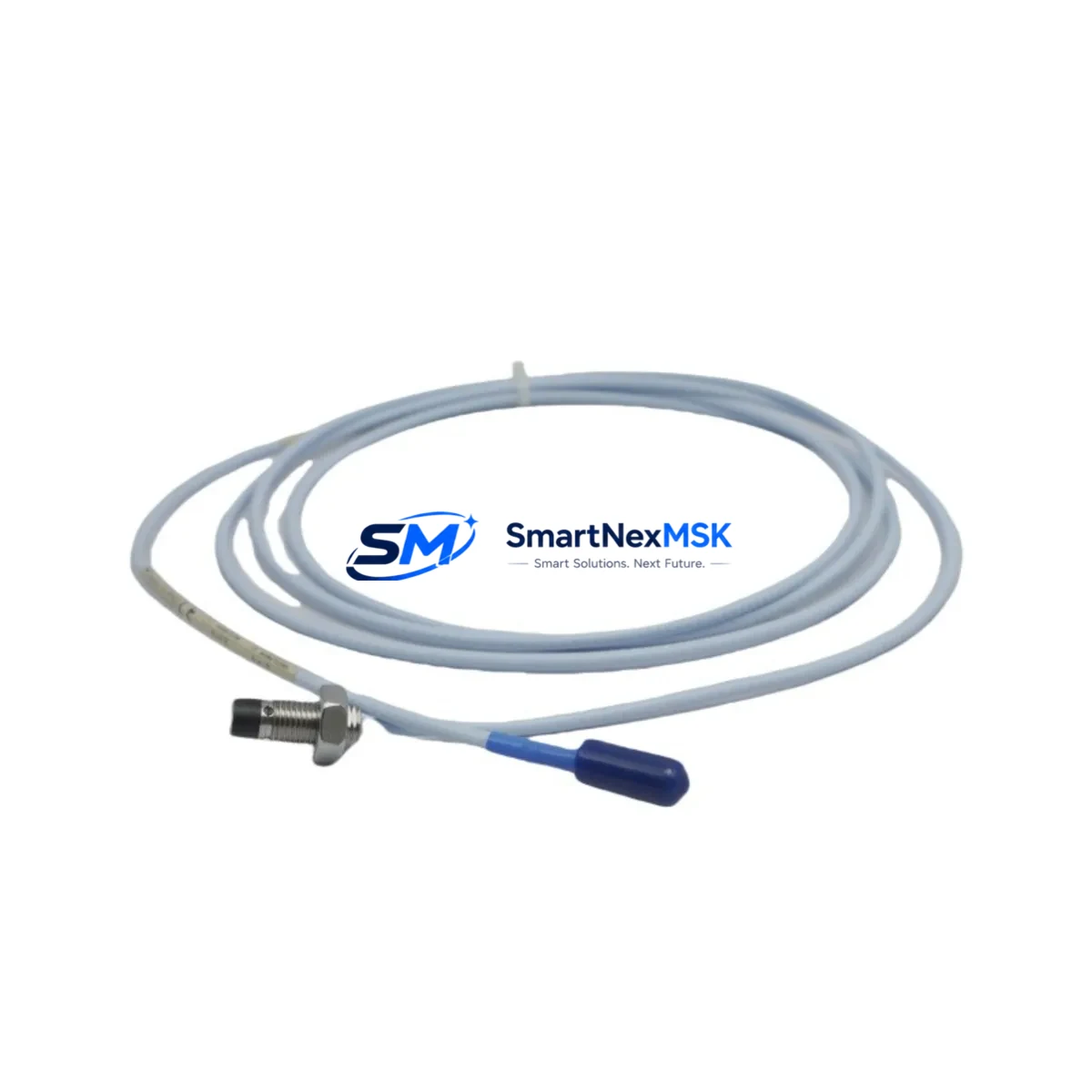

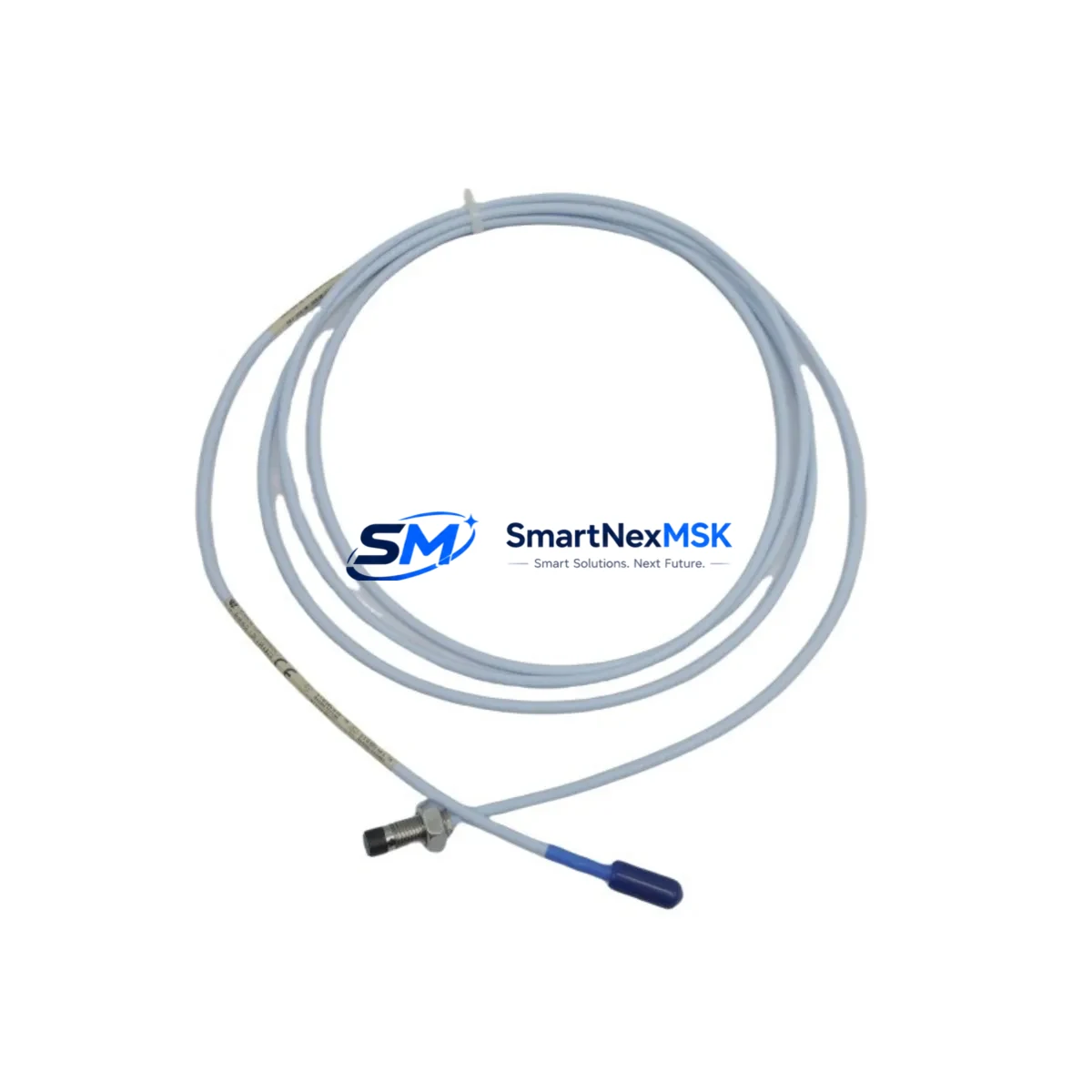

The Bently Nevada 330101-00-08-20-02-CN is an 8mm eddy-current proximity probe engineered for seamless integration into existing Bently Nevada 3300 XL Series vibration monitoring systems. Whether you are replacing a failed sensor on a legacy turbine protection panel, upgrading an aging condition monitoring loop, or migrating from an earlier 3300 Series platform to the current 3300 XL architecture, this probe delivers the dimensional accuracy, signal linearity, and environmental resilience required for continuous machinery protection in rotating equipment applications.

Industrial facilities running steam turbines, gas compressors, centrifugal pumps, and large electric motors rely on the 3300 XL platform for real-time shaft displacement and vibration measurement. When a probe in this chain reaches end-of-life or is discontinued, the replacement must match the original gap voltage curve, cable length, and connector specification precisely — otherwise the paired Bently Nevada 3300 XL Proximitor Sensor will report erroneous readings, triggering nuisance trips or, worse, masking genuine mechanical faults. The 330101-00-08-20-02-CN is a verified drop-in replacement that preserves the original calibration relationship with the Proximitor, eliminating the need to recalibrate the full measurement chain during a planned or emergency outage.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit begins well before the maintenance window opens. Engineers should first audit the full measurement chain: the probe itself, the extension cable (typically a Bently Nevada 330130 or 330140 series extension cable), the Proximitor sensor, and the rack-mounted monitor card — commonly a 3300/16 Dual Voting or 3300/20 Radial Vibration Monitor — housed in a 3300 Rack or 3500 Rack depending on the generation of the installation.

Power supply integrity is a critical pre-check. The 3300 XL Proximitor requires a stable −24 VDC supply; verify that the 3300 Power Supply module in the rack is within specification and that terminal block wiring is free of corrosion or loose connections. If the facility is simultaneously upgrading from a 3300 rack to a Bently Nevada 3500 Series platform, note that the 3500 system uses a different backplane architecture and a dedicated 3500/15 Power Supply, which must be sized to support all populated I/O modules before migration begins.

For sites running a System 1 condition monitoring software platform, the probe replacement should be coordinated with the database administrator to ensure the channel tag, engineering unit scaling, and alarm setpoints are preserved after the hardware swap. If the plant is migrating from System 1 Evolution to System 1 Orbit, this is an opportune moment to validate that all transducer metadata — including probe sensitivity, gap voltage, and OK limits — is correctly imported into the new software environment before the outage window closes.

In applications where the 330101-00-08-20-02-CN is used as a Keyphasor® reference probe, confirm that the once-per-revolution notch or key geometry on the shaft is clean and that the gap is set to the manufacturer’s recommended value (typically 1.0 mm for an 8 mm probe on steel). An incorrectly gapped Keyphasor® will corrupt phase reference data across all vibration channels monitored by the same rack, affecting vector plots and balance calculations in the condition monitoring system.

Where I/O expansion is part of the upgrade scope — for example, adding new measurement points to a compressor train — consider whether the existing rack has available slots for additional 3300/25 or 3500/42 Proximitor I/O modules. If the rack is fully populated, a supplementary enclosure with its own power supply and communication gateway may be required to maintain a single network view in the plant DCS or SCADA system.

Downtime Control During System Migration

Minimizing unplanned downtime during a probe replacement or system migration requires a structured approach. Begin by staging all replacement components — probe, extension cable, and any associated Proximitor or monitor card — and bench-testing the measurement chain against a known-good target material before the outage begins. This pre-verification step eliminates the risk of discovering a defective replacement part after the machine is already offline.

During the outage, follow a documented swap sequence: disconnect the extension cable at the Proximitor first, then remove the probe from the holder, install the new 330101-00-08-20-02-CN, reconnect the extension cable, and restore power before checking the gap voltage at the Proximitor OK terminal. The OK relay should close within the specified gap range (typically −10 VDC to −18 VDC output for an 8 mm probe on steel). If the relay does not close, recheck the gap and inspect the extension cable for continuity before assuming the probe is faulty.

To protect original program logic in the associated PLC or safety system — which may include vibration-based shutdown interlocks wired through a Bently Nevada 3500/33 Sixteen-Channel Relay Module or a third-party safety PLC — place the affected channels in bypass mode through the monitor’s front-panel interface or through System 1 before disconnecting any wiring. Document the bypass action in the plant’s management of change (MOC) system and restore normal monitoring status immediately after commissioning is confirmed. This approach preserves control continuity and prevents spurious trips during the swap window.

Retrofit Support FAQ

Q1: Is the 330101-00-08-20-02-CN a direct replacement for earlier 330101 variants without recalibration?
Yes. The 330101-00-08-20-02-CN maintains the same sensitivity curve and gap voltage relationship as other 330101 series probes when paired with a compatible 3300 XL Proximitor. A gap voltage verification check at commissioning is recommended, but full system recalibration is not required for a like-for-like swap on the same target material.

Q2: What wiring checks should be performed before powering up the new probe?
Verify that the extension cable shield is grounded at one end only (typically at the Proximitor), that the center conductor is continuous from probe tip to Proximitor input, and that the −24 VDC supply voltage at the Proximitor power terminal is within ±0.5 VDC of nominal. Inspect all terminal block connections for tightness and absence of corrosion before restoring power.

Q3: Can this probe be used in a 3500 Series rack without modification?
The 330101-00-08-20-02-CN is designed for the 3300 XL platform. It can be used with a 3500 Series rack when paired with a compatible 3500-series Proximitor I/O module that accepts 3300 XL transducers. Confirm the specific 3500 I/O module’s transducer compatibility list before installation, as some 3500 modules require a dedicated 3500-series probe.

Q4: What does the 12-month warranty cover, and how is it validated?
The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Each unit undergoes pre-shipment functional testing including gap voltage linearity verification. Warranty claims require the original order reference and a description of the failure mode. Units showing evidence of mechanical damage, incorrect installation gap, or incompatible target material are evaluated on a case-by-case basis.
