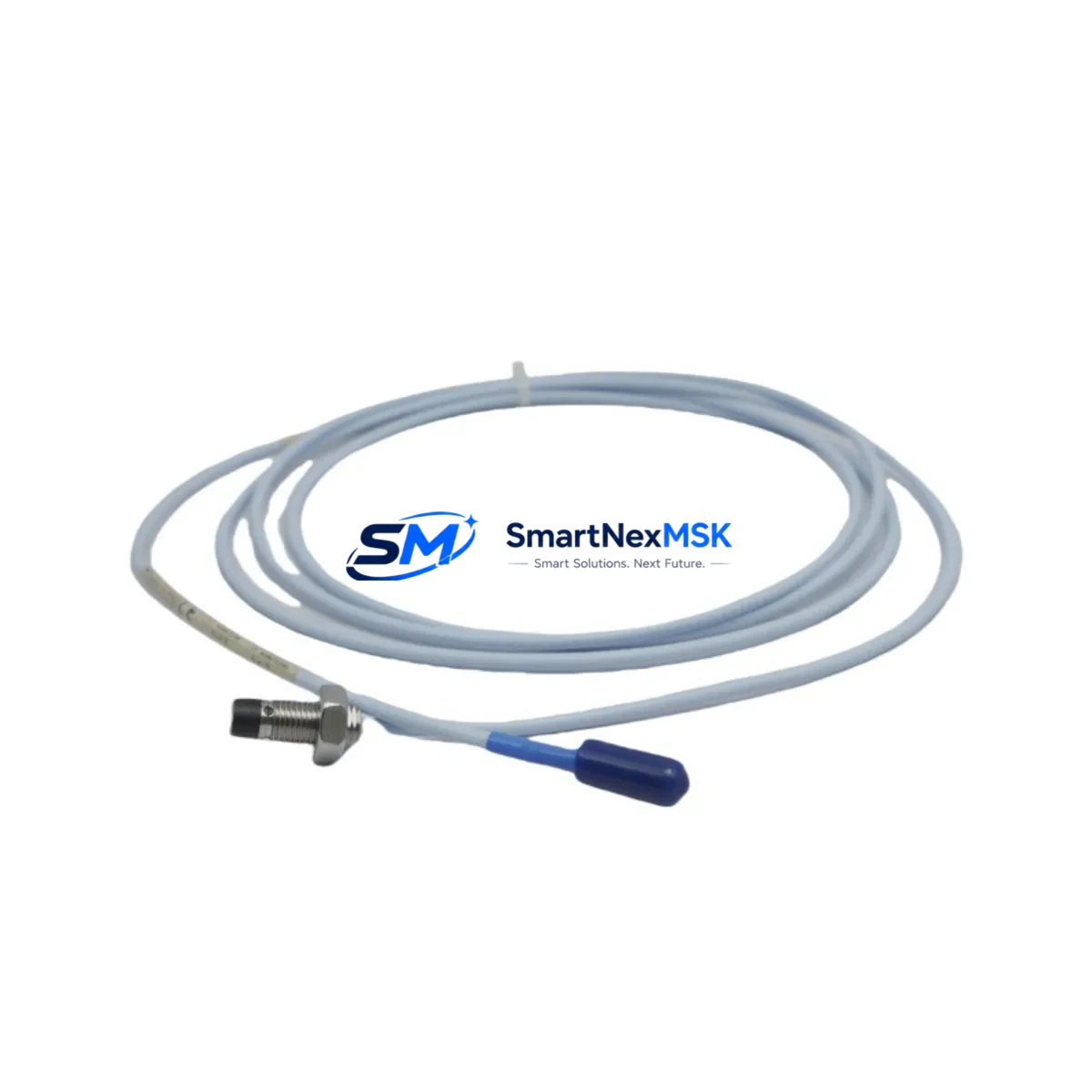

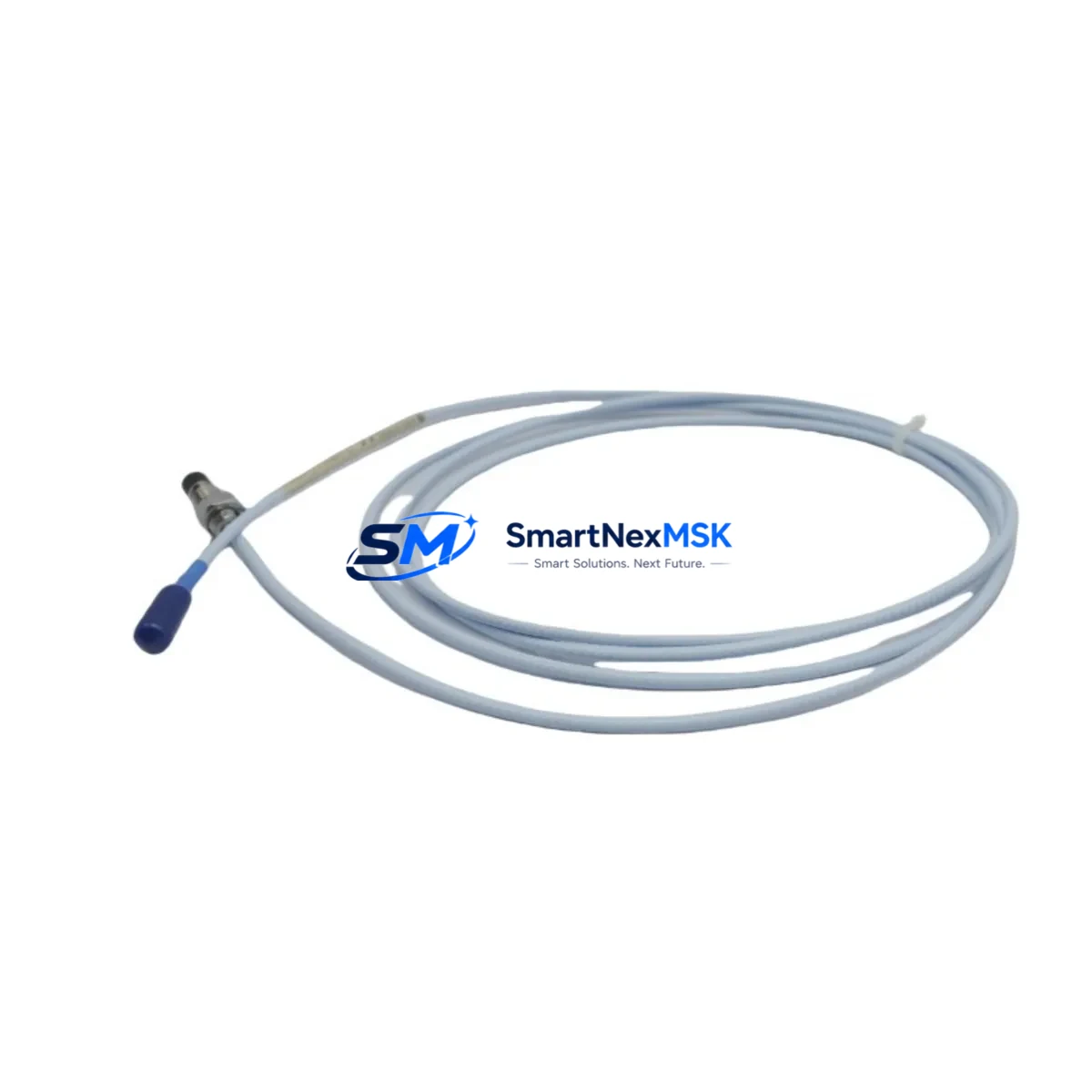

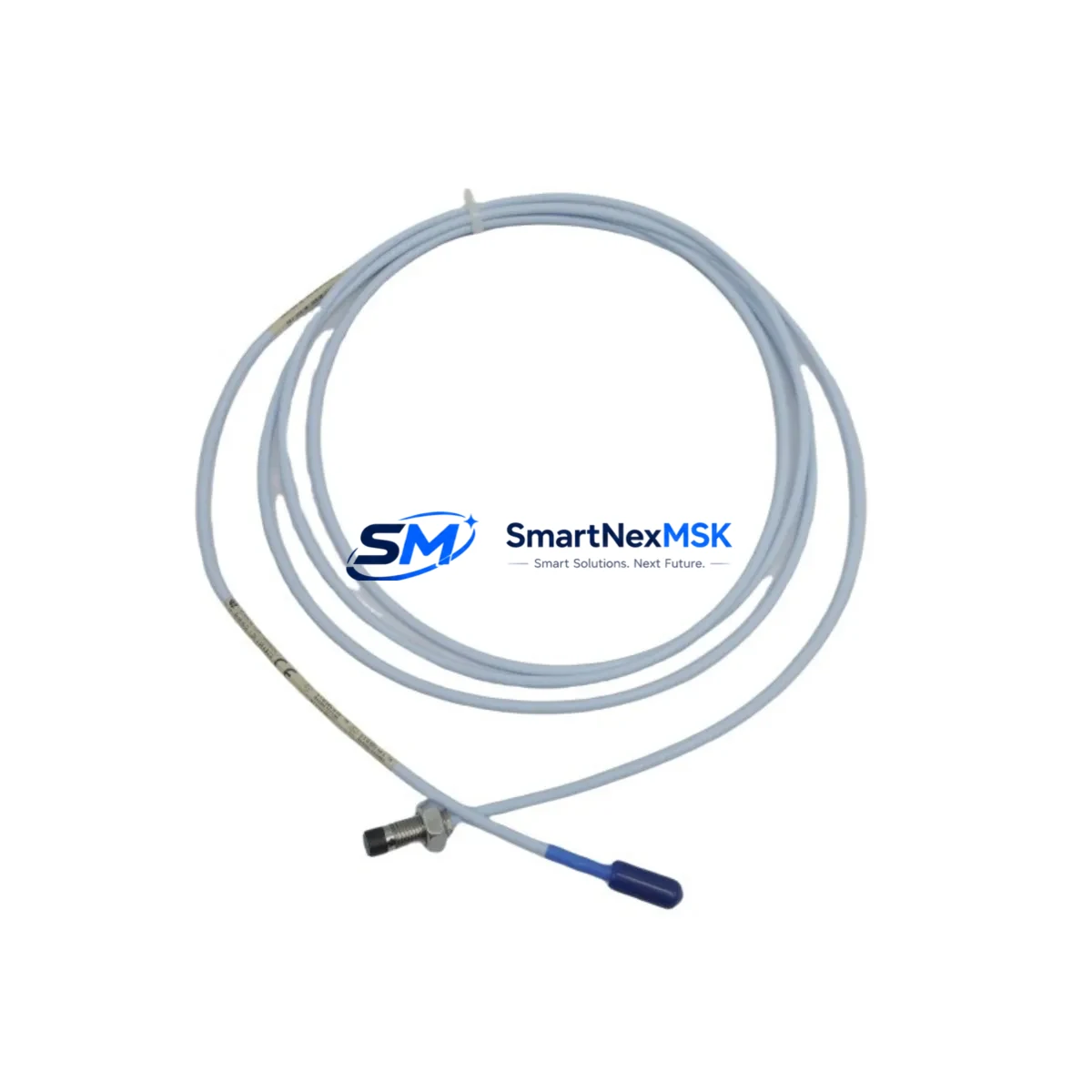

Bently Nevada 330101-00-08-50-02-CN 3300 XL Retrofit Probe

Bently Nevada 330101-00-08-50-02-CN 3300 XL Retrofit-Ready Proximity Probe: Compatible Modernization for Legacy Vibration Monitoring Systems

The Bently Nevada 330101-00-08-50-02-CN is an 8mm proximity probe engineered for the 3300 XL series vibration monitoring platform — one of the most widely deployed machinery protection systems in rotating equipment applications across power generation, oil & gas, petrochemical, and heavy industrial sectors. As original equipment reaches end-of-life or becomes increasingly difficult to source through OEM channels, this retrofit-ready replacement provides a verified drop-in upgrade path that preserves signal integrity, maintains system calibration, and eliminates the need for costly platform migration.

Whether you are replacing a failed probe in an emergency shutdown scenario, executing a planned outage upgrade, or modernizing a legacy control cabinet that still relies on 3300 XL architecture, the 330101-00-08-50-02-CN is a precision-matched solution backed by 12-month warranty coverage and pre-shipment functional testing.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the 330101-00-08-50-02-CN into an existing 3300 XL installation requires a structured approach to ensure continuity of machinery protection. The probe operates as part of a three-component measurement chain: the probe itself, a matched 330130 series extension cable, and a 330180 series Proximitor sensor. All three components must be verified for compatibility before installation — mismatched cable lengths or Proximitor models will shift the system scale factor and invalidate calibration.

In retrofit scenarios where the original 3300 XL monitor rack is being retained, engineers should audit the existing 3300 XL monitor cards — including radial vibration, axial position, and speed monitor modules — to confirm firmware revision compatibility with the replacement probe. Where the rack includes a 3300/20 Rack Interface Module (RIM) for communication with a DCS or safety system via Modbus or Ethernet, no protocol reconfiguration is typically required when performing a like-for-like probe swap.

For sites upgrading from older 7200 series or 3300/05 proximity systems to the 3300 XL platform, the probe replacement is often accompanied by a full rack modernization. In these cases, the control cabinet layout must be reviewed for backplane slot assignments, power supply capacity (typically 24 VDC from a dedicated instrument power rail), and terminal block wiring. The 3300 XL system’s I/O terminal assignments differ from legacy 7200 series wiring conventions, and field wiring must be re-terminated accordingly. A 3300 XL Power Supply module should be verified for adequate current capacity when adding new monitor channels.

Sites running GE Mark V, Mark VI, or Emerson Ovation DCS platforms alongside Bently Nevada machinery protection will need to confirm that the 4–20 mA or voltage output signals from the 3300 XL Proximitor are correctly mapped to the DCS analog input cards. Where an operator interface or HMI displays real-time vibration trends, the engineering units and alarm setpoints stored in the HMI configuration must be reviewed after probe replacement to ensure they reflect the new probe’s sensitivity (typically 7.87 V/mm for 8mm probes).

For facilities managing multiple rotating machines — compressors, turbines, pumps, or gearboxes — a phased retrofit plan is recommended. Replacing probes machine by machine during scheduled maintenance windows, rather than during unplanned outages, allows engineering teams to validate each installation before returning the machine to service. Spare inventory of matched probe-and-cable sets, along with a calibrated Proximitor, should be maintained on-site to support rapid response to unexpected probe failures.

Downtime Control During System Migration

Minimizing downtime during a proximity probe replacement on a live production system requires careful pre-outage preparation. Before the maintenance window opens, the replacement 330101-00-08-50-02-CN should be bench-tested against a reference Proximitor to confirm output voltage linearity across the full measurement range. The existing probe’s gap voltage reading should be recorded from the 3300 XL monitor front panel or from the DCS historian so that the replacement can be set to the identical gap distance during installation.

Where the 3300 XL monitor is configured with a latching OK relay, the relay state must be manually reset after probe installation and gap adjustment. Failure to reset the OK relay will prevent the monitor from returning to normal protection mode, which can trigger spurious alarms or inhibit the machinery protection function. This step is frequently overlooked during rushed outage work and should be included as a mandatory checklist item in the commissioning procedure.

For systems where the 3300 XL rack communicates with a safety instrumented system (SIS) via hardwired relay outputs or a 3300/20 RIM, the SIS logic should be placed in bypass mode — with appropriate management of change documentation — for the duration of the probe swap. Once the replacement probe is installed, gapped, and the OK relay is confirmed healthy, the SIS bypass can be lifted and normal protection restored. The entire process, when pre-planned, can typically be completed within a two-to-four hour maintenance window without requiring a full machine shutdown in all cases.

Original program logic stored in the 3300 XL monitor — including alarm setpoints, danger setpoints, time delays, and voting logic — is retained in non-volatile memory and is not affected by a probe replacement. No reprogramming of the monitor is required for a like-for-like SKU swap, which is a key advantage of maintaining platform continuity rather than migrating to a new monitoring architecture.

Retrofit Support FAQ

Q1: Is the 330101-00-08-50-02-CN a direct drop-in replacement for the original Bently Nevada part?
Yes. This unit is manufactured to the same dimensional, electrical, and performance specifications as the original 330101-00-08-50-02-CN. It is compatible with the 3300 XL Proximitor (330180 series) and 330130 series extension cables without modification. Gap voltage calibration should always be verified after installation per standard commissioning procedure.

Q2: What wiring checks are required before installation?
Verify that the coaxial cable from the probe to the Proximitor is free of damage, moisture ingress, and connector corrosion. Confirm that the Proximitor enclosure is properly grounded and that the signal cable shield is terminated at one end only (typically at the monitor rack) to prevent ground loops. Check terminal block torque values at the 3300 XL monitor card input terminals before reconnecting.

Q3: How is compatibility with my existing 3300 XL monitor verified?
Compatibility is confirmed by matching the probe diameter (8mm), cable length (5.0m), and Proximitor model to the system’s original configuration documentation. The 3300 XL monitor’s channel configuration — including measurement mode (radial vibration, axial position, or eccentricity) — does not need to be changed for a like-for-like probe replacement. If the monitor card has been replaced or upgraded, confirm the scale factor setting matches the 8mm probe specification.

Q4: What does the 12-month warranty cover, and is a test certificate included?
The 12-month warranty covers manufacturing defects and functional performance under normal operating conditions. Each unit ships with a pre-shipment functional test certificate confirming output voltage linearity and OK relay operation. In the event of a warranty claim, our technical team will coordinate replacement or repair with minimal lead time to support your production continuity requirements.
