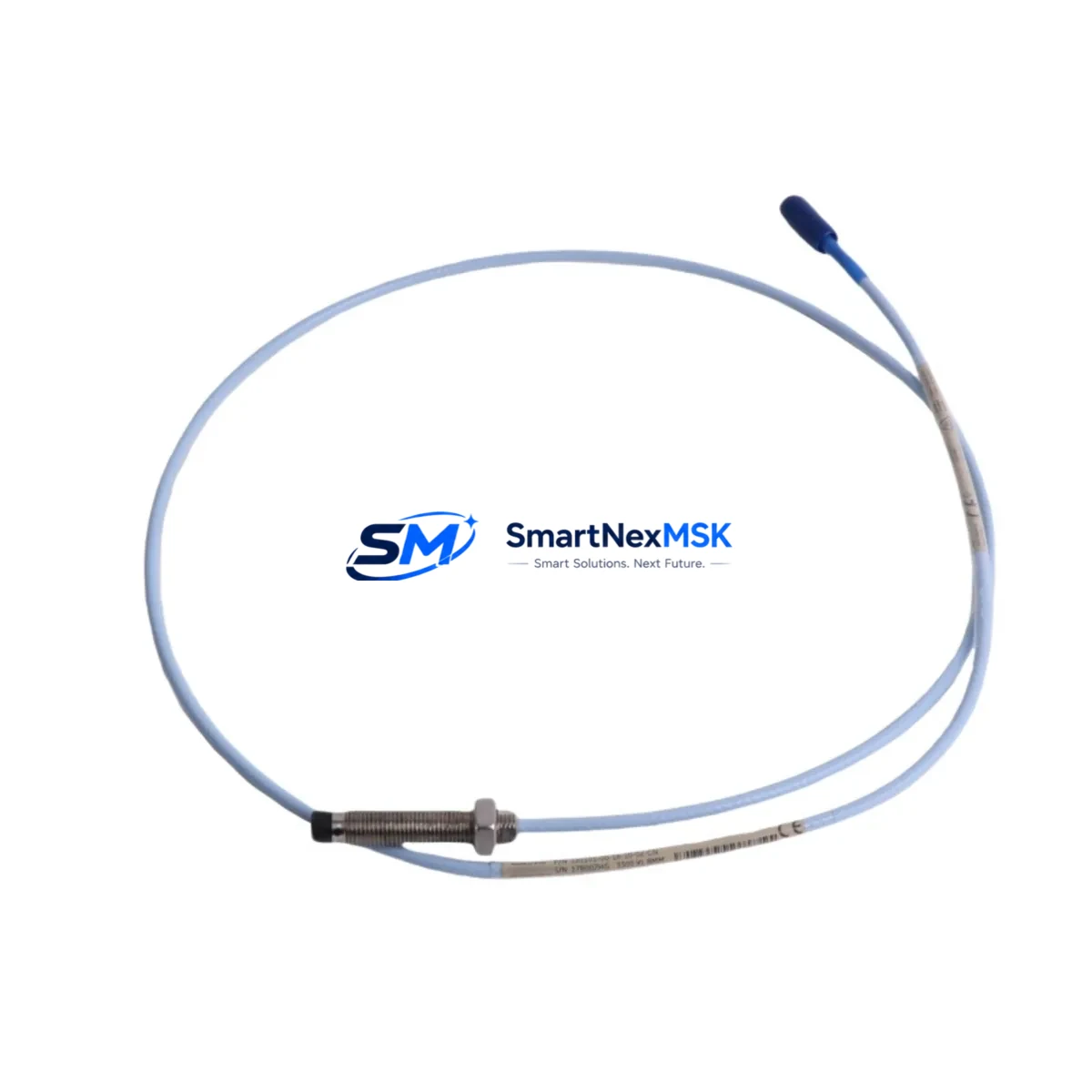

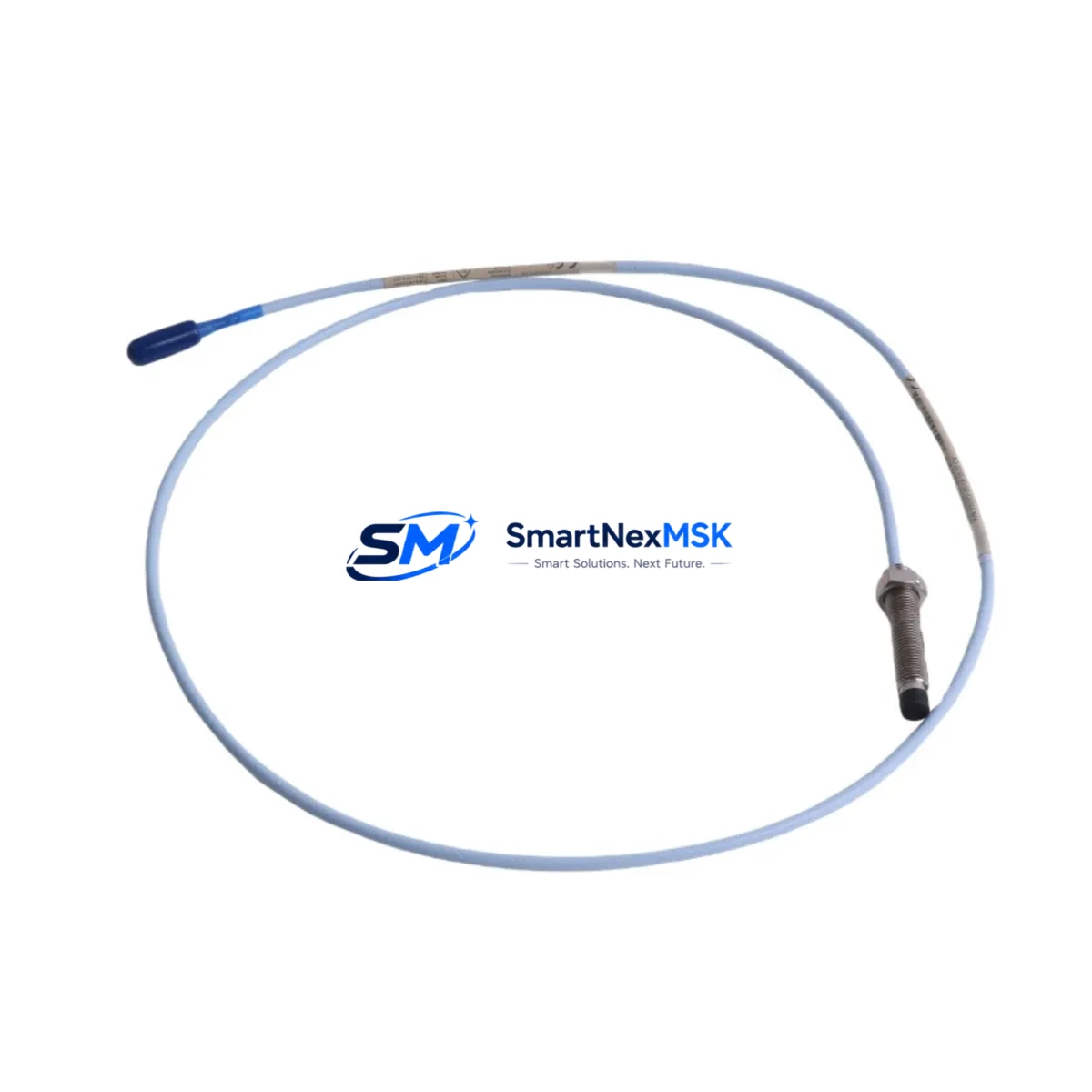

Bently Nevada 330101-00-09-10-02-05 Retrofit-Ready Proximity Transducer for 3300 XL

Bently Nevada 330101-00-09-10-02-05 Retrofit-Ready Proximity Transducer for 3300 XL Control Systems

The Bently Nevada 330101-00-09-10-02-05 is an 8mm proximity transducer engineered for seamless integration into Bently Nevada 3300 XL continuous machinery monitoring systems. As legacy vibration monitoring infrastructure ages across rotating machinery applications — including turbines, compressors, pumps, and gearboxes — the demand for verified drop-in replacements that preserve existing wiring, rack architecture, and software configuration has never been greater. This transducer is a direct retrofit solution for facilities managing end-of-life 3300 XL sensor assemblies without requiring full system overhaul.

Designed to interface with the Bently Nevada 3300 XL proximitor/sensor system, the 330101-00-09-10-02-05 maintains the standard -24 VDC supply voltage, 200 mV/mil (7.87 V/mm) scale factor, and TK-3 cable assembly compatibility that field engineers rely on during hot-swap replacements. When replacing a failed or degraded transducer in an operating plant, maintaining these electrical parameters is critical to avoiding false trips, recalibration downtime, and HMI alarm reconfiguration on the System 1 monitoring platform.

Procurement teams and reliability engineers sourcing this part should confirm the following before installation: the existing proximitor model (typically a 3300 XL 8mm proximitor such as the 330180-91-00 or 330180-51-00), the extension cable length and connector type (TK-3 or equivalent), the gap voltage setting at the target shaft surface, and the rack slot address within the 3500 monitoring rack if the system has been partially upgraded. Mismatched scale factors between the transducer and the proximitor will produce erroneous vibration readings and may trigger unnecessary shutdowns.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting a Bently Nevada 3300 XL proximity transducer system requires a structured approach that accounts for both the mechanical installation and the downstream signal chain. The 330101-00-09-10-02-05 transducer is typically deployed alongside a matched 3300 XL proximitor — such as the 330180-91-00 — which conditions the raw eddy-current signal into a calibrated voltage output readable by the monitoring rack. If the proximitor is also being replaced as part of the upgrade, ensure the new unit shares the same scale factor and output range to avoid reconfiguring alarm setpoints in the System 1 software.

In facilities where the monitoring backbone has been partially migrated to the Bently Nevada 3500 Series rack, the 330101-00-09-10-02-05 transducer can still be used provided the correct 3500/25 proximity transducer I/O module is installed in the rack and the channel is configured for 8mm transducer input. The 3500 rack’s Modbus TCP or RS-232 communication links to the plant DCS or SCADA should be verified post-installation to confirm that vibration and position data is being transmitted correctly to the control room.

For plants running older Bently Nevada 7200 Series or 3300 Series (non-XL) racks, a direct swap is not recommended without a full signal chain audit. In these cases, the upgrade path typically involves replacing the rack I/O cards, reconfiguring the proximitor power supply module, and updating the HMI tag database to reflect the new channel addresses. The TK-3 extension cable assembly connecting the transducer to the proximitor should also be inspected for insulation degradation, connector corrosion, and continuity — a common failure point in high-temperature or high-vibration environments.

During the retrofit, field engineers should also assess the condition of the junction box terminal blocks, the armored conduit routing, and the grounding scheme for the sensor circuit. Improper grounding is a leading cause of noise on proximity transducer signals and can produce erratic readings that mimic shaft instability. Once the 330101-00-09-10-02-05 is installed and gapped, a static gap voltage check using a calibrated voltmeter should be performed before the machine is returned to service. The target gap voltage for an 8mm transducer at nominal gap is typically -10 VDC ±0.5 V, though this should be confirmed against the original system documentation.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity transducer replacement is a primary concern for reliability and maintenance teams. The 330101-00-09-10-02-05 is stocked and ships tested, which eliminates the lead time risk associated with OEM procurement channels — a critical advantage when a machine is already offline and production pressure is high.

Before removing the failed transducer, document the existing gap voltage, alarm setpoints, and any active System 1 trend data for the affected channel. This baseline allows the commissioning engineer to verify that the replacement transducer is performing identically to the original after installation. If the plant uses a Bently Nevada 3500/22M transient data interface or a 3500/42M proximitor I/O module, confirm that the channel configuration file does not need to be re-uploaded after the hardware swap — in most cases, the configuration is stored in the rack and survives a transducer replacement without modification.

For facilities with redundant monitoring channels, the replacement can often be performed with the machine running by switching the protection system to the redundant channel, replacing the failed transducer, verifying the gap voltage, and then switching back. This approach eliminates the need for a planned shutdown and is consistent with best practices for continuous monitoring system maintenance. Always follow site-specific lock-out/tag-out (LOTO) procedures and confirm with the control room before any field intervention on an active protection channel.

Retrofit Support FAQ

Q: Is the 330101-00-09-10-02-05 a direct replacement for all 3300 XL 8mm transducers?
A: Yes, the 330101-00-09-10-02-05 is a direct drop-in replacement for 3300 XL 8mm proximity transducer assemblies using TK-3 cable connections and a matched 3300 XL proximitor. Verify the proximitor model and scale factor before installation to ensure signal chain compatibility.

Q: Can this transducer be used with a Bently Nevada 3500 Series rack?
A: Yes, provided the rack is equipped with a compatible 3500/25 proximity transducer I/O module configured for 8mm transducer input. The transducer’s electrical output is compatible with the 3500 rack’s input specifications. Confirm channel configuration in the rack software after installation.

Q: What commissioning checks are required after installation?
A: Perform a static gap voltage measurement (target: -10 VDC ±0.5 V at nominal gap), verify the signal output at the proximitor, confirm alarm setpoints in System 1 or the DCS, and check communication link status on the Modbus TCP or RS-232 interface. A short run-up test with vibration trending is recommended before returning the machine to full load.

Q: What warranty and testing does this unit include?
A: All units are shipped tested and covered by a 12-month warranty from the date of shipment. Pre-shipment testing includes electrical continuity, output voltage verification, and scale factor confirmation. Contact our technical team for test reports or certificates of conformance if required for your quality management system.
