Bently Nevada 330101-00-11-10-02-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

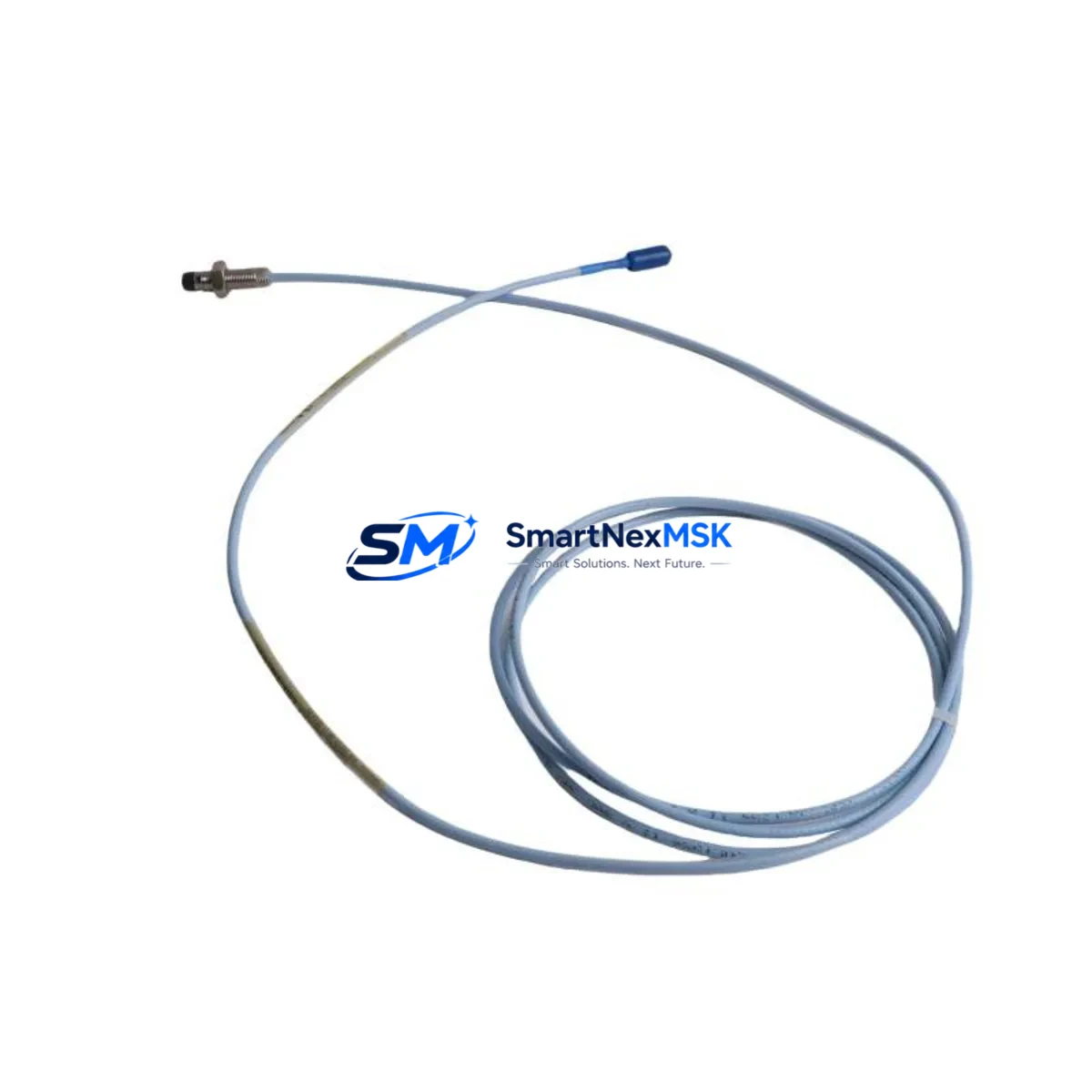

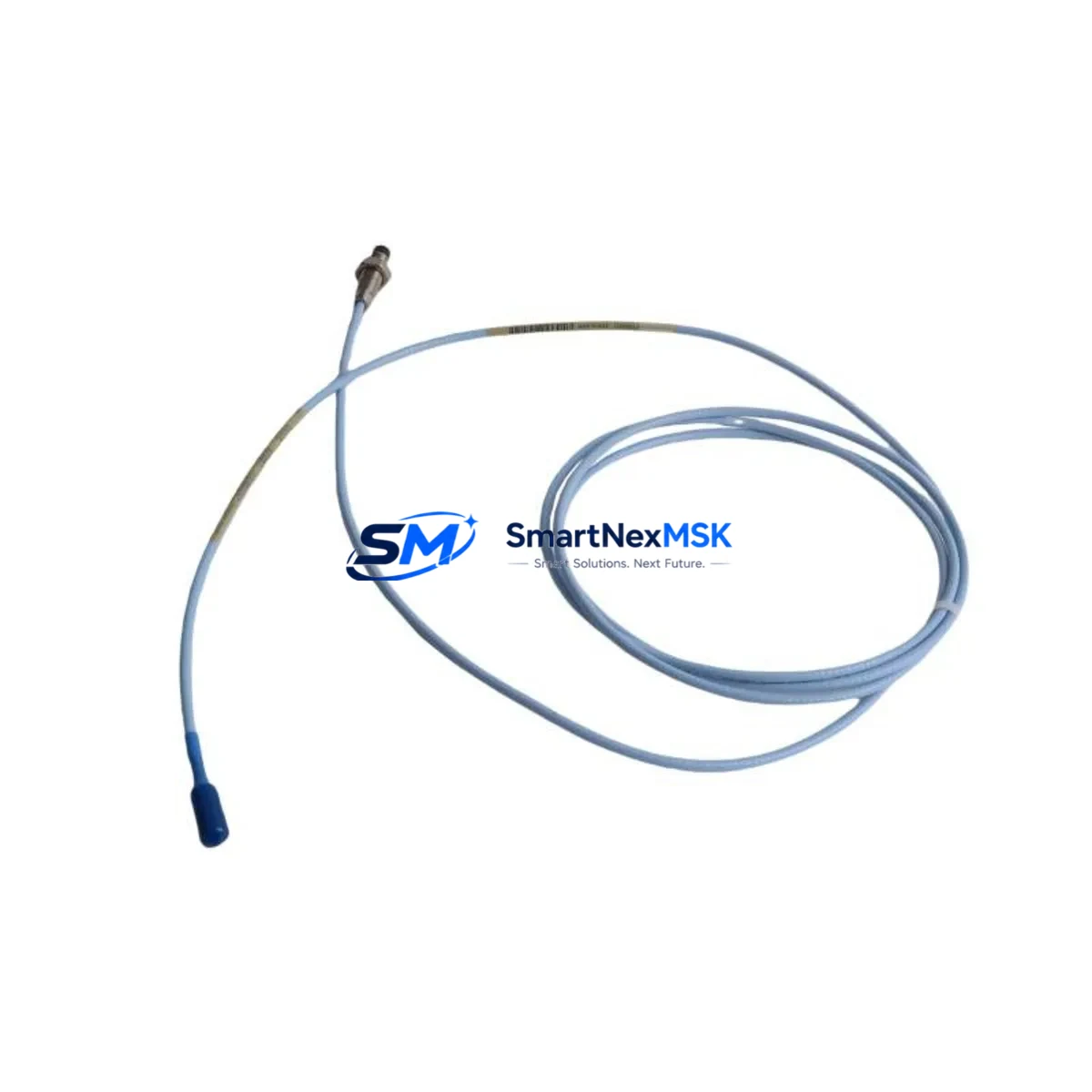

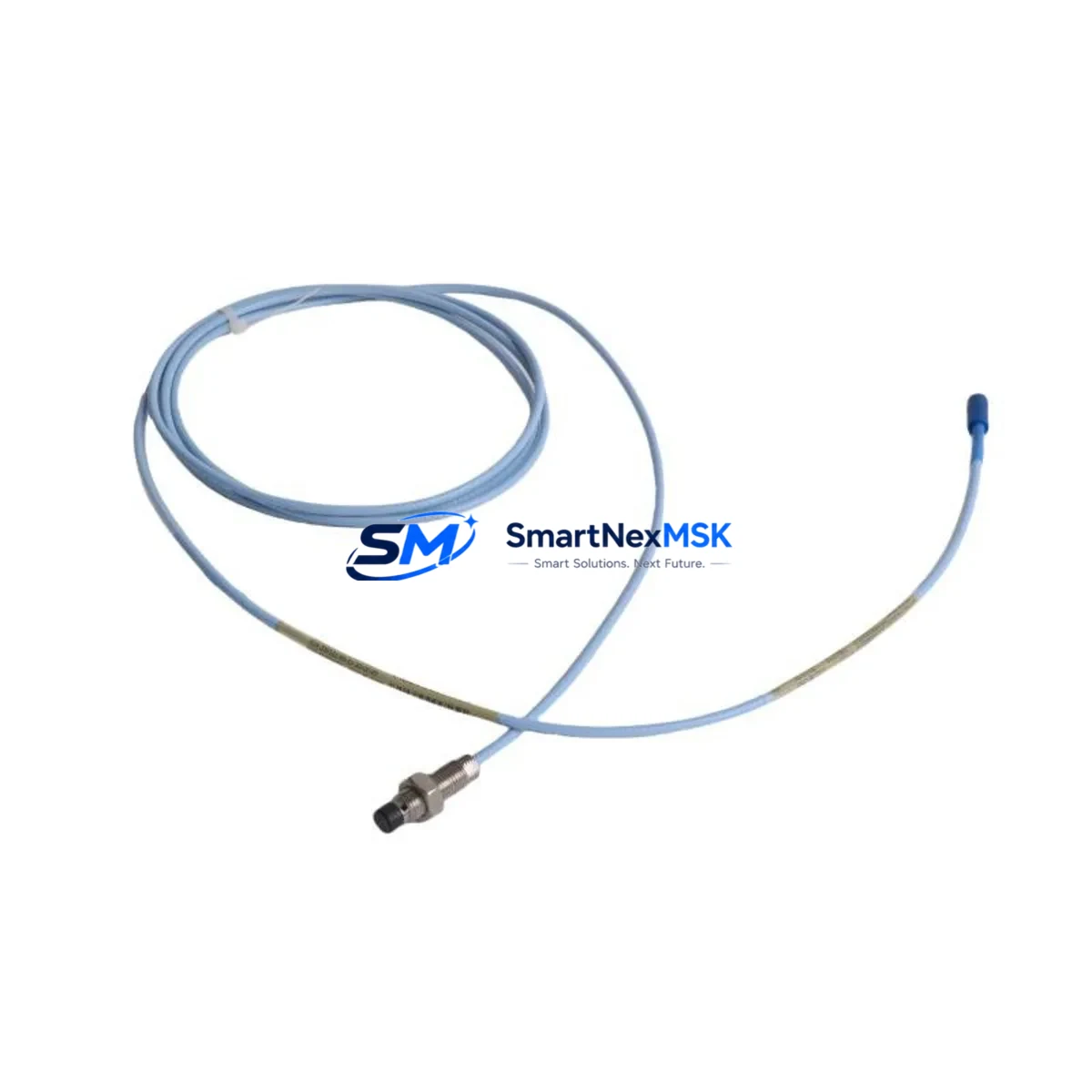

The Bently Nevada 330101-00-11-10-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy rotating machinery protection systems reach end-of-service milestones, this probe serves as the verified drop-in replacement for discontinued or worn-out field sensors across turbines, compressors, pumps, and gearboxes. Whether you are executing a planned outage upgrade or responding to an unplanned sensor failure, the 330101-00-11-10-02-00 delivers the signal integrity and dimensional compatibility required to restore full machinery protection without reprogramming the host monitor.
Upgrade Compatibility Table
| Parameter | Detail |
|---|---|
| SKU / Part Number | 330101-00-11-10-02-00 |
| Series Compatibility | Bently Nevada 3300 XL Series |
| Probe Diameter | 8 mm |
| Cable Length | 1.0 m integral cable (extension via 330130 series) |
| Thread | M10 x 1.0 |
| Tip Clearance Range | 0.25 mm – 2.54 mm (10 – 100 mil) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) |
| Compatible Driver / Proximitor | 3300 XL 8mm Proximitor Sensor (330180 series) |
| Target Material | AISI 4140 steel or equivalent ferrous alloy |
| Installation Interface | Direct replacement — no bracket modification required |
| Communication / Signal | Analog voltage output; compatible with 3500 Series rack monitors |
| Retrofit Recommendation | Replace probe and verify gap voltage at Proximitor output before restart |
| Commissioning Focus | Gap voltage, polarity, cable routing, and grounding continuity |
| Warranty | 12 Months from date of shipment |
Retrofit Planning for Existing Automation Systems
Replacing the 330101-00-11-10-02-00 in a live plant environment requires a structured approach that accounts for the full signal chain — from the probe tip through the extension cable, Proximitor sensor, and into the 3500 Series rack monitor. Before scheduling the outage window, engineers should confirm that the existing 330130-080-00-00 extension cable is undamaged and that the 330180-91-00 Proximitor sensor is within calibration. If the Proximitor is also being replaced as part of a broader 3300 XL system refresh, the new sensor must be matched to the same probe model to maintain the system scale factor.
In installations where the 3300 XL rack is being migrated to a 3500 Series rack, the probe itself remains compatible, but the I/O module assignments and channel configuration within System 1 Evolution software will need to be updated. The 3500/42M Proximitor I/O Module accepts the same analog signal from the 330101-00-11-10-02-00, and the channel scaling parameters — gap, direct, and 1X/2X vector — should be transferred from the legacy configuration file before the rack is energized. Technicians should also verify that the 3500/20 Power Supply Module is sized correctly for the expanded channel count if additional I/O modules are being added during the same outage.
For plants running older 3300 Series (non-XL) racks, the 330101-00-11-10-02-00 is not directly interchangeable without confirming the Proximitor model. The 3300/16 Dual Proximitor Monitor uses a different scale factor than the 3300 XL Proximitor, and substituting probes without matching the driver can introduce measurement error that triggers nuisance trips or, worse, masks real vibration events. In these cases, a parallel upgrade of both the probe and the 330180 Proximitor sensor is the recommended path.
Wiring adaptation is straightforward: the probe’s integral cable terminates in a standard BNC connector, and the extension cable connects via the same interface used across the 3300 XL family. Technicians should inspect the armored extension cable for jacket damage, particularly in high-temperature or high-vibration zones near bearing housings. A damaged cable jacket can introduce ground loops that corrupt the DC gap voltage reading and cause erratic vibration readings at the 3500 rack.
Before the machine is returned to service, the commissioning checklist should include: gap voltage measurement at the Proximitor output (target: –10.0 VDC ± 0.5 V at nominal gap), polarity verification against the rotation direction, confirmation that the 3500 rack’s OK relay is energized, and a functional test of the danger and alert setpoints using the rack’s built-in test function. If the plant uses a DCS integration — for example, a Honeywell Experion PKS or Emerson DeltaV system receiving 4–20 mA outputs from the 3500 rack — the analog output scaling should be verified end-to-end before the machine is loaded.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity probe replacement begins with pre-staging. Having the 330101-00-11-10-02-00 on the shelf — verified, tested, and ready — eliminates the most common source of extended outages: waiting for parts. Our inventory is maintained specifically for emergency dispatch scenarios, and units are shipped with a functional test report confirming output sensitivity and insulation resistance.
For planned outages, the recommended sequence is: isolate the channel at the 3500 rack using the rack’s bypass function, remove the existing probe and extension cable assembly, install the 330101-00-11-10-02-00 with the matched extension cable, set the mechanical gap using a feeler gauge or dial indicator, energize the Proximitor and measure gap voltage, confirm the OK status at the rack, and release the bypass. This sequence can typically be completed within a two-hour maintenance window for a single channel, preserving the original PLC logic, HMI alarm setpoints, and DCS historian tags without modification.
In multi-channel upgrades — for example, replacing all radial and axial probes on a steam turbine train — the same bypass-and-replace sequence is applied channel by channel, allowing the protection system to remain partially active throughout the outage. The 3500 rack’s channel-level bypass capability is essential here: it prevents the rack from issuing a machine trip on the channel under maintenance while keeping all other channels in full protection mode. Original program logic in the safety PLC or turbine control system does not need to be modified, and HMI screens referencing the vibration tags will resume normal display as each channel is re-commissioned.
Retrofit Support FAQ
Q: Is the 330101-00-11-10-02-00 a direct replacement for the older 330101-00-11-10-01-00?
A: Yes. The -02-00 suffix denotes a revision that maintains full dimensional and electrical compatibility with the -01-00 variant. The probe can be installed in the same mounting boss, connected to the same extension cable, and driven by the same 330180 Proximitor without any recalibration of the host monitor.
Q: What commissioning steps are required after installation?
A: After mechanical installation, measure the DC gap voltage at the Proximitor output with the machine stationary. The target is –10.0 VDC ± 0.5 V at the nominal air gap specified on the probe datasheet. Confirm the 3500 rack’s OK relay is energized, verify that direct and gap readings are within expected ranges in System 1 or the DCS historian, and document the as-found and as-left gap measurements in the maintenance record.
Q: Can this probe be used with a 3500 Series rack directly, without a 3300 XL Proximitor?
A: No. The 330101-00-11-10-02-00 requires a matched Proximitor sensor (330180 series) to condition the eddy-current signal. The Proximitor output — a calibrated DC voltage proportional to gap — is what the 3500 rack’s I/O module reads. The probe alone does not produce a usable signal for the rack.
Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects in materials and workmanship for 12 months from the date of shipment. Each unit is functionally tested prior to dispatch. Warranty claims are processed with priority turnaround, and replacement units can be dispatched from stock to minimize any impact on plant availability.
