Bently Nevada 330101-00-11-20-02-CN 3300 XL Spare: Precision Spare Replacement for Industrial Downtime Control

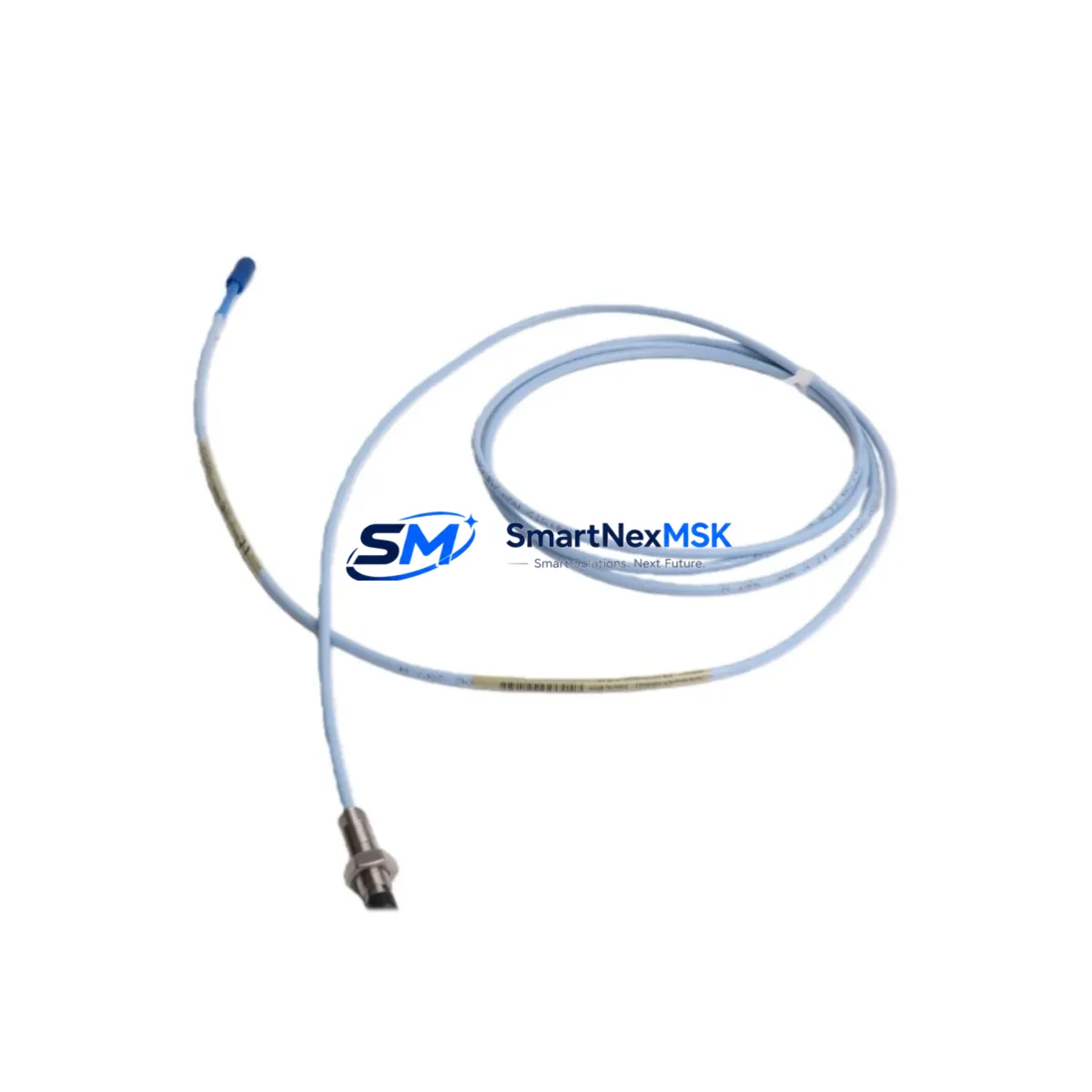

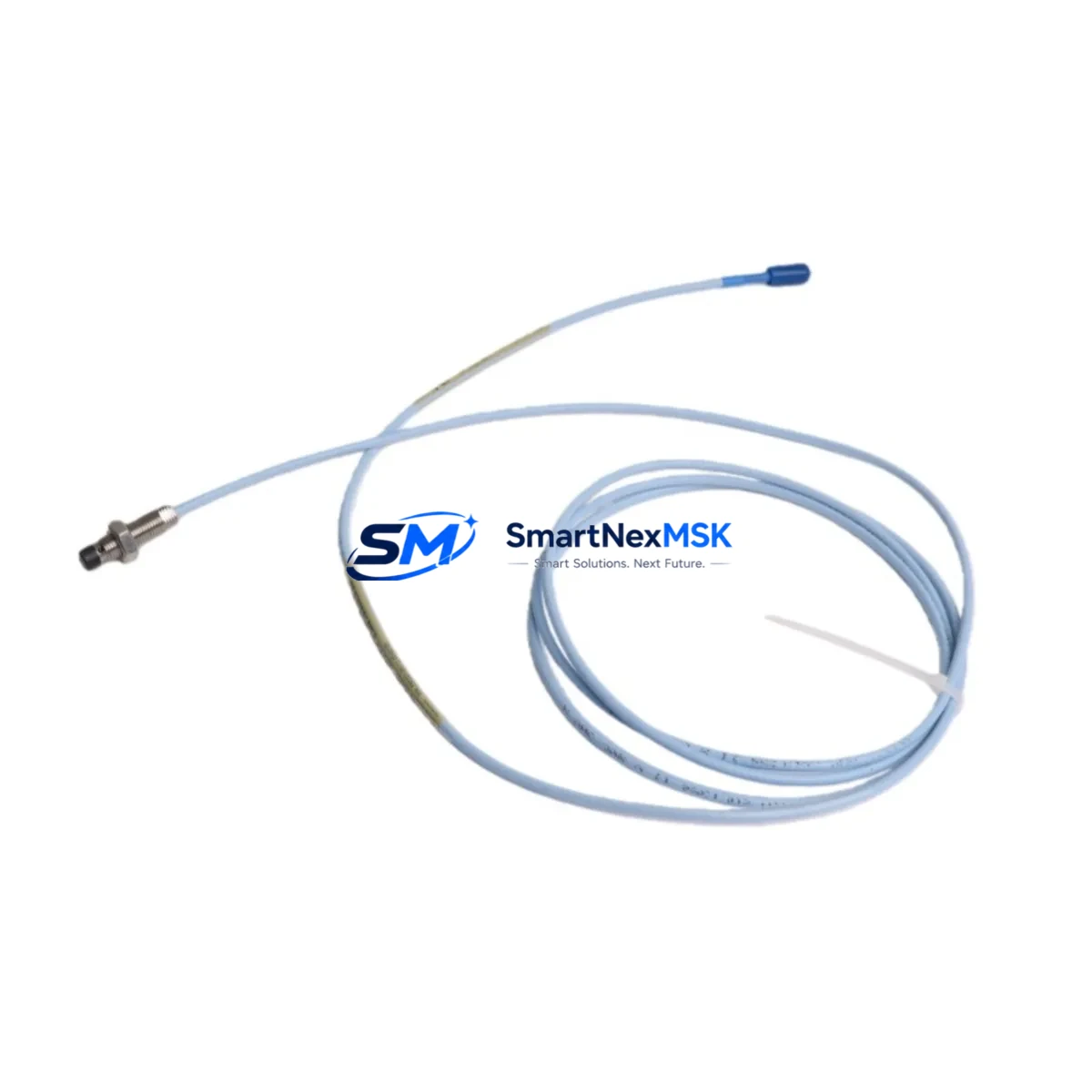

The Bently Nevada 330101-00-11-20-02-CN is an original 11mm eddy-current proximity probe engineered for the 3300 XL Proximity Transducer System. Designed for continuous shaft vibration and position monitoring in rotating machinery, this probe is a critical spare for turbines, compressors, pumps, and gearboxes operating in demanding industrial environments. Sourced as an original Bently Nevada component, each unit is tested prior to shipment and backed by a 12-month warranty, ensuring your maintenance team can restore system integrity with confidence and minimal downtime.

For maintenance engineers managing aging machinery or planning scheduled overhauls, having a verified spare of the 330101-00-11-20-02-CN on hand is a fundamental risk-reduction strategy. Eddy-current proximity probes are wear-sensitive components subject to cable fatigue, connector corrosion, and calibration drift over time. Replacing a degraded probe during a planned outage — rather than during an emergency shutdown — can save hours of unplanned downtime and protect critical rotating assets from catastrophic failure.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-11-20-02-CN in the field, a thorough inspection of the surrounding measurement loop is essential to ensure the replacement probe performs to specification and that no latent faults remain in the system. Maintenance engineers should treat this replacement as an opportunity for a full transducer loop audit.

Begin by inspecting the 3300 XL proximitor/driver (typically the 330180 or 330130 series) paired with this probe. A worn or out-of-calibration driver will produce erroneous gap voltage even with a new probe installed. Verify the driver’s output voltage at the nominal gap and confirm it falls within the 3300 XL system’s acceptance window. If the driver has been in service for more than five years in a high-vibration environment, consider scheduling its replacement alongside the probe.

Next, check the extension cable — commonly the 330130-045-00-00 or equivalent 3300 XL series cable — for jacket cracking, connector pin corrosion, and continuity. Extension cable degradation is a leading cause of false vibration alarms and is frequently overlooked during probe-only replacements. Inspect the cable routing for chafing points near conduit entries and junction boxes.

At the 3500 Series rack or equivalent monitoring system, verify that the I/O module receiving the proximity signal — such as the 3500/42M Proximitor/Seismic Monitor — is correctly configured for the 11mm probe sensitivity (7.87 V/mm). Confirm that alarm setpoints, danger limits, and OK relay logic are intact after the probe swap. If the rack includes a 3500/20 Rack Interface Module, verify communication integrity with the plant DCS or historian.

For installations where the proximity probe feeds into a Bently Nevada 3500/22M Transient Data Interface or similar data acquisition module, confirm that the channel is re-zeroed after probe installation to eliminate any DC offset introduced by the new probe’s gap calibration. This step is critical for axial position channels where even a small DC offset can trigger spurious thrust alerts.

Procurement engineers building a spare parts inventory for 3300 XL-equipped machinery should also stock the 330180-X1-05 proximitor, 330130 series extension cables, and relevant 3500 rack I/O modules as companion spares. For facilities operating multiple machines on the same monitoring platform, a standardized spare kit covering the full transducer loop — probe, cable, and driver — reduces mean time to repair and simplifies technician training. Additionally, consider maintaining a spare 3500/15 Power Supply Module and 3500/05 System Rack backplane fuse set to address power-related faults that can mimic transducer failures during troubleshooting.

Site Replacement Workflow

Replacing the 330101-00-11-20-02-CN on-site follows a structured sequence to minimize downtime and ensure system compatibility:

1. Pre-Replacement Verification: Confirm the replacement probe SKU matches the installed probe exactly — tip diameter (11mm), cable length (2.0m), and connector type (CN). Cross-reference with the machine’s instrumentation drawing and the 3300 XL system documentation. Substituting an 8mm probe or a different cable length without recalibrating the driver will produce incorrect gap voltage and may trigger false alarms or mask real faults.

2. Safe Isolation: Follow site LOTO (Lockout/Tagout) procedures. For online replacement on non-critical machines, consult the 3500 monitor’s bypass capability to suppress alarms during the swap window. Document the bypass activation and restoration in the maintenance log.

3. Probe Removal and Gap Setting: Remove the old probe and inspect the probe boss for thread damage or contamination. Install the new 330101-00-11-20-02-CN and set the air gap to the machine’s specified nominal gap (typically 1.0–1.5mm for most rotating machinery). Use a calibrated gap tool or measure driver output voltage against the 3300 XL calibration curve to confirm correct gap.

4. Loop Verification: With the probe installed and the driver connected, verify OK LED status on the 3500 monitor, confirm gap voltage is within the OK band, and check that vibration readings are stable and consistent with historical baseline values. Any deviation warrants further investigation before returning the machine to service.

5. Documentation and Return to Service: Record the replacement in the CMMS, including the new probe serial number, installation date, gap voltage at commissioning, and technician sign-off. Update the spare parts inventory to trigger reorder of the consumed 330101-00-11-20-02-CN unit.

Spare Parts Support FAQ

Q1: Is the 330101-00-11-20-02-CN compatible with both the 3300 XL and 3500 Series monitoring systems?
Yes. The 330101-00-11-20-02-CN is designed for the 3300 XL Proximity Transducer System and is fully compatible with 3500 Series monitors when paired with the correct 3300 XL proximitor/driver. Always verify the driver model and sensitivity setting match the 11mm probe specification before installation.

Q2: What pre-shipment testing is performed on this spare?
Each 330101-00-11-20-02-CN unit undergoes electrical continuity verification, insulation resistance check, and gap voltage output confirmation against the 3300 XL calibration standard before shipment. A test report is available upon request. All units are shipped with protective end caps and anti-static packaging to prevent transit damage.

Q3: How should this probe be stored as a long-term spare?
Store in a dry, temperature-controlled environment (15–25°C), away from strong magnetic fields and mechanical vibration. Keep the probe in its original packaging with end caps installed. Inspect the cable jacket and connector annually for any signs of degradation. Shelf life under proper storage conditions is typically 5+ years without performance degradation.

Q4: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects, electrical failure under normal operating conditions, and out-of-specification gap voltage output. It does not cover damage resulting from incorrect installation, mechanical impact, chemical exposure, or operation outside the specified temperature and gap range. Warranty claims are processed with return of the defective unit and a completed failure report.
