Bently Nevada 330101-00-12-10-01-05 Retrofit Proximity Probe

Bently Nevada 330101-00-12-10-01-05 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

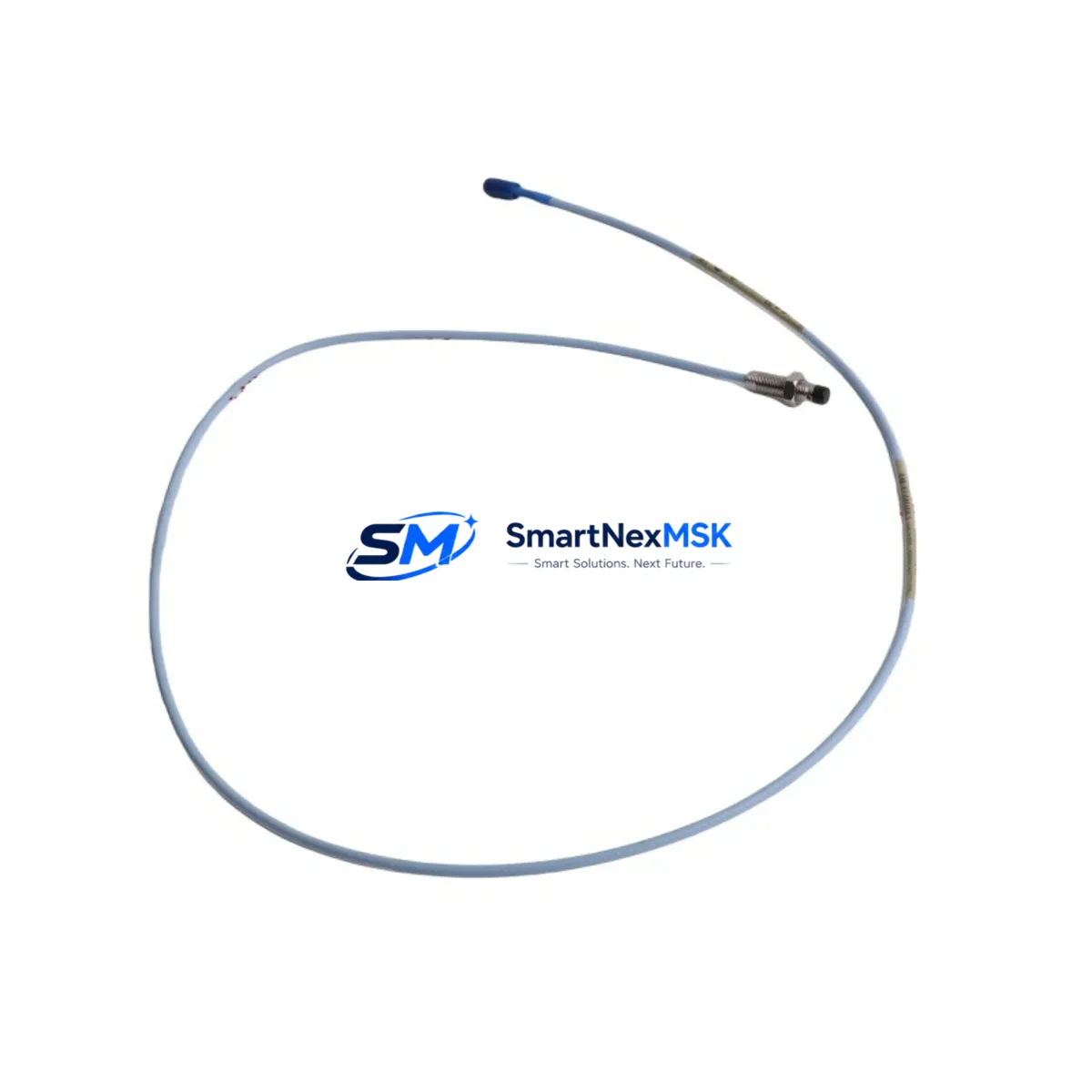

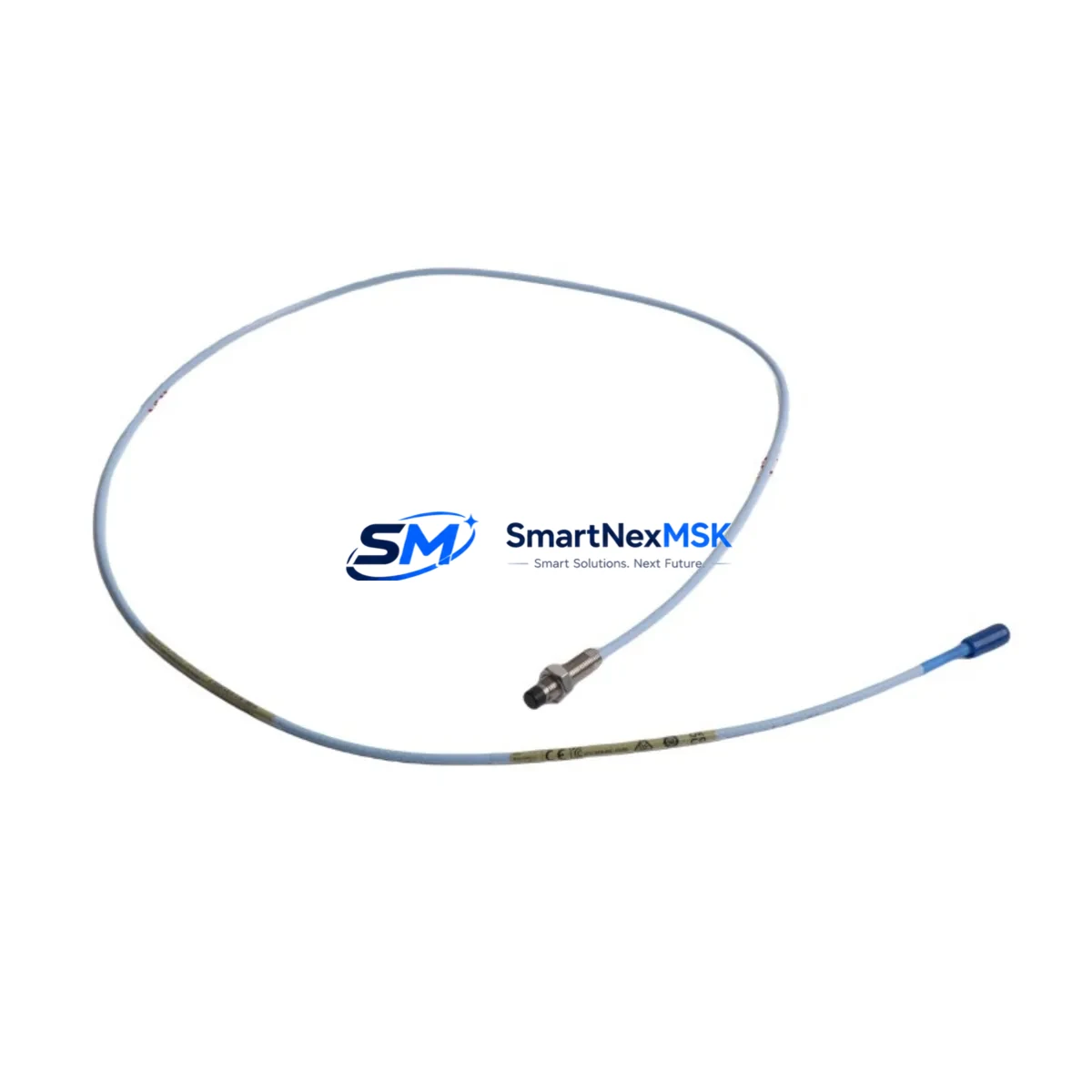

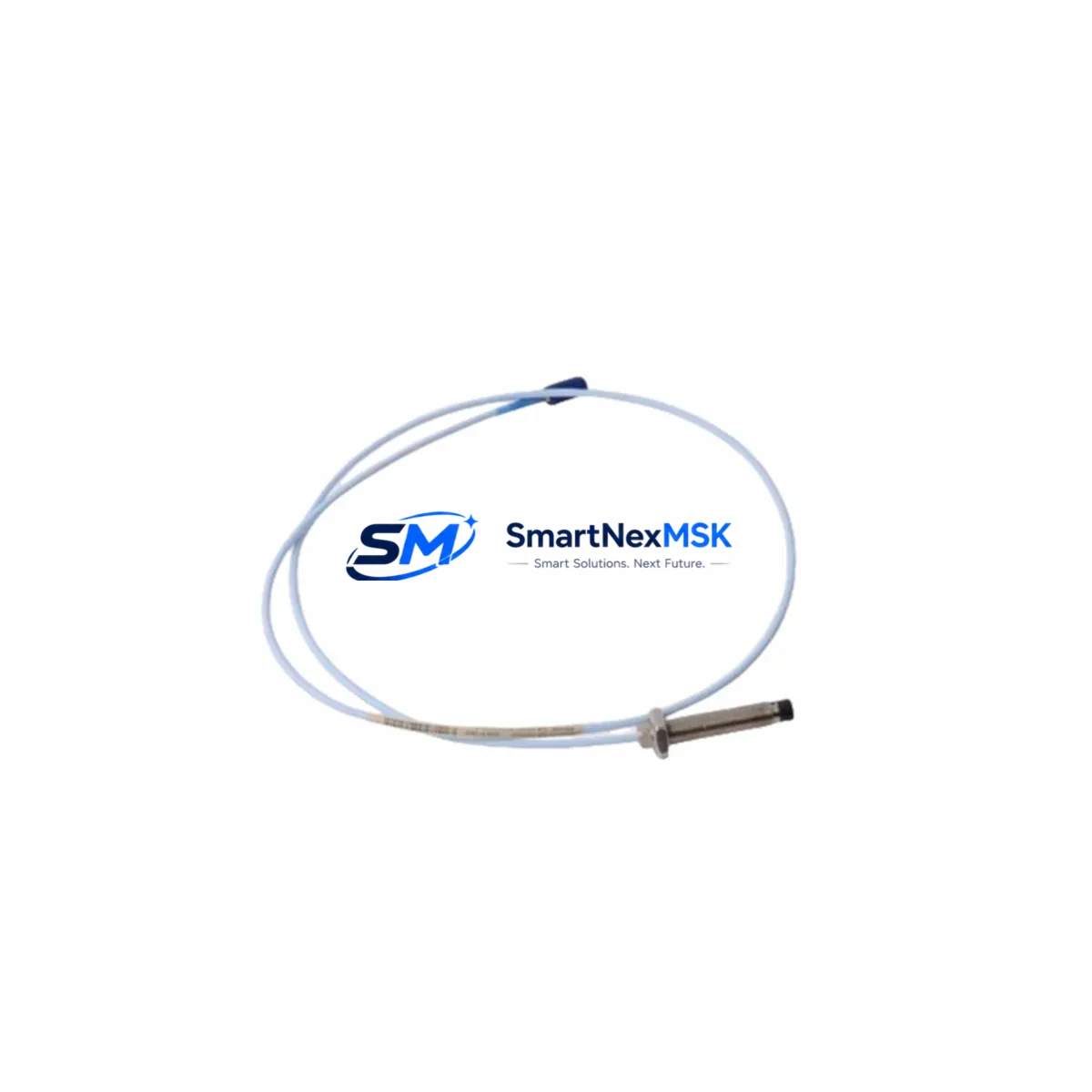

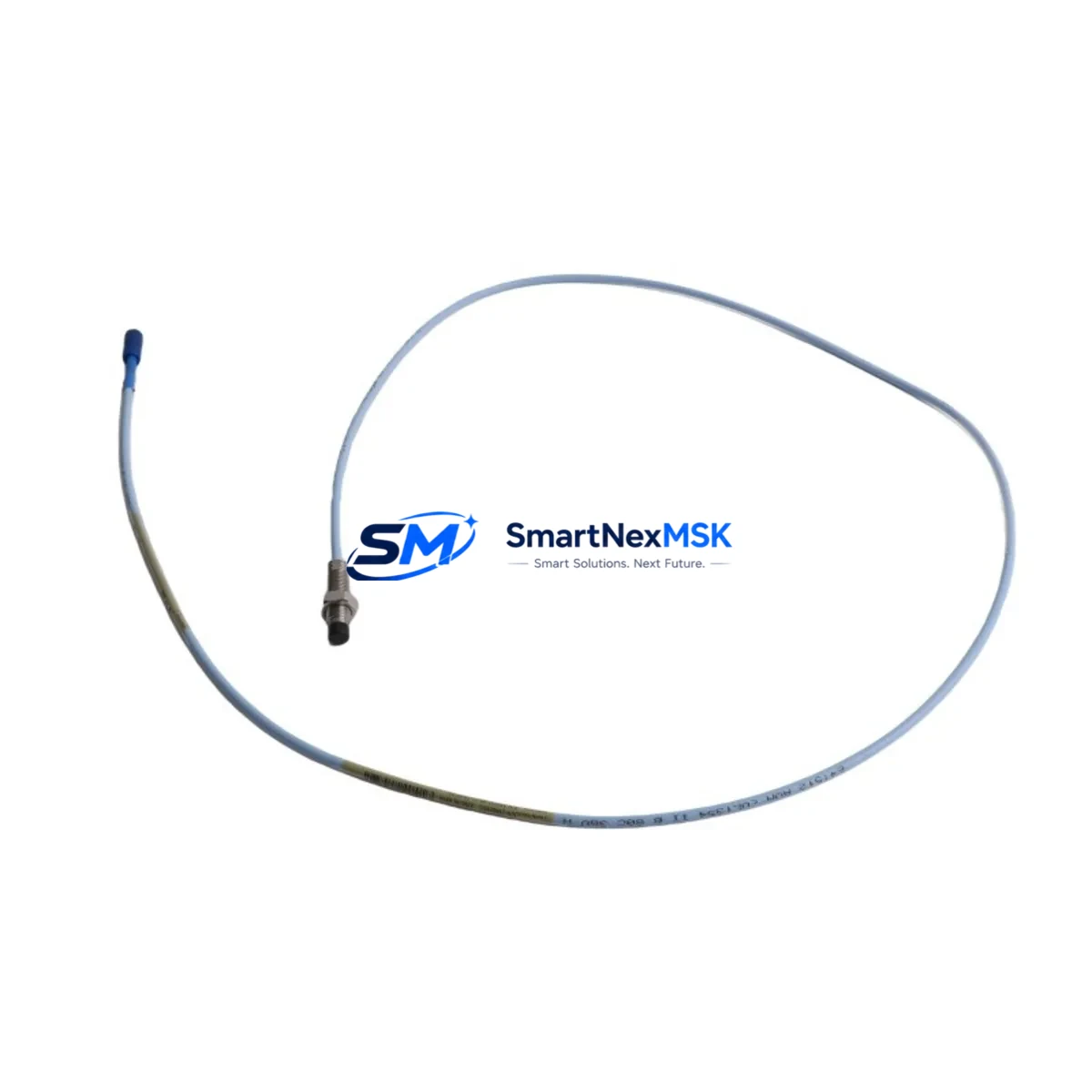

The Bently Nevada 330101-00-12-10-01-05 is an eddy current proximity probe engineered for the 3300 XL series vibration monitoring platform. As legacy machinery monitoring systems age and OEM support for older probe configurations becomes increasingly limited, this unit serves as a verified drop-in replacement for facilities undertaking control system modernization, predictive maintenance upgrades, and rotating machinery protection retrofits. Whether you are replacing a failed probe in an emergency shutdown scenario or executing a planned migration from an older 3300 series architecture to the current 3300 XL standard, this probe delivers the dimensional accuracy, sensitivity, and signal linearity required for uninterrupted machinery protection.

The 330101-00-12-10-01-05 operates within the standard Bently Nevada eddy current measurement chain, requiring pairing with a compatible extension cable — typically the 330130 series — and a signal conditioner from the 3300 XL proximitor family. When retrofitting from an earlier 3300 series installation, engineers should verify that the existing proximitor, such as a 3300/16 or 3300/20 module, is being replaced with the appropriate 3300 XL proximitor to maintain calibration integrity and system certification. Mismatched probe-conditioner combinations are a leading cause of false trip events during post-retrofit commissioning.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330101-00-12-10-01-05 into an existing machinery protection architecture requires a structured pre-installation review. Begin by auditing the current probe mounting boss condition — corrosion, thread damage, or dimensional deviation from the 8 mm standard will affect gap setting accuracy and must be corrected before probe installation. Confirm that the existing 330130 extension cable is within its rated length and shows no insulation degradation, as cable impedance drift directly impacts the proximitor calibration curve.

At the rack level, verify that the 3500/42M or 3500/40M monitor module receiving the proximity signal is configured for the correct transducer type and gap voltage range. If the installation is migrating from a 3300/16 proximitor to a 3300 XL proximitor such as the 3300/55, the monitor configuration file must be updated to reflect the new transducer scale factor. This change is made through the 3500 Rack Configuration Software and should be validated against the original machinery protection setpoint documentation before the system is returned to service.

For facilities running a mixed fleet of Bently Nevada hardware — combining 3300 XL probes with 3500 series monitors, 1900/65 general-purpose vibration monitors, or TK-3 portable data collectors — ensure that the signal chain from probe tip to DCS input card is fully documented. The analog output from the 3300 XL proximitor feeds directly into the DCS analog input module; confirm that the input range on the DCS card matches the proximitor output scaling. In Emerson DeltaV or Honeywell Experion environments, this typically means verifying the AI channel configuration in the I/O module assignment table.

Where the retrofit involves replacing multiple probes across a turbine train or compressor string, consider staging the replacement by machine section to maintain partial monitoring coverage during the outage window. Coordinate with the vibration analyst to establish temporary monitoring via a portable ADRE 408 DSPi or equivalent data acquisition system during the period when rack channels are offline for reconfiguration.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe retrofit requires pre-staging all replacement components before the maintenance window opens. Confirm that the 330101-00-12-10-01-05 probe, the 330130 extension cable, and the target 3300 XL proximitor are on-site and bench-tested before the machine is taken offline. Use the Bently Nevada System 1 software or the 3500 Rack Configuration Software to export the current monitor configuration, setpoints, and alarm thresholds — this export serves as both a backup and a commissioning reference.

During the physical swap, maintain the original wiring labels on all terminal blocks at the junction box and at the monitor rack. The 3300 XL proximitor uses a standard three-wire connection (shield, center conductor, and outer conductor) consistent with earlier 3300 series hardware, which simplifies re-termination. After probe installation and gap setting, perform a static gap voltage check at the proximitor output terminals before energizing the monitor channel. This step catches installation errors — incorrect gap distance, reversed polarity, or damaged cable — before they generate nuisance trips or mask genuine machinery faults.

Once the channel is energized, compare the live gap voltage and vibration amplitude readings against the pre-outage baseline values stored in the historian or the ADRE database. A deviation of more than 10% in the static gap voltage at the same physical gap distance indicates a probe or cable fault that must be resolved before the machine is returned to service. Document the as-found and as-left gap voltages in the maintenance management system to support future calibration trending and regulatory compliance records.

Retrofit Support FAQ

Q1: Is the 330101-00-12-10-01-05 a direct replacement for earlier 330101 suffix variants?
A: Yes, the 330101-00-12-10-01-05 is dimensionally and electrically compatible with earlier 330101 suffix configurations including the -00 and -02 variants. The primary difference is the cable length designation in the part number suffix. Verify the required probe section length against your installation drawing before ordering to ensure the correct gap range is achievable at your target mounting depth.

Q2: What commissioning steps are required after installation?
A: After physical installation, set the probe gap to the manufacturer-specified nominal gap (typically 1.0 mm for 8 mm probes) and measure the DC gap voltage at the proximitor output. The expected output is approximately -10 VDC at nominal gap. Verify the sensitivity (mV/mil or mV/µm) against the calibration certificate. Update the 3500 monitor configuration if the transducer scale factor has changed, and confirm that all alarm and trip setpoints are correctly loaded before returning the channel to service.

Q3: Can this probe be used with non-Bently Nevada monitors?
A: The 330101-00-12-10-01-05 is designed for use within the Bently Nevada measurement chain and is calibrated for use with Bently Nevada proximitors. Use with third-party signal conditioners is possible but requires independent calibration verification, as the sensitivity and linearity specifications are optimized for the 3300 XL proximitor family. Compatibility with Emerson CSI, SKF Entek, or other third-party monitor platforms should be confirmed with the respective manufacturer before installation.

Q4: What does the 12-month warranty cover?
A: All units ship with a 12-month warranty covering manufacturing defects in materials and workmanship from the date of shipment. The warranty covers probe tip damage, cable insulation failure, and connector defects arising from manufacturing. It does not cover damage resulting from incorrect installation, gap setting errors, electrical overstress, or mechanical impact. Warranty claims are processed with return shipping coordination through our sales team.
