Bently Nevada 330101-00-12-10-02-05 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330101-00-12-10-02-05 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

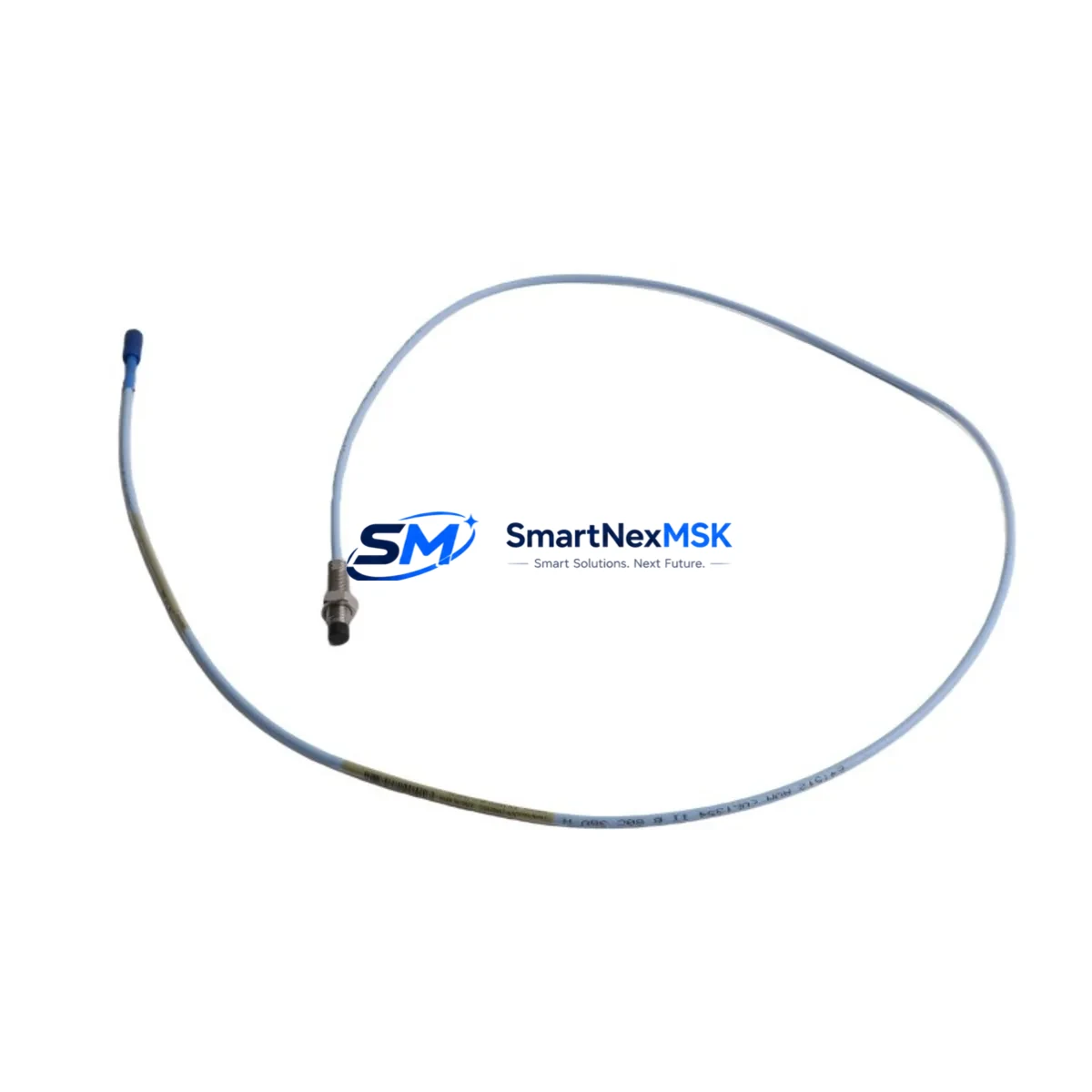

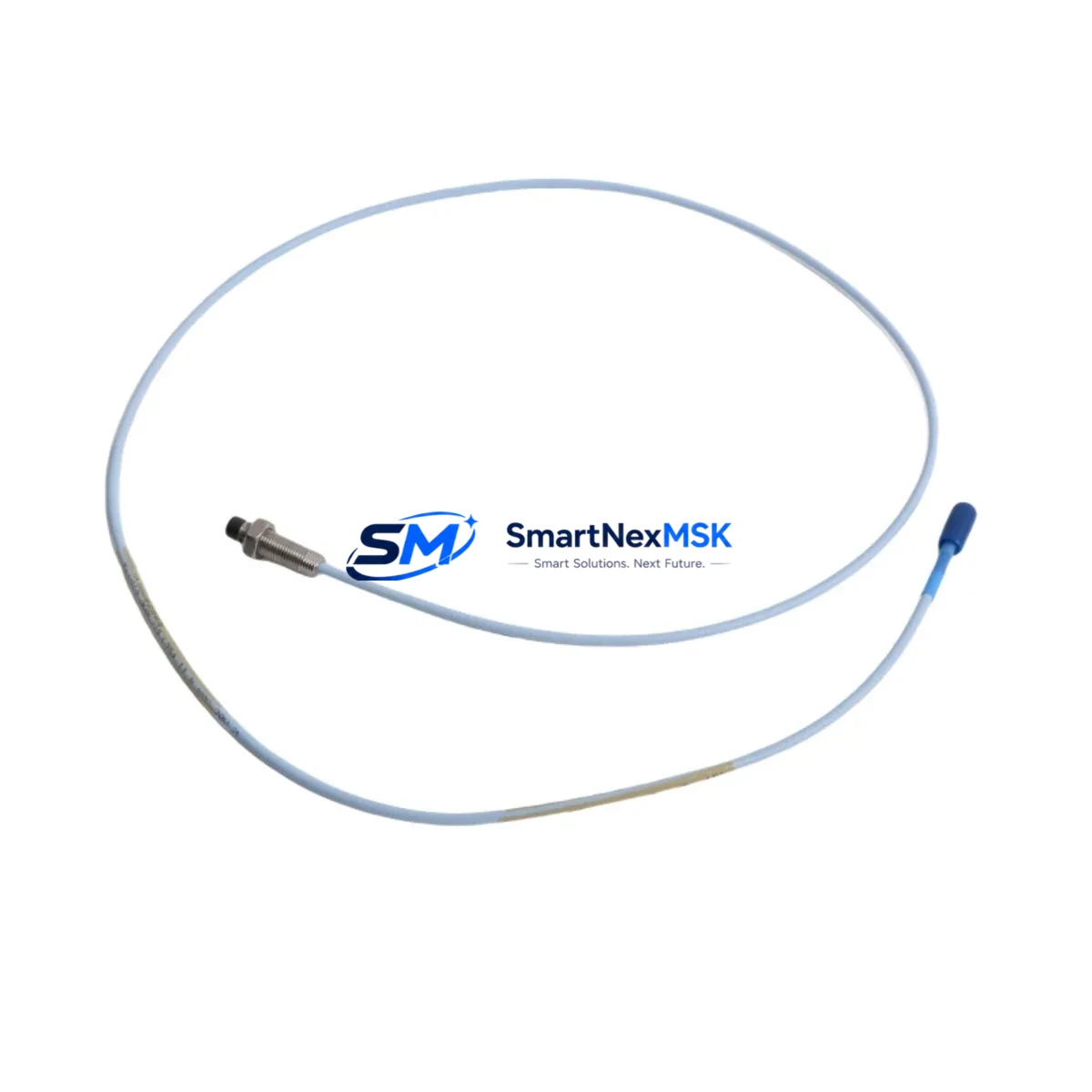

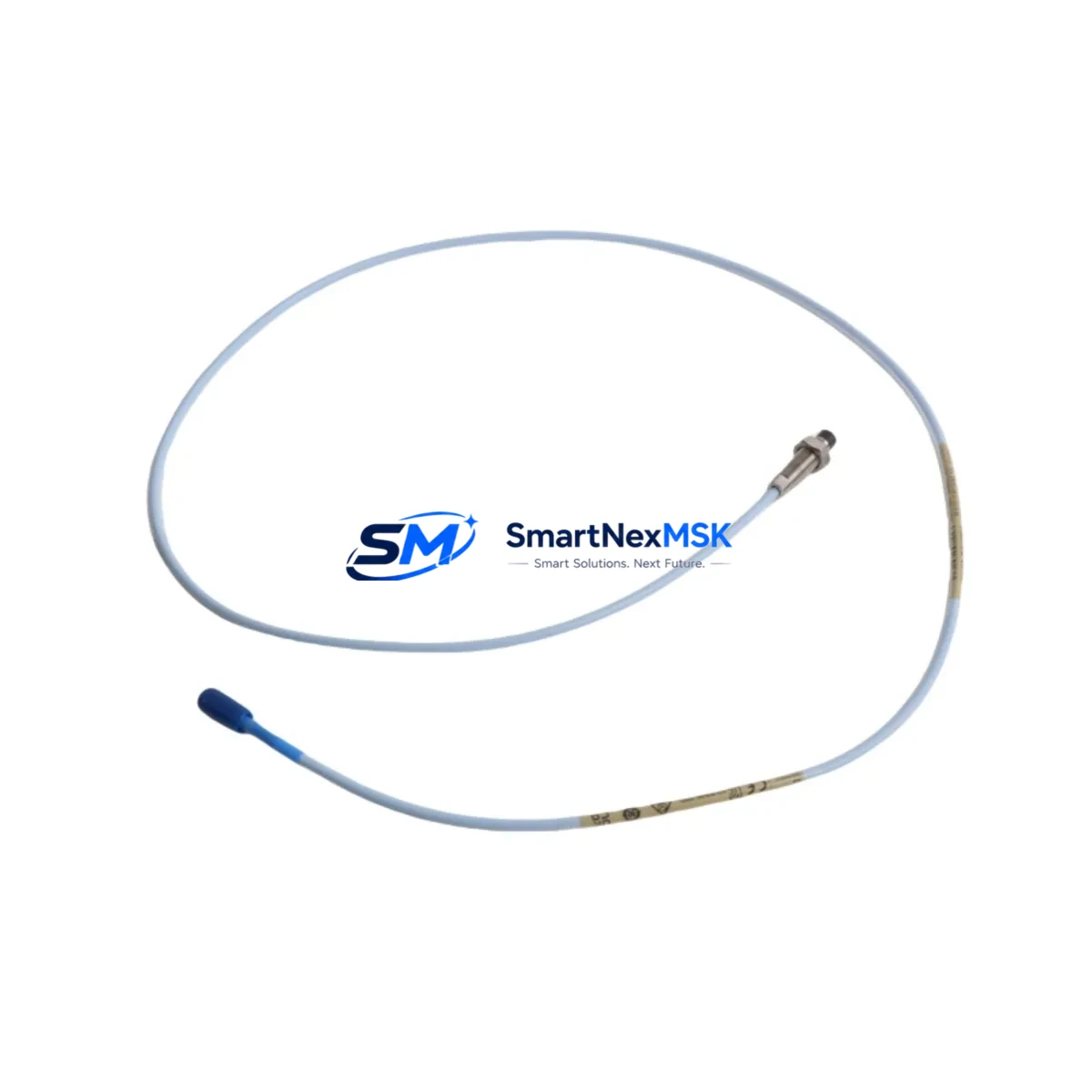

The Bently Nevada 330101-00-12-10-02-05 is a high-precision eddy-current proximity probe engineered for direct retrofit into legacy and active 3300 XL Series vibration monitoring systems. As original Bently Nevada 3300 Series hardware reaches end-of-production lifecycle, plant engineers and reliability teams increasingly rely on verified replacement units to sustain continuous machinery protection without triggering full system overhauls. This probe delivers the same 5 mm sensing range, –24 VDC bias voltage output, and 200 mV/mil sensitivity as the factory-original specification, making it a drop-in solution for turbine, compressor, pump, and gearbox monitoring applications.

Whether you are replacing a failed probe on a running train, upgrading a brownfield control cabinet, or restoring a mothballed asset, the 330101-00-12-10-02-05 is stocked, tested, and ready to ship with a 12-month warranty covering both parts and workmanship.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330101-00-12-10-02-05 into an existing machinery protection architecture requires a structured pre-installation review. Begin by auditing the current probe driver — typically a Bently Nevada 330180-X1-05 or 330180-X1-00 proximitor/driver — to confirm it is calibrated for the 5 mm probe family. Mismatched drivers are the leading cause of erroneous vibration readings after probe replacement.

Next, inspect the extension cable assembly. The 330130-045-00-00 and 330130-080-00-00 extension cables are the most common field-installed lengths in 3300 XL systems; verify that the total system cable length (probe + extension) matches the driver’s calibrated range. If the existing extension cable shows insulation degradation or connector corrosion, replace it concurrently to avoid introducing noise into the vibration signal chain.

At the monitor rack level, confirm that the 3300 XL monitor card — such as the 3300/16 or 3300/20 — is configured for the correct transducer type and full-scale range. If the plant is migrating from an older 3300 NSv monitor to the 3300 XL platform, the I/O terminal block wiring assignments may differ; cross-reference the rack wiring diagram against the 3300 XL I/O module pinout before energizing. For sites running a Bently Nevada 3500 Series rack in parallel, a 3500/42M position monitor card can accept the same probe signal with appropriate scaling adjustments in the rack configuration software.

Control cabinet upgrades often involve replacing the 3300 power supply module alongside the probe to ensure clean –24 VDC bias supply. Verify that the cabinet’s DIN rail space and terminal block layout accommodate the replacement power supply footprint. Where the original system used a Bently Nevada 3300/05 power supply, confirm that the replacement unit’s output ripple specification meets the 3300 XL monitor card’s input requirements.

For plants integrating vibration data into a DCS or SCADA platform via Modbus RTU or FOUNDATION Fieldbus, confirm that the 3300 XL communication gateway — such as the 3500/92 communication gateway module — is firmware-updated to support the current protocol mapping. HMI faceplate templates referencing the old probe tag names should be updated in the SCADA historian to reflect the new instrument tag and calibration constants, preventing alarm threshold mismatches after commissioning.

Finally, document the as-found and as-left gap voltage readings, electrical runout values, and slow-roll compensation vectors in the plant’s CMMS before returning the machine to service. This baseline data is essential for trending and future predictive maintenance decisions.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement begins with pre-staging all replacement components — probe, extension cable, and driver — before the maintenance window opens. A pre-tested, matched probe-cable-driver system can be swapped in under 30 minutes on most horizontal compressor or turbine trains, provided the jam-nut access is clear and the BNC connector is accessible without removing adjacent instrumentation.

Where the machine cannot be taken offline, a temporary bypass of the vibration channel in the 3300 XL monitor card — using the card’s inhibit function — allows the probe to be replaced without triggering a spurious trip. Confirm with the control room that the bypass is logged and that a manual watch is established on the affected bearing location during the swap window. Restore the channel and verify the gap voltage and vibration baseline before releasing the inhibit.

For systems where the original program logic in the DCS references the vibration channel for permissive interlocks or load-shedding sequences, coordinate with the control engineer to temporarily mask the affected input in the PLC or DCS logic. Preserve the original ladder logic or function block configuration as a backup before any parameter changes. After probe installation and gap setting, perform a slow-roll check at barring-gear speed to confirm the electrical runout is within specification before ramping to operating speed. This sequence protects both the machine and the original control program logic from false trips during the commissioning phase.

Retrofit Support FAQ

Q1: Is the 330101-00-12-10-02-05 a direct drop-in replacement for the original Bently Nevada part?
Yes. This unit is manufactured to the same dimensional, electrical, and sensitivity specifications as the OEM part. It uses the same M10 × 1 thread, BNC connector, and –24 VDC bias voltage, and is compatible with all 3300 XL extension cables and drivers without modification.

Q2: What pre-installation checks are required before wiring the probe into the 3300 XL monitor?
Verify the driver model and calibration range, inspect the extension cable for continuity and insulation resistance, confirm the monitor card channel is inhibited before disconnecting the old probe, and set the air gap to 1.0 mm (40 mil) using a non-ferrous feeler gauge. Measure the gap voltage (target –10.0 VDC ±0.5 V) before releasing the channel inhibit.

Q3: Has this unit been tested before shipment?
Yes. Every 330101-00-12-10-02-05 unit undergoes functional output testing, sensitivity verification, and insulation resistance testing prior to packaging. A test report is available upon request. The unit ships with a 12-month warranty covering manufacturing defects and workmanship.

Q4: Can this probe be used with a Bently Nevada 3500 Series rack?
With appropriate scaling configuration in the 3500 rack software, the probe is compatible with 3500/42M position monitor cards. Consult the 3500 rack configuration guide to adjust the transducer scale factor and full-scale range to match the 5 mm probe family specifications before commissioning.
