Bently Nevada 330101-00-12-10-11-05 Spare 3300 XL: Precision Replacement for Continuous Vibration Monitoring

In rotating machinery protection, a single failed proximity probe can cascade into unplanned downtime, missed vibration alarms, and catastrophic bearing or shaft damage. The Bently Nevada 330101-00-12-10-11-05 is an original 3300 XL Series eddy current proximity probe engineered for continuous, high-reliability vibration and position monitoring in the most demanding industrial environments. Whether you are a maintenance engineer managing a turbine protection system or a procurement specialist building a critical spare parts inventory, this probe delivers the dimensional accuracy, signal stability, and long-term availability your operation depends on.

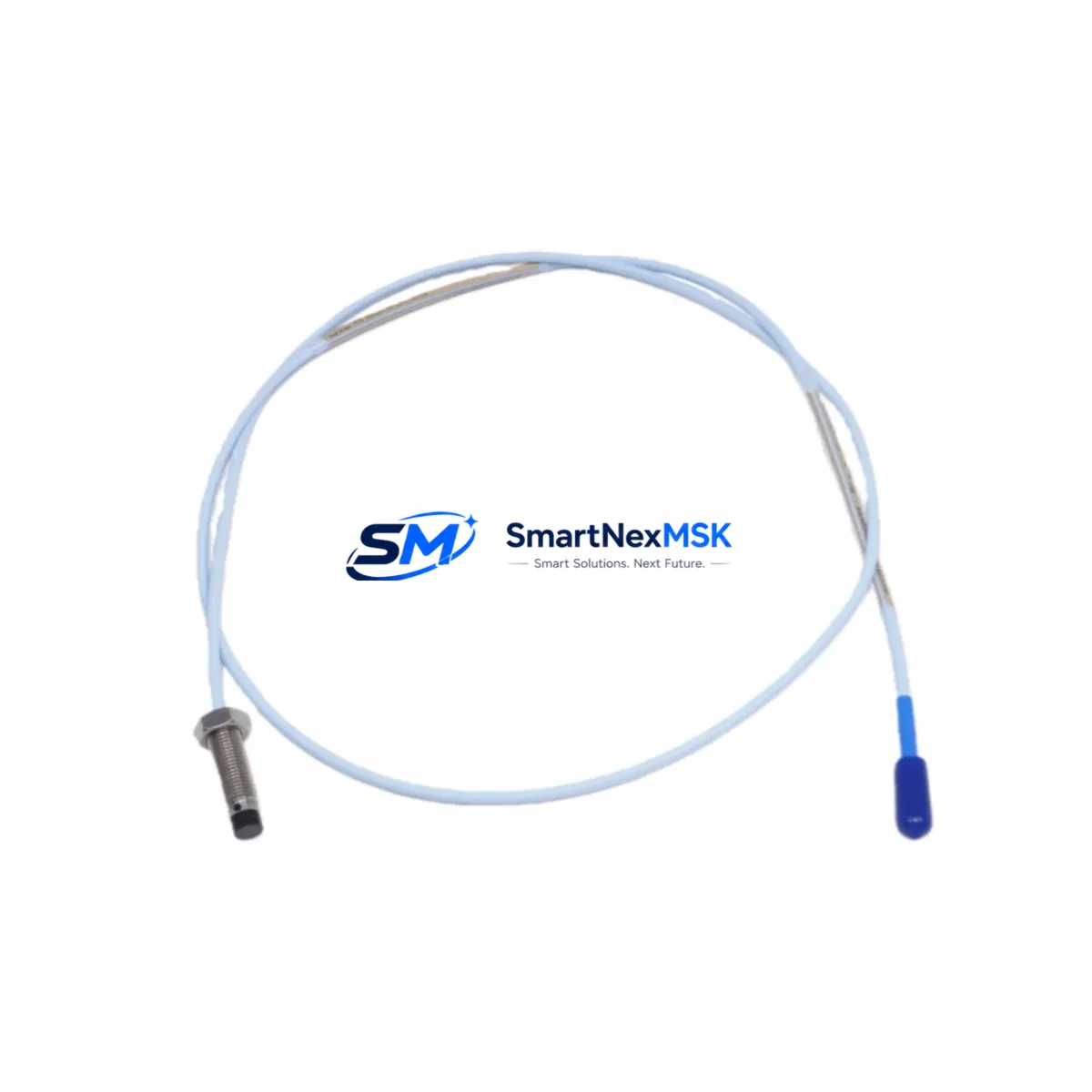

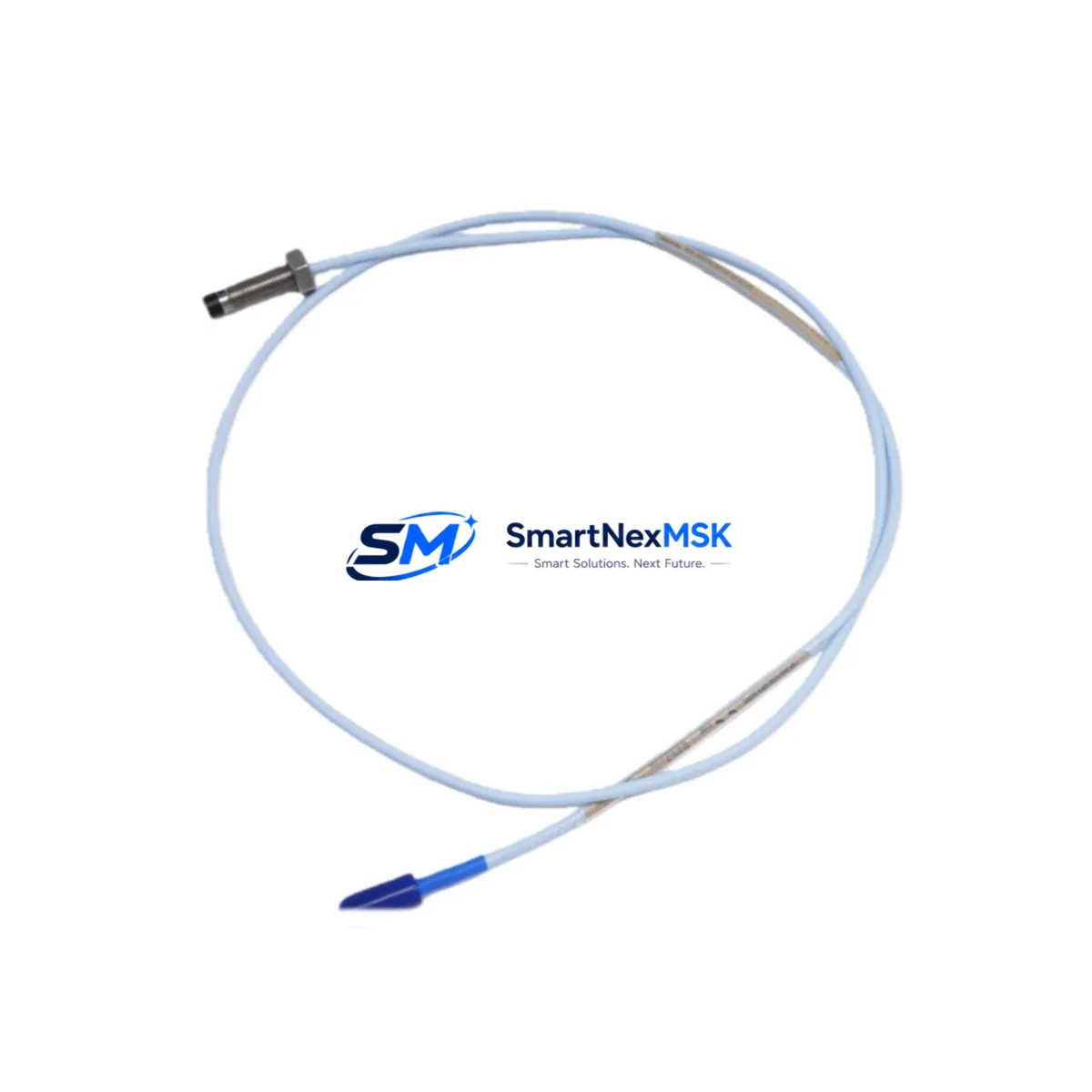

The 330101-00-12-10-11-05 features a 5 mm tip diameter, 300 mm (12-inch) cable extension, and is calibrated for use with the standard 3300 XL driver/extension cable system. Its eddy current sensing technology provides non-contact measurement of shaft radial vibration, axial position, and differential expansion — parameters that are essential for safe operation of steam turbines, gas compressors, centrifugal pumps, and large electric motors in petrochemical, power generation, and heavy manufacturing facilities.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330101-00-12-10-11-05 probe is rarely an isolated task. Experienced maintenance engineers know that a probe swap is the right moment to inspect the entire transducer chain and associated monitoring infrastructure. The 3300 XL system is a matched set: the probe works in conjunction with a Bently Nevada 3300 XL extension cable (such as the 330130-045-00-00 or 330130-080-00-00 depending on installation distance) and a 3300 XL proximitor/driver (e.g., 3300/16-02-01-01-00-00 or 3300/20-02-01-01-00-00). If the probe has failed due to cable damage, contamination, or mechanical impact, the extension cable and driver should be tested simultaneously — a degraded driver will produce erroneous gap voltages even with a new probe installed.

Within the Bently Nevada 3500 Series monitoring rack, the proximity probe signal feeds into I/O modules such as the 3500/42M (Proximitor/Seismic Monitor) or the 3500/40M (Proximitor Monitor). These modules condition the raw DC voltage from the probe into vibration and position values that trigger alarms and trips. During a planned maintenance window, it is advisable to verify the calibration of these monitor cards alongside the probe replacement. A 3500/20 Rack Interface Module (RIM) and the associated 3500/05 Power Supply should also be checked for output voltage stability — a sagging -24 VDC supply is a common root cause of intermittent probe faults that are misdiagnosed as probe failures.

For installations where the probe is mounted in a high-temperature bearing housing or near steam seals, the probe tip and armored cable jacket should be inspected for thermal degradation. In such environments, maintaining a stock of 3300 XL armored extension cables and spare proximitor housings is standard practice. Additionally, the junction box or field terminal enclosure connecting the probe cable to the rack wiring should be inspected for moisture ingress, corroded terminals, and loose connections — issues that introduce signal noise and false vibration readings. Replacing worn field wiring terminal blocks and verifying shield grounding at the rack end are low-cost steps that protect the integrity of the entire measurement chain.

For facilities running legacy Bently Nevada 7200 Series probes alongside newer 3300 XL installations, this is also an opportunity to audit cross-compatibility and plan a phased upgrade. The 330101-00-12-10-11-05 is not backward-compatible with 7200 Series drivers, so clear labeling and spare parts segregation in the maintenance storeroom are essential to prevent installation errors during emergency shutdowns.

Site Replacement Workflow

A structured replacement workflow minimizes downtime and ensures the new probe is correctly commissioned before the machine is returned to service:

1. Pre-Shutdown Verification: Before isolating the machine, record the current gap voltage from the existing probe using the 3500 rack display or a calibrated voltmeter at the proximitor output. A healthy gap voltage for a 5 mm probe at nominal gap (1.0 mm) should read approximately -10.5 VDC. Deviations indicate either a probe fault or a driver fault — this baseline helps confirm the replacement resolves the issue.

2. Isolation and Removal: De-energize the monitoring channel at the 3500 rack before disconnecting the probe cable. Carefully unthread the probe from the bearing housing, noting the exact thread engagement depth (typically set to achieve the nominal gap). Record the locknut position for reference during reinstallation.

3. Inspection of Mating Components: Inspect the extension cable connector for pin damage, contamination, or corrosion. Check the proximitor housing for oil ingress. If the extension cable shows any kinking, abrasion, or connector damage, replace it with a new 330130-series extension cable matched to the installation distance.

4. Installation and Gap Setting: Thread the new 330101-00-12-10-11-05 probe into the housing and adjust the gap to achieve the nominal gap voltage (-10.5 VDC ±0.5 VDC at 1.0 mm gap). Use a non-ferrous feeler gauge or the voltage reading method per Bently Nevada installation procedures. Secure the locknut to the specified torque.

5. Functional Verification: Re-energize the monitoring channel and confirm the gap voltage, vibration baseline, and alarm setpoints are within specification. Document the as-left gap voltage in the maintenance record. Notify the control room before returning the machine to service.

This workflow is applicable to steam turbines, gas turbines, centrifugal compressors, boiler feed pumps, and any rotating equipment protected by a Bently Nevada 3500 or 3300 Series monitoring system.

Spare Parts Support FAQ

Q1: What is the warranty coverage for the 330101-00-12-10-11-05?
All units supplied by SMARTNEXMSK carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects and functional failure under normal operating conditions. Each unit undergoes functional testing and gap sensitivity verification before dispatch. If a unit fails within the warranty period, we provide a replacement or full refund — no lengthy RMA process.

Q2: How do I confirm compatibility with my existing 3300 XL system before ordering?
The 330101-00-12-10-11-05 is compatible with all standard Bently Nevada 3300 XL drivers and extension cables. To confirm compatibility, check your existing probe label for the series designation (3300 XL) and tip diameter (5 mm). If you are replacing a probe in a 3500 rack system, verify the monitor card model (3500/40M or 3500/42M) accepts 3300 XL probe inputs — all standard 3500 Series proximity monitor cards do. Contact our technical team with your rack configuration if you need confirmation before ordering.

Q3: Can this probe replace older Bently Nevada 7200 Series probes?
No. The 330101-00-12-10-11-05 is a 3300 XL Series probe and is not directly interchangeable with 7200 Series probes due to differences in sensitivity, driver electronics, and connector design. A 7200-to-3300 XL upgrade requires replacing the probe, extension cable, and driver as a matched set. SMARTNEXMSK can supply complete 3300 XL transducer system kits for legacy system upgrades — contact us for a compatibility assessment.

Q4: What is your long-term supply commitment for this part?
SMARTNEXMSK maintains standing inventory of the 330101-00-12-10-11-05 and related 3300 XL components to support long-term maintenance programs. We supply to facilities with planned maintenance cycles, annual shutdown schedules, and emergency procurement needs. For high-volume or blanket purchase orders, we offer reserved stock arrangements to guarantee availability. Our global logistics network supports delivery to petrochemical, power, mining, and manufacturing facilities worldwide.
