Bently Nevada 330101-00-13-15-02-05 Spare 3300 XL

Bently Nevada 330101-00-13-15-02-05 Maintenance-Ready Spare for 3300 XL Automation

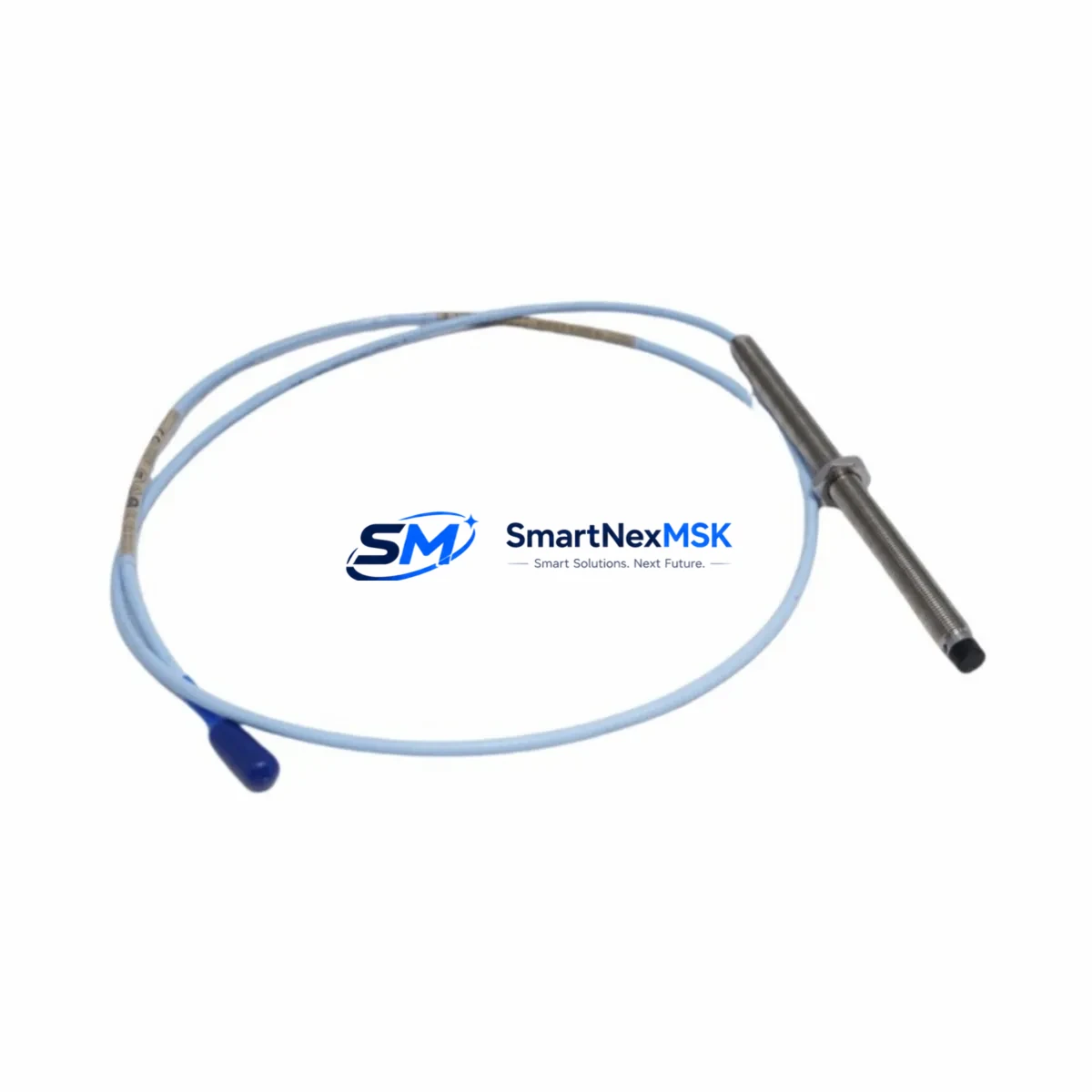

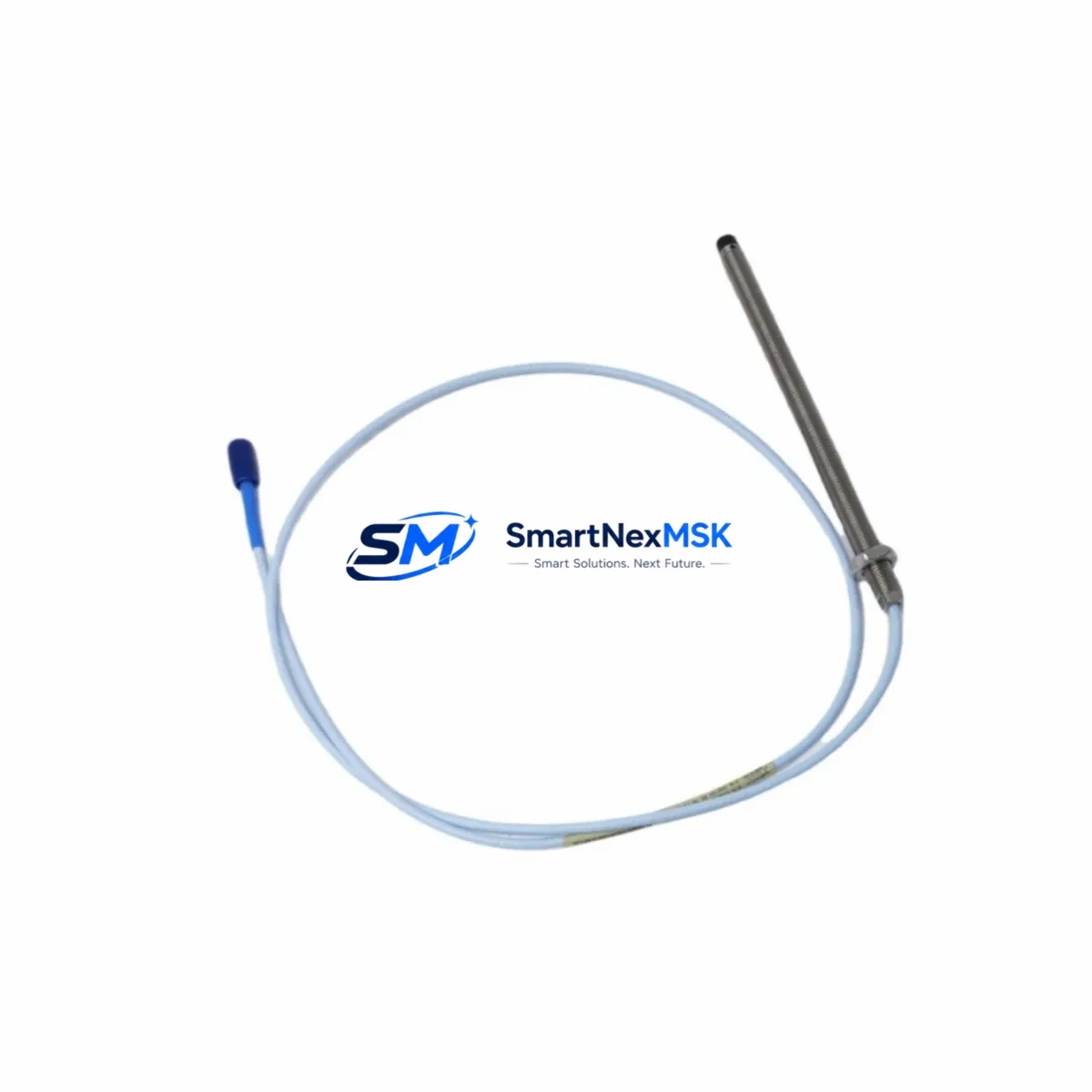

The Bently Nevada 330101-00-13-15-02-05 is an 8mm eddy-current proximity transducer engineered for continuous vibration and position monitoring in rotating machinery protection systems. As a maintenance-ready spare within the 3300 XL Series platform, this transducer is a critical component in turbine, compressor, pump, and motor protection circuits where unplanned downtime carries significant operational and financial risk. Whether you are managing a scheduled overhaul, responding to a sensor fault alarm, or building a strategic spare parts inventory, the 330101-00-13-15-02-05 delivers verified drop-in compatibility with existing 3300 XL monitor racks and field wiring.

Maintenance engineers and procurement teams working with Bently Nevada machinery protection systems recognize that the proximity transducer is the first point of failure in the measurement chain. A degraded or failed transducer can trigger false trips, mask real vibration events, or cause the protection system to lose its safety function entirely. Stocking the 330101-00-13-15-02-05 as a certified spare eliminates the lead-time risk associated with sourcing this component during an emergency shutdown. Each unit shipped by SMARTNEXMSK is function-tested prior to dispatch and covered by a 12-month warranty, giving maintenance teams confidence in both the part quality and the supply continuity.

When replacing the 330101-00-13-15-02-05 in the field, a thorough site inspection should extend beyond the transducer itself. The 3300 XL proximitor or extension cable — typically the 330130-045-00-00 or 330130-080-00-00 series — must be checked for jacket integrity, connector corrosion, and continuity, as cable degradation is a common co-failure mode. The proximitor power supply voltage, normally supplied by the 3300 XL monitor module such as the 3300/16 or 3300/20 series, should be verified at the field terminal barrier before installing the replacement transducer. Incorrect gap voltage or supply rail sag will produce erroneous output even with a new sensor installed.

At the monitor rack level, maintenance teams should confirm that the 3300 XL I/O module channel configuration matches the transducer’s sensitivity specification — typically -7.87 V/mm — and that the OK relay output is functioning correctly after sensor replacement. If the system uses a 3500 Series rack alongside legacy 3300 XL hardware, verify that the channel scaling and alarm setpoints have not drifted during the outage period. The Bently Nevada 3500/42M proximity monitor and 3500/22M transient data interface are commonly found in the same control cabinet and should be included in the post-replacement functional check.

For facilities running Modbus RTU or FOUNDATION Fieldbus communication links from the machinery protection system to the DCS or SCADA layer, confirm that the communication module — such as the 3500/92 communication gateway — is online and reporting correctly after the transducer swap. A sensor replacement that clears a hardware fault can sometimes trigger a communication timeout if the monitor module resets during the process. Coordinating with the control room operator before and after the replacement minimizes the risk of a spurious trip or a missed alarm during the transition window.

Planned maintenance intervals are the optimal time to replace proximity transducers proactively. Facilities that operate on a 2-year or 4-year turnaround cycle should include the 330101-00-13-15-02-05 in their bill of materials alongside companion items such as the 330180-51-05 thrust position transducer, the 330105-02-12-10-02-05 reverse-mount transducer, and the 330850-50-05 temperature sensor, all of which share the same 3300 XL platform and are subject to similar aging mechanisms in high-temperature or high-vibration environments.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Effective maintenance planning for a 3300 XL-based machinery protection system requires a holistic view of the measurement chain. When the 330101-00-13-15-02-05 is identified as a replacement candidate — whether through routine calibration checks, an OK alarm, or a gap voltage out-of-range condition — the maintenance window should be used to inspect and, where necessary, replace associated components that share the same service life.

The 330130 series extension cables are the most frequent co-replacement item. These cables run from the transducer through conduit or cable trays to the proximitor, and their polyurethane jackets are susceptible to cracking in high-temperature environments near turbine casings. A new transducer installed on a degraded cable will produce noisy or intermittent output that is difficult to distinguish from a mechanical fault. Similarly, the proximitor itself — typically mounted in a junction box or on the monitor rack — should be inspected for moisture ingress and connector oxidation.

At the control cabinet level, the 3300 XL monitor module’s terminal barrier strips and field wiring connections should be torqued to specification and checked for insulation resistance. If the facility uses a Bently Nevada 3500/20 power monitor or a 3500/15 power supply module to feed the rack, verify that the output voltage is within tolerance before energizing the new transducer. A marginal power supply that has been operating near its current limit can cause intermittent OK relay dropouts that are incorrectly attributed to the sensor.

For systems that include a 3300 XL keyphasor module — such as the 3300/25 — the keyphasor transducer and its cable should also be inspected during the same outage, as keyphasor signal integrity directly affects phase-referenced vibration measurements. If the control system interfaces with a Honeywell DCS or a Siemens PCS 7 platform via a 3500/92 Modbus gateway, confirm that the gateway’s communication parameters are unchanged after the monitor module is powered down and restored.

Procurement engineers should consider maintaining a minimum stock of two 330101-00-13-15-02-05 units per critical machine train, supplemented by at least one spare extension cable set and one spare proximitor. This three-component spare kit covers the most common failure modes and supports a target replacement time of under two hours for a trained technician, keeping unplanned downtime within acceptable limits for most rotating equipment maintenance contracts.

Site Replacement Workflow

Before beginning the transducer replacement, coordinate with the control room to place the affected channel in bypass mode on the 3300 XL or 3500 Series monitor. This prevents a spurious trip during the mechanical work. Document the existing gap voltage reading from the monitor display or the System 1 software interface — this value serves as the baseline for commissioning the new transducer.

Disconnect the extension cable from the old transducer at the field connector. Inspect the connector pins for corrosion or mechanical damage before attaching the cable to the 330101-00-13-15-02-05 replacement. Thread the new transducer into the probe holder and adjust the gap to achieve the target output voltage of -10.0 V ± 0.5 V, measured at the monitor terminal barrier. Tighten the locknut to the torque specified in the Bently Nevada installation drawing for the probe holder type in use.

After mechanical installation, restore the channel from bypass and observe the OK relay status and the vibration reading on the monitor. Compare the live gap voltage and vibration amplitude against the pre-outage baseline. If the readings are within the expected range and the OK relay is energized, the replacement is complete. Log the new gap voltage, the date of replacement, and the replacement transducer serial number in the equipment maintenance record. If the System 1 condition monitoring software is in use, update the asset record to reflect the new component installation date for predictive maintenance tracking.

Spare Parts Support FAQ

Q1: Is the 330101-00-13-15-02-05 a direct replacement for all 3300 XL 8mm transducer variants?
A: The 330101-00-13-15-02-05 is compatible with standard 3300 XL 8mm proximity measurement chains. Verify the proximitor model and extension cable length against the OEM wiring diagram before installation, as different cable length configurations use different part number suffixes. SMARTNEXMSK can assist with cross-referencing your existing part number.

Q2: What pre-shipment testing is performed on each unit?
A: Every 330101-00-13-15-02-05 unit is function-tested for output voltage linearity, sensitivity, and OK relay behavior before dispatch. A test report is available upon request. Units are shipped in anti-static packaging with protective caps on the probe tip and connector.

Q3: How do I confirm compatibility with my existing 3500 Series monitor rack?
A: The 330101-00-13-15-02-05 is compatible with 3500 Series monitors when used with the correct 3300 XL proximitor. Confirm that the monitor channel is configured for the -7.87 V/mm sensitivity standard. If you are unsure of your system configuration, provide your monitor model number and we will confirm compatibility before shipment.

Q4: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. Warranty claims are processed with a replacement unit dispatched within 5 business days of fault confirmation.
