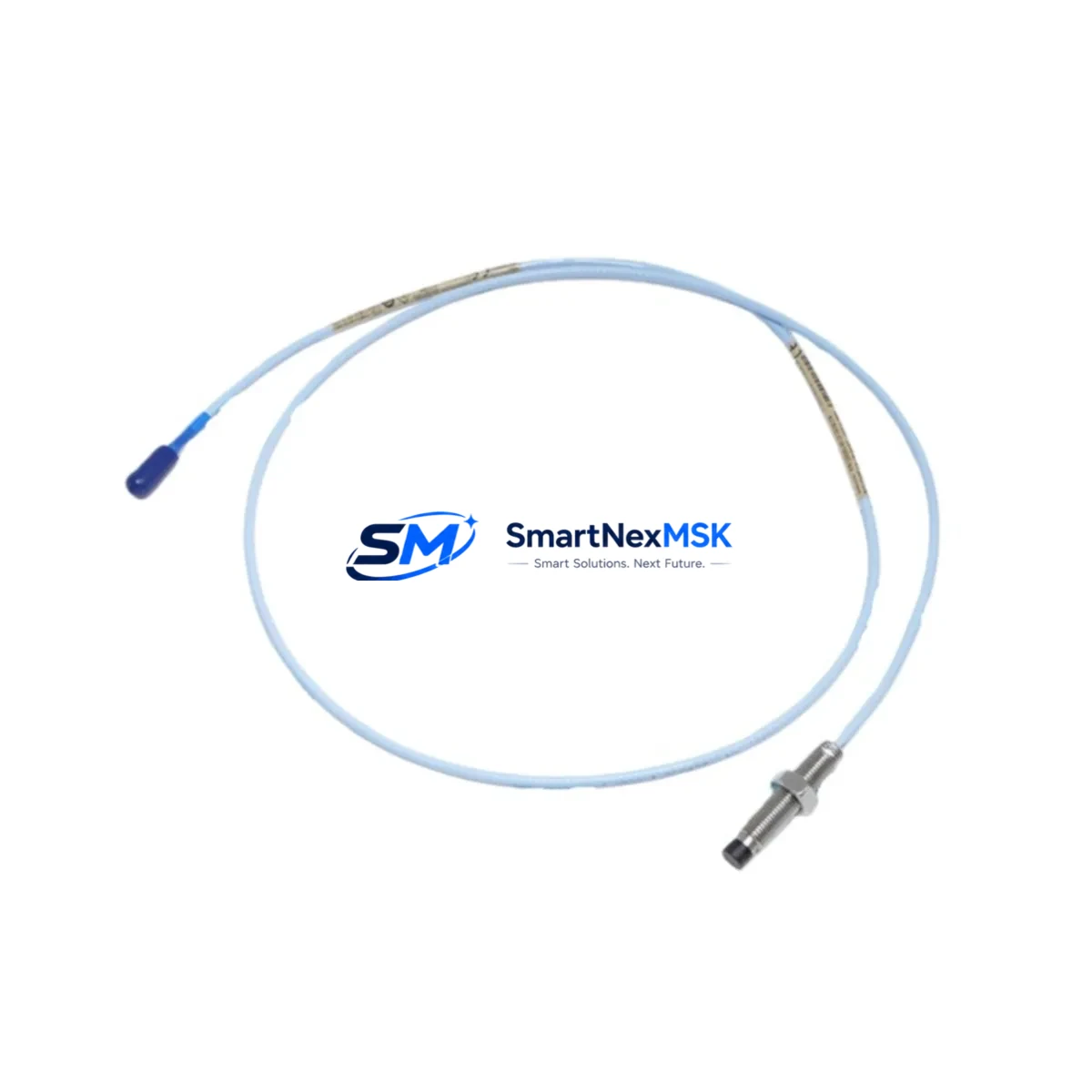

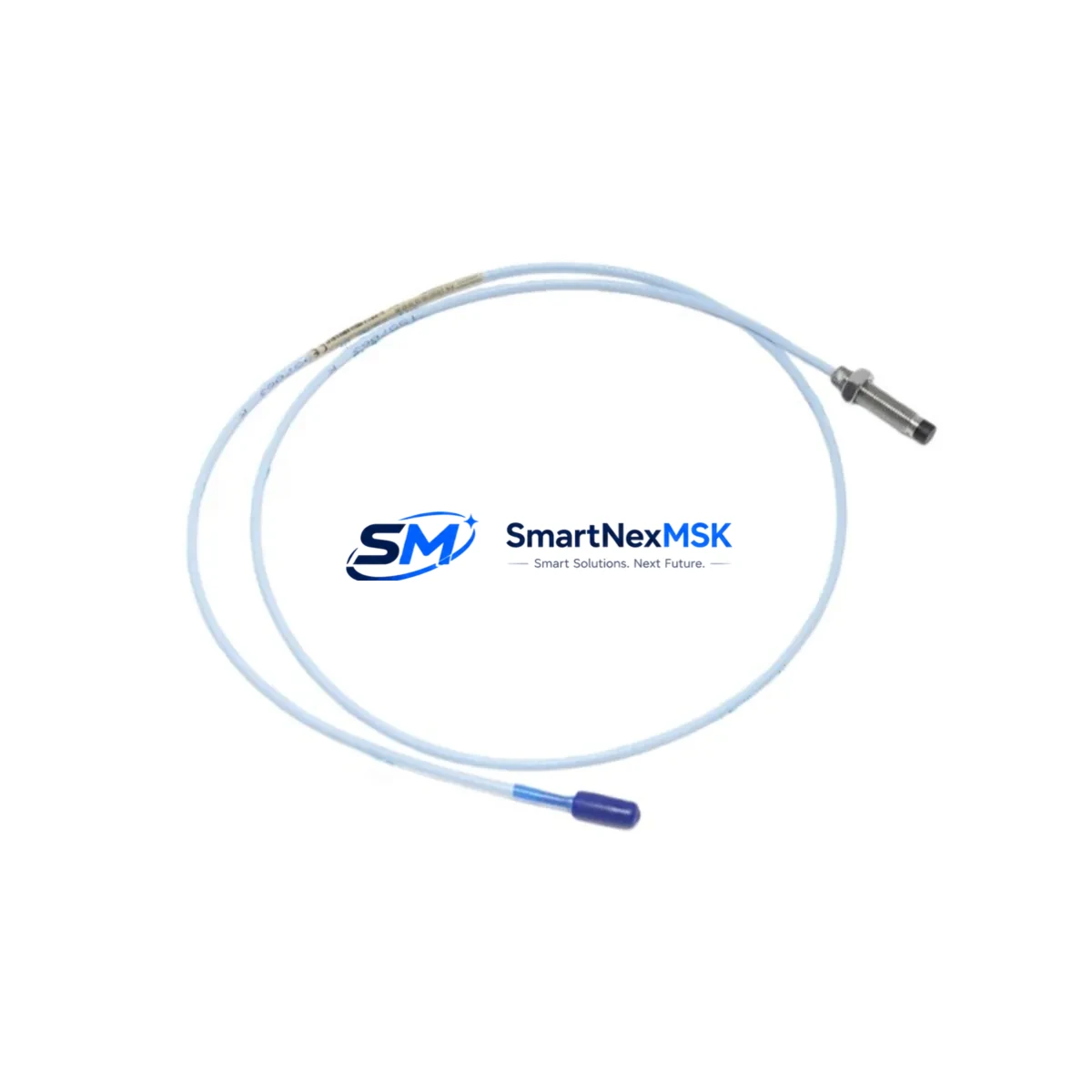

The Bently Nevada 330101-00-15-15-02-05 is an 8mm eddy-current proximity probe engineered for the 3300 XL continuous vibration monitoring system. In rotating machinery protection — turbines, compressors, pumps, and gearboxes — this probe is a front-line sensor whose failure can trigger unplanned shutdowns, missed vibration alarms, and costly production losses. Maintaining a verified spare on the shelf is not optional; it is a fundamental element of any serious predictive maintenance program.

This listing supplies an original, tested 330101-00-15-15-02-05 probe ready for immediate field deployment. Each unit is inspected prior to dispatch, ships with full documentation, and is backed by a 12-month warranty covering manufacturing defects and functional performance. Lead time from order confirmation to dispatch is typically 1–3 business days, supporting both planned turnaround schedules and emergency callout scenarios.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330101-00-15-15-02-05 probe is replaced during a planned outage or emergency callout, maintenance engineers should treat the event as a trigger for a broader inspection of the vibration monitoring loop. The probe does not operate in isolation — its signal integrity depends on the condition of every upstream and downstream component in the measurement chain.

Begin with the extension cable (330130-080-00-00 or equivalent 3300 XL series extension): check for jacket abrasion, connector corrosion, and continuity. A degraded extension cable is the most common cause of probe replacement failures where the new probe still reads erratically. Next, inspect the proximitor / oscillator-demodulator (330180-X1-05 series) mounted in the field junction box or control cabinet — verify supply voltage, output voltage at the known gap, and that the LED status indicator is solid green.

At the monitor rack, confirm the 3300 XL monitor module (such as the 3300/16 or 3300/20 dual-channel monitor) is receiving a clean signal within the –10 VDC to –18 VDC linear range. If the channel has been in alarm or bypass, reset and re-commission after probe installation. While the cabinet is open, inspect the I/O terminal blocks and field wiring for loose terminations — vibration from nearby machinery is a known cause of intermittent connections on screw-type terminals.

For sites running the Bently Nevada 3500 Series rack alongside legacy 3300 XL field hardware, verify that the driver file loaded in the 3500/42M or 3500/40M monitor matches the 330101 probe family sensitivity curve. A mismatch here will produce systematic measurement error that is difficult to diagnose without documentation review.

Power supply integrity is equally critical. The –24 VDC proximitor supply — often sourced from a dedicated instrument power supply or a 3300 XL power supply module — should be checked for output ripple and voltage stability under load. A sagging supply rail will shift the probe’s operating point and compress the linear range. If the site uses a Bently Nevada 3300/05 power supply or equivalent, verify its output under full channel load before closing out the work order.

Where the vibration signal feeds a DCS analog input card (4–20 mA or 0–10 V retransmission), confirm the scaling and engineering unit conversion at the DCS I/O module. Signal isolators or galvanic isolators in the loop should be tested for output accuracy — these devices age and drift, and a probe replacement is a natural opportunity to validate the full signal chain from sensor to historian.

Finally, update the preventive maintenance record with the new probe serial number, installation gap voltage (typically –10.0 VDC ± 0.5 VDC at the recommended air gap), and the date of commissioning. This data is essential for trending and for justifying future spare parts budget to procurement management.

Site Replacement Workflow

Step 1 — Isolation and permit: Obtain a hot-work or cold-work permit as required by site procedure. Confirm the machine is in a safe state for probe access. For online replacement on non-critical channels, verify the monitor is in bypass mode to prevent spurious trips.

Step 2 — Remove the old probe: Disconnect the extension cable at the field junction box. Unthread the probe from the bracket using the correct spanner — avoid gripping the cable. Note the installed gap (measure with a feeler gauge or record the proximitor output voltage before disconnection).

Step 3 — Install the 330101-00-15-15-02-05: Thread the new probe into the bracket finger-tight, then adjust to achieve the target gap voltage (–10.0 VDC ± 0.5 VDC at the proximitor output with the shaft stationary). Lock the probe with the jam nut to the torque specified in the Bently Nevada installation manual. Reconnect the extension cable and verify connector seating.

Step 4 — Commission and verify: Remove bypass, observe the monitor channel for a stable reading within the linear range, and confirm no alarms are active. Record the gap voltage and signal level in the maintenance management system (CMMS). If the site uses a System 1 Evolution or equivalent condition monitoring platform, verify the new probe appears correctly in the asset hierarchy.

Step 5 — Close out: Update the spare parts inventory, reorder a replacement 330101-00-15-15-02-05 to restore the on-hand buffer, and file the calibration record. A minimum of one spare probe per critical machine train is the recommended inventory posture for continuous-process facilities.

Spare Parts Support FAQ

Q1: Is this an original Bently Nevada 330101-00-15-15-02-05 or a compatible substitute?
This is an original Bently Nevada part, not an aftermarket substitute. Each unit is sourced through verified supply channels and undergoes pre-shipment functional testing. The part number, sensitivity, and connector configuration match the factory specification for the 3300 XL system.

Q2: What is the recommended spare parts inventory strategy for this probe?
For critical rotating machinery (turbines, compressors, main pumps), maintain a minimum of one probe per monitored shaft position as an on-site cold spare. For facilities with multiple identical machines, a pooled inventory of two to four units is typical. Given the probe’s role in trip protection, a stockout during an emergency is a significant operational risk.

Q3: How is the unit tested before shipment, and what does the 12-month warranty cover?
Each 330101-00-15-15-02-05 is bench-tested for output voltage at a known gap, sensitivity linearity, and cable continuity before dispatch. The 12-month warranty covers manufacturing defects and functional performance failure under normal operating conditions. It does not cover physical damage caused by incorrect installation or mechanical impact.

Q4: Can this probe be used as a direct replacement for older 330101 variants with different cable lengths?
The 330101-00-15-15-02-05 specifies a 5m probe cable and 5m extension cable. Substituting a different cable-length variant will change the total system resistance and capacitance, shifting the proximitor calibration. Always match the probe and extension cable lengths to the original system design. If a length change is unavoidable, recalibrate the proximitor output at the new gap before returning the channel to service.
