Bently Nevada 330101-00-15-20-02-05 Retrofit-Ready Proximity Probe

Bently Nevada 330101-00-15-20-02-05 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

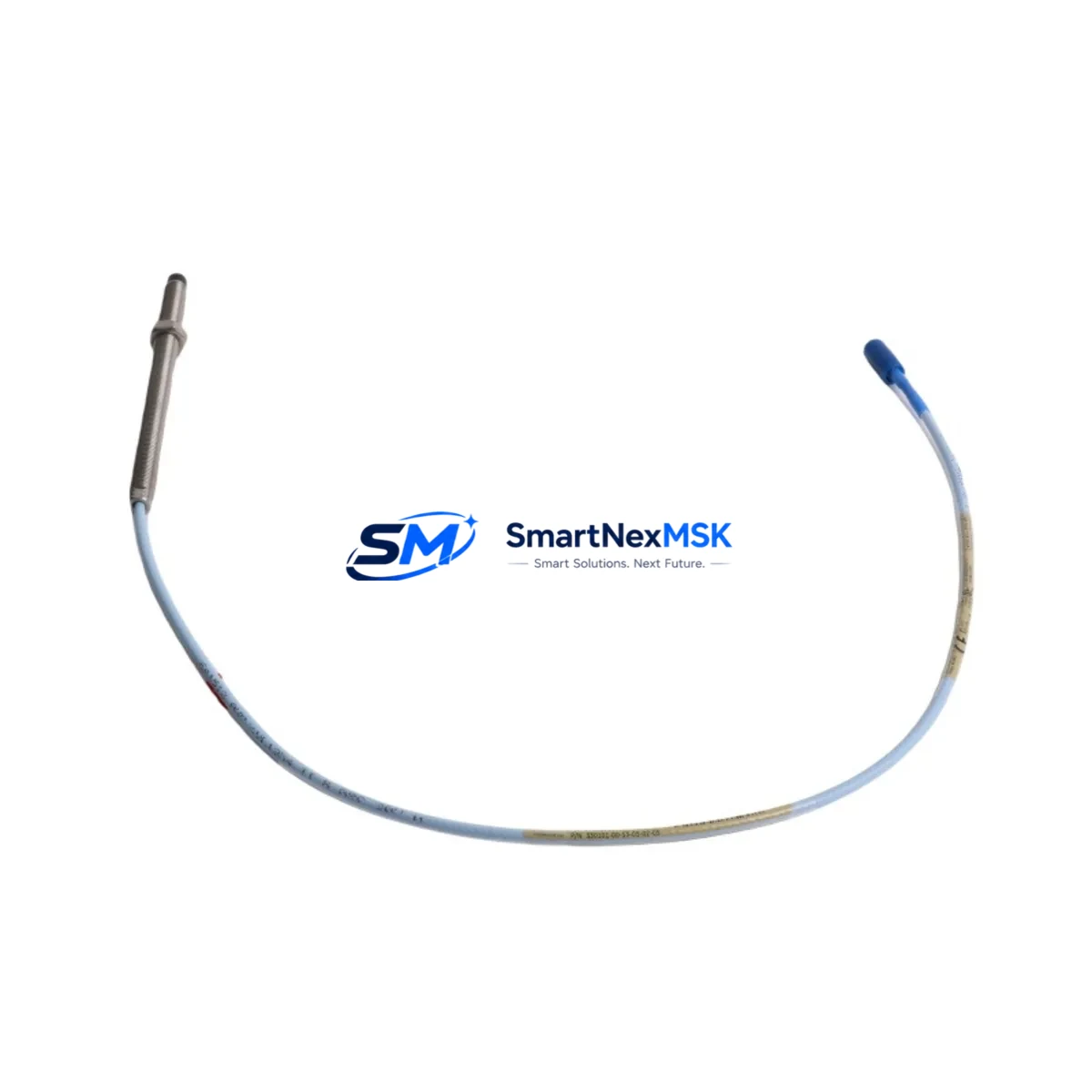

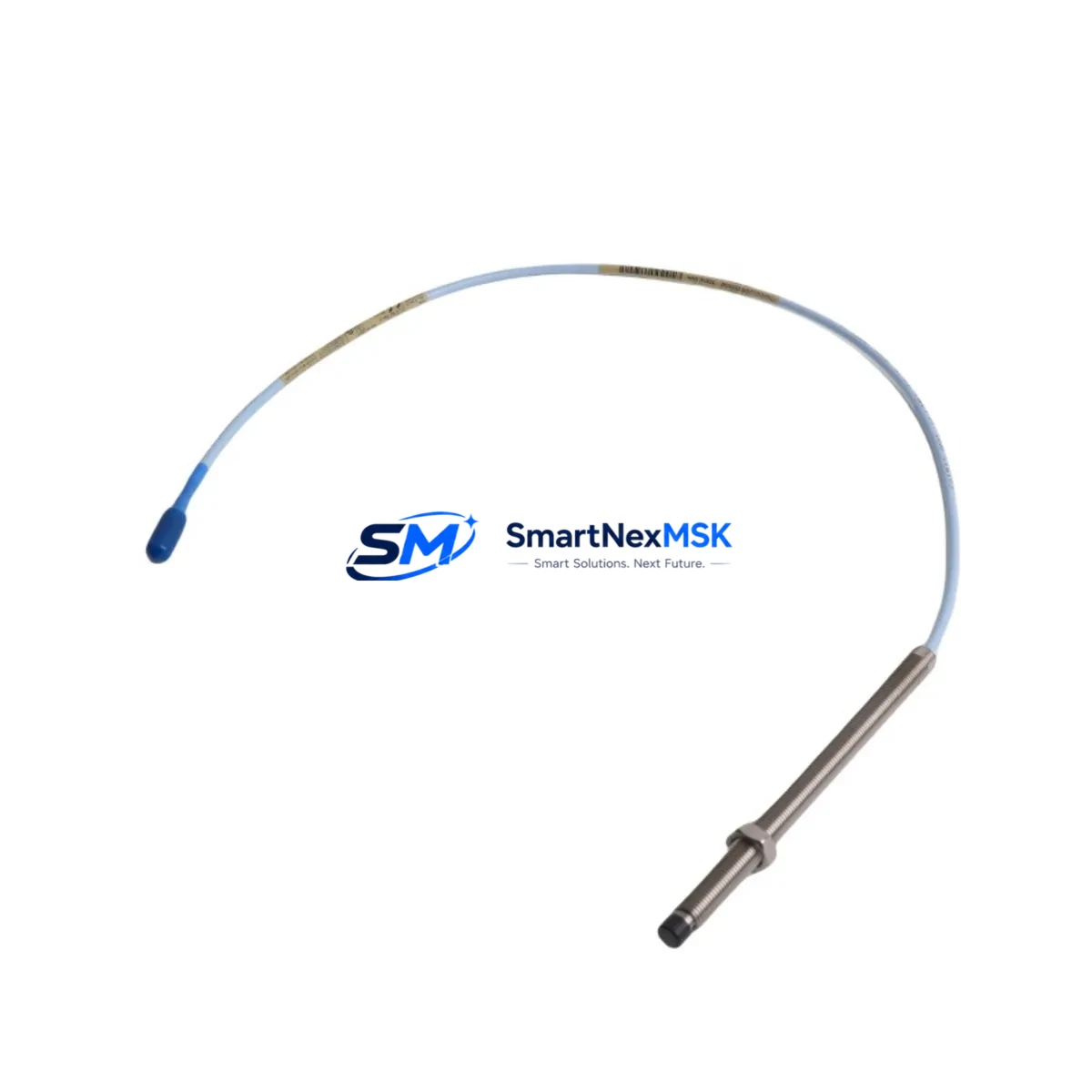

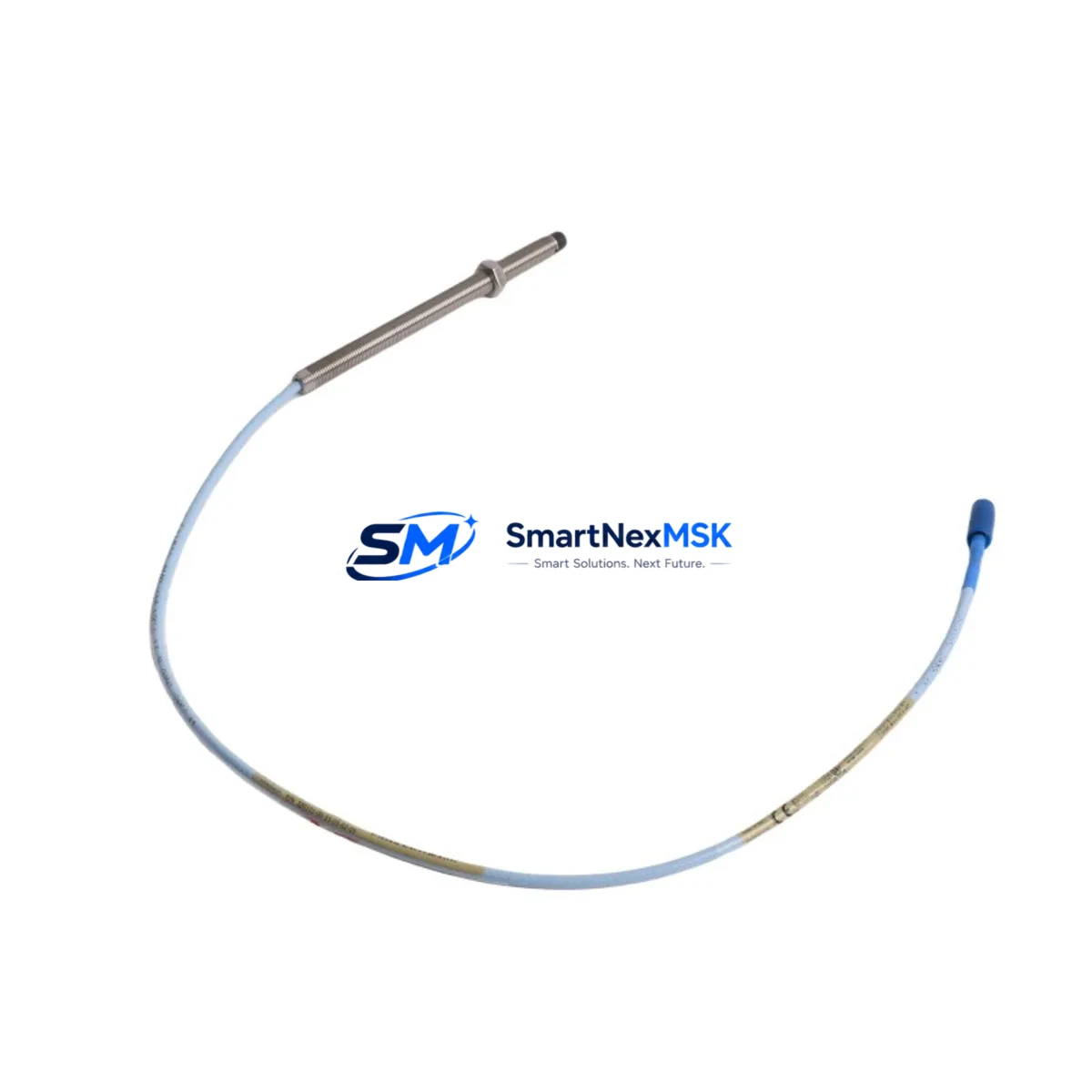

The Bently Nevada 330101-00-15-20-02-05 is an 8mm eddy-current proximity probe engineered for direct retrofit into existing Bently Nevada 3300 XL vibration monitoring systems. As legacy 3300 Series installations approach end-of-service milestones, plant engineers and reliability teams increasingly require a verified, drop-in replacement that preserves original signal chain integrity without requiring full system redesign. This unit delivers exactly that: a mechanically and electrically compatible probe that slots into existing probe holders, retains the standard 5-metre integral cable configuration, and interfaces directly with 3300 XL extension cables and Proximitor® sensor assemblies already installed in the field.

Whether you are managing a turbine bearing monitoring retrofit, upgrading a compressor train protection loop, or restoring a mothballed machine line, the 330101-00-15-20-02-05 provides the dimensional accuracy, gap voltage linearity, and sensitivity specification (7.87 V/mm) required for seamless re-commissioning. The probe is supplied pre-tested against Bently Nevada factory calibration curves and ships with a full 12-month warranty covering manufacturing defects and signal performance.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-00-15-20-02-05 into a live or recently decommissioned machine protection system requires systematic pre-installation verification across several interdependent subsystems. Begin with the Proximitor® sensor — typically a Bently Nevada 330180-91-00 or 330180-51-00 — confirming that the sensor’s internal oscillator is functional and that its output voltage at the nominal 1.5 mm gap falls within the −10 to −18 VDC window specified for 8 mm probes. A degraded Proximitor® will produce erratic gap readings even with a new probe installed, so sensor health must be validated independently before probe replacement.

Next, inspect the 3300 XL extension cable (commonly the 330130-080-00-00 5 m armoured extension) for jacket integrity, connector corrosion, and shield continuity. Extension cable degradation is a frequent root cause of false vibration alarms in aging installations and is often misdiagnosed as probe failure. If the extension cable shows any sign of moisture ingress or mechanical damage, replace it concurrently with the probe to avoid repeat downtime.

At the monitor rack level, verify that the 3300 XL monitor card — whether a radial vibration card, axial position card, or speed/phase reference card — has its channel configuration set for 8 mm probe sensitivity. If the previous installation used a 5 mm probe (such as the 330101-00-06-10-02-05), the monitor’s scale factor and alert/danger setpoints will require recalibration before the new probe is placed in service. This is a critical step: incorrect setpoints can mask genuine machine faults or generate nuisance trips during startup.

For installations where the 3300 XL rack also houses 3300 XL keyphasor® modules or 3300 XL temperature monitor cards, confirm that the rack’s internal power bus — typically supplied by a 3300 XL power supply module — has sufficient headroom to support the additional probe load. Overloaded power supplies are a common but overlooked failure mode in expanded monitoring configurations.

Where the machine protection system interfaces with a DCS or PLC — for example, a Honeywell Experion PKS controller or a Rockwell Automation ControlLogix chassis receiving 4–20 mA analogue outputs from the 3300 XL system — verify that the analogue input card scaling and engineering unit conversion remain valid after probe replacement. No changes to the DCS or PLC program logic are typically required for a like-for-like 8 mm probe swap, but the loop check should be documented as part of the management-of-change record.

If the plant’s HMI displays real-time vibration trends sourced from the 3300 XL system via Modbus RTU or OPC-DA, confirm that the HMI tag scaling reflects the correct probe sensitivity after replacement. In systems where the HMI historian archives raw gap voltage rather than engineering-unit vibration, a sensitivity mismatch will silently corrupt trend data without generating an alarm — a risk that is easily avoided by a post-installation loop verification against a calibrated reference.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity probe retrofit requires a structured pre-outage preparation protocol. Before the machine is taken offline, assemble all replacement components — the 330101-00-15-20-02-05 probe, the extension cable, and any required probe holder hardware — and verify each item against the as-built drawing package. A missing component discovered after machine isolation is the single largest cause of extended outage duration in probe replacement work.

Where the machine protection system permits, use the 3300 XL monitor’s bypass mode to inhibit the affected channel’s trip output during probe installation. This prevents a spurious machine trip from an open-circuit probe signal during the physical swap. Document the bypass activation and deactivation times in the maintenance log as required by most site safety management systems.

During probe installation, set the gap voltage using a calibrated digital voltmeter connected at the Proximitor® output terminals. Target the nominal −12 VDC gap voltage (corresponding to 1.5 mm gap on a standard AISI 4140 shaft) before securing the probe locknut. A gap set outside the linear range of the Proximitor® will result in clipped vibration signals and unreliable protection — a fault that may not be immediately apparent during low-load startup conditions but will manifest under full operating speed.

Once the probe is gapped and the extension cable reconnected, perform a channel-by-channel loop check from the probe tip through to the DCS or safety system input. Confirm that the monitor card’s OK relay is energised, that the vibration reading is stable at a value consistent with the machine’s at-rest condition, and that no alert or danger setpoints are exceeded before releasing the bypass and returning the channel to protective service. This structured commissioning sequence — gap verification, loop check, setpoint confirmation, bypass release — typically adds fewer than 30 minutes to a probe replacement outage and eliminates the most common causes of post-maintenance trips.

All units are pre-tested prior to shipment and supplied with a 12-month warranty covering signal performance, mechanical integrity, and connector termination quality. In-stock units are available for same-week dispatch to minimise procurement lead time during unplanned outage scenarios.

Retrofit Support FAQ

Q: Is the 330101-00-15-20-02-05 a direct replacement for the original Bently Nevada part?
A: Yes. This unit is manufactured to the same dimensional, electrical, and sensitivity specifications as the original Bently Nevada 330101-00-15-20-02-05. It is a verified drop-in replacement for 3300 XL installations using 8 mm eddy-current proximity probes. No modifications to the probe holder, extension cable, or Proximitor® sensor are required for a standard like-for-like swap.

Q: What commissioning steps are required after installation?
A: After mechanical installation, set the probe gap to achieve the nominal −12 VDC output at the Proximitor® terminals (corresponding to 1.5 mm gap on a standard steel shaft). Perform a full loop check from probe to monitor card, confirm the OK relay status, and verify that vibration readings are within expected at-rest limits before releasing any monitor bypass. Document gap voltage and loop check results in the maintenance record.

Q: Can this probe be used with 3300 XL monitors configured for 5 mm probes?
A: No. The 330101-00-15-20-02-05 is an 8 mm probe with a sensitivity of 7.87 V/mm. If the existing monitor channel is configured for a 5 mm probe (sensitivity 200 mV/mil on a different scale factor), the channel configuration must be updated to reflect 8 mm probe parameters before installation. Failure to do so will result in incorrect vibration scaling and unreliable protection setpoints.

Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects, signal performance within published specification, mechanical integrity of the probe body and cable jacket, and connector termination quality. Each unit is pre-tested against Bently Nevada calibration curves prior to shipment. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement units dispatched from stock.
