Bently Nevada 330101-00-16-10-02-00 Spare 3300 XL Automation: Precision Spare for Industrial Downtime Control

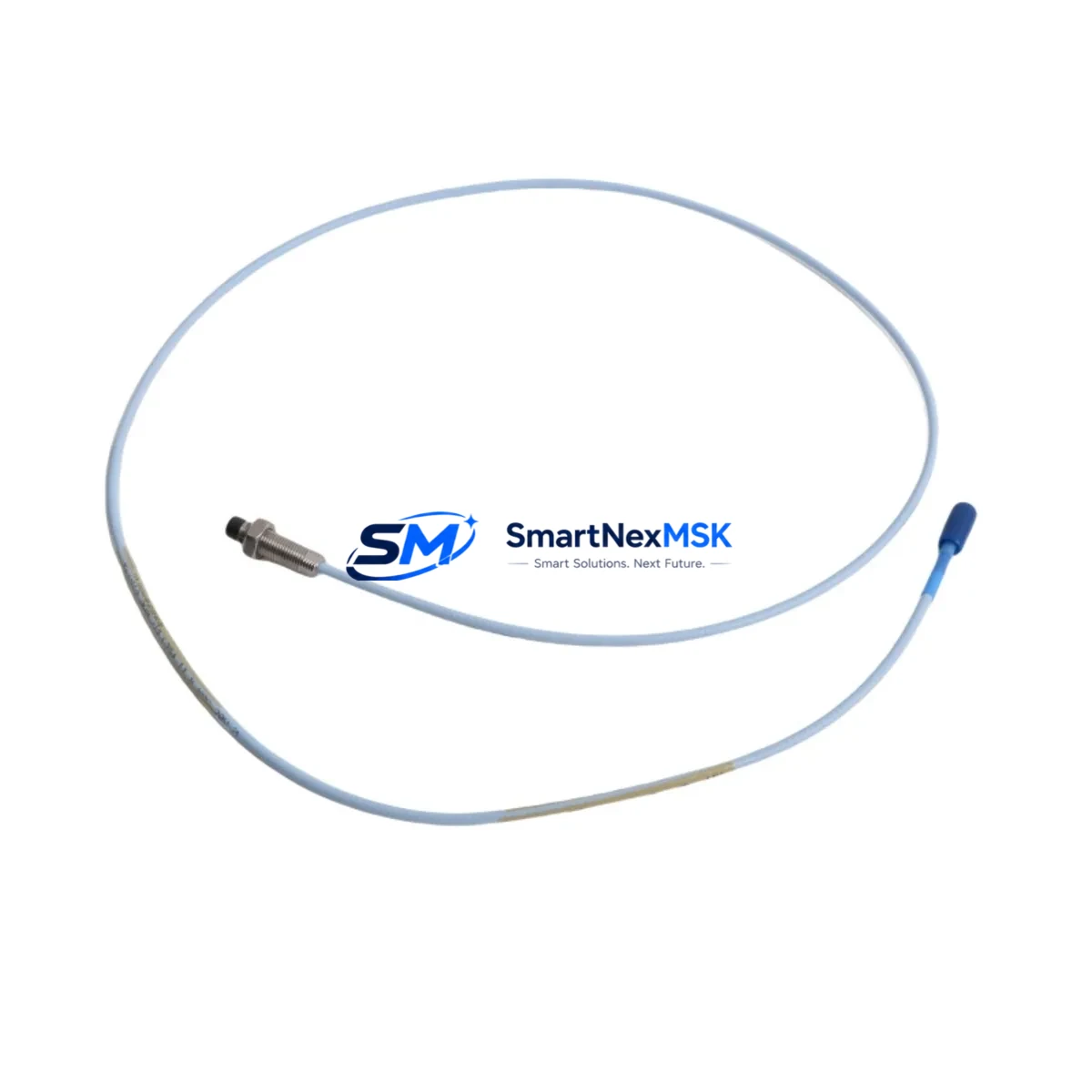

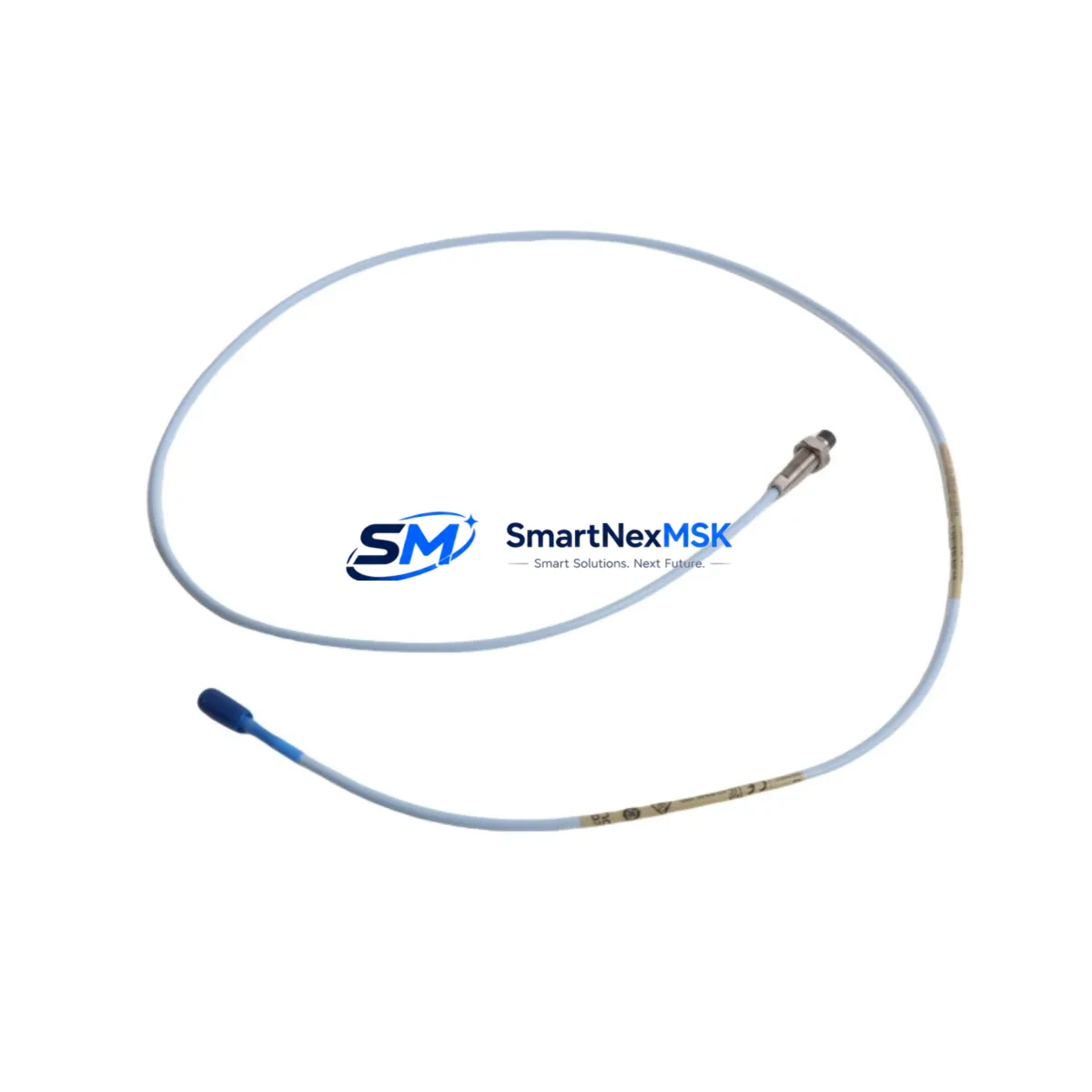

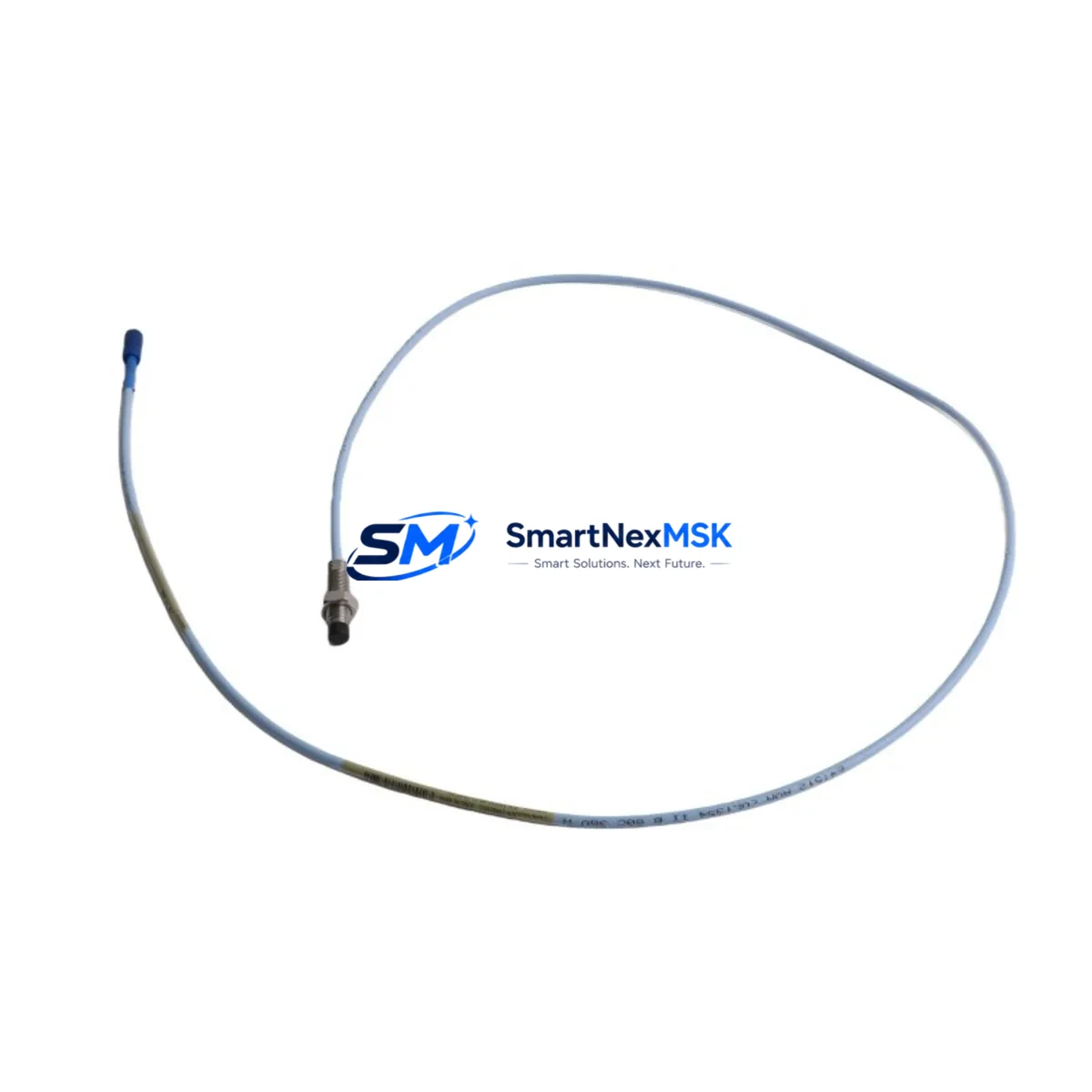

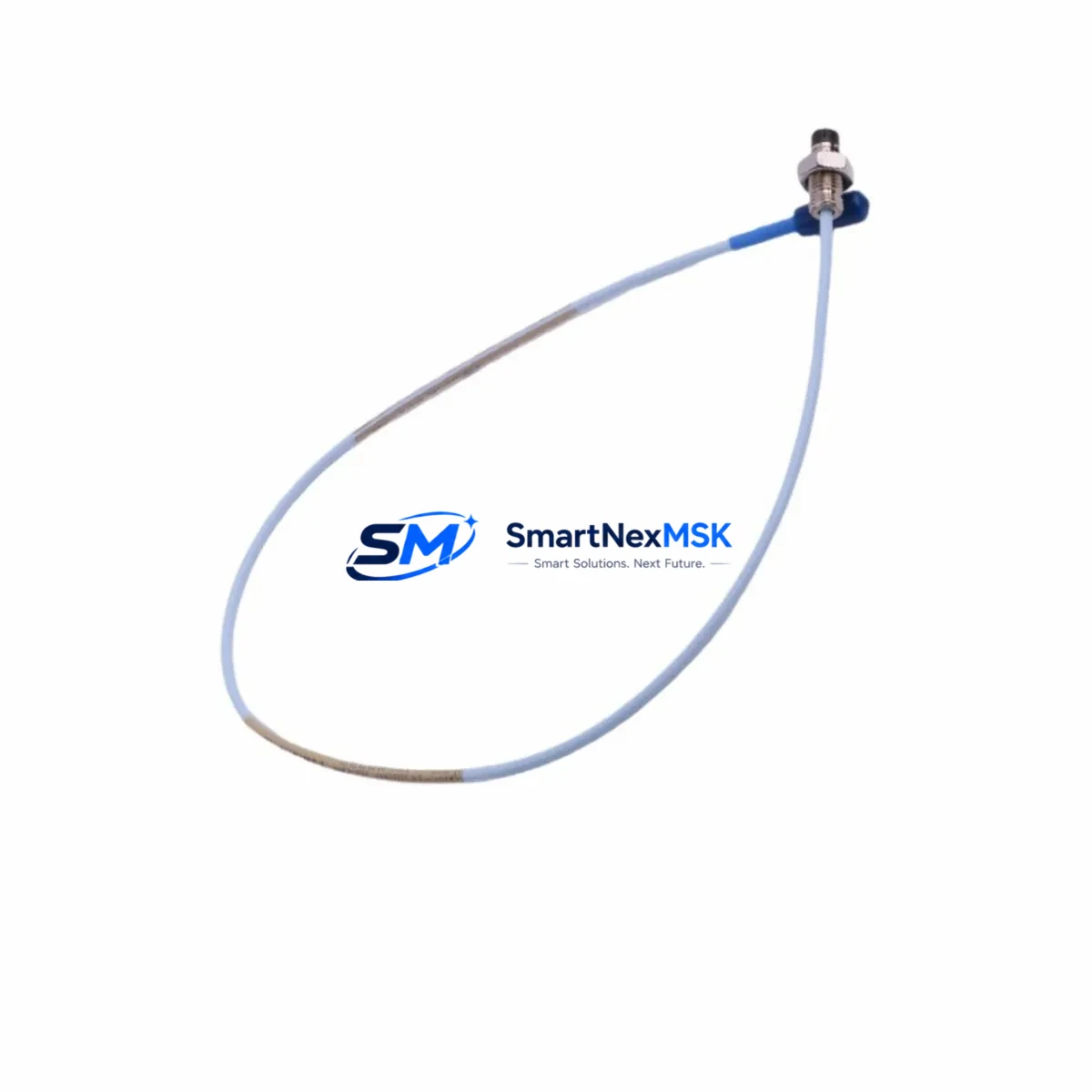

When a rotating machinery protection system flags a proximity probe fault, every minute of unplanned downtime translates directly into production loss. The Bently Nevada 330101-00-16-10-02-00 is an original 8 mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring platform — one of the most widely deployed machinery protection systems in turbines, compressors, pumps, and generators across oil & gas, power generation, and heavy process industries. Maintaining a verified spare of this probe in your critical-spares inventory is not optional; it is a fundamental element of any serious predictive maintenance and rapid-recovery strategy.

At SMARTNEXMSK, every 330101-00-16-10-02-00 unit is sourced from authorized supply channels, individually inspected, and function-tested prior to shipment. Each probe ships with a 12-month warranty covering manufacturing defects and performance conformance, giving maintenance engineers and procurement teams the confidence to stock this part without risk. Worldwide logistics with tracked export documentation ensures the probe reaches your facility — whether a refinery in the Middle East, a power plant in Southeast Asia, or a petrochemical complex in Eastern Europe — with full traceability.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity probe failure in a 3300 XL monitoring loop rarely occurs in isolation. When a maintenance engineer responds to a probe fault alarm, the correct protocol is to treat the entire measurement chain as suspect until each component is individually verified. Beginning at the probe tip and working back through the system, the following components should be inspected or held as co-spares alongside the 330101-00-16-10-02-00:

The 330130-080-00-00 extension cable (or equivalent armored 3300 XL extension) connects the probe to the Proximitor sensor. Extension cables are subject to mechanical fatigue at conduit entry points and connector corrosion in humid or chemically aggressive environments — a degraded extension cable will produce the same erratic gap voltage as a failed probe. Inspect the full cable run and replace if the outer armor shows cracking, kinking, or moisture ingress at either connector.

The 330180-X1-05 Proximitor® Sensor (or the applicable 3300 XL Proximitor variant for your loop) is the active driver that powers the probe and converts gap distance to a –24 VDC output signal. If the probe replacement does not restore a clean DC bias voltage within the linear range, the Proximitor itself should be swapped. Proximitor modules are rack-mounted in the 3300 XL monitor chassis and can be hot-swapped in most configurations without a full system shutdown.

The 3300 XL monitor card — whether a dual-channel radial vibration card, an axial position card, or a thrust position card — processes the Proximitor output and generates the OK/Not-OK relay state. After replacing the probe and verifying the Proximitor, confirm that the monitor card’s gap voltage reading is within the –10 VDC to –18 VDC linear range. If the card continues to report a NOT OK condition with a known-good probe and Proximitor, the monitor card itself may require replacement or recalibration.

In the same control cabinet, the –24 VDC power supply module feeding the Proximitor rail should be load-tested. A sagging supply voltage — even within nominal tolerance — can shift the probe’s sensitivity constant and introduce measurement error that appears as a vibration alarm. Cross-check the supply output under full rack load before closing out the work order.

For plants running 3500 Series machinery protection alongside legacy 3300 XL systems, the 330101-00-16-10-02-00 probe is also compatible with 3500/42M and 3500/46M monitor modules when paired with the correct Proximitor. Maintaining a single probe SKU that spans both platforms reduces spare-parts inventory complexity and simplifies procurement cycles.

Where the 3300 XL system interfaces with a DCS or safety instrumented system (SIS) via 4–20 mA or relay outputs, the signal isolator or barrier module in that interface loop should be included in the inspection scope. A failed isolator can mask a genuine probe alarm or generate spurious trips — both outcomes are operationally unacceptable in a continuous-process environment.

Finally, the terminal blocks and field wiring within the junction box at the machine should be torque-checked and inspected for oxidation. Loose or corroded terminations on the probe cable shield or signal conductors are a common root cause of intermittent NOT OK alarms that are incorrectly attributed to probe failure. Replacing the probe without addressing a corroded terminal block will result in a repeat failure within weeks.

Site Replacement Workflow

Step 1 — Isolation and documentation. Before removing the existing probe, record the current gap voltage from the monitor display or DCS historian. This baseline reading confirms the probe’s installed gap and provides a reference for the replacement setup. If the machine cannot be taken offline, coordinate with operations to identify the minimum safe window for probe replacement — most 3300 XL probe replacements can be completed in under 30 minutes with a pre-staged spare.

Step 2 — Mechanical removal. Using the correct M10 × 1 mm probe wrench, back the probe out of the bracket while supporting the cable to prevent torsional stress on the connector. Note the number of turns from the locked position — this gives an approximate starting point for the replacement probe gap setting.

Step 3 — Replacement installation and gap setting. Thread the 330101-00-16-10-02-00 replacement probe into the bracket and advance until the tip is approximately 1.0 mm from the shaft surface. Connect the extension cable and apply power. Monitor the gap voltage on the Proximitor output — adjust the probe depth until the DC bias reads within the linear range specified for your application (typically –10 VDC to –18 VDC for a 2 mm range system). Lock the probe with the jam nut and re-verify the gap voltage after locking.

Step 4 — System verification. Confirm the monitor card transitions to OK status. Verify that the DCS or SIS receives the correct analog output and that no spurious alarms are generated during the first 15 minutes of operation. Document the final gap voltage, probe serial number, and installation date in the equipment maintenance record.

Step 5 — Spare replenishment. Immediately initiate a purchase order to replenish the consumed spare. A single-probe critical-spares strategy leaves the machine unprotected during the replenishment lead time. Best practice is to maintain a minimum of two verified spares per critical machine train, with a reorder trigger at one unit.

Spare Parts Support FAQ

Q: Is the 330101-00-16-10-02-00 a direct replacement for older 3300 Series probes with the same cable length?
A: The 330101-00-16-10-02-00 is designed for the 3300 XL platform and is mechanically and electrically compatible with most legacy 3300 Series installations that use the same M10 × 1 mm probe thread and –24 VDC Proximitor supply. However, sensitivity constants and linear range should be verified against the original probe datasheet before commissioning the replacement in a safety-critical loop. Contact our technical team with your existing probe part number for a compatibility confirmation.

Q: What pre-shipment testing is performed on each unit?
A: Every 330101-00-16-10-02-00 shipped by SMARTNEXMSK is bench-tested for DC bias voltage output, sensitivity constant (mV/mil), and cable continuity prior to packaging. Units that do not meet OEM specification are quarantined and not shipped. A test report is available upon request for quality-critical applications.

Q: What does the 12-month warranty cover, and how is a warranty claim processed?
A: The 12-month warranty covers manufacturing defects, premature component failure under normal operating conditions, and deviations from the published sensitivity specification. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the rated temperature range. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, unit serial number, and a description of the failure mode. Replacement units are typically dispatched within 3 business days of claim approval.

Q: Can SMARTNEXMSK support long-term supply agreements for this SKU?
A: Yes. For facilities that require guaranteed stock availability — particularly for aging 3300 XL systems where OEM supply lead times have extended — SMARTNEXMSK offers blanket purchase order arrangements and consignment stocking programs. Long-term supply agreements include priority allocation, fixed pricing for the contract period, and dedicated account management. Contact sales@smartnexmsk.com or +86 18259474341 to discuss your facility’s requirements.
