Bently Nevada 330101-00-18-50-02-05 3300 XL Proximity Probe

Bently Nevada 330101-00-18-50-02-05 3300 XL Proximity Probe: Spare Parts Replacement for Industrial Vibration Monitoring Systems

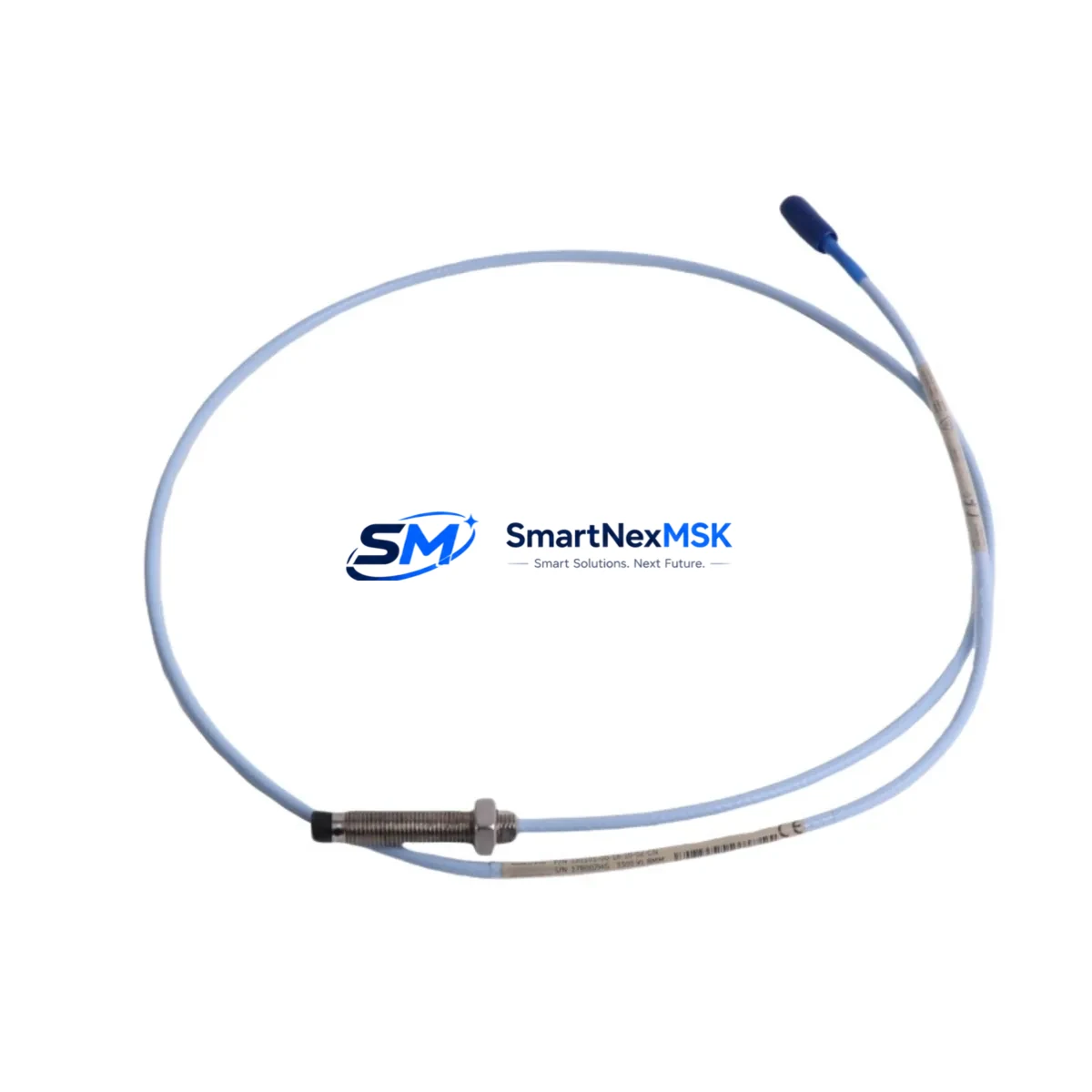

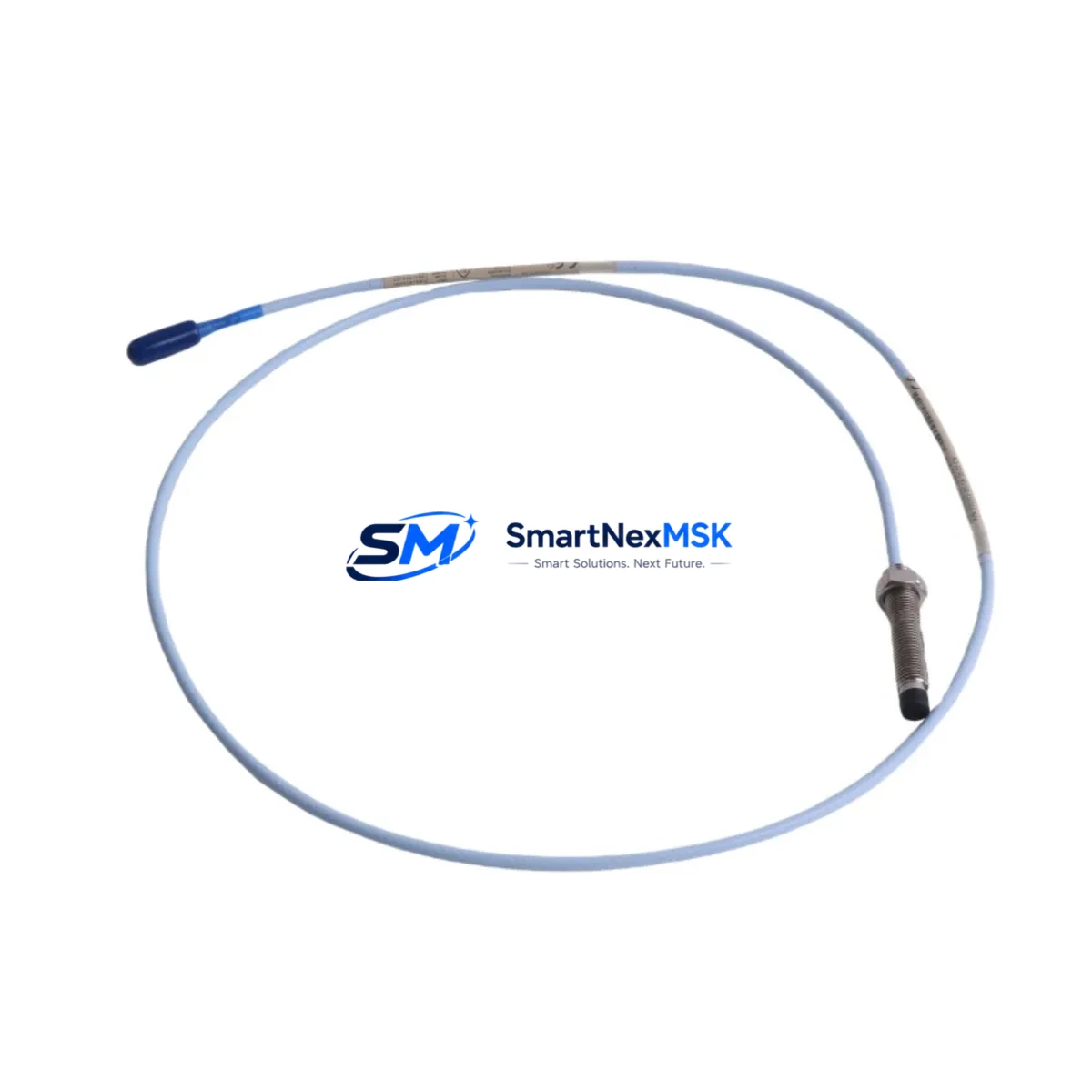

The Bently Nevada 330101-00-18-50-02-05 is an 8mm proximity probe from the industry-standard 3300 XL Series, engineered for continuous shaft vibration and position monitoring in rotating machinery. As a maintenance-ready original spare, this probe is a critical component in turbine protection systems, compressor trains, pump monitoring panels, and generator condition monitoring installations worldwide. Sourced, tested, and dispatched with a 12-month warranty, this unit is available for immediate shipment to minimize unplanned downtime and support planned maintenance intervals.

For maintenance engineers managing rotating equipment reliability programs, the 330101-00-18-50-02-05 represents a direct, drop-in replacement for aging or failed proximity probes within the Bently Nevada 3300 XL ecosystem. Procurement engineers will find this SKU stocked and ready for emergency dispatch, with full compatibility documentation available upon request.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-18-50-02-05 proximity probe during a scheduled outage or emergency shutdown, a thorough inspection of the surrounding measurement chain and control cabinet components is essential to ensure system integrity and prevent repeat failures.

Begin with the 3300 XL Extension Cable (330130-045-00-00 or equivalent) — the coaxial cable connecting the probe to the Proximitor. Inspect for jacket abrasion, connector corrosion, and impedance continuity. A degraded extension cable is a common root cause of erratic gap voltage readings that are often misdiagnosed as probe failure.

Next, verify the 3300 XL Proximitor Sensor (330180-X1-05 / 330185-X1-05). The Proximitor converts the probe’s RF signal into a DC voltage proportional to shaft gap. If the probe replacement does not restore correct gap voltage, the Proximitor itself may require calibration or replacement. Keep a spare Proximitor in your critical spares inventory alongside the probe.

Inspect the 3300 XL Rack and I/O Module — specifically the monitor card receiving the vibration signal. Cards such as the 3300/16 Dual Voting or 3300/20 Radial Vibration Monitor should be checked for alarm setpoint integrity and channel health after any probe swap. Confirm that the OK relay output is functioning correctly before returning the machine to service.

Review the 24 VDC power supply feeding the Proximitor. Bently Nevada systems are sensitive to supply voltage ripple and transient spikes. A dedicated, regulated 24 VDC rail — or a redundant power module such as the 3500/15 Power Supply in larger 3500 Series installations — should be verified for output stability and fuse integrity.

For installations where the 3300 XL probe interfaces with a 3500 Series Rack (common in legacy system upgrades), confirm that the 3500/42M Proximitor I/O Module is correctly configured for the 8mm probe sensitivity and gap range. Mismatched I/O module settings are a frequent source of false OK/Not-OK status after probe replacement.

Check all terminal blocks and field wiring in the junction box and control cabinet. Loose or corroded terminals on the probe signal wires (typically –24 VDC, signal, and shield) can introduce noise that masks real vibration data. Use a calibrated multimeter to verify gap voltage at the terminal strip before and after probe installation.

If the machine is equipped with a Keyphasor probe (330980 series), inspect it simultaneously — the Keyphasor signal is used for phase reference in vibration analysis and is often routed through the same conduit as radial probes. A degraded Keyphasor can compromise the entire vibration spectrum analysis even when the radial probes are functioning correctly.

Finally, for facilities running System 1 Condition Monitoring Software or a third-party DCS historian, confirm that the channel tag, engineering units, and alarm thresholds are correctly restored in the software configuration after the hardware replacement. This step is frequently overlooked during emergency repairs and can result in silent alarm suppression.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Record the existing gap voltage (typically –10.0 VDC ± 0.5 VDC at nominal gap) using the Proximitor test point or DCS historian. Document the current vibration baseline for post-installation comparison.

Step 2 — Isolation and Removal: De-energize the Proximitor supply at the rack or local junction box. Disconnect the extension cable from the probe. Unthread the probe from the mounting bracket using the correct spanner — avoid applying torque to the cable body. Note the probe tip-to-shaft gap (typically 1.0–1.5 mm for 8mm probes on steel targets).

Step 3 — Installation of 330101-00-18-50-02-05: Thread the replacement probe into the bracket and adjust gap to the recorded or OEM-specified value. Reconnect the extension cable. Restore Proximitor power and verify gap voltage at the test point. Acceptable gap voltage for the 3300 XL 8mm system is –10.0 VDC ± 1.0 VDC.

Step 4 — System Validation: Confirm OK status at the monitor card. Check that vibration readings are within the expected baseline range. Clear any latched alarms at the rack and in the DCS/SCADA system. Log the replacement in the equipment maintenance record with the new probe serial number.

Step 5 — Return to Service: Notify the control room that the vibration channel is restored. Monitor the first 30 minutes of operation for any anomalous readings. Archive the gap voltage and vibration baseline data for the next planned inspection interval.

This workflow supports direct replacement of legacy 330101 series probes, including earlier 7200 Series 8mm probes in systems that have been partially upgraded to 3300 XL Proximitors, ensuring backward compatibility and minimizing system reconfiguration time.

Spare Parts Support FAQ

Q1: Is the 330101-00-18-50-02-05 compatible with both 3300 XL and 3500 Series racks?
The 330101-00-18-50-02-05 probe is natively designed for the 3300 XL Proximitor system. It is also compatible with 3500 Series I/O modules configured for 8mm probe input (e.g., 3500/42M), provided the sensitivity and gap range parameters are correctly set in the monitor configuration. Always verify I/O module firmware and configuration before installation in a 3500 rack.

Q2: What is the recommended spare parts inventory strategy for this probe?
For critical rotating machinery (turbines, compressors), industry best practice recommends holding a minimum of two spare probes per monitored shaft, plus one spare extension cable and one spare Proximitor per rack. For facilities with multiple identical machines, a pooled critical spares strategy with a 30-day replenishment lead time is advisable. We offer long-term supply agreements to support multi-year maintenance contracts.

Q3: How is the 330101-00-18-50-02-05 tested before shipment?
Each unit undergoes functional verification including gap voltage output test, cable continuity check, and connector integrity inspection prior to dispatch. Units are shipped with a test report confirming compliance with 3300 XL system specifications. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions.

Q4: Can this probe replace older Bently Nevada 7200 Series 8mm probes?
Direct mechanical substitution is possible in most installations, as the M10 × 1 thread and 8mm tip geometry are consistent across the 7200 and 3300 XL families. However, the 3300 XL probe must be paired with a 3300 XL Proximitor — it is not electrically compatible with 7200 Series drivers. If your system uses 7200 Series Proximitors, a full probe-and-Proximitor upgrade kit is recommended to ensure correct sensitivity and OK threshold behavior.
