Bently Nevada 330101-00-20-05-02-02 Spare for 3300 XL Automation

Bently Nevada 330101-00-20-05-02-02 Spare for 3300 XL Automation: Precision Spare Parts Replacement for Continuous Vibration Monitoring

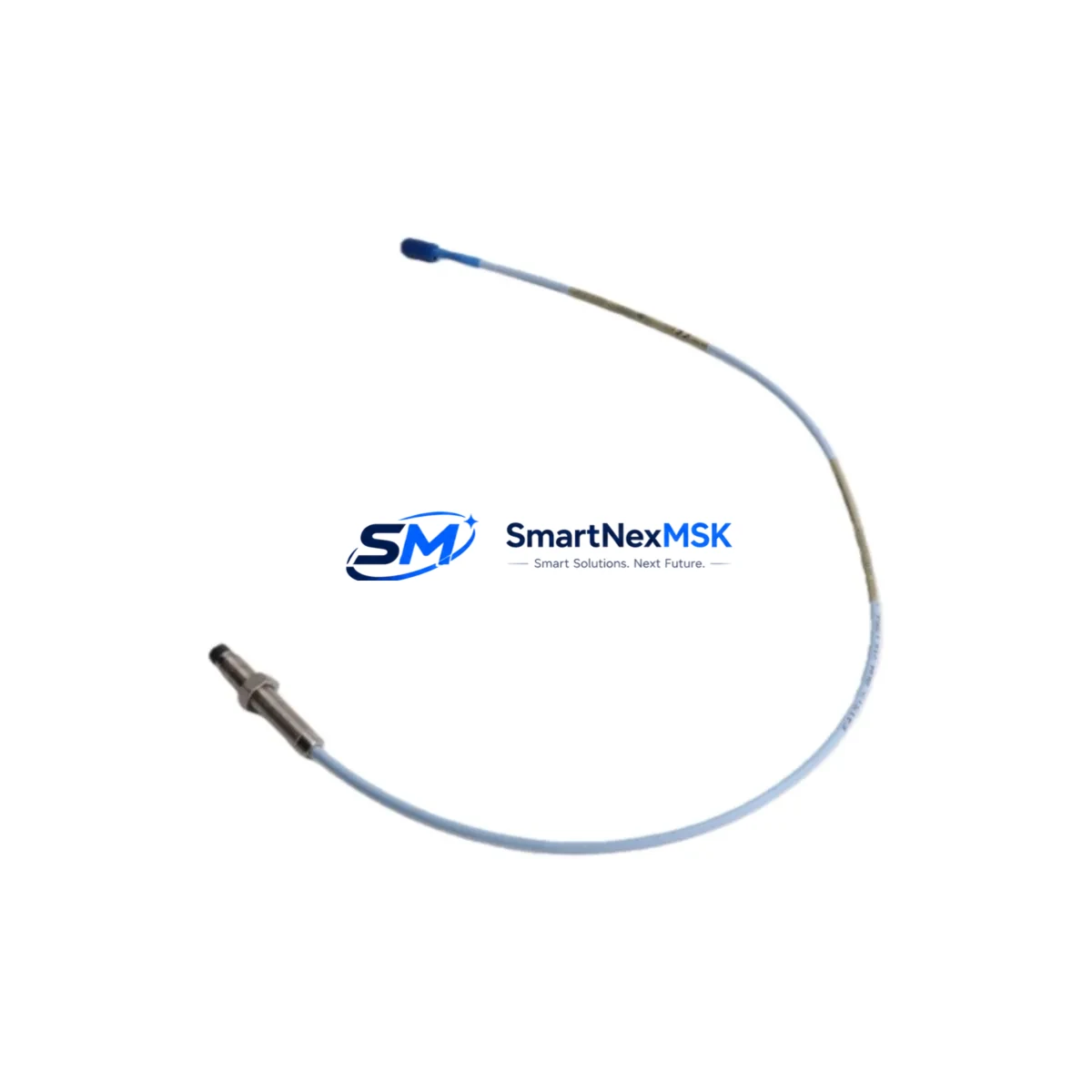

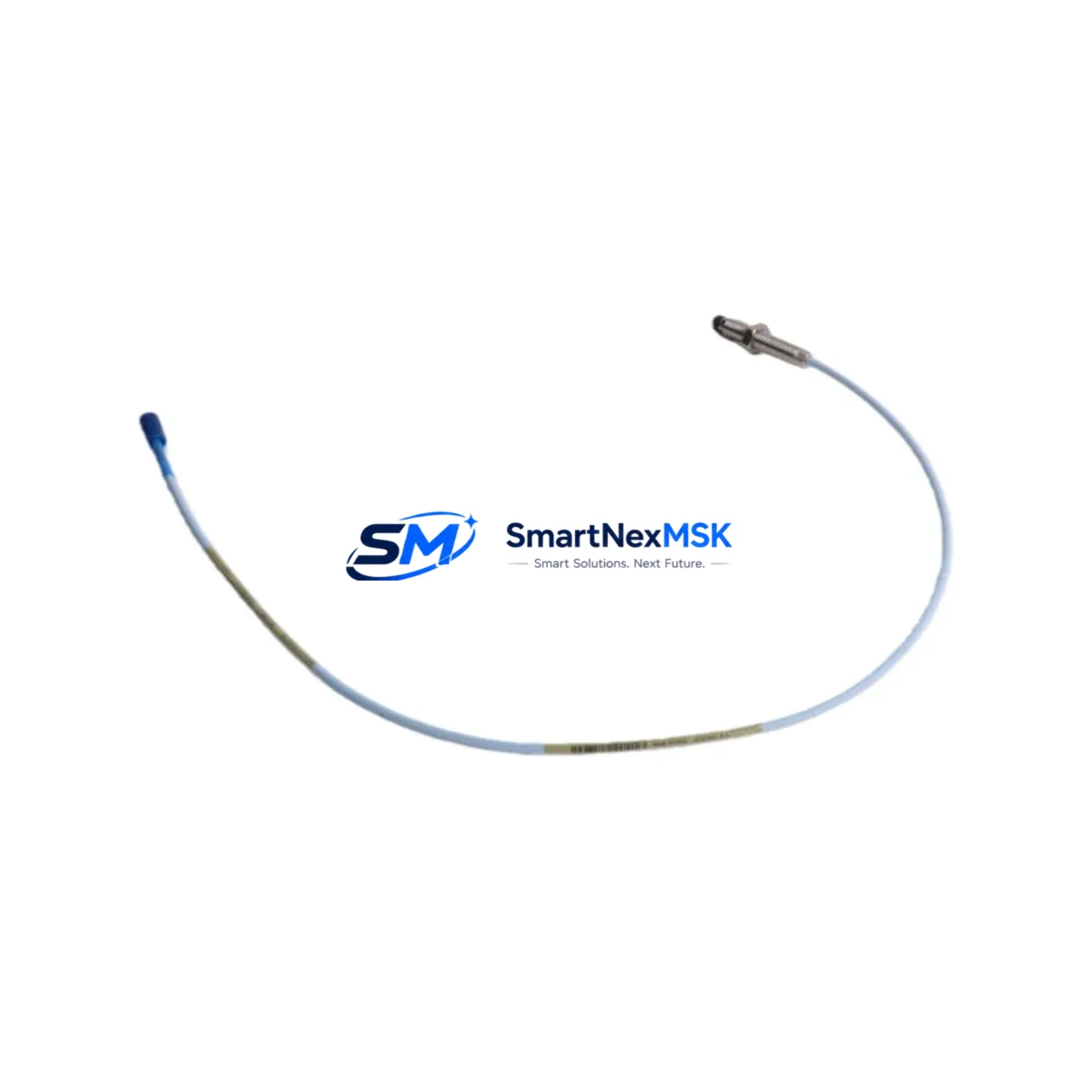

The Bently Nevada 330101-00-20-05-02-02 is an original proximity transducer engineered for the 3300 XL Series continuous vibration monitoring system. Designed for radial vibration, axial position, and differential expansion measurement on rotating machinery, this transducer is a critical spare component in turbine, compressor, pump, and motor protection systems across oil & gas, power generation, petrochemical, and heavy manufacturing facilities. Maintaining a verified stock of this part directly reduces unplanned downtime risk and supports rapid restoration of machinery protection coverage during emergency shutdowns or scheduled turnarounds.

Each unit shipped by SMARTNEXMSK is sourced from authorized supply channels, individually inspected, and tested prior to dispatch. Our 12-month warranty covers manufacturing defects and ensures your maintenance team receives a fully functional, specification-compliant component ready for immediate installation.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-20-05-02-02 proximity transducer in a 3300 XL monitoring loop, maintenance engineers should treat the replacement as an opportunity to audit the entire vibration measurement chain. The transducer does not operate in isolation — its output accuracy depends on the condition and calibration of every upstream and downstream component in the loop.

Begin by inspecting the 330130-080-00-00 extension cable or equivalent 3300 XL extension cable for jacket abrasion, connector corrosion, and continuity. A degraded extension cable is a common root cause of intermittent vibration signal faults that are frequently misdiagnosed as transducer failure. Next, verify the condition of the 330180-X1-05 Proximitor sensor — the signal conditioning module that powers the transducer and converts gap voltage to a usable vibration signal. Proximitor modules have finite service lives and should be replaced on a planned cycle, particularly in high-temperature or high-vibration environments.

At the rack level, inspect the 3300/16 I/O module or the relevant 3500 Series I/O card if the system has been partially upgraded. Confirm that terminal block connections are torqued to specification and free of oxidation. Loose or corroded terminals on the 3300 XL terminal board are a frequent source of noise injection into vibration channels. If the control cabinet houses a 3300/20 power supply module, verify output voltage stability under load — an under-voltage condition will shift the transducer’s linear operating range and produce false high-vibration alarms.

For facilities running integrated machinery protection, also check the 3500/42M proximitor I/O module if the 3300 XL system feeds into a 3500 rack via interface. Confirm that the 3500/22 transient data interface is logging correctly and that no communication faults are present on the 3500/92 communication gateway connecting the protection system to the plant DCS or historian. Signal integrity between the protection rack and the control system is essential for alarm annunciation and trip logic to function correctly during a machinery event.

In cabinets where space permits, maintenance teams should also inspect signal isolators on any 4–20 mA retransmission outputs from the 3300 XL system. Isolators degrade over time and can introduce ground loops that corrupt vibration trend data. Finally, confirm that the Keyphasor transducer (typically a 330980-XX or 330905-XX series) associated with the same shaft is clean, properly gapped, and producing a clean once-per-revolution pulse — Keyphasor signal quality directly affects phase and 1X/2X vector accuracy across all radial channels on the same machine train.

Site Replacement Workflow

The 330101-00-20-05-02-02 is a direct replacement for earlier 3300 XL 8mm proximity transducers with equivalent range and cable length configurations. Before installation, confirm the replacement unit’s gap voltage output using a calibrated voltmeter and a non-conductive gap-setting tool — the nominal gap for most 8mm transducers in radial vibration service is 1.0–1.5 mm, corresponding to approximately -10 to -12 VDC at the proximitor output.

During installation, route the transducer cable away from high-voltage power cables and variable frequency drive (VFD) output conductors to minimize electromagnetic interference. Use the original cable clamps and conduit entry points where possible to maintain the as-built cable routing that was validated during commissioning. After installation, perform a static gap check, then a dynamic check at slow-roll speed before returning the machine to full load. Document the as-found and as-left gap voltages in the maintenance management system to establish a baseline for future condition trending.

For facilities managing end-of-life 3300 XL systems, the 330101-00-20-05-02-02 provides a cost-effective path to extend system service life without a full platform migration to the 3500 Series. Maintaining a minimum of two spare transducers per critical machine train — alongside matched extension cables and a spare proximitor — is recommended practice for facilities with 24/7 continuous operation requirements and limited access to emergency spare parts logistics.

Spare Parts Support FAQ

Q1: Is the 330101-00-20-05-02-02 compatible with both 3300 XL and 3500 Series racks?
The 330101-00-20-05-02-02 is natively designed for the 3300 XL system. It can be used with 3500 Series racks when paired with the appropriate 3500/42M or 3500/40M I/O module and a compatible 3300 XL Proximitor. Confirm system configuration with your instrumentation engineer before cross-series installation.

Q2: What pre-shipment testing does SMARTNEXMSK perform on this transducer?
Each 330101-00-20-05-02-02 unit undergoes functional output verification, cable continuity testing, and connector integrity inspection before dispatch. Units that do not meet Bently Nevada specification are quarantined and not shipped. A 12-month warranty is provided from the date of shipment.

Q3: How should this transducer be stored as a long-term spare?
Store in original packaging or anti-static protective packaging in a dry, temperature-controlled environment (10°C–35°C, <70% RH). Avoid storage near strong magnetic fields or high-vibration areas. Inspect connector pins and cable jacket annually. Rotate stock on a first-in, first-out basis to ensure spare parts remain within their recommended storage life.

Q4: What is the lead time and shipping process for urgent replacement orders?
In-stock units ship within 1–3 business days. For urgent shutdown recovery situations, contact our sales team directly to confirm real-time stock availability and expedited shipping options. All units are tested and packaged for safe international transit.
