Bently Nevada 330101-00-20-10-02-CN 3300 XL Spare

Bently Nevada 330101-00-20-10-02-CN 3300 XL Spare: Precision Spare Parts Replacement for Industrial Downtime Control

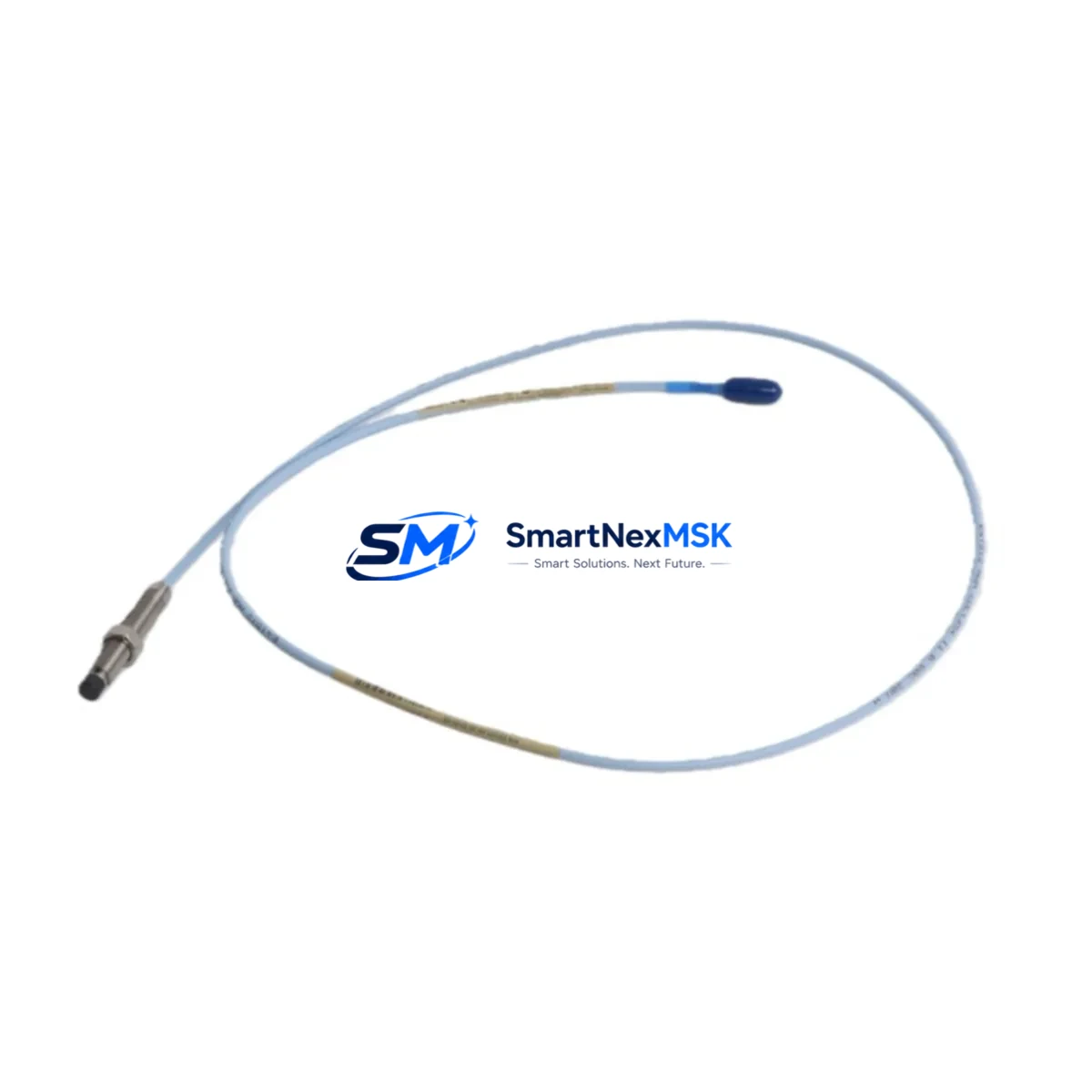

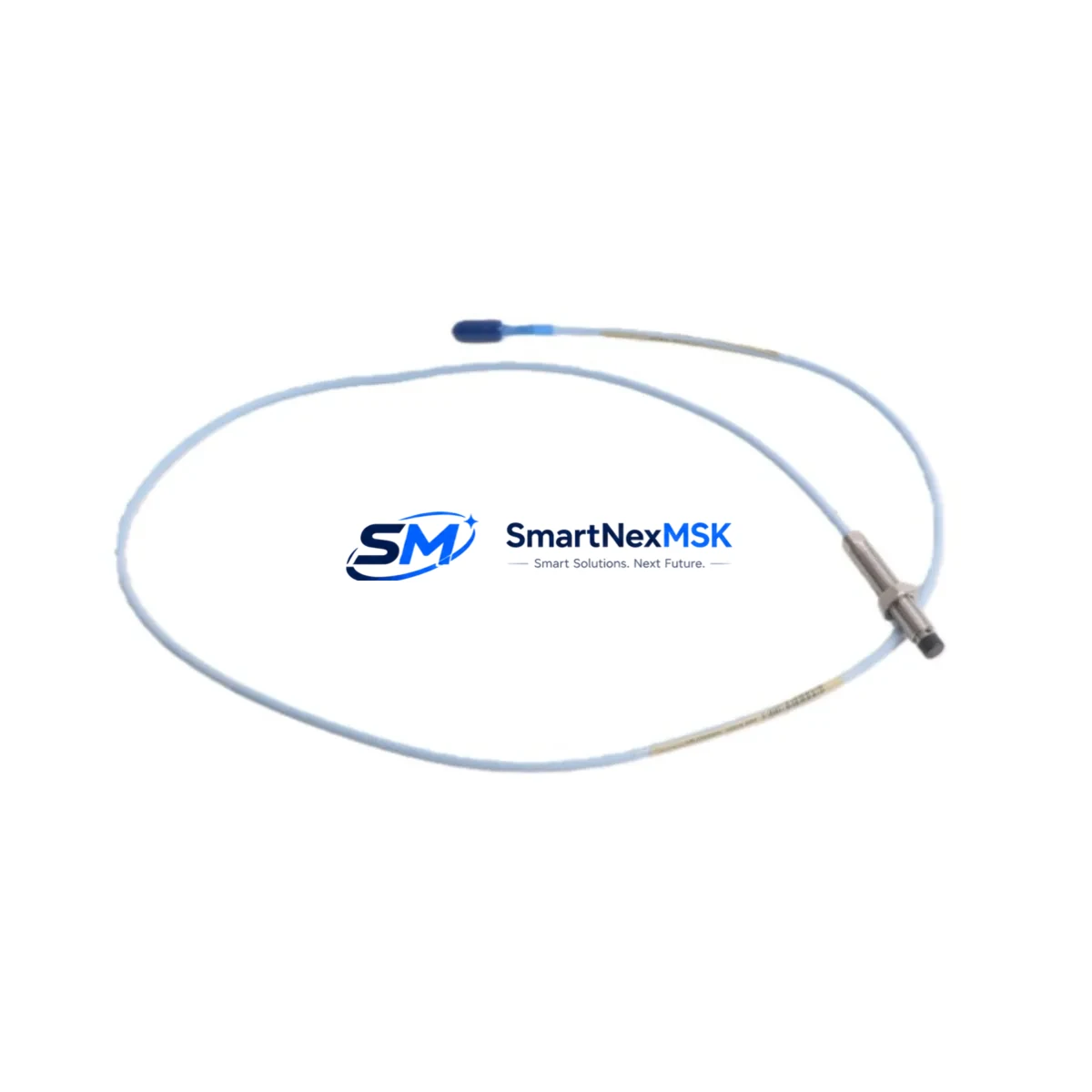

The Bently Nevada 330101-00-20-10-02-CN is an original 8mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring system. In rotating machinery protection environments — turbines, compressors, pumps, and gearboxes — this probe is a critical front-line sensor. When it fails or degrades, the entire vibration monitoring loop is compromised, leaving rotating assets unprotected and exposing the facility to unplanned shutdown risk. Sourcing a verified, tested replacement immediately is not optional; it is a core maintenance discipline.

At SMARTNEXMSK, every 330101-00-20-10-02-CN unit is sourced from authorized supply chains, inspected against OEM dimensional and electrical specifications, and dispatch-tested before shipment. Our 12-month warranty covers full replacement on any unit that fails to perform within published Bently Nevada specifications under normal operating conditions.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330101-00-20-10-02-CN in the field is rarely an isolated task. A disciplined maintenance engineer treats every probe swap as an opportunity to audit the entire vibration monitoring loop and adjacent control-cabinet components. Failure to do so risks returning a machine to service with a latent fault that will trigger the next unplanned shutdown within weeks.

Begin with the 3300 XL extension cable (typically 330130-series). Extension cables accumulate connector wear, moisture ingress, and shield-continuity degradation over years of service; a new probe paired with a degraded cable will produce erratic gap voltage and false alarms. Inspect or replace the extension cable at the same interval as the probe.

Next, verify the 3300 XL proximitor / driver module (e.g., 330180-X1-05 or equivalent 3300 XL 8mm driver). The driver conditions the probe signal and outputs the 0–24 VDC position voltage consumed by the monitor. A drifting driver will invalidate the calibrated gap even after a perfect probe installation. Bench-test the driver output against a known-good probe before closing the cabinet.

Audit the 3300 XL monitor card installed in the rack — typically a 3300/16 or 3300/20 series card. Check channel configuration, alert and danger setpoints, and OK relay status. If the monitor has been in service for more than five years without recalibration, schedule a calibration cycle concurrent with the probe replacement.

Inspect terminal blocks and field wiring in the junction box between the machine and the monitor rack. Loose terminations on the coaxial shield or center conductor introduce noise that mimics real vibration. Torque all terminals to specification and verify shield continuity end-to-end.

If the machine is equipped with a Keyphasor probe (e.g., 330101-00-20-10-02-CN or same-series Keyphasor variant), confirm its gap voltage and signal quality simultaneously. The Keyphasor reference is essential for phase and 1× amplitude accuracy across all channels on the same machine train.

For facilities running System 1 or System 1 Evolution condition monitoring software, verify that the channel tag, engineering units, and full-scale range in the software database match the physical probe and driver configuration after replacement. A mismatch here will corrupt trend data and mask developing faults.

Where the control cabinet also houses 4–20 mA signal isolators or barriers feeding the DCS or safety system, confirm that the vibration output signal is within range post-replacement. Signal isolators age and can introduce offset errors that only become apparent after a probe change resets the baseline gap voltage.

Finally, check any surge protection devices or transient voltage suppressors on the probe cable entry. These components protect the proximitor from field-induced transients and are frequently overlooked during routine maintenance. A failed suppressor leaves the new probe and driver exposed to the next electrical event on the machine frame.

Site Replacement Workflow

Step 1 — Pre-replacement verification. Confirm the replacement unit part number matches 330101-00-20-10-02-CN exactly, including the CN connector suffix. Verify the probe body thread (M10 × 1) and cable length (2.0 m) against the installation drawing. Do not substitute a different cable-length variant without recalculating the system linear range.

Step 2 — Safe isolation. De-energize the 3300 XL driver channel at the monitor rack. Do not simply disconnect the probe at the junction box while the driver is powered; the open-circuit condition will drive the monitor channel to a danger state and may trigger a spurious shutdown if the OK relay is wired into the machine protection logic.

Step 3 — Probe removal and gap measurement. Record the existing probe gap (in mils or mm) before removal. This baseline confirms whether the previous probe had drifted from its commissioned gap and helps diagnose whether the fault was probe-related or mechanical.

Step 4 — Installation and gap setting. Thread the new 330101-00-20-10-02-CN into the bracket. Set the gap to the value specified on the machine data sheet — typically 50 mil (1.27 mm) for radial vibration applications, but always defer to the OEM commissioning record. Measure gap voltage at the driver output: target −10.0 VDC ± 0.5 VDC at nominal gap.

Step 5 — System verification. Re-energize the driver channel and confirm OK relay status. Observe the vibration reading at slow-roll speed to verify the probe is reading cleanly before the machine reaches operating speed. Log the as-left gap voltage and vibration baseline in the maintenance management system.

Step 6 — Documentation. Update the equipment history with the replacement date, new probe serial number, as-found and as-left gap voltages, and any adjacent components inspected or replaced. This record is essential for warranty claims and future predictive maintenance planning.

Spare Parts Support FAQ

Q1: Is the 330101-00-20-10-02-CN compatible with all 3300 XL 8mm systems?
Yes. The 330101-00-20-10-02-CN is the standard 8mm proximity probe for the Bently Nevada 3300 XL system. It is compatible with all 3300 XL 8mm drivers and extension cables. Always confirm the connector suffix (CN) and cable length match your installation drawing before ordering.

Q2: What is included in the 12-month warranty?
Every unit shipped by SMARTNEXMSK carries a 12-month full-replacement warranty covering manufacturing defects and performance deviations from published Bently Nevada specifications. Warranty claims require the original invoice and a description of the failure mode. Physical damage caused by incorrect installation or electrical overstress is excluded.

Q3: How do you verify the unit before shipment?
Each 330101-00-20-10-02-CN is inspected for physical integrity, connector condition, and cable continuity. Electrical performance — including coil impedance and insulation resistance — is checked against OEM reference values. A test report is available on request for critical applications.

Q4: Can you support long-term or blanket spare parts orders?
Yes. SMARTNEXMSK supports scheduled delivery agreements and blanket purchase orders for facilities that maintain a minimum on-hand spare inventory policy. Contact our team to discuss lead times, pricing tiers, and consignment stocking options for the 330101-00-20-10-02-CN and related 3300 XL system components.
