Bently Nevada 330101-00-20-20-12-CN Maintenance-Ready Spare for 3300 XL Automation

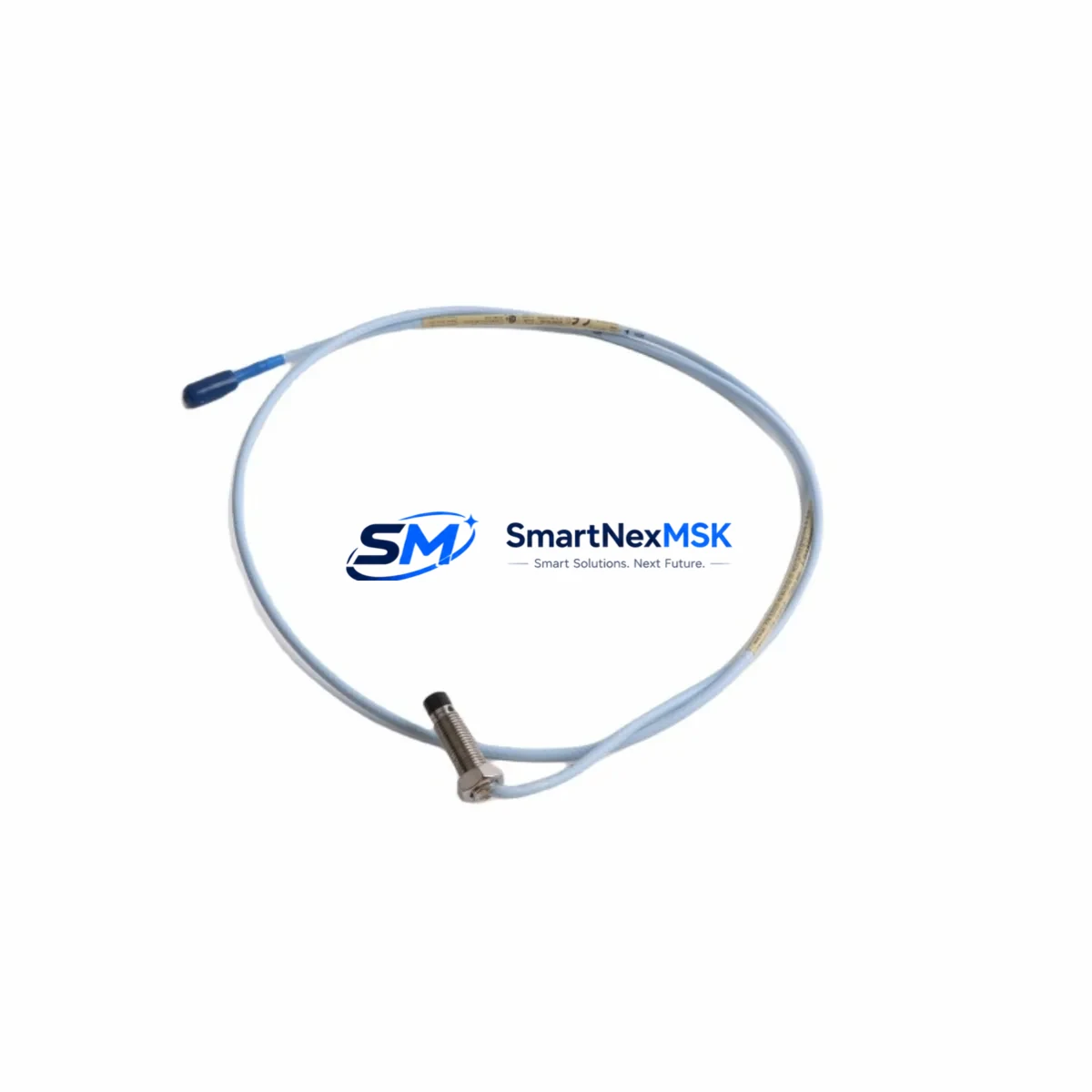

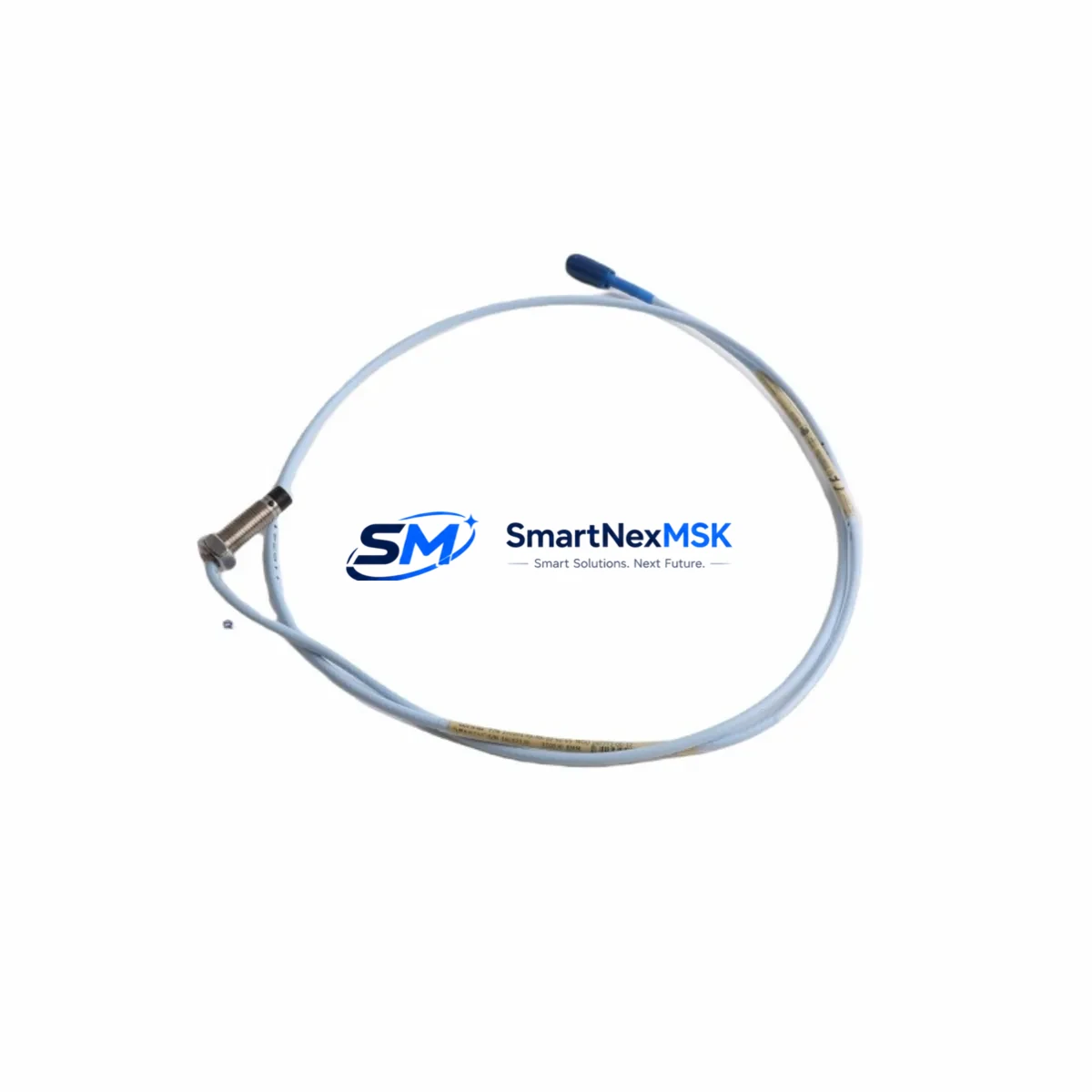

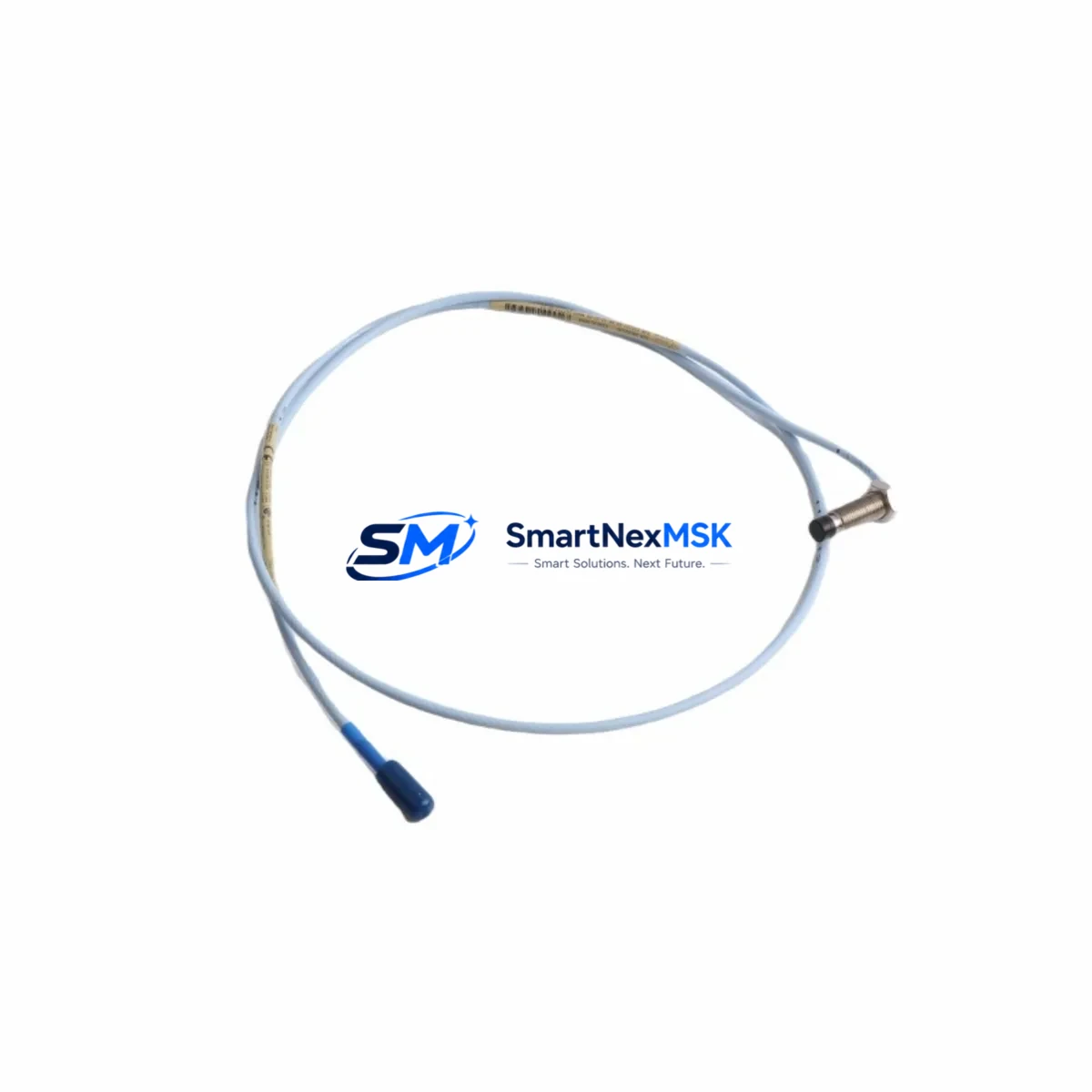

The Bently Nevada 330101-00-20-20-12-CN is an original proximity transducer system designed for the 3300 XL Series continuous vibration monitoring platform. This unit serves as a direct maintenance-ready spare for rotating machinery protection systems in power generation, oil & gas, petrochemical, and heavy industrial environments. When a transducer fails or reaches end-of-service life, unplanned downtime can cascade across an entire turbine train or compressor skid. Stocking a verified replacement of the 330101-00-20-20-12-CN eliminates that risk and supports rapid site restoration.
This listing is sourced as an original Bently Nevada component, fully tested prior to dispatch, and backed by a 12-month warranty. Each unit undergoes output signal verification, cable continuity check, and connector integrity inspection before shipment. Delivery is available globally with express logistics options to minimize machine downtime.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | 330101-00-20-20-12-CN |
| Brand | Bently Nevada |
| Series | 3300 XL Proximity Transducer System |
| Product Type | Eddy-Current Proximity Transducer |
| Cable Length | 5.0 m (20 ft) integral cable |
| Thread Size | 8 mm |
| Gap Range | 0.25 – 2.25 mm (10 – 90 mil) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) |
| Supply Voltage | -24 VDC (via driver/extension cable) |
| Operating Temperature | -35°C to +121°C |
| Target Material Compatibility | AISI 4140 steel (standard); other alloys per calibration |
| Connector Type | CN (coaxial, field-wirable) |
| Application Environment | Turbines, compressors, pumps, gearboxes, motors |
| Mounting | Threaded bracket, locknut included |
| Compliance | API 670 compatible |
| Warranty | 12 Months |
| Condition | Original, tested before shipment |
Maintenance Planning for Continuous Operation
When a maintenance or reliability engineer schedules replacement of the 330101-00-20-20-12-CN proximity transducer, the surrounding system components should be inspected simultaneously to prevent repeat failures and maximize the value of each planned outage window.
Begin with the 330130-080-00-00 extension cable — the coaxial cable linking the transducer to the driver. Damaged shielding or connector corrosion on the extension cable is a leading cause of signal drift that is often misdiagnosed as transducer failure. Inspect the full cable run for chafing, moisture ingress, and connector seating. Next, verify the 330180-X1-05 proximitor/driver module mounted in the monitor rack: check its bias voltage output (typically -10.0 VDC at mid-gap) and confirm the LED status indicators show no fault condition.
At the rack level, inspect the 3300/16 dual-channel monitor card or equivalent slot card for loose backplane connectors and verify that alarm setpoints have not drifted from the baseline commissioning values. If the machine has been running in alarm-bypass mode, this is the correct time to restore full protection. The 3300/05-01-02-00 power supply module feeding the monitor rack should be load-tested; a degraded power supply can introduce noise into transducer signal chains and cause nuisance trips.
For the field junction box, inspect terminal blocks, cable glands, and grounding lugs. Loose ground connections are a frequent source of 50/60 Hz interference on proximity channels. If the installation uses a 3300/55 keyphasor module, verify its gap and signal amplitude simultaneously — keyphasor faults can corrupt speed and phase readings across the entire monitor system.
On the I/O side, confirm that the 4–20 mA output signals from the monitor are reaching the DCS or safety PLC correctly. Trace the signal path through any signal isolators or barriers (such as MTL or P+F units) to rule out loop resistance issues. If the plant uses a System 1 Evolution software platform for online machinery diagnostics, verify that the transducer channel is correctly mapped and that historical trend data is being archived without gaps.
Finally, review the spare parts kit for the machine train: a complete vibration monitoring spare set for a typical turbine-compressor train should include at minimum one proximity transducer per measurement plane, one extension cable per channel, one proximitor driver, and one monitor card. Maintaining this inventory ensures that any single-point failure can be resolved within one shift without waiting for international freight.
Site Replacement Workflow
Step 1 — Isolation & Permit: Obtain a work permit and confirm the machine is in a safe state. Do not remove the transducer from a running machine. Note the existing gap voltage reading from the monitor before disconnection — this is your baseline for reinstallation.
Step 2 — Removal: Disconnect the extension cable at the field junction box first. Unscrew the locknut and carefully back out the 330101-00-20-20-12-CN from its mounting bracket. Inspect the probe tip for impact damage or contamination that may indicate a secondary mechanical issue.
Step 3 — Installation: Thread the replacement transducer into the bracket by hand until the tip is approximately 1.0 mm from the target shaft. Connect the extension cable and apply power. Adjust the gap to achieve the specified bias voltage (typically -10.0 VDC ± 0.5 V) using a calibrated gap tool or feeler gauge. Tighten the locknut to the specified torque.
Step 4 — Verification: Confirm the monitor channel shows a valid gap voltage, no fault LED, and a clean waveform on the oscilloscope or System 1 display. Check that alarm and danger setpoints are active. Document the as-left gap voltage in the maintenance record.
Step 5 — Return to Service: Release the work permit and restore the machine to normal operation. Monitor the first 30 minutes of operation for any anomalous vibration trends that could indicate installation error or a pre-existing mechanical condition.
This workflow is compatible with direct replacement of legacy 330101-00-20-20-05-CN and 330101-00-20-20-10-CN variants where cable length is the only difference, allowing maintenance teams to standardize on a single spare SKU where plant layout permits.
Spare Parts Support FAQ
Q1: Is the 330101-00-20-20-12-CN compatible with older 3300 series monitors, not just 3300 XL?
A: The 3300 XL proximity transducer system is backward-compatible with earlier 3300 series monitor cards in most configurations. However, sensitivity and gap range should be verified against the specific monitor card datasheet, as some early-generation cards were calibrated for the original 3300 series transducers. We recommend confirming the monitor firmware version and calibration record before installation.
Q2: What is included in the 12-month warranty?
A: The warranty covers manufacturing defects and verified functional failures under normal operating conditions. Each unit is tested for output sensitivity, cable continuity, and connector integrity before shipment. Warranty claims are processed with a return authorization; replacement units are dispatched within 5 business days of claim approval.
Q3: Can you supply multiple units for a planned outage spare kit?
A: Yes. We support bulk orders for planned maintenance outages and annual turnaround events. Volume pricing is available for orders of 5 units or more. Lead times for bulk orders are confirmed at the time of inquiry based on current stock levels.
Q4: How do I verify the unit is genuine before installation?
A: Each unit ships with a test report confirming bias voltage output and cable resistance. The Bently Nevada part number and date code are marked on the transducer body and connector. If you require additional traceability documentation, please contact us at the time of order.
