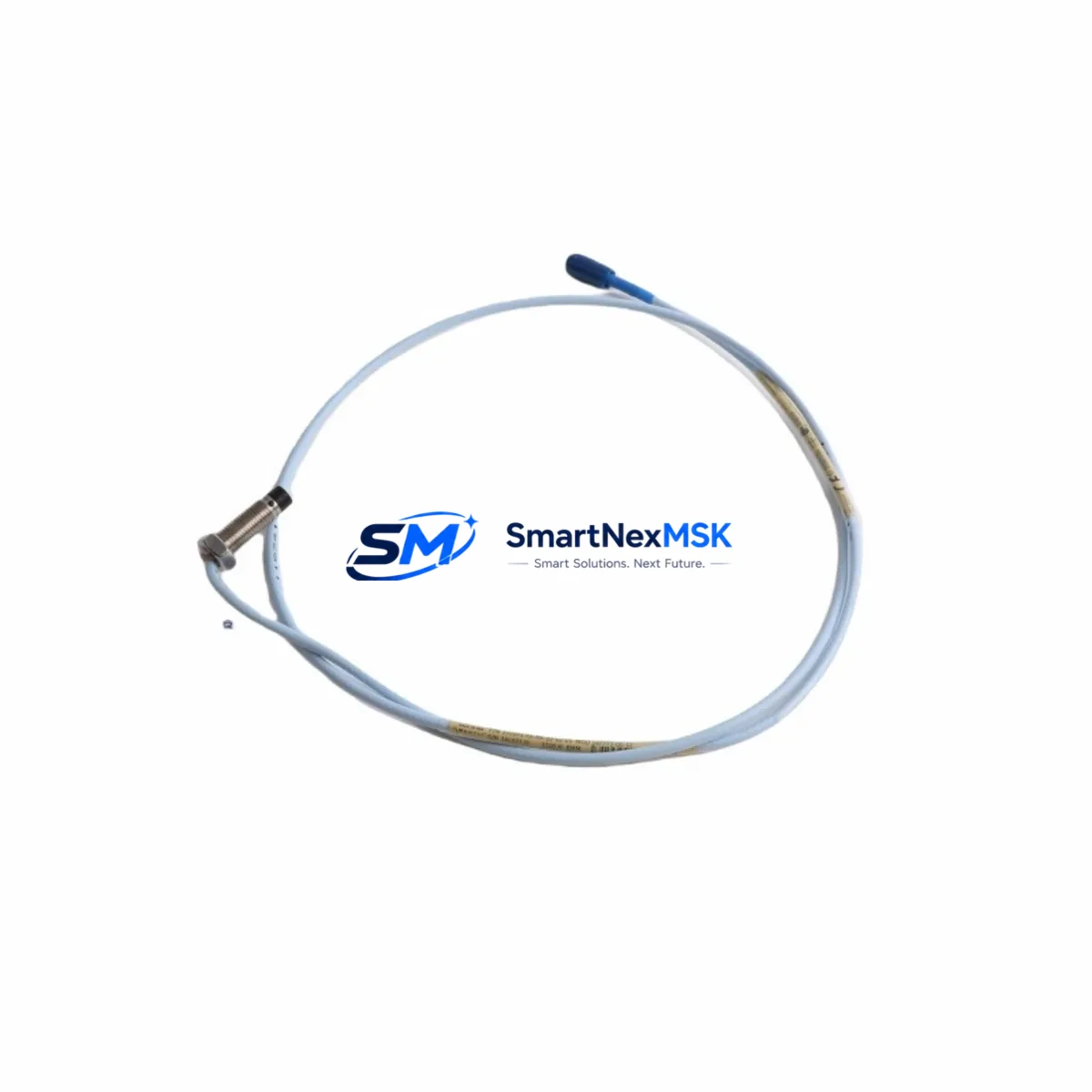

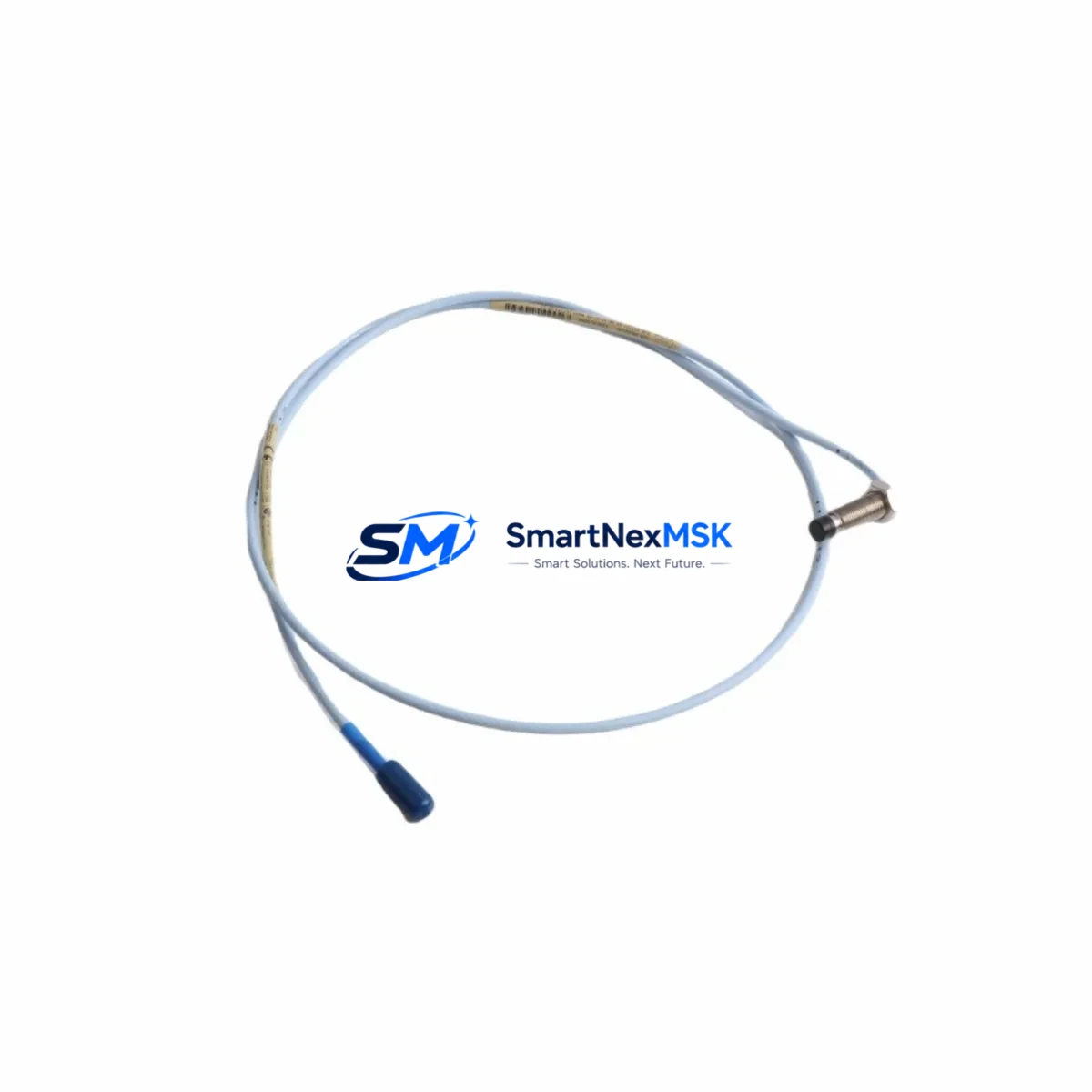

The Bently Nevada 330101-00-24-05-02-05 is an original 8mm eddy current proximity probe engineered for the 3300 XL Series continuous vibration monitoring platform. In rotating machinery protection systems — turbines, compressors, pumps, and gearboxes — this probe is a critical field-replaceable unit. When a vibration channel fails or drifts out of calibration, unplanned downtime begins immediately. Stocking this spare ensures maintenance engineers can execute a same-shift swap and restore full protection coverage without waiting on extended lead times.

This probe is designed to work within the complete 3300 XL signal chain. The 330101-00-24-05-02-05 operates at a nominal gap voltage of -10.4 VDC and interfaces directly with the 3300 XL proximitor/seismic module (such as the 330180 series) and the 3500/40M proximitor I/O module. Maintenance teams replacing this probe should simultaneously inspect the extension cable (typically 330130 series), the proximitor housing, and the field wiring termination at the 3500 rack’s I/O module to rule out cascading faults in the same measurement loop.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

A proximity probe failure rarely occurs in isolation. When the 330101-00-24-05-02-05 is flagged for replacement during a planned outage or emergency shutdown, a disciplined maintenance engineer will treat the event as an opportunity to audit the entire measurement loop and adjacent protection channels.

Begin at the 3500/40M proximitor I/O module — verify that the OK relay is healthy and that the channel is not in bypass mode. Inspect the 330130 series extension cable for jacket damage, connector corrosion, or continuity faults; a degraded cable will cause the same symptoms as a failed probe and is frequently overlooked. At the proximitor end, confirm the 330180 proximitor output voltage is within the -18 to -24 VDC supply range and that the gap voltage at the new probe installation reads within the linear range.

For machines running on a Bently Nevada 3500 rack, cross-check the adjacent channels: a companion 3500/42M velocity/acceleration module or a 3500/45 position monitor may share the same I/O termination block. Inspect terminal block connections for loose screws and oxidation. If the machine also uses a 3300 XL keyphasor probe (such as the 330980 series) for phase reference, verify its gap and signal integrity simultaneously — a corrupted keyphasor signal will affect all vibration vector readings across the rack.

On the power side, confirm the 3500/15 power supply module is delivering stable -24 VDC to the I/O chassis. Voltage sag under load is a common root cause of intermittent probe faults that are misdiagnosed as probe failures. If the site uses a 3500/20 rack interface module for Modbus or Ethernet communication to the DCS or historian, verify that the communication link is healthy after the probe swap — some rack configurations require a channel reset that temporarily interrupts the data stream.

For facilities maintaining older 3300 Series (non-XL) installations alongside 3300 XL systems, note that the 330101 probe family is not backward-compatible with legacy 3300 proximitors without recalibration. Stocking both the 330101-00-24-05-02-05 and the appropriate legacy probe variant in the spare parts cabinet eliminates ambiguity during a night-shift emergency replacement.

Site Replacement Workflow

Step 1 — Isolation and bypass: Place the affected channel in bypass on the 3500 rack to prevent a spurious trip during probe removal. Document the current gap voltage and OK status before disconnecting.

Step 2 — Probe removal: Using the correct spanner, back out the 330101-00-24-05-02-05 from the mounting boss. Inspect the probe tip for impact damage or contamination that may indicate a secondary mechanical issue with the shaft or bearing housing.

Step 3 — Cable and connector inspection: Before installing the replacement, inspect the extension cable connector (BNC or integral) and the proximitor input connector for pin damage, moisture ingress, or corrosion. Replace the 330130 extension cable if any anomaly is found.

Step 4 — Installation and gap setting: Thread the new 330101-00-24-05-02-05 into the mounting boss and set the air gap to achieve a gap voltage of -10.4 VDC ±0.5 VDC as measured at the proximitor output. Use a non-ferrous feeler gauge or the proximitor’s built-in gap meter.

Step 5 — Functional verification: Remove the channel from bypass. Confirm the OK relay energizes, the gap voltage is stable, and the vibration reading is within the expected baseline for the machine. Log the as-found and as-left gap voltages in the maintenance record.

Step 6 — System restore: Notify the control room that the channel is restored. If the machine was shut down, follow the site’s startup procedure and monitor the vibration trend for the first 30 minutes of operation to confirm the new probe is performing correctly.

This workflow minimizes total downtime to under two hours for a prepared maintenance team with the spare on hand, compared to days or weeks waiting for a replacement on an unplanned basis.
