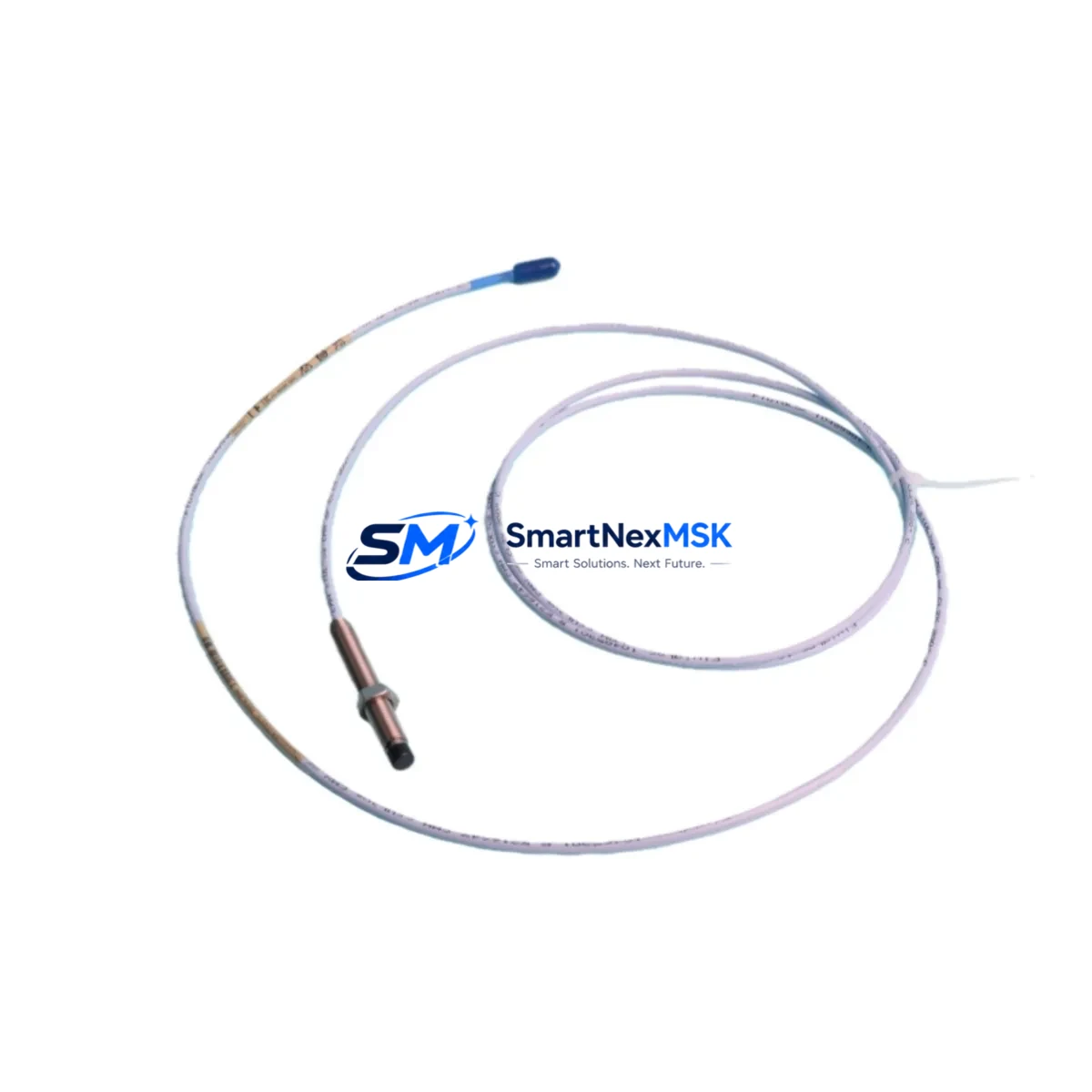

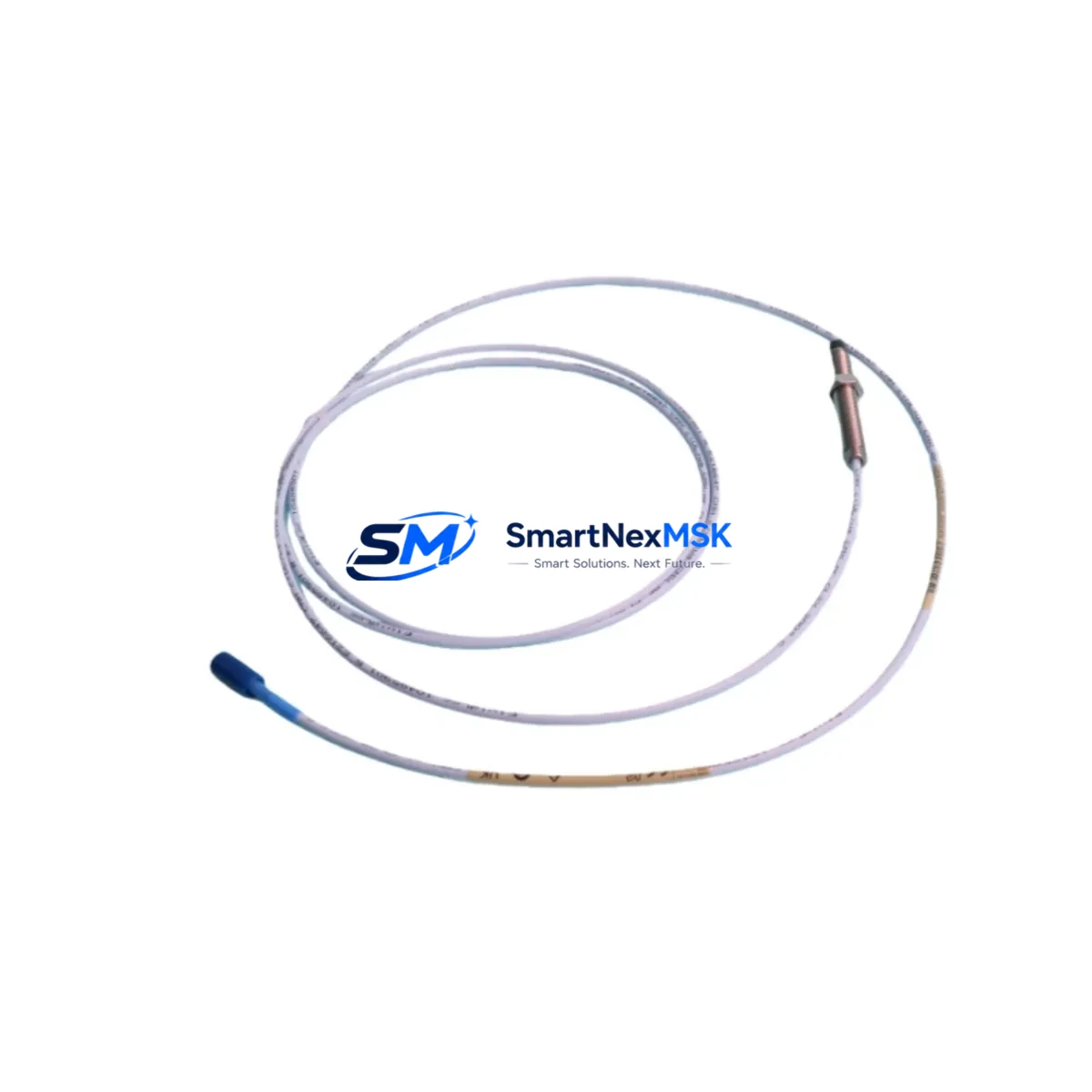

The Bently Nevada 330101-00-25-05-01-05 is an 8mm eddy current proximity probe designed for the 3300 XL Series continuous vibration monitoring system. In rotating machinery protection applications — turbines, compressors, pumps, and gearboxes — this probe is a critical field-replaceable unit. When a probe fails or drifts out of calibration, the entire monitoring loop is compromised, potentially masking dangerous shaft vibration events or triggering nuisance trips. Maintaining a verified spare on the shelf is the single most effective strategy for minimizing unplanned downtime in machinery protection circuits.

This listing provides an original, tested 330101-00-25-05-01-05 probe, shipped with a 12-month warranty and pre-shipment electrical verification. Each unit is inspected for tip condition, cable integrity, and connector seating before dispatch. For maintenance engineers managing aging 3300 XL installations, this spare directly replaces the installed probe without requiring reconfiguration of the proximitor or monitor rack.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the 330101-00-25-05-01-05 probe during a planned outage or emergency callout, maintenance engineers should treat the replacement as an opportunity to audit the entire vibration monitoring loop. The probe is only one element in a three-component measurement chain. The paired 3300 XL 8mm Proximitor (330180 series) should be inspected for housing cracks, moisture ingress, and output voltage drift — a proximitor that has been in service for more than five years in a high-temperature environment is a candidate for proactive replacement alongside the probe.

Downstream, the 3500/40M or 3500/42M monitor module in the rack should be checked for alarm setpoint integrity and channel OK status. If the monitor has been logging intermittent channel faults, the issue may originate in the interconnect cable assembly between the proximitor and the rack — particularly at the bulkhead connector where vibration-induced fretting corrosion is common. Spare 330130 series extension cables and 330105 series armored probe cables are recommended stocking items for any facility running multiple 3300 XL loops.

For the control cabinet inspection, verify the DC power supply rail feeding the proximitor — typically -24 VDC. A sagging supply voltage will shift the probe gap voltage and cause false readings. If the cabinet houses a 3500 rack system, check the 3500/15 power supply module and its redundant counterpart. Loose terminal block connections on the 3500/20 rack interface module are a frequent source of intermittent channel faults that are misdiagnosed as probe failures.

In facilities where the 3300 XL system interfaces with a DCS or safety system, confirm that the 4–20 mA output signal from the monitor is reaching the marshalling cabinet without degradation. Signal isolators — such as those used to break ground loops between the monitor rack and the DCS input card — should be tested for output accuracy. A failed isolator can make a healthy probe appear to be out of range.

For older installations where the 3300 XL rack is approaching end-of-support, procurement engineers should consider stocking not only the probe but also the proximitor, the monitor module, and the power supply as a matched spare set. This approach eliminates compatibility uncertainty during an emergency replacement and reduces mean time to repair (MTTR) from hours to minutes.

Site Replacement Workflow

Step 1 — Isolation and Permit: Obtain a work permit and confirm the machinery is in a safe state. Note the current gap voltage reading from the monitor before disconnecting the probe — this is your baseline for the new installation.

Step 2 — Probe Removal: Loosen the jam nut and back the probe out carefully. Inspect the probe tip for impact damage or contamination. Inspect the target area (shaft or thrust collar) for scoring or runout that may have contributed to the probe failure.

Step 3 — New Probe Installation: Thread the 330101-00-25-05-01-05 into the bracket. Set the gap to the manufacturer-specified value (typically 1.0–1.5 mm for 8mm probes) using a non-ferrous feeler gauge. Tighten the jam nut to the specified torque. Route the cable to avoid contact with hot surfaces or moving parts.

Step 4 — Electrical Verification: With the proximitor powered, measure the gap voltage at the proximitor output. Compare against the calibration curve for the 330101 probe. Confirm the monitor channel returns to OK status and the gap voltage is within the linear range.

Step 5 — System Confirmation: Verify alarm and danger setpoints are active. Confirm the DCS or safety system is receiving a valid signal. Document the replacement in the maintenance management system with the new probe serial number and gap setting.

This workflow applies equally to radial vibration, axial position, and differential expansion measurement points. For facilities managing legacy 3300 (non-XL) installations, the 330101-00-25-05-01-05 is not directly compatible — consult the 3300 series probe selection guide or contact our technical team for the correct legacy replacement.

Spare Parts Support FAQ

Q1: Is the 330101-00-25-05-01-05 compatible with both the 3300 XL and the older 3300 (non-XL) proximitor?
No. The 330101-00-25-05-01-05 is designed and calibrated for the 3300 XL 8mm Proximitor (330180 series). It is not interchangeable with the earlier 3300 series proximitors without recalibration. If your installation uses a non-XL proximitor, please provide the proximitor part number so we can identify the correct probe.

Q2: What pre-shipment testing is performed on each unit?
Every 330101-00-25-05-01-05 shipped from our inventory undergoes electrical continuity testing, insulation resistance measurement, and sensitivity verification against the Bently Nevada calibration standard. A test report is available upon request. Units that do not meet specification are quarantined and not offered for sale.

Q3: How should this probe be stored if purchased as a shelf spare?
Store in the original packaging or an anti-static bag in a dry environment between -20°C and +70°C, away from strong magnetic fields and solvents. Inspect the tip and connector annually. The 12-month warranty period begins from the shipment date, not the installation date — plan your procurement cycle accordingly to ensure warranty coverage aligns with your planned maintenance window.

Q4: Can you supply matched probe-and-proximitor sets for a full loop replacement?
Yes. We stock the 330101-00-25-05-01-05 probe alongside the 330180 series proximitor and 330130 series extension cables. Ordering a matched set ensures calibration compatibility and simplifies site acceptance testing. Contact our team with your loop configuration and we will prepare a matched spare kit with documentation.
