Bently Nevada 330101-00-27-50-02-00 Retrofit-Ready Proximity Transducer for 3300 XL

Bently Nevada 330101-00-27-50-02-00 Retrofit-Ready Proximity Transducer for 3300 XL Control Systems

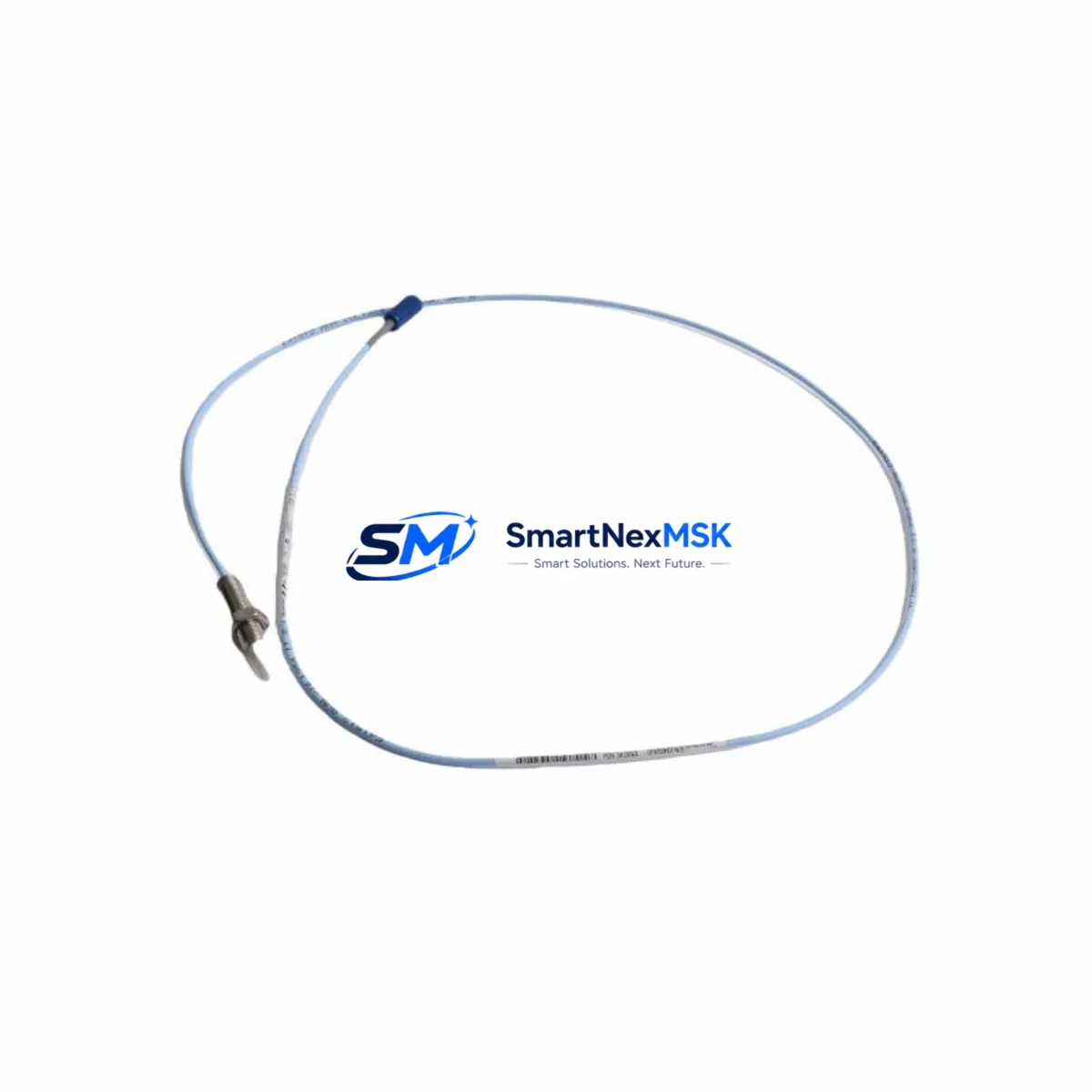

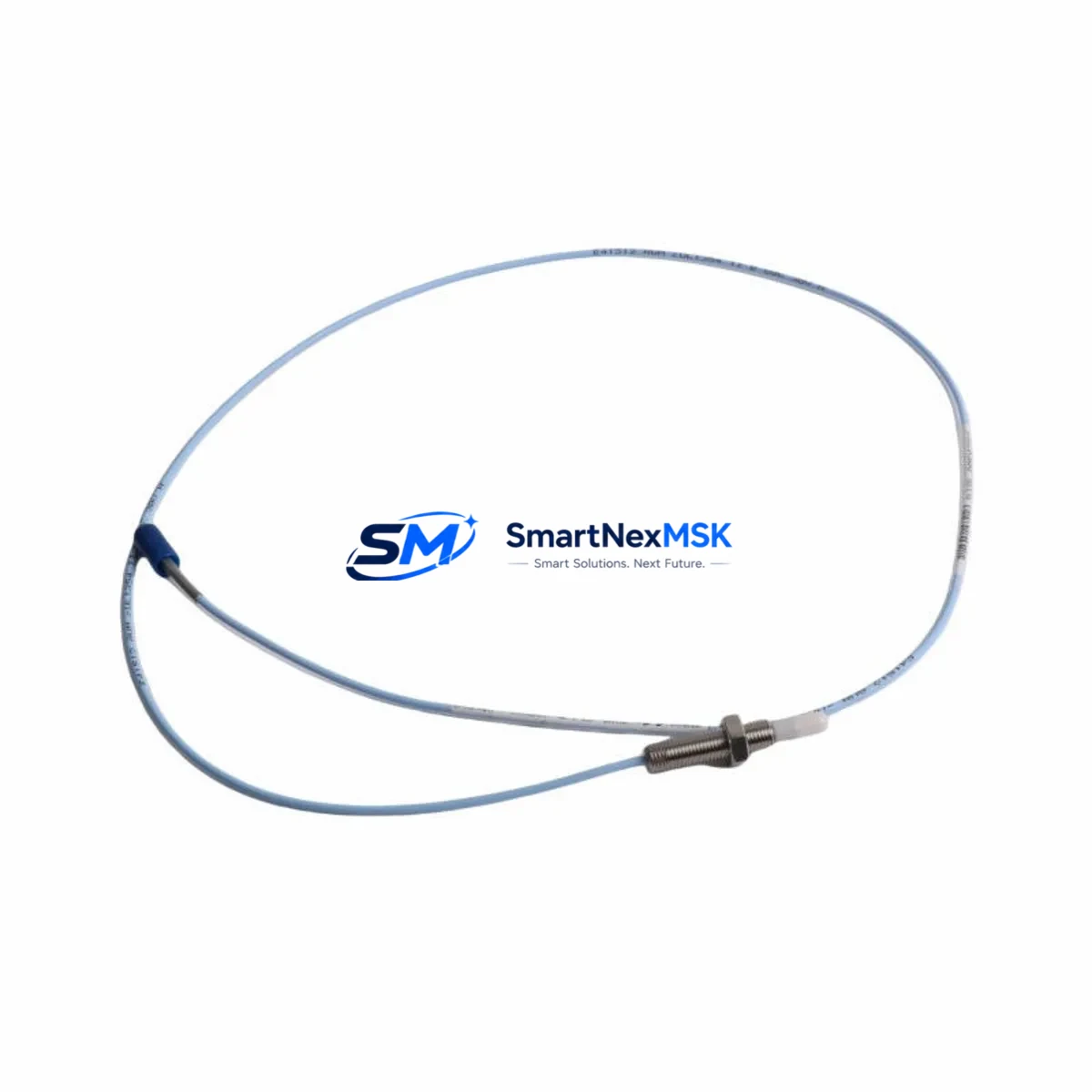

The Bently Nevada 330101-00-27-50-02-00 is an 8mm eddy-current proximity transducer engineered for seamless integration into existing 3300 XL vibration monitoring systems. As aging machinery protection platforms approach end-of-life or face discontinued spare-parts availability, this transducer serves as a verified drop-in replacement that preserves original signal conditioning architecture, terminal wiring layouts, and Keyphasor compatibility — enabling plant engineers to extend system service life without rewriting monitor configuration or revalidating the entire protection loop.

Whether you are upgrading a turbine protection cabinet, replacing a failed channel in a compressor train, or migrating from an obsolete 3300/20 or 3300/16 monitor rack to a current-generation 3300 XL platform, the 330101-00-27-50-02-00 transducer delivers the same 200 mV/mil (7.87 V/mm) sensitivity, -18 VDC nominal bias voltage, and 5–10,000 Hz frequency response that your existing system was calibrated to accept. This eliminates the need to reconfigure scale factors in the 3300 XL monitor cards or adjust alarm setpoints in the System 1 condition monitoring software.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 330101-00-27-50-02-00 into an operating plant begins well before the maintenance window opens. The first step is a full audit of the existing probe-and-extension cable assembly. In most 3300 XL installations, the transducer is paired with a 330130-045-00-00 or 330130-080-00-00 extension cable and a 330180 proximitor/oscillator driver. If the proximitor housing shows signs of moisture ingress or connector corrosion, it should be replaced simultaneously to avoid a repeat outage. The 330180-X1-05 proximitor is the standard companion driver for this transducer series and is stocked alongside the probe assembly.

Terminal wiring in the junction box must be verified against the original loop drawing. The 330101 series uses a three-conductor shielded cable arrangement: power supply (-24 VDC), signal output, and shield/common. When replacing a failed unit in a multi-channel rack, confirm that the 3300 XL monitor card — whether a 3300/16 radial vibration monitor or a 3300/20 Keyphasor monitor — has not been reconfigured since original commissioning. Any change to the channel’s full-scale range or OK limit window will require a gap voltage re-check after the new transducer is installed.

For plants running a System 1 Evolution or System 1 Classic condition monitoring platform, the transducer replacement does not require a database change provided the new unit’s sensitivity matches the original. However, if the site is simultaneously upgrading from a legacy 3500 rack to a 3300 XL architecture, the I/O mapping in the DCS — typically a Honeywell Experion PKS, Emerson DeltaV, or ABB 800xA system — must be reviewed to ensure that the analog input cards receiving the vibration signal are scaled correctly. In these mixed-platform upgrades, the 3500/42M proximitor I/O module and the 3500/22M transient data interface are commonly involved in the signal chain and should be part of the scope review.

Backplane and rack considerations are equally important. If the 3300 XL monitor cards are housed in a 3300/05 or 3300/10 rack, verify that the rack’s power supply module — typically a 3300 XL power supply — is delivering stable -24 VDC to all channels before installing the new transducer. A marginal power supply will produce erratic gap voltage readings that can be misdiagnosed as a faulty probe. The 3300 XL rack also supports a 3300 XL communication gateway for Modbus RTU or FOUNDATION Fieldbus output; if the site is migrating to a digital protocol, this gateway module should be configured before the transducer swap to avoid a second outage.

For HMI integration, confirm that the operator station — whether running a Wonderware InTouch, FactoryTalk View SE, or Emerson AMS Device Manager interface — displays the correct engineering units and alarm thresholds after the replacement. The vibration trend historian should be cleared of the pre-replacement data spike to prevent false alarm analysis in the next reporting cycle.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity transducer replacement requires a structured hot-swap protocol. Where process conditions permit, the 330101-00-27-50-02-00 can be installed with the machine at reduced load rather than full shutdown, provided the monitor channel is placed in bypass mode through the 3300 XL monitor’s front-panel inhibit function or through the System 1 software’s channel inhibit command. This preserves the protection logic on all remaining channels while the failed channel is serviced.

Before removing the old transducer, record the existing gap voltage reading from the monitor card’s front-panel meter or from the System 1 trend display. This value — typically between -10 and -18 VDC for an 8mm probe at the correct air gap — serves as the commissioning target for the new unit. After installation, adjust the probe gap until the bias voltage matches the recorded value within ±0.5 VDC, then release the channel from bypass. The entire swap, including gap adjustment and functional verification, typically takes 45–90 minutes for an experienced technician.

To protect the original program logic in the associated PLC or DCS — whether a Rockwell Automation ControlLogix, Siemens S7-400, or Yokogawa CENTUM VP controller — ensure that the vibration monitor’s relay outputs are inhibited at the hardwired interlock level before beginning work. This prevents a nuisance trip from propagating to the safety instrumented system (SIS) or emergency shutdown (ESD) layer during the gap adjustment phase. After commissioning, restore all inhibits in reverse order and document the as-left gap voltage in the maintenance management system.

Retrofit Support FAQ

Q1: Is the 330101-00-27-50-02-00 a direct replacement for the original Bently Nevada 330101 series without any monitor reconfiguration?
A: Yes. The 330101-00-27-50-02-00 maintains the same 200 mV/mil sensitivity and -18 VDC nominal bias as the original 330101 series. No scale factor or OK limit changes are required in the 3300 XL monitor card, provided the probe gap is set correctly during commissioning.

Q2: What wiring changes are needed when replacing a failed 330101 transducer in an existing 3300 XL installation?
A: No wiring changes are required for a like-for-like replacement. The three-conductor shielded cable arrangement (power, signal, shield) is identical. If the extension cable or proximitor is also being replaced, verify connector polarity and shield termination at the junction box before powering up the channel.

Q3: How is compatibility with the Keyphasor channel verified after installation?
A: After installing the new transducer, confirm that the once-per-revolution notch or key produces a clean negative-going pulse on the System 1 waveform display or on a portable oscilloscope connected to the proximitor output. The pulse amplitude should be at least 2 VDC peak-to-peak above the DC bias level. If the Keyphasor signal is absent or noisy, check the target material, gap distance, and extension cable continuity.

Q4: What does the 12-month warranty cover, and is pre-shipment testing performed?
A: Every 330101-00-27-50-02-00 unit undergoes bench testing prior to shipment, including gap voltage verification, sensitivity calibration check, and connector integrity inspection. The 12-month warranty covers manufacturing defects in materials and workmanship from the date of shipment. Field damage resulting from incorrect gap setting, reverse polarity wiring, or mechanical impact is not covered, but our technical team provides commissioning guidance at no additional charge.
