Bently Nevada 330101-00-28-10-02-00 Spare for 3300 XL Automation

Bently Nevada 330101-00-28-10-02-00 Spare for 3300 XL Automation: Spare Replacement & Downtime Risk Control

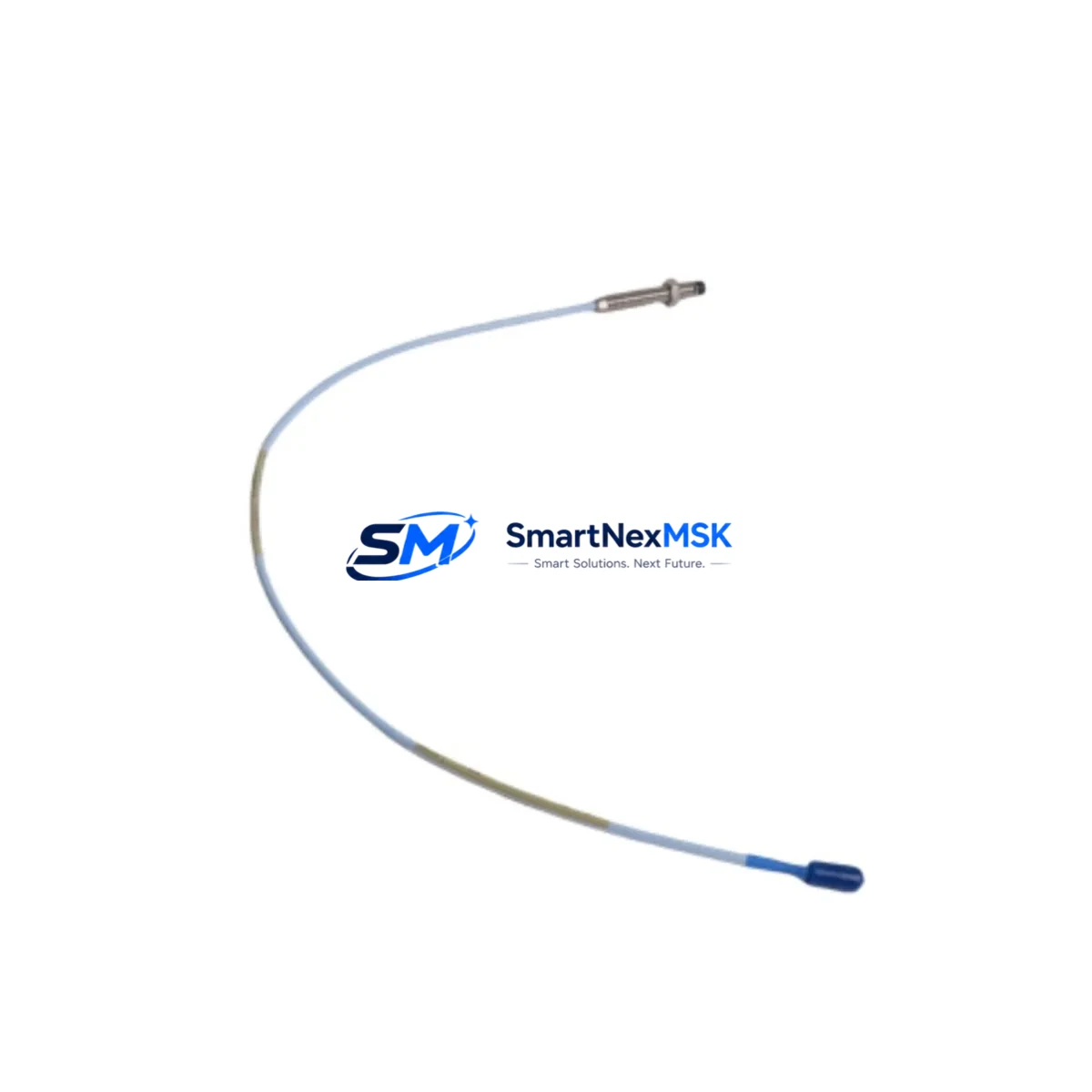

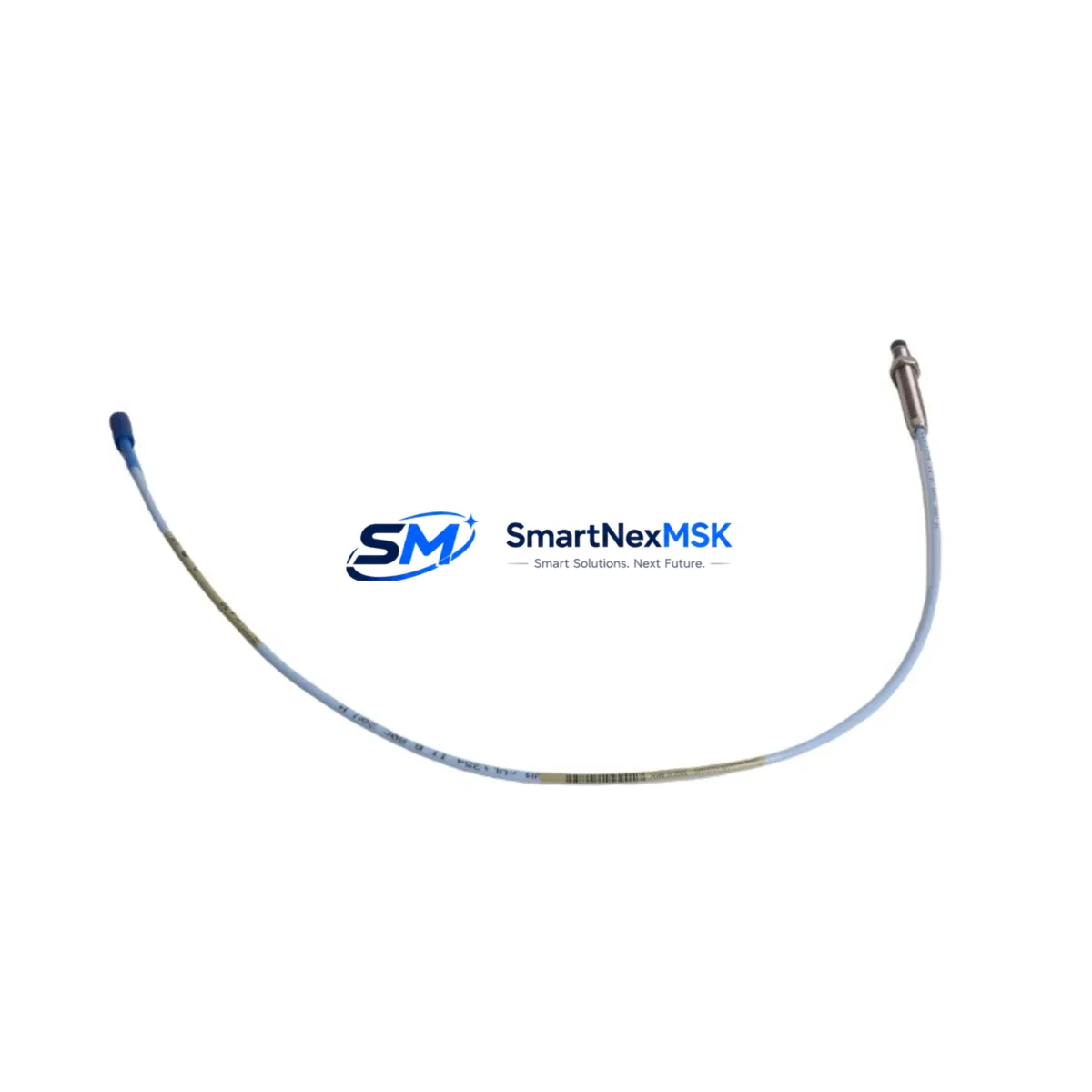

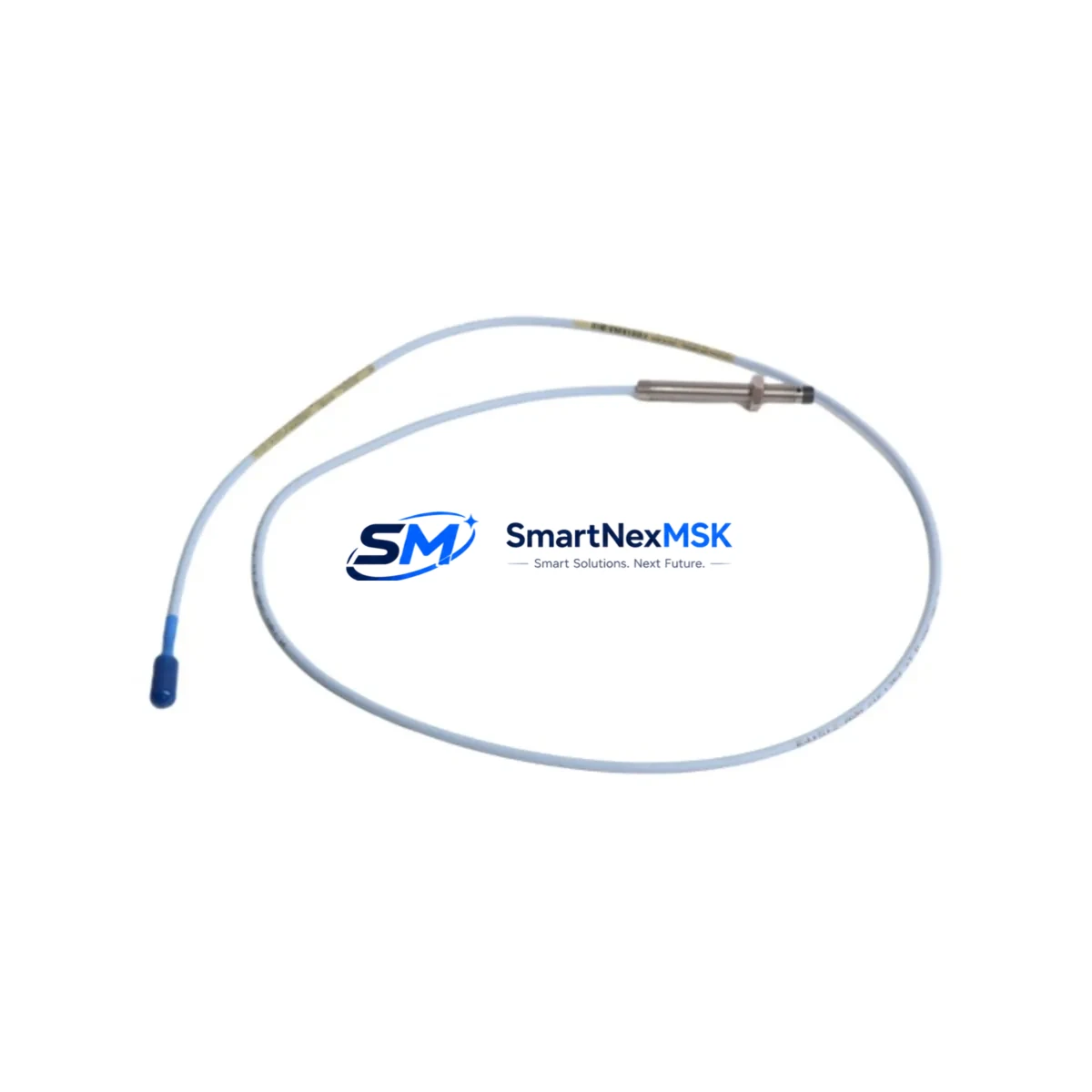

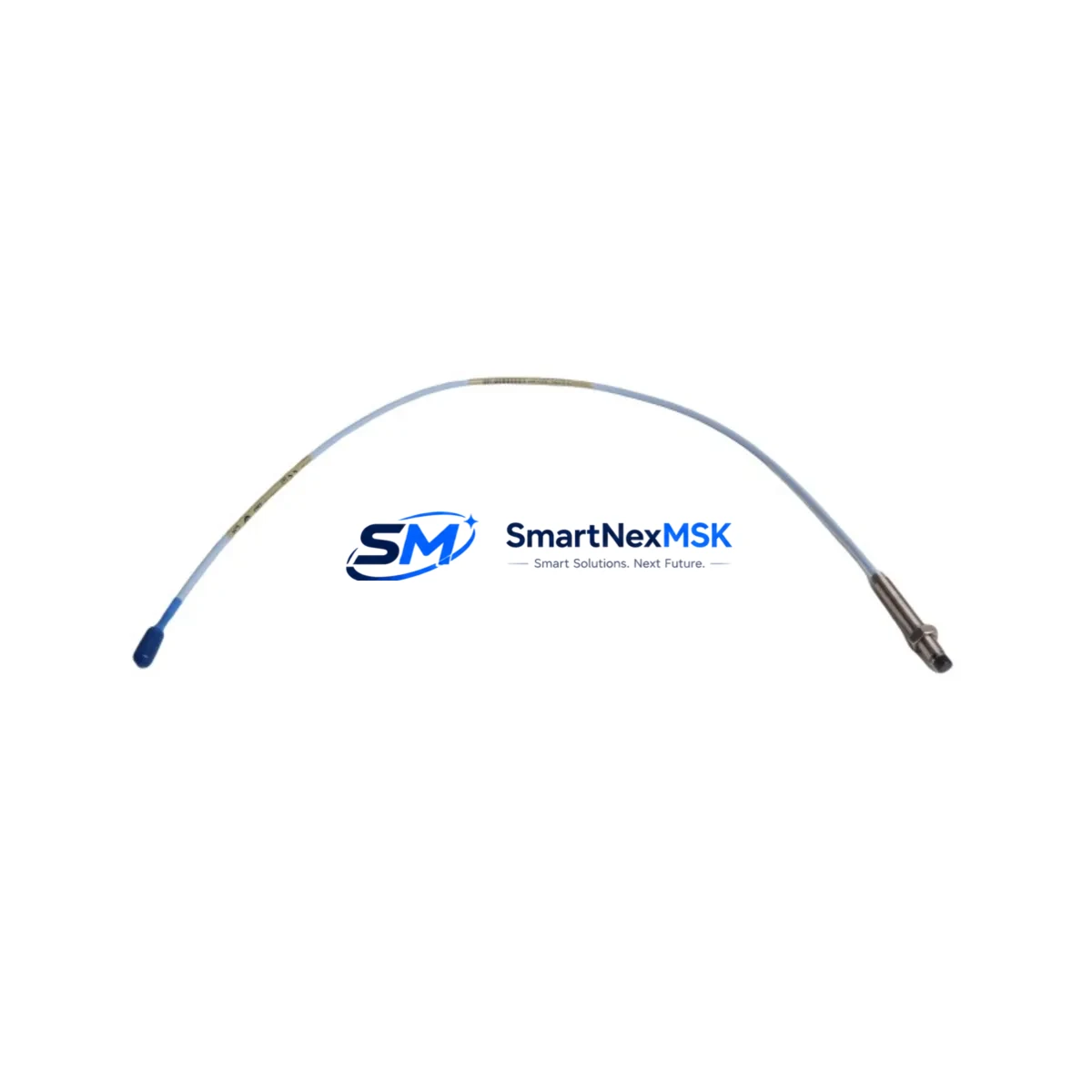

The Bently Nevada 330101-00-28-10-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous vibration monitoring system. In rotating machinery protection — turbines, compressors, pumps, and gearboxes — this probe is the primary sensing element that feeds shaft displacement data to the 3300 XL monitor rack. A failed or degraded probe can trigger false trips, mask real faults, or cause undetected rotor damage. Holding a verified original spare on-site is the single most effective way to eliminate probe-related unplanned downtime.

This unit ships tested and serialized, with a 12-month warranty covering electrical performance and mechanical integrity. Each probe is inspected for tip condition, cable continuity, connector seating, and sensitivity coefficient before dispatch. Delivery lead time is typically 3–7 business days for stocked units, with expedited options available for emergency shutdowns.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330101-00-28-10-02-00 probe is flagged during routine vibration trending or a channel gap voltage check, the replacement scope should extend beyond the probe itself. Maintenance engineers should simultaneously inspect the 330130 series extension cable for jacket abrasion, connector corrosion, and continuity — a degraded cable introduces the same measurement error as a failed probe. The 330180 series 3300 XL 8mm Proximitor driver should be bench-tested or swapped with a known-good unit, since probe and driver failures often present identically at the monitor level.

At the monitor rack, verify the 3300/16 Dual Channel Monitor or 3300/20 Proximitor Monitor card is seated correctly and that its OK relay output is functioning. A faulty monitor card can condemn a perfectly serviceable probe. While the cabinet is open, inspect the 3300 XL power supply module — typically a 24 VDC regulated supply — for output ripple and voltage stability, as supply noise directly corrupts gap voltage readings.

For plants running older Bently Nevada 7200 series probes alongside 3300 XL hardware, confirm that no cross-series cabling has been introduced during previous maintenance cycles; the sensitivity coefficients differ and will produce calibration errors. If the machine train includes a 3500 series rack for overspeed or thrust position monitoring, check those proximity channels as part of the same outage to avoid a second entry into the bearing housing.

Terminal blocks and field junction boxes in the probe cable run should be inspected for moisture ingress, loose terminations, and corrosion — particularly in outdoor or wash-down environments. Where signal runs exceed 9 metres, verify that the correct 330130 extension cable length variant is installed; mismatched cable lengths shift the system sensitivity and linear range. For facilities that use signal isolators or barriers in the probe circuit (common in ATEX/IECEx zones), confirm barrier calibration has not drifted, as this is a frequent source of unexplained gap voltage offsets after probe replacement.

Spare inventory best practice: maintain a minimum of two 330101-00-28-10-02-00 probes per machine train in critical service, stored in original packaging in a climate-controlled cabinet. Rotate stock on a first-in, first-out basis and re-verify sensitivity annually using a calibration standard or Bently Nevada calibration fixture.

Site Replacement Workflow

1. Pre-replacement verification. Before removing the installed probe, record the current gap voltage (typically –10.0 V ± 0.5 V at mid-gap for 8mm probes on 4140 steel). This baseline confirms whether the fault is in the probe, cable, or driver — and provides a reference for post-installation acceptance.

2. Isolation and lockout. Follow site LOTO procedures. De-energize the Proximitor driver at the 3300 XL rack before disconnecting the probe cable. Do not disconnect the probe under power — transient voltages can damage the driver input stage.

3. Probe removal. Use the correct spanner on the M10 × 1.0 thread. Note the installed gap (number of turns from contact) to set the replacement probe to the same starting position. Clean the mounting boss and inspect for thread damage.

4. Installation and gap setting. Install the 330101-00-28-10-02-00 replacement and adjust gap to achieve the target gap voltage per the machine OEM specification (typically –10.0 V ± 0.25 V). Use a calibrated digital voltmeter at the monitor terminal strip — not at the junction box — to eliminate cable resistance error.

5. System verification. Re-energize the driver, confirm OK relay status at the 3300/16 or 3300/20 monitor, and verify that the vibration channel reads within expected baseline for the machine at rest. Log the new gap voltage and probe serial number in the maintenance management system.

6. Compatibility confirmation. The 330101-00-28-10-02-00 is a direct replacement for earlier 330101 variants with matching cable length and connector type. If replacing a 7200 series probe in a legacy installation, a full system recalibration is required — do not assume drop-in compatibility across series.

Spare Parts Support FAQ

Q1: What is the shelf life of the 330101-00-28-10-02-00 probe in storage?
When stored in original packaging in a dry, temperature-controlled environment (10°C–35°C, <70% RH), the probe maintains full electrical specification for a minimum of 5 years. The integral cable jacket and connector seals are the primary aging components; inspect annually for any signs of hardening or cracking before placing in service.

Q2: How do I confirm compatibility with my existing 3300 XL system before installation?
Verify the installed driver part number (330180 series for 8mm) and the extension cable length against the system documentation. The 330101-00-28-10-02-00 is calibrated as a system with the 330180 driver; substituting a different driver model will shift sensitivity and require recalibration. Provide your system configuration details to our technical team and we will confirm compatibility before shipment.

Q3: What pre-shipment testing is performed on each unit?
Every 330101-00-28-10-02-00 unit undergoes electrical continuity testing, tip-to-connector insulation resistance measurement, and sensitivity verification against a calibrated target at the nominal gap. A test certificate is available on request. Units that do not meet Bently Nevada original specification are not shipped.

Q4: What does the 12-month warranty cover?
The warranty covers manufacturing defects, electrical performance outside published specification, and mechanical failure under normal installation and operating conditions. It does not cover damage from incorrect gap setting, over-torquing the mounting thread, cable crush, or chemical exposure beyond the probe’s rated environment. Warranty claims are processed within 5 business days of receipt of the returned unit.
