Bently Nevada 330101-00-28-10-02-05 Retrofit-Ready Proximity Probe

Bently Nevada 330101-00-28-10-02-05 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

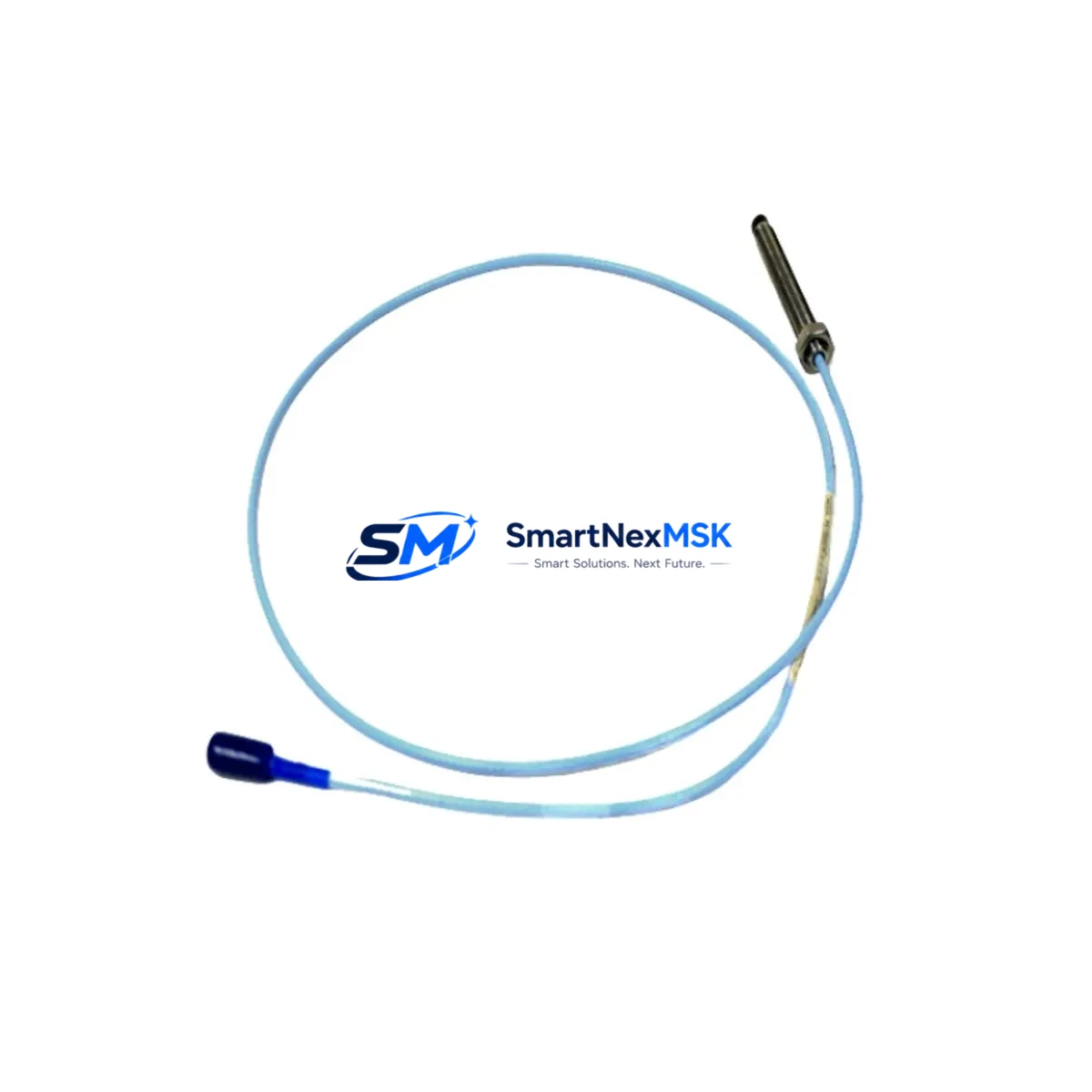

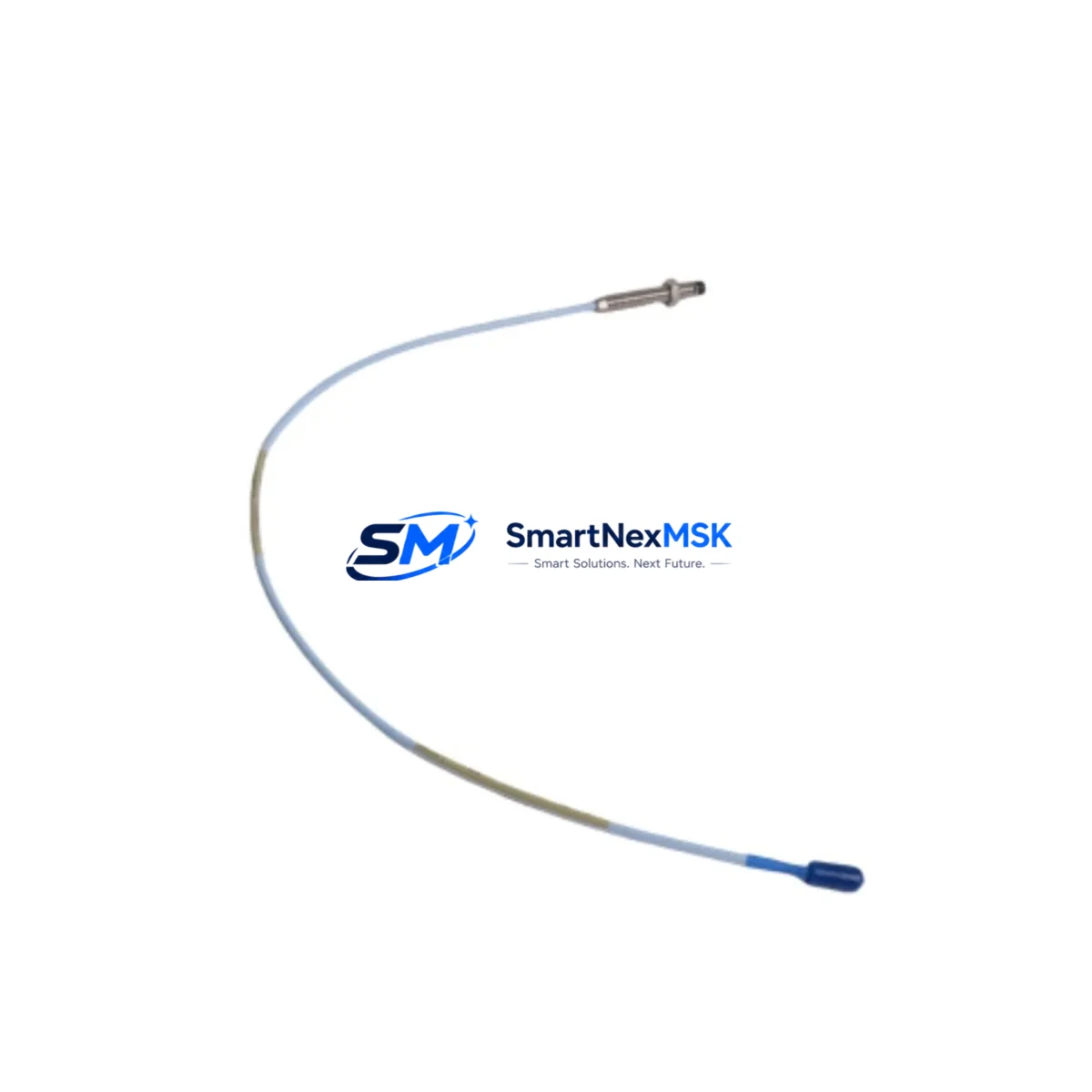

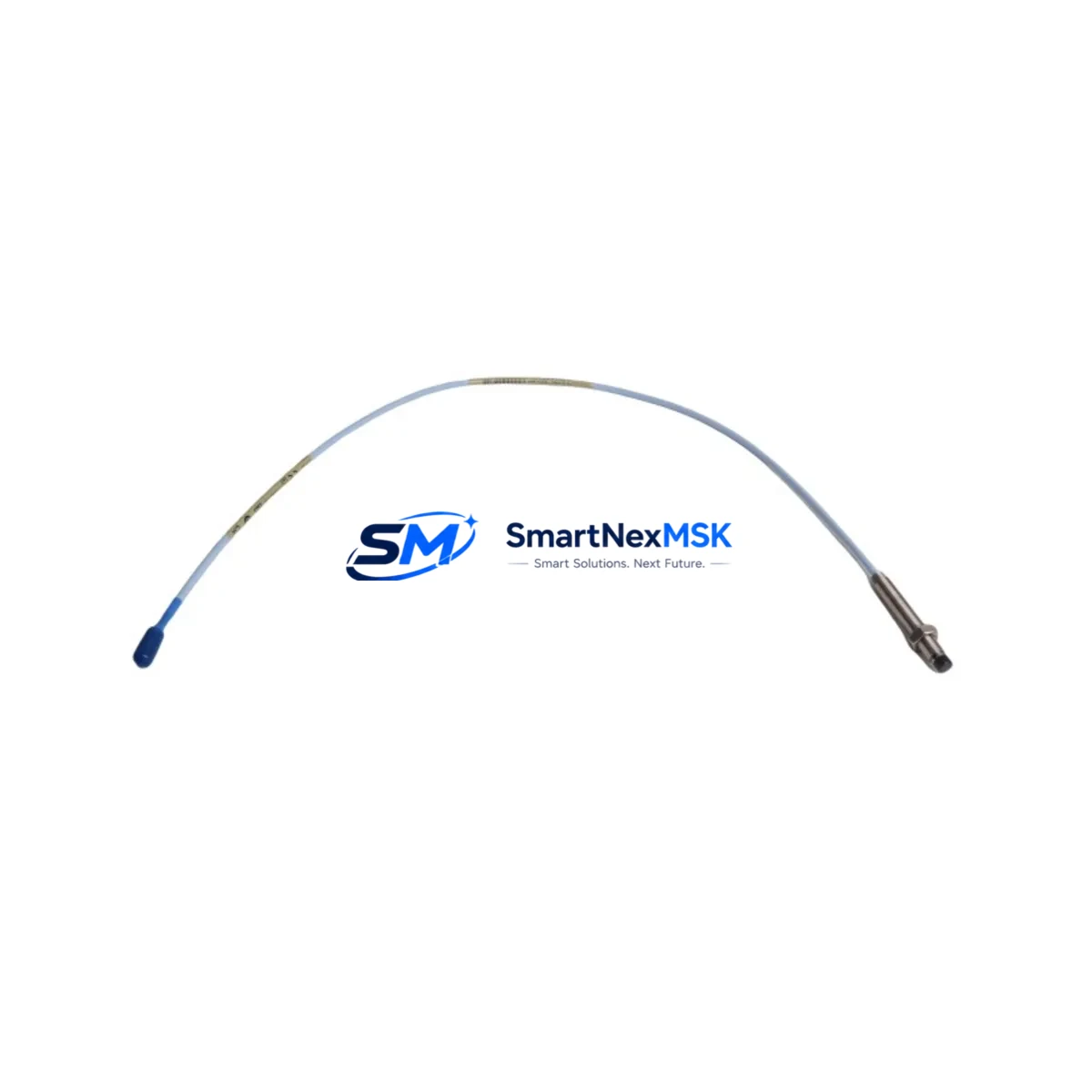

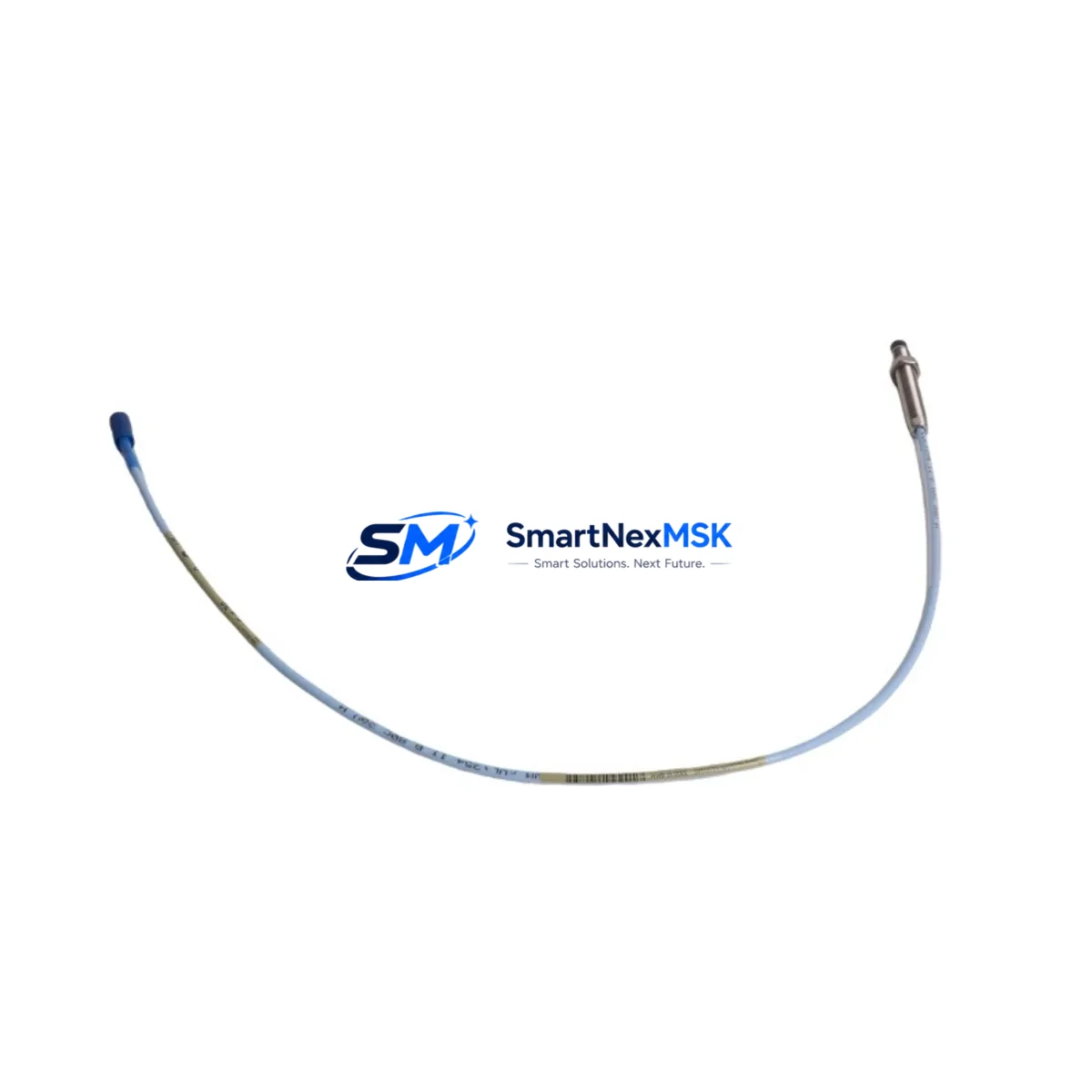

The Bently Nevada 330101-00-28-10-02-05 is an eddy current proximity probe engineered for the 3300 XL Series vibration monitoring platform. Designed as a direct retrofit replacement for legacy 3300 Series probes, this unit delivers the same non-contact displacement measurement performance required in turbomachinery protection systems, compressor trains, and rotating equipment monitoring applications. Whether you are upgrading an aging vibration monitoring loop, replacing a discontinued probe assembly, or restoring a critical measurement channel after an unplanned failure, the 330101-00-28-10-02-05 provides a verified drop-in solution with minimal re-engineering.

This probe is part of the 3300 XL proximity transducer system, which operates as a three-component assembly: the probe itself, an extension cable, and a proximitor/oscillator-demodulator. When retrofitting, engineers must confirm that the existing Bently Nevada 3300 XL Proximitor — typically a 330180 or 330130 series module — is compatible with the probe tip diameter and gap voltage range specified for this SKU. The 330101-00-28-10-02-05 features an 8 mm probe tip, a 28-inch (711 mm) armored probe cable, and is calibrated for AISI 4140 steel targets, producing a linear output of approximately -18 VDC at the standard 50-mil (1.27 mm) gap.

In retrofit scenarios involving older 3300 Series (non-XL) installations, technicians should verify that the proximitor module has been upgraded to the 3300 XL standard before installing this probe. Mixing legacy 3300 proximitors with 3300 XL probes can introduce calibration offsets that affect alarm and trip setpoints in the Bently Nevada 3500 Series rack — a common platform used alongside this probe in turbine protection systems. The 3500/42M Proximitor I/O Module and 3500/40M Proximitor Monitor are frequently involved in these upgrade paths and must be reconfigured if the probe sensitivity factor changes.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330101-00-28-10-02-05 into an existing vibration monitoring loop requires a structured pre-installation review. Begin by auditing the current probe assembly: identify the existing probe part number, extension cable length, and proximitor model. In many legacy installations, the probe is paired with a Bently Nevada 330130-080-00-00 extension cable — confirm that the total system cable length (probe cable + extension cable) falls within the 3300 XL system specification, typically 5 meters or 9 meters depending on the proximitor variant selected.

Next, inspect the proximitor housing mounted on the control cabinet or junction box. If the existing unit is a first-generation 3300 proximitor rather than a 3300 XL proximitor, a simultaneous upgrade to the 330180-X1-05 or equivalent 3300 XL proximitor is strongly recommended to maintain calibration integrity. The 3300 XL system uses a different internal oscillator frequency than the original 3300 Series, and cross-generation mixing will produce erroneous gap readings that can trigger nuisance trips or — more critically — mask genuine shaft displacement events.

For installations integrated with a Bently Nevada 3500 Series rack, the 3500/42M Proximitor I/O Module must be configured with the correct probe sensitivity constant (200 mV/mil for this SKU) using the Rack Configuration Software (RCS). If the rack also monitors axial position via a 3500/40M Proximitor Monitor, verify that the channel assignment and OK relay logic are updated to reflect the new probe’s gap voltage range. In turbine control systems where the 3500 rack interfaces with a GE Mark VI or Emerson Ovation DCS, the analog input scaling on the DCS side must be reviewed to prevent false alarm conditions during the transition period.

Wiring adaptation is another critical checkpoint. The 330101-00-28-10-02-05 uses a standard coaxial connector at the proximitor end. Confirm that the existing field wiring — typically routed through a Bently Nevada junction box or a dedicated vibration monitoring terminal strip — is free of ground loops and shield continuity issues. In older plants where the original cable conduit was shared with power wiring, EMI-induced noise can corrupt the proximity signal; installing a dedicated shielded conduit run is advisable during the retrofit window.

Finally, before closing the control cabinet, perform a static gap check using a calibrated DC voltmeter. Adjust the probe mounting depth until the gap voltage reads within the linear range specified for the target material. Document the as-found and as-left gap voltages for the maintenance record, and update the P&ID markup and loop drawing to reflect the new probe part number.

Downtime Control During System Migration

Minimizing unplanned downtime during a proximity probe replacement requires advance preparation and a disciplined execution sequence. Before the maintenance window opens, pre-stage the 330101-00-28-10-02-05 probe, the replacement extension cable, and any required proximitor module so that all components are bench-tested and verified before the machine is taken offline. Use the Bently Nevada Proximitor Tester or a calibrated signal simulator to confirm that the new probe assembly produces the correct output voltage across the full gap range before installation.

During the outage, follow a channel-by-channel replacement strategy rather than swapping all probes simultaneously. This approach preserves the monitoring capability of adjacent channels and allows the control room operator to maintain partial vibration visibility throughout the work. If the 3500 rack supports online configuration changes, use the bypass function on the affected channel to suppress nuisance OK relay transitions while the probe is disconnected — this prevents spurious trips from propagating to the turbine control system or the plant DCS.

After reinstalling the probe and restoring the signal chain, perform a live gap verification with the machine at rest before releasing the equipment for startup. Confirm that the 3500 rack channel returns to OK status, that the gap voltage is within the linear range, and that the vibration reading is stable at zero (or at the expected mechanical runout level). Log the commissioning data — gap voltage, sensitivity constant, alarm setpoints, and OK relay status — in the plant maintenance management system before authorizing machine restart. This documentation protects the maintenance team in the event of a post-startup vibration event and provides a baseline for future probe condition trending.

Retrofit Support FAQ

Q1: Is the 330101-00-28-10-02-05 a direct replacement for the original 3300 Series proximity probes?
The 330101-00-28-10-02-05 is designed for the 3300 XL system and is mechanically compatible with standard 3300 probe mounting hardware. However, it must be paired with a 3300 XL proximitor (such as the 330180 series) rather than a legacy 3300 proximitor. If your existing proximitor is a non-XL model, a simultaneous proximitor upgrade is required to maintain calibration accuracy and system integrity.

Q2: What wiring changes are needed when installing this probe in an existing control cabinet?
The probe uses a standard coaxial signal interface and connects to the proximitor via the extension cable. No wiring changes are typically required at the terminal strip level, provided the existing cable is in good condition and the shield is properly grounded at one end only. Verify that the coaxial connector at the proximitor input is clean and undamaged, and inspect the full cable run for any pinch points or conduit damage introduced during previous maintenance activities.

Q3: How do I verify compatibility with my Bently Nevada 3500 rack before installation?
Open the Rack Configuration Software (RCS) and navigate to the channel configuration for the affected 3500/42M or 3500/40M module. Confirm that the probe type is set to “3300 XL 8mm” and that the sensitivity constant is configured for 200 mV/mil. If the rack was previously configured for a different probe sensitivity, update the configuration and download it to the rack before installing the new probe. After installation, perform a channel calibration check and verify that the OK relay energizes within the expected gap voltage window.

Q4: What does the 12-month warranty cover, and what is the process for a warranty claim?
The 12-month warranty covers manufacturing defects, premature component failure, and functional non-conformance under normal operating conditions. It does not cover damage resulting from improper installation, mechanical impact, chemical exposure, or operation outside the specified environmental ratings. To initiate a warranty claim, contact our sales team with the purchase order number, installation date, and a description of the observed failure. We will arrange for a replacement unit to be shipped and provide a return authorization for the defective probe.
