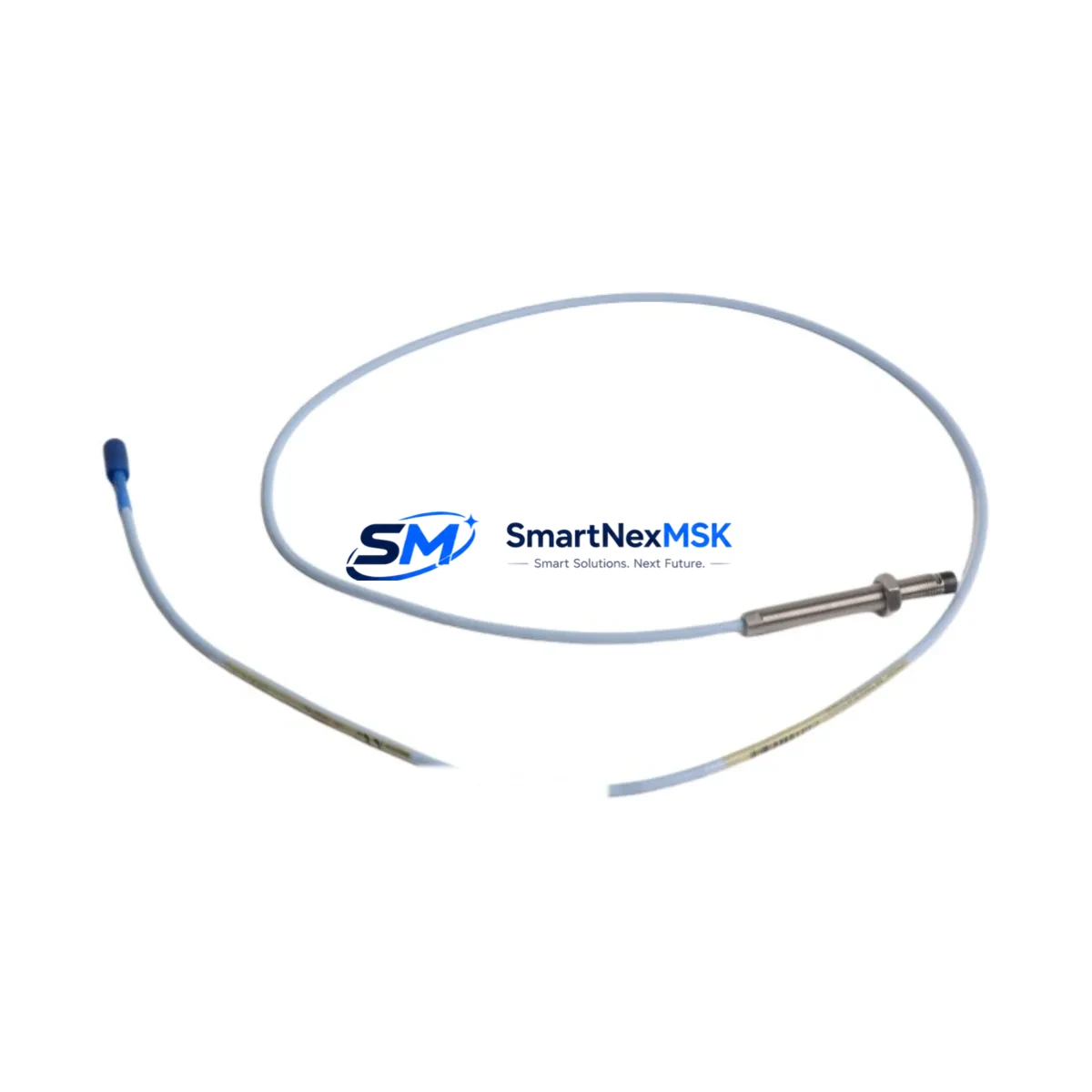

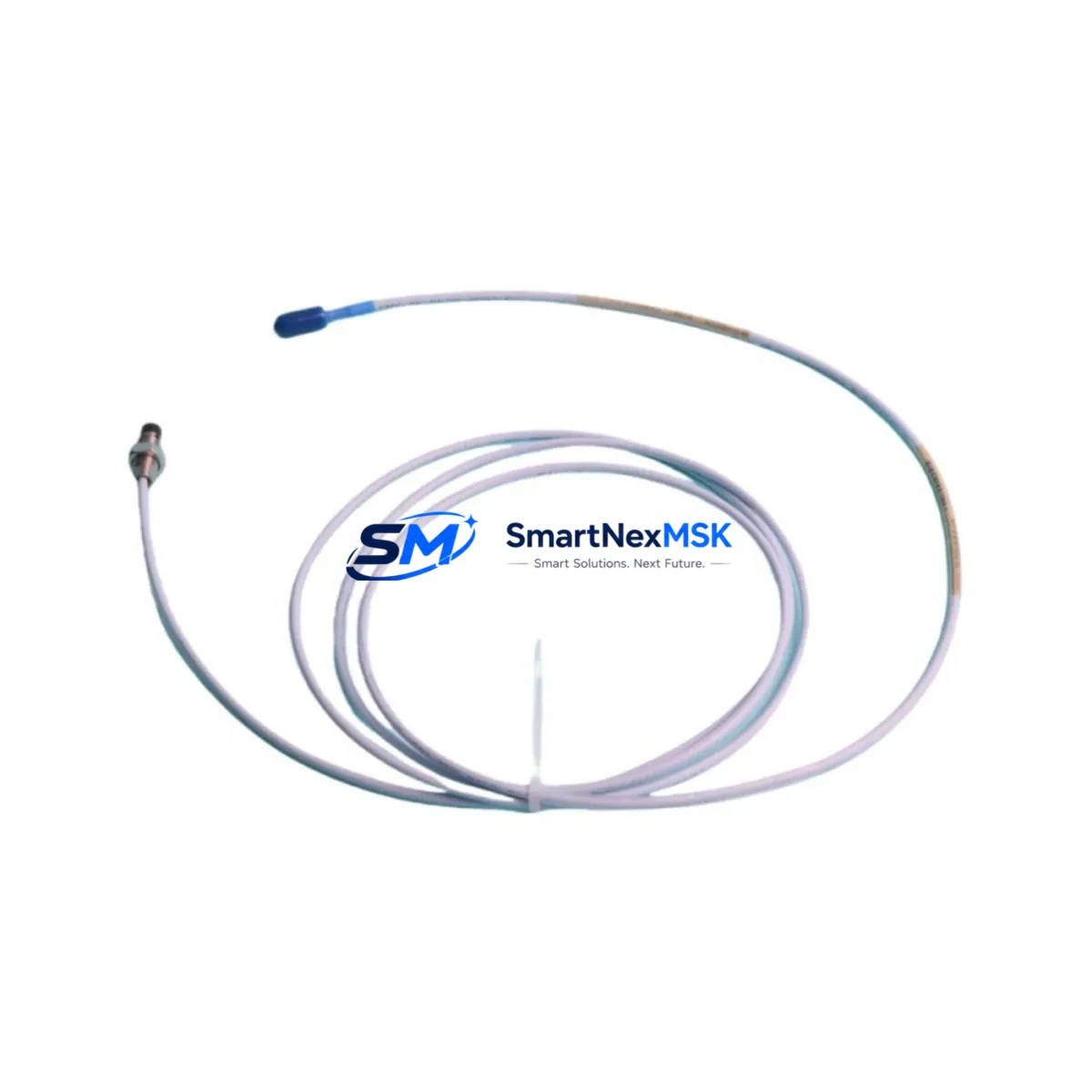

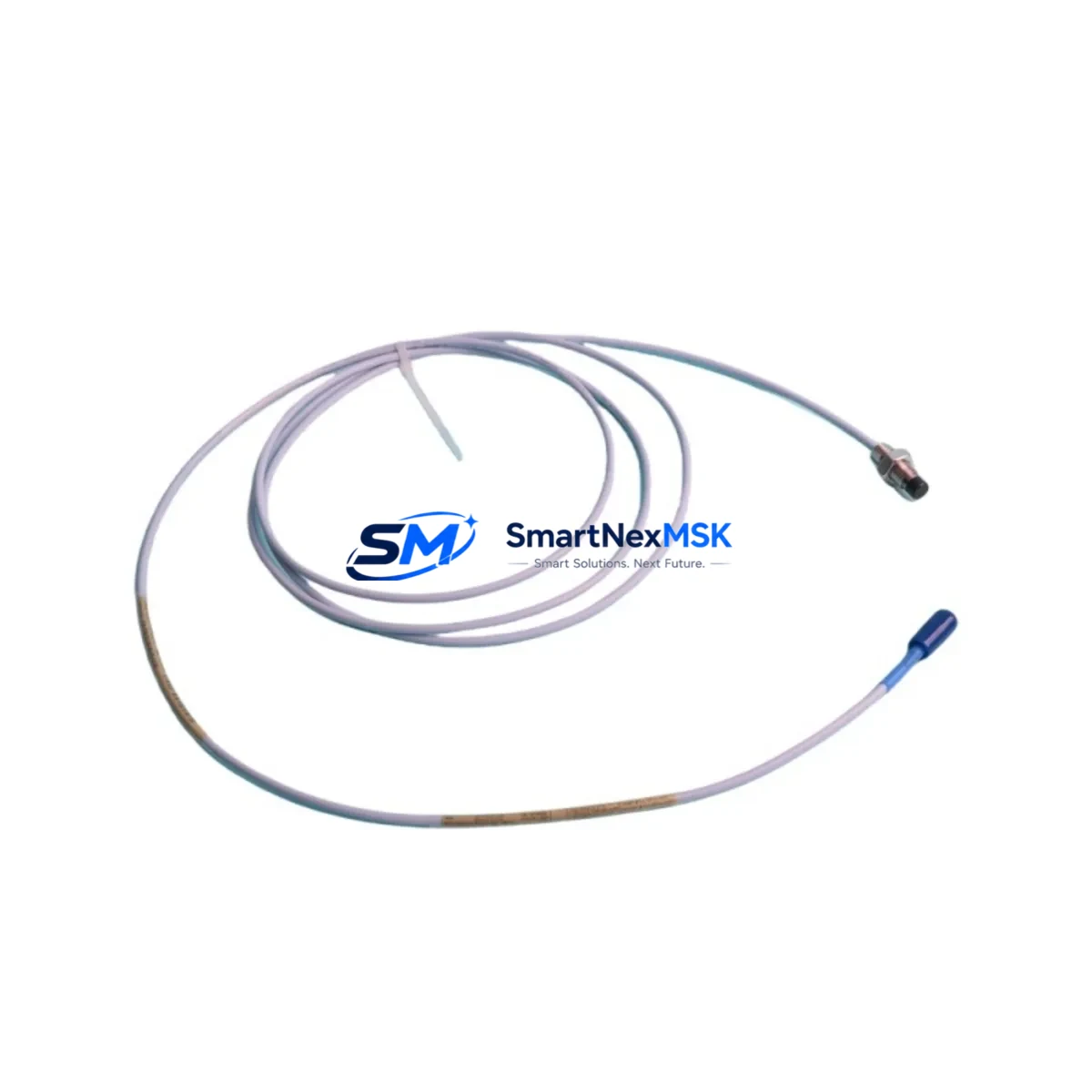

Bently Nevada 330101-00-28-90-02-00 Retrofit-Ready Proximity Transducer for 3300 XL Control Systems
The Bently Nevada 330101-00-28-90-02-00 is an 8mm proximity transducer engineered for seamless integration into legacy 3300 XL vibration monitoring systems. As aging machinery protection platforms approach end-of-life or face discontinued spare parts availability, this unit provides a verified drop-in replacement path that preserves existing wiring infrastructure, signal conditioning chains, and rack-mounted monitor configurations without requiring full system redesign. Whether you are managing a planned outage, responding to an unplanned failure, or executing a phased control system modernization, this transducer delivers the dimensional accuracy, output linearity, and environmental tolerance required for continuous rotating machinery protection in oil & gas, power generation, petrochemical, and heavy industrial environments.
Each unit ships pre-tested against Bently Nevada factory output specifications, including gap voltage linearity, sensitivity (200 mV/mil), and frequency response. The 330101-00-28-90-02-00 is compatible with the 3300 XL 8mm Extension Cable (330130 series) and the 3300 XL Proximitor Sensor (330180 series), allowing technicians to retain existing cable runs and junction box terminations during replacement. When paired with a 3300 XL 16-Channel Monitor or a 3500/42M Proximitor/Seismic Monitor, the transducer integrates directly into the existing rack without firmware changes or channel reconfiguration.
Upgrade Compatibility Table
| Parameter | 330101-00-28-90-02-00 Specification | Retrofit Notes |
|---|---|---|
| Transducer Type | 8mm Eddy-Current Proximity | Direct replacement for 3300 XL 8mm series |
| Sensitivity | 200 mV/mil (7.87 V/mm) | Matches original channel scaling — no recalibration required |
| Operating Range | 0 to 90 mil (0 to 2.29 mm) | Verify gap setting during reinstallation (nominal: 50 mil) |
| Supply Voltage | −24 VDC (−18 to −26 VDC) | Confirm Proximitor power rail before installation |
| Output Voltage | −1 to −17 VDC | Compatible with 3300 XL and 3500 series monitors |
| Cable Connector | Integral 9m armored cable (02-00 suffix) | Matches 330130-080-00-00 extension cable interface |
| Temperature Range | −35°C to +121°C | Suitable for high-temperature bearing housings |
| Installation Thread | M10 × 1.0 | Compatible with existing probe holder/bracket |
| Communication | Analog (passive eddy-current) | No protocol migration required |
| Warranty | 12 Months | Covered from date of shipment; includes DOA replacement |
Retrofit Planning for Existing Automation Systems
Successful replacement of the 330101-00-28-90-02-00 in an operating plant begins well before the maintenance window opens. Technicians should first audit the existing Proximitor Sensor (typically a 330180-51-00 or 330180-91-00 unit) to confirm it remains within calibration tolerance, since a degraded Proximitor will produce erroneous gap readings even with a new transducer installed. The 3300 XL Extension Cable connecting the transducer to the Proximitor must be inspected for jacket integrity, connector corrosion, and continuity — a compromised 330130-series cable is a common root cause of intermittent vibration alarms that are incorrectly attributed to transducer failure.
At the rack level, verify that the 3300 XL Monitor module assigned to the channel is configured for 8mm transducer input. If the plant has partially migrated to a 3500 Series Machinery Protection System, confirm that the 3500/42M Proximitor/Seismic Monitor or 3500/40M Proximitor Monitor channel card is set to the correct transducer type and gap voltage range. Plants running a hybrid architecture — with legacy 3300 XL racks alongside newer 3500 racks — should document which channels are served by which rack before beginning any transducer swap to avoid cross-channel configuration errors.
For facilities that have already transitioned their primary control layer to a DCS or safety instrumented system, the vibration signal from the 330101-00-28-90-02-00 is typically routed through a 3500 rack I/O module or a dedicated vibration transmitter before entering the process historian or the safety logic solver. In these architectures, confirm that the 4–20 mA or digital output from the monitoring rack remains within the expected engineering unit range after transducer replacement. If the plant uses a System 1 Evolution condition monitoring platform, verify that the asset configuration database reflects the new transducer serial number and calibration date to maintain data continuity in trend logs.
Where the original installation used a TK-3 Transducer Qualification Kit for field calibration, the same kit can be used to verify the replacement unit’s gap-voltage curve before the machine is returned to service. Document the as-found and as-left gap readings, the Proximitor output voltage at nominal gap, and the cable resistance measurement in the maintenance record. This documentation supports both the 12-month warranty claim process and future reliability-centered maintenance reviews.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity transducer replacement requires a structured pre-outage preparation protocol. Before the machine is taken offline, retrieve the current vibration baseline from the System 1 or DCS historian — specifically the direct (1X, 2X) and overall vibration amplitudes, the DC gap voltage, and any active alert or danger setpoints configured in the 3300 XL or 3500 monitor. These values serve as the acceptance criteria for post-installation verification and allow the commissioning technician to confirm that the replacement transducer is performing within the expected envelope before the machine is restarted.
During the physical swap, avoid disturbing the Proximitor Sensor or the extension cable unless inspection reveals a defect. Unnecessary connector disconnections introduce contamination risk and can degrade the high-frequency signal path. If the probe holder or bracket shows wear, replace it during the same outage rather than scheduling a second maintenance window. Once the new 330101-00-28-90-02-00 is installed and the gap is set to the nominal value specified in the original machine train documentation, power the Proximitor and measure the output voltage at the monitor terminal strip before enabling the channel. A reading within the expected −10 to −11 VDC range at nominal gap confirms correct installation.
For plants operating under a safety instrumented system with a voting architecture (e.g., 2oo3 radial vibration), coordinate the transducer replacement with the SIS engineer to ensure the channel bypass or inhibit is properly managed and that the voting logic is not inadvertently defeated during the maintenance window. Restore all bypasses and confirm alarm annunciation before releasing the machine to operations. The entire replacement procedure — from machine coast-down to return-to-service — can typically be completed within a two- to four-hour maintenance window when spare parts are staged in advance and the commissioning checklist is prepared beforehand.
Retrofit Support FAQ
Q1: Is the 330101-00-28-90-02-00 a direct drop-in replacement for other 3300 XL 8mm transducer part numbers?
A: Yes. The 330101-00-28-90-02-00 is dimensionally and electrically compatible with other 3300 XL 8mm proximity transducer variants, including the 330101-00-28-10-02-00 and 330101-00-28-05-02-00, which differ only in cable length suffix. Confirm the cable length requirement for your installation before ordering to ensure the integral cable reaches the Proximitor junction box without splicing.
Q2: Does replacing the transducer require reprogramming the 3300 XL or 3500 monitor?
A: No reprogramming is required provided the replacement unit is the same transducer type (8mm eddy-current) and the channel configuration in the monitor has not been altered. The 3300 XL and 3500 series monitors store channel configuration in non-volatile memory; a transducer swap does not reset or alter stored setpoints, scale factors, or alarm thresholds. However, always verify the gap voltage and confirm the channel is reading within the expected range before returning the machine to service.
Q3: What pre-shipment testing is performed on each unit?
A: Every 330101-00-28-90-02-00 unit undergoes electrical continuity verification, gap-voltage linearity testing across the full operating range, and insulation resistance measurement before shipment. A test report is available upon request. Units are shipped in anti-static packaging with protective end caps on the probe tip and connector. The 12-month warranty covers manufacturing defects and out-of-specification performance from the date of shipment, with DOA replacement processed within five business days of confirmed fault diagnosis.
Q4: Can this transducer be used with a Bently Nevada 3500/42M monitor in a new rack installation?
A: Yes. The 330101-00-28-90-02-00 is compatible with the 3500/42M Proximitor/Seismic Monitor when configured for 8mm transducer input. Ensure the 3500 rack I/O module and the Proximitor Sensor are matched to the 8mm transducer type in the System 1 configuration database. For new rack installations, pair the transducer with a 330180-series Proximitor and a 330130-series extension cable to complete the measurement chain.
