Bently Nevada 330101-00-36-05-02-00 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330101-00-36-05-02-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

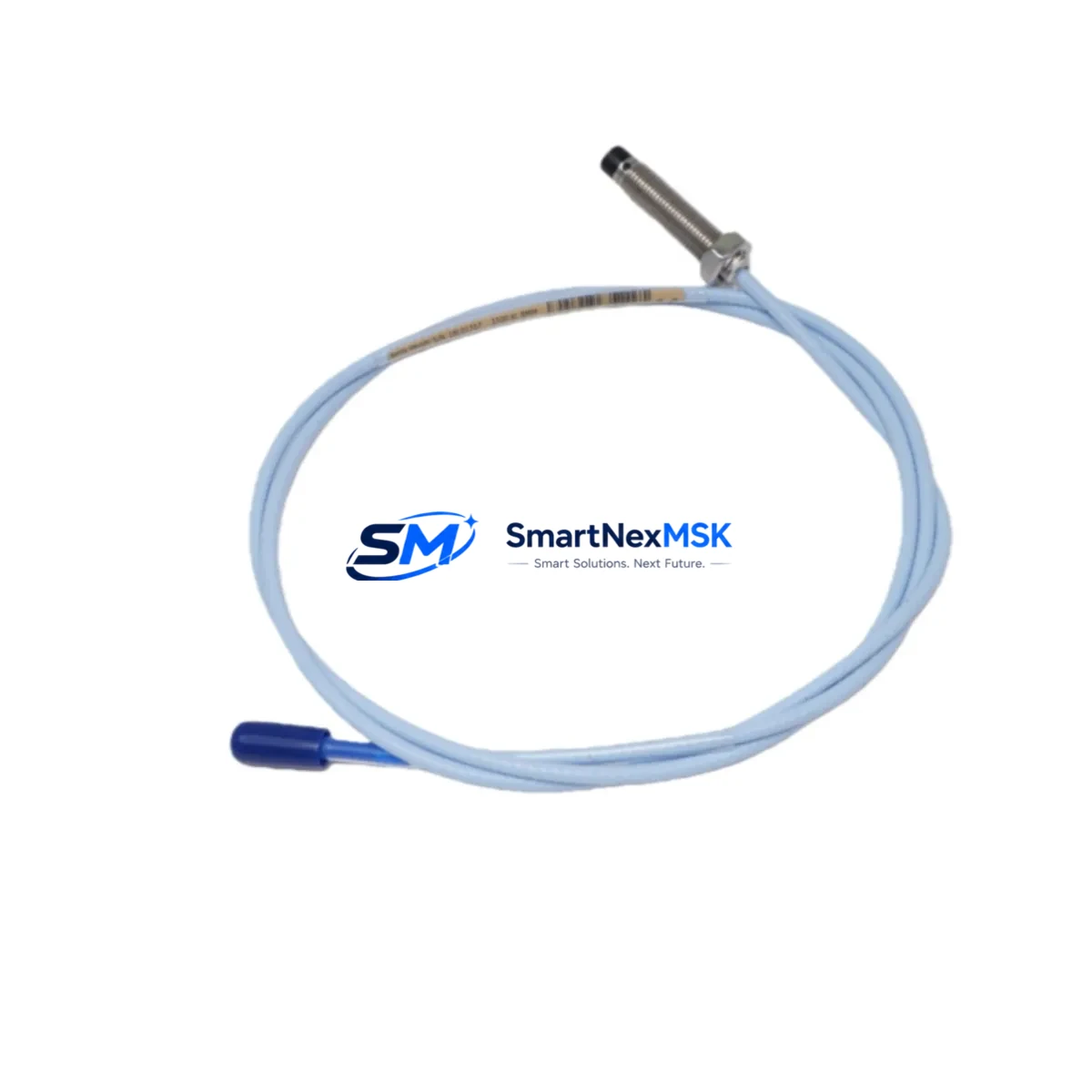

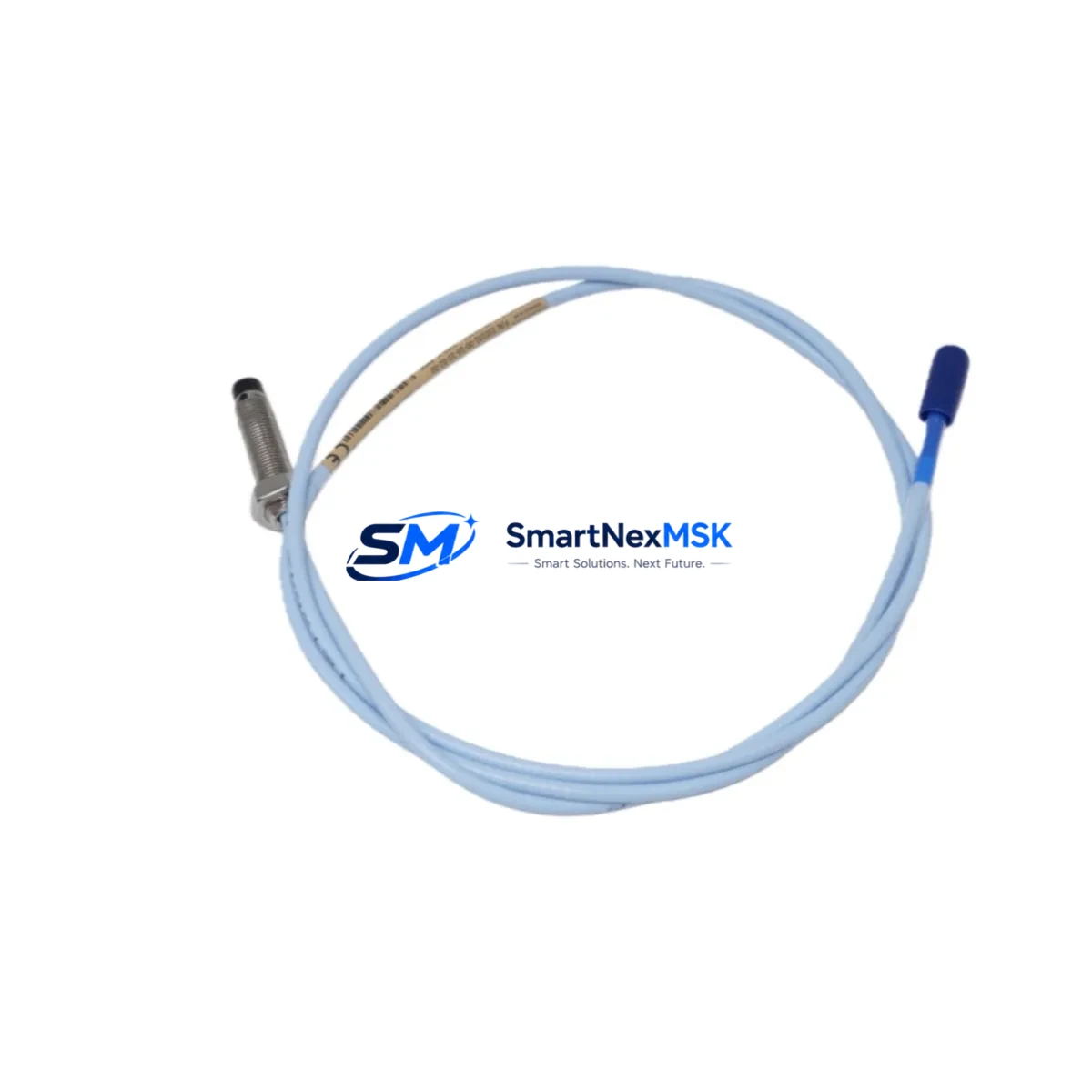

The Bently Nevada 330101-00-36-05-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring platform. As legacy rotating machinery protection systems reach end-of-service milestones, this probe serves as the primary drop-in replacement for discontinued 3300 Series probes, enabling plant engineers to restore full vibration monitoring capability without redesigning the measurement chain or replacing the entire monitoring rack. Whether you are upgrading a turbine protection panel, retrofitting a compressor train, or restoring a mothballed unit, the 330101-00-36-05-02-00 is the field-proven starting point for a smooth, low-risk migration.

This probe is designed to work within the complete 3300 XL measurement chain. In a standard retrofit, the probe pairs with the 330130-080-00-00 extension cable and the 330180-X1-05 proximitor/oscillator to deliver a calibrated output signal to the 3300/16 monitor or the 3500/42M vibration monitor module. Before committing to a replacement order, engineers should verify that the existing proximitor model, cable length, and gap voltage specification match the 330101-00-36-05-02-00 datasheet. The probe’s 5-metre integral cable and M10 x 1 thread body are dimensionally identical to the original 3300 Series 8mm probe, which eliminates the need for bracket modification or conduit rerouting in most installations.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful proximity probe retrofit begins well before the maintenance window opens. The first step is a full audit of the existing measurement chain: confirm the proximitor model (typically the 330180-X1-05 or the older 330180-51-00), verify the extension cable part number and total system cable length, and record the current gap voltage at the operating air gap. If the existing 3300/16 monitor rack is being retained, check that the channel card firmware supports the 3300 XL probe sensitivity curve. In many older installations, the rack also houses a 3300/20 tachometer input module and a 3300/25 keyphasor module — both of which should be inspected for contact corrosion and calibration drift before the new probe is installed.

For plants migrating from the 3300 platform to the 3500 Series, the retrofit scope expands considerably. The 3500 rack accepts the 3500/42M four-channel vibration monitor, which is fully compatible with the 330101-00-36-05-02-00 probe and the 330180-X1-05 proximitor. The 3500 system communicates over Modbus RTU or Ethernet/IP, so the migration plan must include a protocol mapping exercise to ensure that the DCS — often a Honeywell Experion PKS or an Emerson DeltaV — receives the correct tag addresses for radial vibration, axial position, and OK relay status. If the plant uses a System 1 condition monitoring software node, the new probe data must be re-mapped to the existing machine train template to preserve historical trend continuity.

Wiring adaptation is another critical checkpoint. The 330101-00-36-05-02-00 uses a standard coaxial connector at the proximitor end; confirm that the existing junction box and field wiring conduit are free of moisture ingress and that the coaxial cable shield is grounded at one end only to avoid ground loops. Where the original installation used a 330130-080-00-00 extension cable, the same cable can be reused provided the total system cable length does not exceed the proximitor’s specified range. In high-vibration environments, the probe tip and mounting bracket should be inspected for fretting wear, and the locknut torque should be verified against the installation drawing before the system is returned to service.

I/O mapping is the final pre-commissioning task. In a 3500 rack migration, each probe channel must be assigned a rack address and a channel number within the 3500 configuration software (Rack Configuration Software, RCS). The alert and danger setpoints from the original 3300/16 configuration should be transcribed and re-entered in RCS, and the OK-mode relay logic should be verified against the original cause-and-effect matrix. If the plant’s safety instrumented system (SIS) receives a trip signal from the vibration monitor, the SIS engineer must confirm that the new relay output wiring and logic are consistent with the SIL rating of the loop.

Downtime Control During System Migration

Minimising unplanned downtime during a proximity probe replacement requires a structured hot-cutover or cold-swap strategy. For non-critical auxiliary machinery, a cold swap during a scheduled outage is straightforward: isolate the –24 VDC power supply to the proximitor, disconnect the coaxial cable, remove the old probe, install the 330101-00-36-05-02-00, reconnect the cable, restore power, and verify the gap voltage before releasing the machine. The entire process typically takes under two hours per measurement point when spare parts are pre-staged and the technician has the installation drawing in hand.

For critical turbine or compressor trains where continuous monitoring is mandatory, a parallel-monitoring approach is recommended. Install the new probe in an adjacent mounting hole (if available) and verify its output against the existing probe before switching the monitor channel input. This approach keeps the original protection logic active throughout the transition and allows the commissioning engineer to confirm that the new probe’s gap voltage, sensitivity, and OK-mode threshold match the expected values before the old probe is removed. Once the new probe is confirmed healthy, the monitor channel can be switched with zero protection gap.

Program logic preservation is equally important. If the DCS or PLC — such as a Rockwell Automation ControlLogix or a Siemens S7-400 — uses analogue input tags derived from the vibration monitor’s 4–20 mA output, those tags must be verified after the probe swap to confirm that the scaling and engineering unit conversion are still correct. HMI faceplate displays on the operator workstation should be checked to confirm that the vibration trend historian is receiving valid data and that no spurious alarms have been generated by the probe replacement activity. A post-commissioning soak period of 24–48 hours under normal operating conditions is recommended before the work order is formally closed.

Retrofit Support FAQ

Q1: Is the 330101-00-36-05-02-00 a direct replacement for the discontinued 3300 Series 8mm proximity probe?
Yes. The 330101-00-36-05-02-00 is dimensionally and electrically compatible with the original 3300 Series 8mm probe. The M10 × 1 thread, 5-metre integral cable, and 200 mV/mil sensitivity are identical, making it a drop-in replacement in the vast majority of installations. No bracket modification or cable rework is required.

Q2: What commissioning checks are required after installation?
After installation, verify the static gap voltage at the operating air gap (typically –10 VDC ± 0.5 VDC for a 1.0 mm gap), confirm the OK-mode relay is energised, and check that the alert and danger setpoints in the monitor are consistent with the machine’s vibration acceptance criteria. If the probe is connected to a 3500/42M monitor, use the RCS software to confirm channel configuration and run a functional test of the relay outputs before returning the machine to service.

Q3: Can this probe be used with the 3500 Series rack without additional hardware?
Yes, provided the 330180-X1-05 proximitor is used and the total system cable length is within the specified range. The 3500/42M monitor is fully compatible with the 330101-00-36-05-02-00 probe and the standard 330130-series extension cable. No additional signal conditioning hardware is required.

Q4: What warranty and pre-shipment testing does SMARTNEXMSK provide?
All units are covered by a 12-month warranty from the date of shipment. Each probe undergoes functional testing — including gap voltage linearity verification and OK-mode relay check — before dispatch. A test report is available upon request. Units are shipped in anti-static packaging with full traceability documentation to support your incoming inspection process.
