Bently Nevada 330101-00-41-10-02-05 Retrofit-Ready Proximity Probe

Bently Nevada 330101-00-41-10-02-05: Retrofit-Ready Proximity Probe for 3300 XL Control Systems

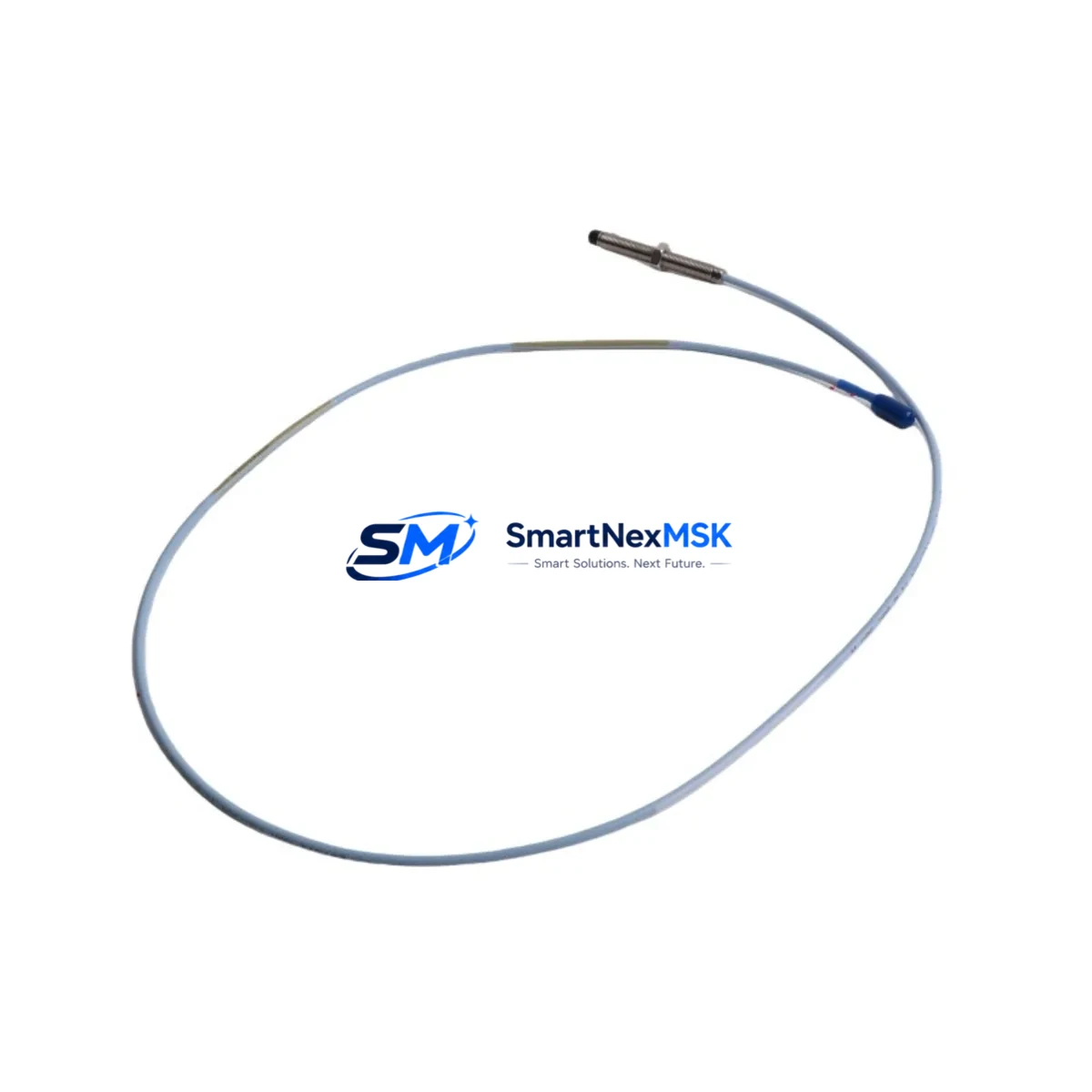

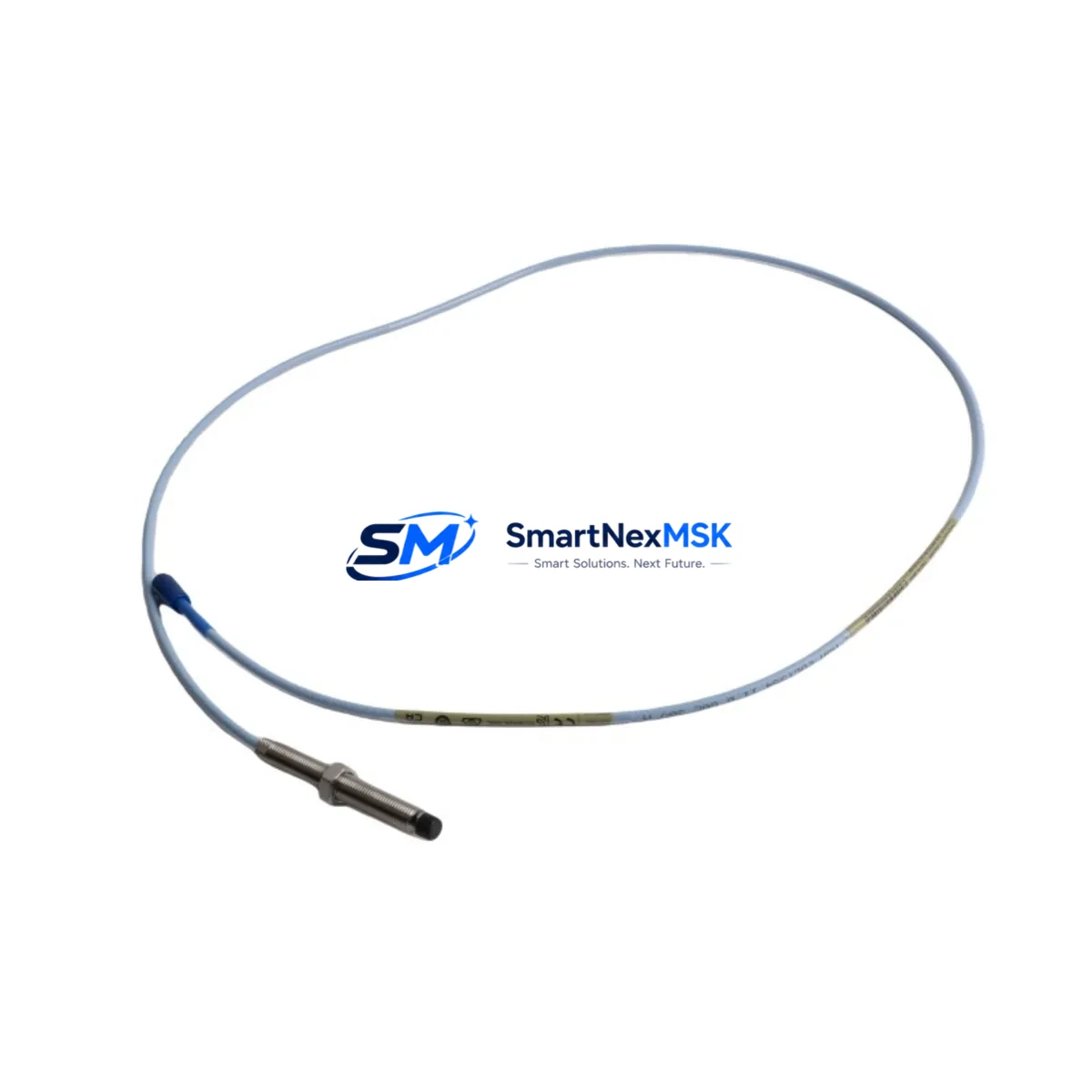

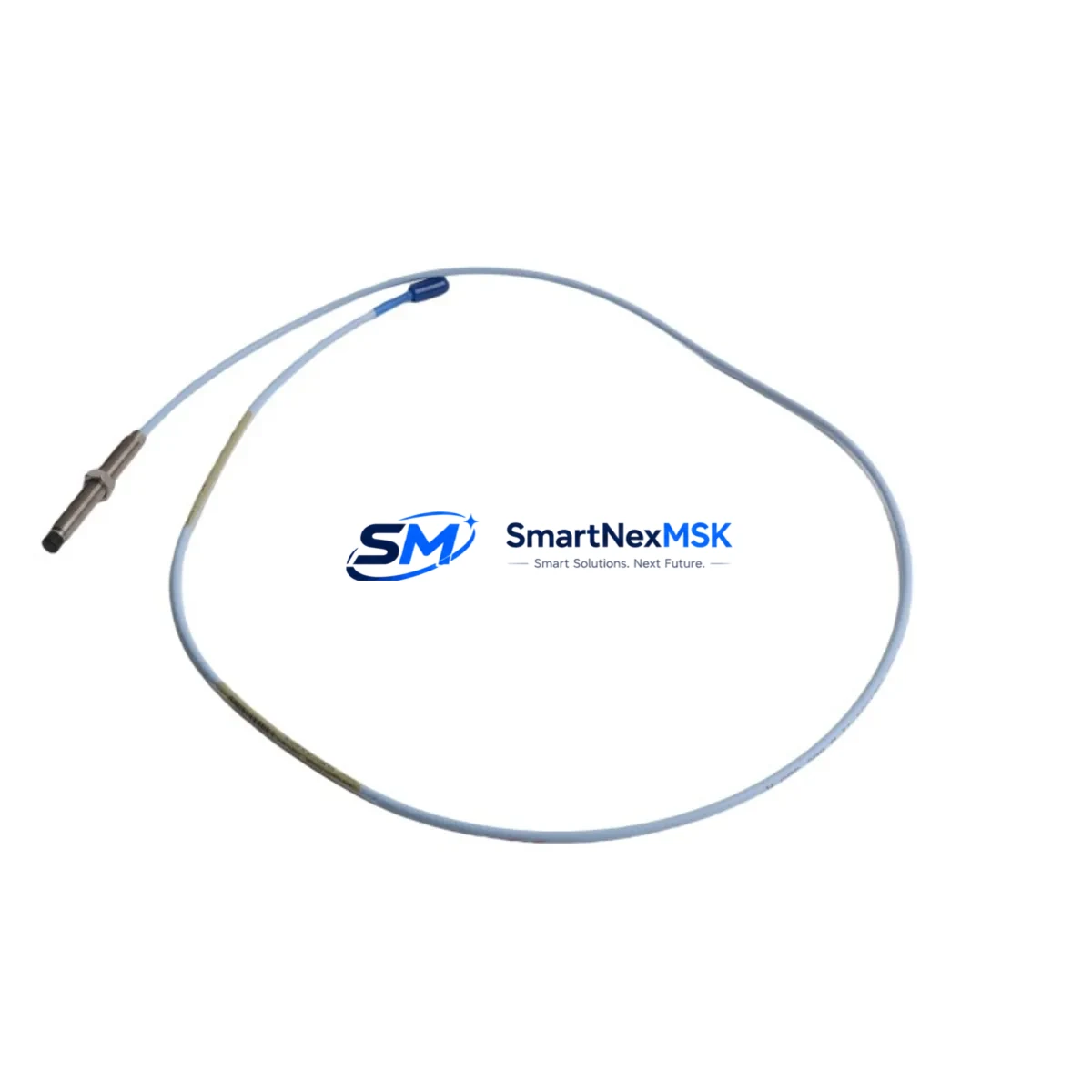

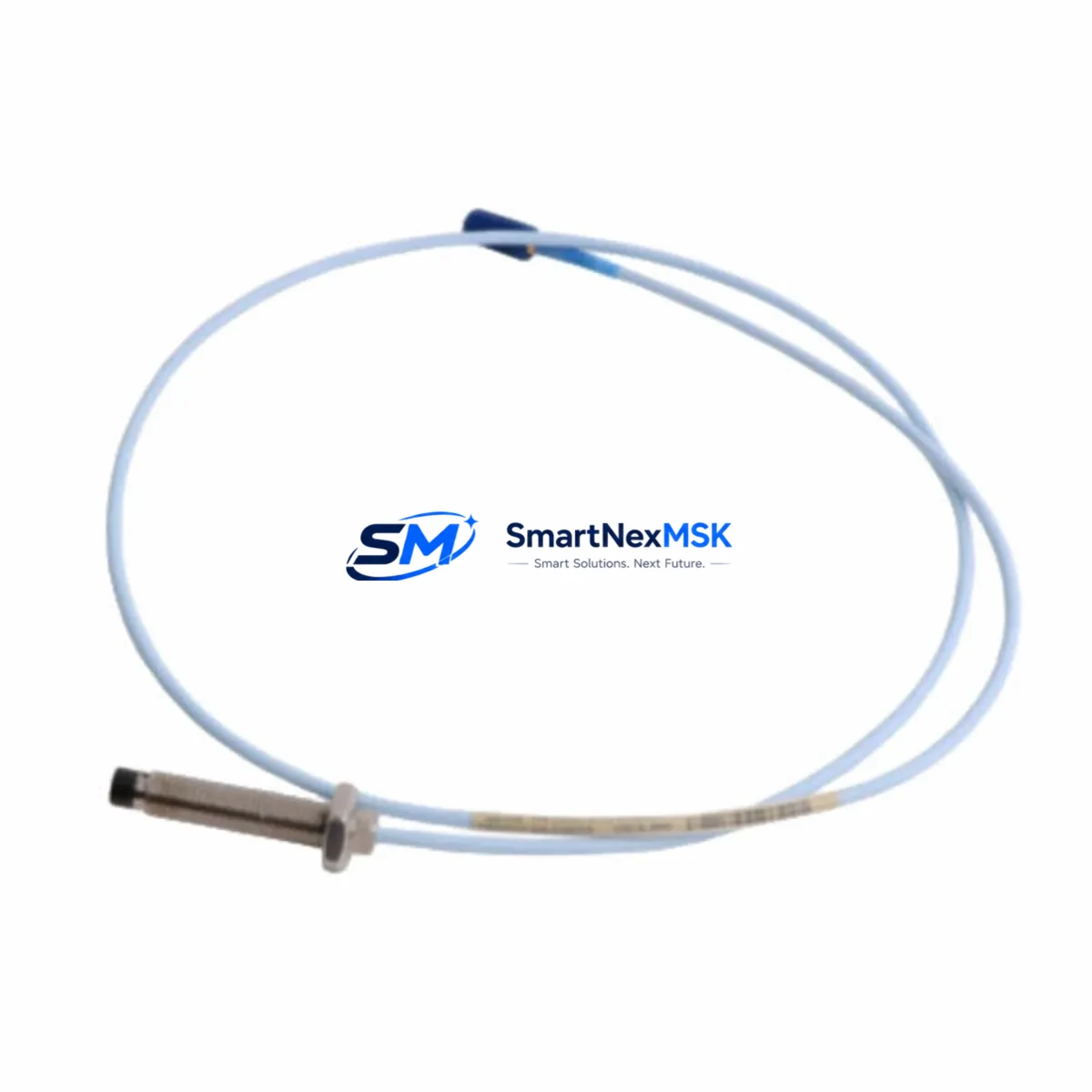

The Bently Nevada 330101-00-41-10-02-05 is an eddy-current proximity probe engineered for the 3300 XL Proximity Transducer System — one of the most widely deployed vibration and position monitoring platforms in rotating machinery protection across petrochemical, power generation, and heavy industrial facilities. As legacy 3300 XL installations age and original spare parts become increasingly difficult to source, the 330101-00-41-10-02-05 provides a verified, drop-in compatible replacement that enables maintenance engineers and reliability teams to execute planned or emergency retrofits with confidence and minimal disruption to production continuity.

This probe features a 5 mm tip diameter, 41-inch (1041 mm) armored cable, and the standard 3300 XL coaxial connector interface, making it a direct mechanical and electrical substitute for the original factory-installed unit. It is fully compatible with the Bently Nevada 330180 series Proximitor Sensor and integrates seamlessly into existing rack-mounted monitoring systems without requiring rewiring, recalibration of the Proximitor, or modification of DCS or safety system input cards. For facilities managing aging control infrastructure, this probe represents a reliable, immediately available solution that eliminates the lead-time risk associated with discontinued OEM spare parts.

When planning a retrofit or replacement on a 3300 XL-based monitoring loop, engineers must verify several key parameters before installation. Confirm that the existing Bently Nevada 330180 Proximitor Sensor is within its calibration window and that the probe-to-Proximitor cable pairing — typically using the 330130 extension cable — matches the total system length specified in the original loop calibration. The 3300 XL system is length-sensitive: any deviation in the combined probe-plus-extension cable length will shift the output voltage curve and introduce measurement error at the vibration monitor input. Verify terminal wiring at the Proximitor junction box and confirm that the coaxial connector is free of corrosion and mechanical damage before proceeding.

For installations where the 3300/16-channel rack or 3500/40M proximitor monitor module is already in service, the 330101-00-41-10-02-05 can be swapped without changes to the monitor’s gap voltage setpoints, provided the replacement probe is installed at the same physical gap distance as the original. Engineers should document the existing gap voltage — typically between −10 VDC and −18 VDC for 3300 XL systems — before removal and verify the same reading post-installation using a calibrated voltmeter or the front-panel display of the Bently Nevada 3300/20 dual-channel monitor. Module address assignments and channel configuration in the rack do not require modification for a like-for-like probe replacement.

In turbine protection and compressor train applications, the 330101-00-41-10-02-05 is commonly deployed in pairs or quads for radial vibration and axial position measurement. When replacing probes in a redundant configuration, best practice is to replace both probes in a channel pair simultaneously to maintain matched sensitivity and eliminate differential measurement drift. The associated Bently Nevada 330130-045-00-00 extension cable and 330180-X1-05 Proximitor should be inspected for connector corrosion, jacket damage, and continuity before the new probe is commissioned. If the facility uses Bently Nevada System 1 condition monitoring software, update the probe configuration record and reset trend baselines after commissioning to ensure accurate long-term vibration data integrity.

For facilities migrating from older Bently Nevada 7200 series proximity systems to the 3300 XL platform, the 330101-00-41-10-02-05 represents the current-generation equivalent probe. The migration path typically involves replacing the 7200-series Proximitor with a 330180 unit, updating the DCS input scaling from the legacy supply range to the 3300 XL standard −24 VDC loop, and verifying that the 3500 rack I/O module or existing 3300/16 monitor accepts the new probe’s output range without alarm setpoint adjustment. HMI screen tag assignments linked to the vibration channel should be reviewed to confirm that engineering unit scaling and alarm limits remain consistent with the new probe’s output characteristics.

All units supplied by SMARTNEXMSK are sourced from verified industrial channels, individually inspected for tip condition, cable jacket integrity, and connector pin alignment, and function-tested against a reference Proximitor before shipment. Each probe ships with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. Expedited shipping is available for emergency maintenance situations, with same-day dispatch for in-stock units.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-00-41-10-02-05 into an existing 3300 XL monitoring loop requires a structured approach that accounts for every component in the measurement chain. Begin with a loop audit: trace the signal path from the probe tip through the 330130 extension cable, into the 330180 Proximitor Sensor, and finally to the monitor input card — whether that is a Bently Nevada 3300/16 dual-channel vibration monitor, a 3300/20 monitor, or a slot in a 3500 series rack equipped with a 3500/40M proximitor monitor module. Document the current gap voltage, cable routing, and terminal wiring before any component is disturbed.

Check the rack backplane for connector wear or oxidation, particularly on older installations where the 3300 series rack has been in continuous service for more than ten years. If the rack is being upgraded to a 3500 series platform as part of a broader control system modernization, confirm that the new 3500/20 rack power supply can support the additional current draw from the expanded channel count. The 3300 XL probe itself draws minimal current, but the Proximitor and monitor combination must remain within the rack’s total power budget — a calculation that becomes critical when adding I/O expansion modules or communication interface cards to the same backplane.

For facilities using a DCS historian or safety instrumented system that receives vibration data from the 3300 XL monitors, verify that the analog output scaling from the monitor to the DCS input card remains unchanged after the probe swap. If the facility uses Bently Nevada System 1 condition monitoring software, update the probe configuration record to reflect the replacement date and confirm that alarm thresholds and trend baselines are reset appropriately after commissioning. Where the control system includes a programming cable connection for online monitor configuration, use it to verify that no parameter changes were inadvertently applied during the maintenance window.

When the retrofit involves replacing multiple probes across a compressor train or turbine generator set, coordinate the work sequence to minimize the number of monitoring channels taken offline simultaneously. Use the monitor’s bypass/inhibit function — available on both 3300 and 3500 series monitors — to suppress spurious alarms during installation without disabling the protection logic on adjacent channels. Always restore bypass status and confirm healthy channel status on the 3300/16 monitor or 3500 rack front panel before returning the machine to service.

Downtime Control During System Migration

Minimizing downtime during a proximity probe replacement on a running or recently shut-down machine requires preparation, tooling, and a clear commissioning sequence. For planned maintenance windows, pre-stage the 330101-00-41-10-02-05 replacement probe, the appropriate 330130 extension cable, and a calibrated gap-setting tool before the machine is taken offline. Document the existing gap voltage from the monitor front panel or the System 1 software trend display as a baseline reference. Confirm that the original program logic in the associated controller — whether a dedicated machinery protection controller or a DCS module receiving the vibration signal — does not require modification for a like-for-like probe replacement.

During installation, route the new probe cable along the same path as the original to avoid introducing new sources of electrical interference from adjacent variable frequency drives, high-current bus bars, or RF-emitting equipment in the control cabinet. Secure the cable at the same intervals as the original using the same clamp type to prevent mechanical resonance. Verify that the coaxial connector is fully seated and that the locking collar is tightened to the specified torque to prevent intermittent contact — a common source of false vibration alarms in the first hours after commissioning.

After physical installation, perform a static gap check with the shaft stationary before energizing the machine. Confirm the gap voltage is within the linear range of the 3300 XL system (typically −10 VDC to −18 VDC). If the reading is outside this range, adjust the probe standoff distance in small increments — typically 0.25 mm steps — until the target gap voltage is achieved. Once confirmed, lock the probe mounting and re-verify the reading after tightening to account for any positional shift. Before releasing the machine for restart, confirm that all monitor bypass/inhibit flags have been cleared, that the 3500 rack or 3300/16 monitor shows a healthy status on all replaced channels, and that the DCS or SIS has received and acknowledged the updated analog signal. Log the commissioning data — gap voltage, cable length, Proximitor serial number, and installation date — in the plant’s maintenance management system for future reference and warranty tracking.

Retrofit Support FAQ

Q1: Is the 330101-00-41-10-02-05 a direct drop-in replacement for the original Bently Nevada probe in a 3300 XL loop?
Yes. The 330101-00-41-10-02-05 is a direct mechanical and electrical replacement for the original factory-installed probe in 3300 XL monitoring loops. It uses the same 5 mm tip diameter, the same armored cable length, and the same coaxial connector interface. No rewiring, Proximitor recalibration, or HMI screen modification is required, provided the probe is installed at the same gap distance as the original unit and the total cable system length is preserved.

Q2: What pre-shipment testing is performed on each probe?
Every 330101-00-41-10-02-05 unit supplied by SMARTNEXMSK is individually inspected for tip condition, cable jacket integrity, and connector pin alignment. Each probe is function-tested against a reference Proximitor to verify output voltage linearity across the full gap range before shipment. A test record is available upon request. All units carry a 12-month warranty covering functional defects under normal operating conditions, with replacement or refund processed within the warranty period upon confirmed failure.

Q3: Can this probe be used with the Bently Nevada 3500 series rack and monitors?
Yes. The 330101-00-41-10-02-05 is compatible with the 3500/40M proximitor monitor module when paired with the appropriate 330180 Proximitor Sensor and 330130 extension cable. Verify that the total probe-plus-extension cable length matches the Proximitor’s calibrated system length. No hardware modification to the 3500 rack backplane or I/O module is required for a standard installation.

Q4: What is the lead time and availability for this part?
SMARTNEXMSK maintains stock of the 330101-00-41-10-02-05 for immediate dispatch. Same-day shipping is available for emergency maintenance situations. For planned maintenance programs requiring multiple units, contact our sales team to confirm bulk availability and reserve stock against your maintenance schedule. Long-term supply agreements are available for facilities with recurring replacement needs across multiple machine trains.
