Bently Nevada 330101-00-48-50-02-05 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330101-00-48-50-02-05 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

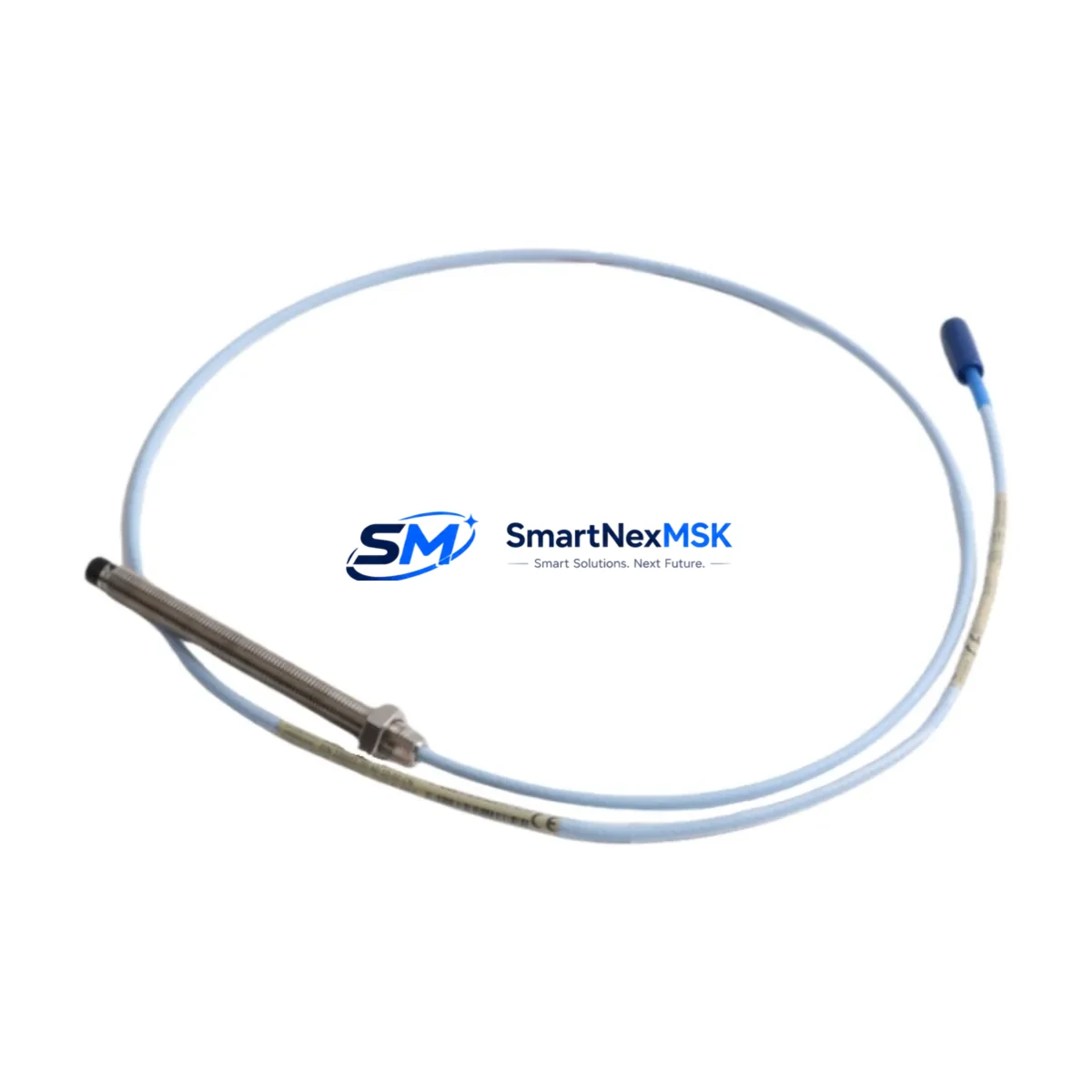

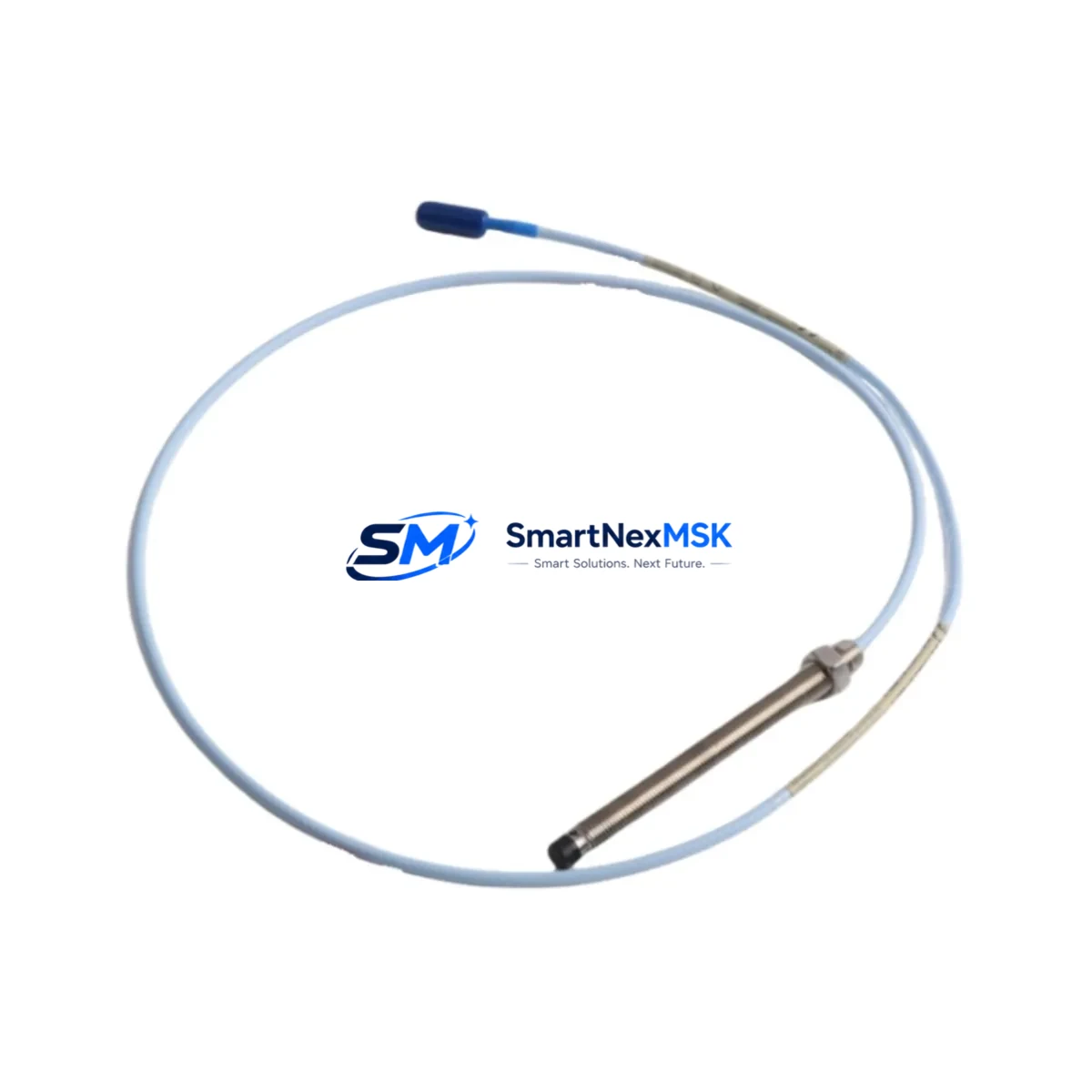

The Bently Nevada 330101-00-48-50-02-05 is an 8mm eddy-current proximity probe engineered for seamless integration into existing 3300 XL Series vibration monitoring systems. Whether you are replacing a failed unit on a critical rotating machine, upgrading an aging 3300 Series installation, or migrating from an earlier Bently Nevada 7200 Series probe loop, this module delivers the electrical and mechanical compatibility required to restore full system functionality with minimal downtime.

Industrial facilities operating gas turbines, steam turbines, compressors, and large pumps rely on continuous shaft vibration and position data to prevent catastrophic failures. When a proximity probe reaches end-of-life or is damaged during maintenance, the replacement process must be executed with precision. The 330101-00-48-50-02-05 is a direct retrofit candidate for installations previously using the 330101-00-48-50-02-00 and related variants within the 330101 family, sharing the same 48-inch (1219 mm) probe cable length, 5-metre extension cable compatibility, and standard -18 VDC bias voltage operating range.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the 330101-00-48-50-02-05 begins well before the maintenance window opens. Engineers should pull the existing loop documentation and verify the installed 3300/16 Proximitor module is in serviceable condition, since a degraded Proximitor will produce erratic gap voltage readings even with a new probe installed. If the Proximitor is also suspect, plan to replace it alongside the probe to avoid a second outage.

Next, inspect the 330130-080-00-00 extension cable running from the probe tip to the Proximitor. Extension cables are frequently overlooked during probe replacements, yet connector corrosion or jacket damage is a common source of signal noise. Replacing the extension cable as a matched set with the new probe is best practice and eliminates a variable during post-installation verification.

At the 3300 XL monitor rack, confirm that the backplane slot assigned to this measurement channel is correctly addressed. The 3500/42M or 3500/40M monitor cards used in many 3300 XL migration projects require the channel address to be set in the Rack Configuration Software before the new probe loop is energised. Failure to update the channel address will cause the monitor to report a Not OK status even when the probe is correctly installed and gapped.

For facilities that have already migrated their vibration monitoring to the Bently Nevada 3500 Series platform, the 330101-00-48-50-02-05 remains fully compatible when paired with the appropriate 3500 Series Proximitor module. This makes it an ideal choice for phased migration projects where the field-side probe infrastructure is retained while the rack-side electronics are upgraded to the newer platform. In these scenarios, the 3500/22M Transient Data Interface and 3500/15 Power Supply should be verified for adequate channel capacity before adding probe loops.

Terminal block wiring should follow the original loop drawing. The probe cable shield must be grounded at one end only to prevent ground loops that introduce 50/60 Hz noise into the vibration signal. After wiring, use a calibrated gap tool or a non-conductive feeler gauge to set the probe gap to the manufacturer-specified voltage, typically between -10 VDC and -18 VDC depending on the target gap distance. Document the as-found and as-left gap voltages in the maintenance record.

If the machine train includes a Keyphasor probe such as the 330180-91-00, verify that the Keyphasor signal is present and correctly phased before releasing the machine to operation. The Keyphasor reference is essential for phase-referenced vibration analysis and must be confirmed functional as part of any proximity probe retrofit.

Downtime Control During System Migration

Minimising production downtime during a proximity probe replacement requires a structured pre-outage preparation process. Before the machine is taken offline, gather all replacement components including the 330101-00-48-50-02-05 probe, the matched extension cable, any required mounting hardware, and a calibrated gap-setting tool so that the maintenance window is not extended by parts retrieval delays.

Where the control system architecture permits, place the affected monitor channel into bypass mode using the 3300 XL or 3500 Series rack software before disconnecting the old probe. Bypass mode suppresses the Not OK relay output for that channel, preventing a spurious trip signal from propagating to the DCS or safety system during the swap. Confirm with the control room that the bypass has been acknowledged and logged.

After installing and gapping the new probe, perform a bench-level signal check at the Proximitor terminal before re-enabling the channel. Confirm that the DC gap voltage is within the linear range and that the AC vibration signal is present and noise-free. Only then should the bypass be removed and the channel returned to normal monitoring. This sequence protects the original program logic in the DCS historian and prevents false alarm entries that complicate post-maintenance reporting.

For facilities using System 1 Evolution or System 1 Condition Monitoring Software, update the probe configuration record in the software database to reflect the new serial number and installation date. This ensures that trend data continuity is maintained and that the asset history accurately reflects the component change.

Retrofit Support FAQ

Q1: Is the 330101-00-48-50-02-05 a direct drop-in replacement for the 330101-00-48-50-02-00?
A: Yes. The -02-05 and -02-00 suffixes indicate regional compliance markings; the electrical and mechanical specifications are identical. The probe is a direct drop-in replacement requiring no modification to the mounting bracket, extension cable, or Proximitor module, provided the existing loop was originally configured for an 8mm probe system.

Q2: What gap voltage should I set after installing the new probe?
A: The standard target gap for an 8mm Bently Nevada probe is approximately -10.0 VDC, corresponding to a physical gap of roughly 1.27 mm (50 mils). Always refer to the specific monitor channel configuration in the Rack Configuration Software, as some applications specify a different nominal gap. Document the as-left gap voltage and compare it to the previous maintenance record.

Q3: Will this probe work with a 3500 Series monitor rack?
A: Yes, when paired with the correct 3500 Series 8mm Proximitor module. The probe itself is rack-agnostic; compatibility is determined by the Proximitor and monitor card, not the probe. Confirm the Proximitor part number matches the 8mm probe specification before installation.

Q4: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and includes a dead-on-arrival (DOA) exchange programme. Warranty is valid from the date of shipment. Units damaged by incorrect installation, overvoltage, or mechanical impact are not covered. All units are function-tested prior to shipment to confirm bias voltage output and cable continuity.
