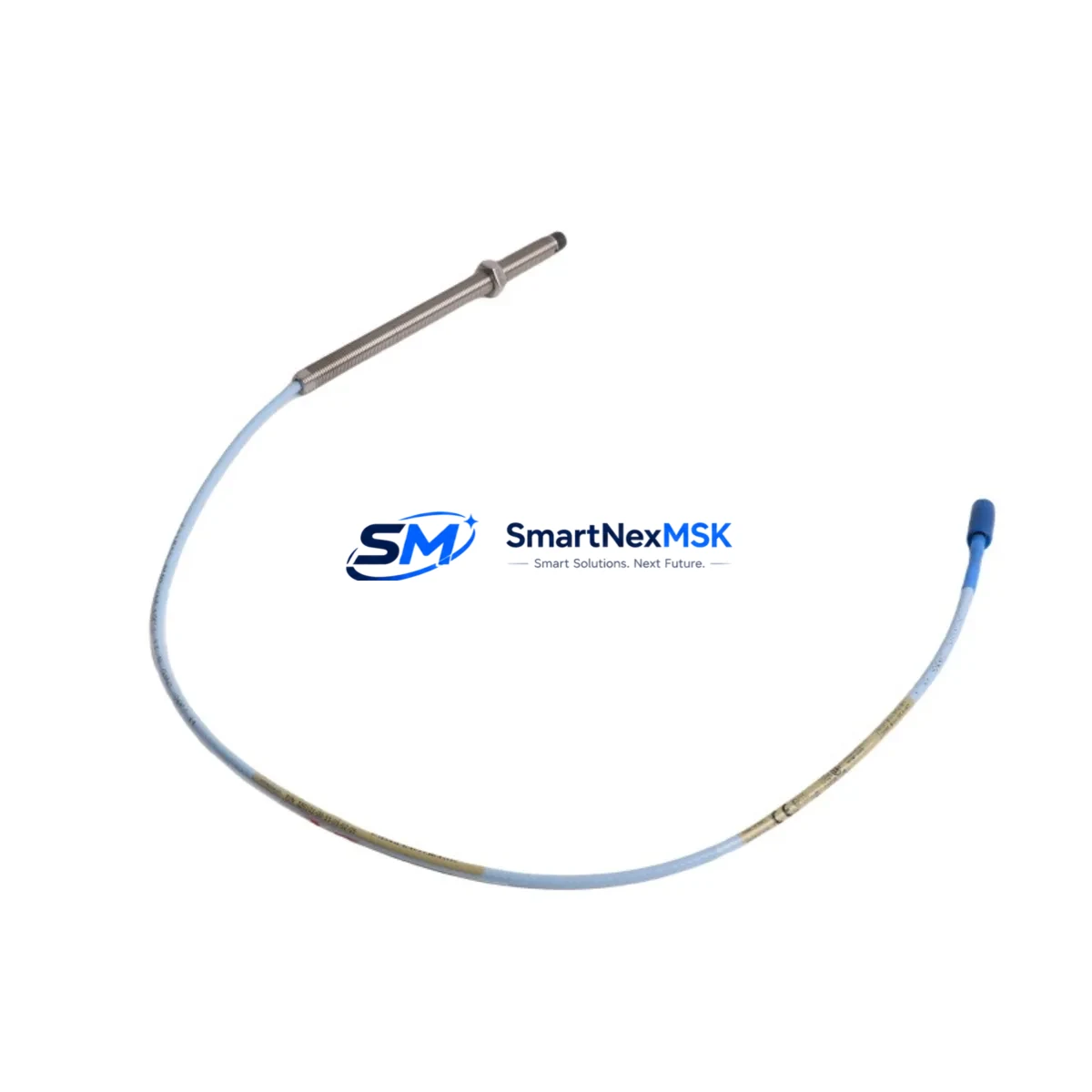

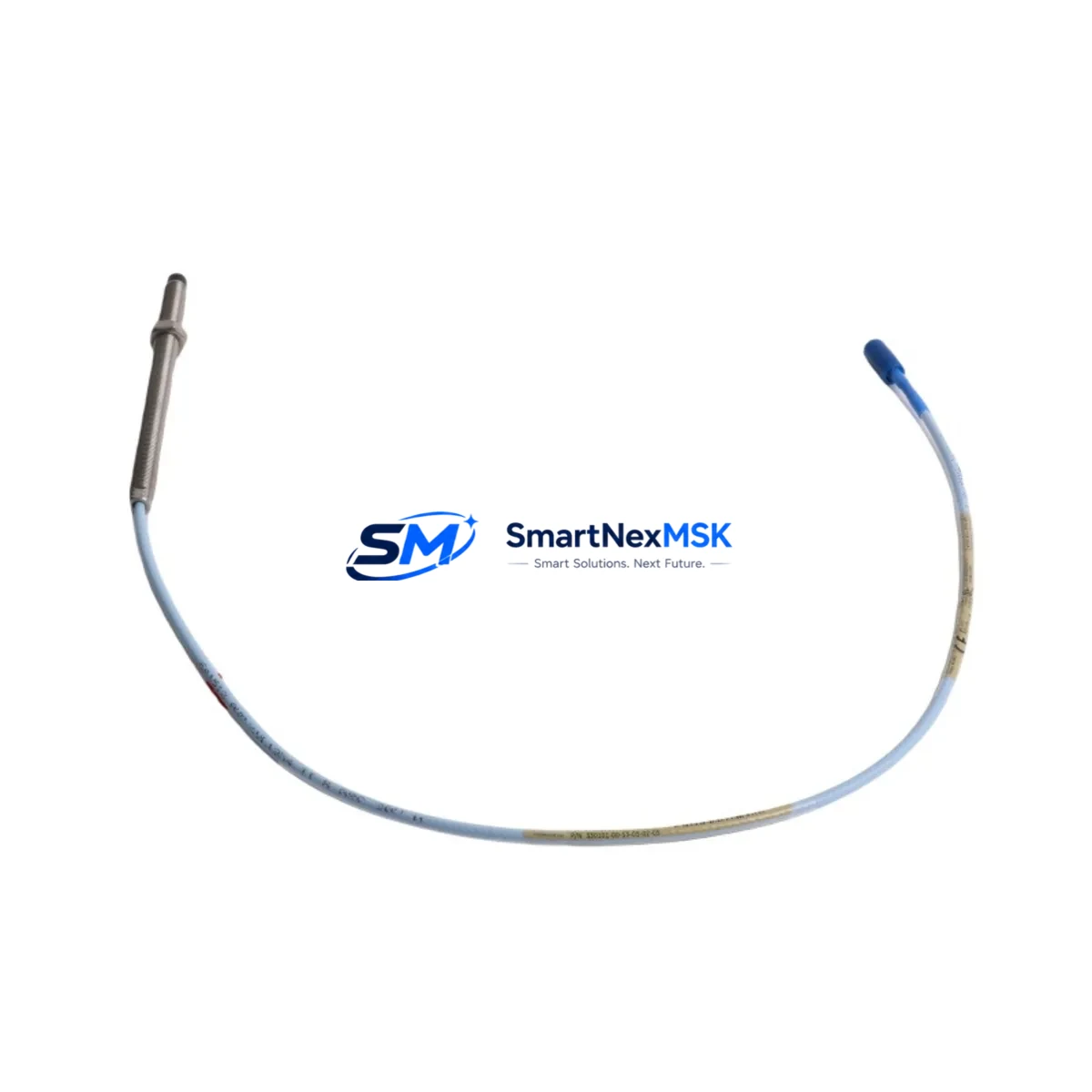

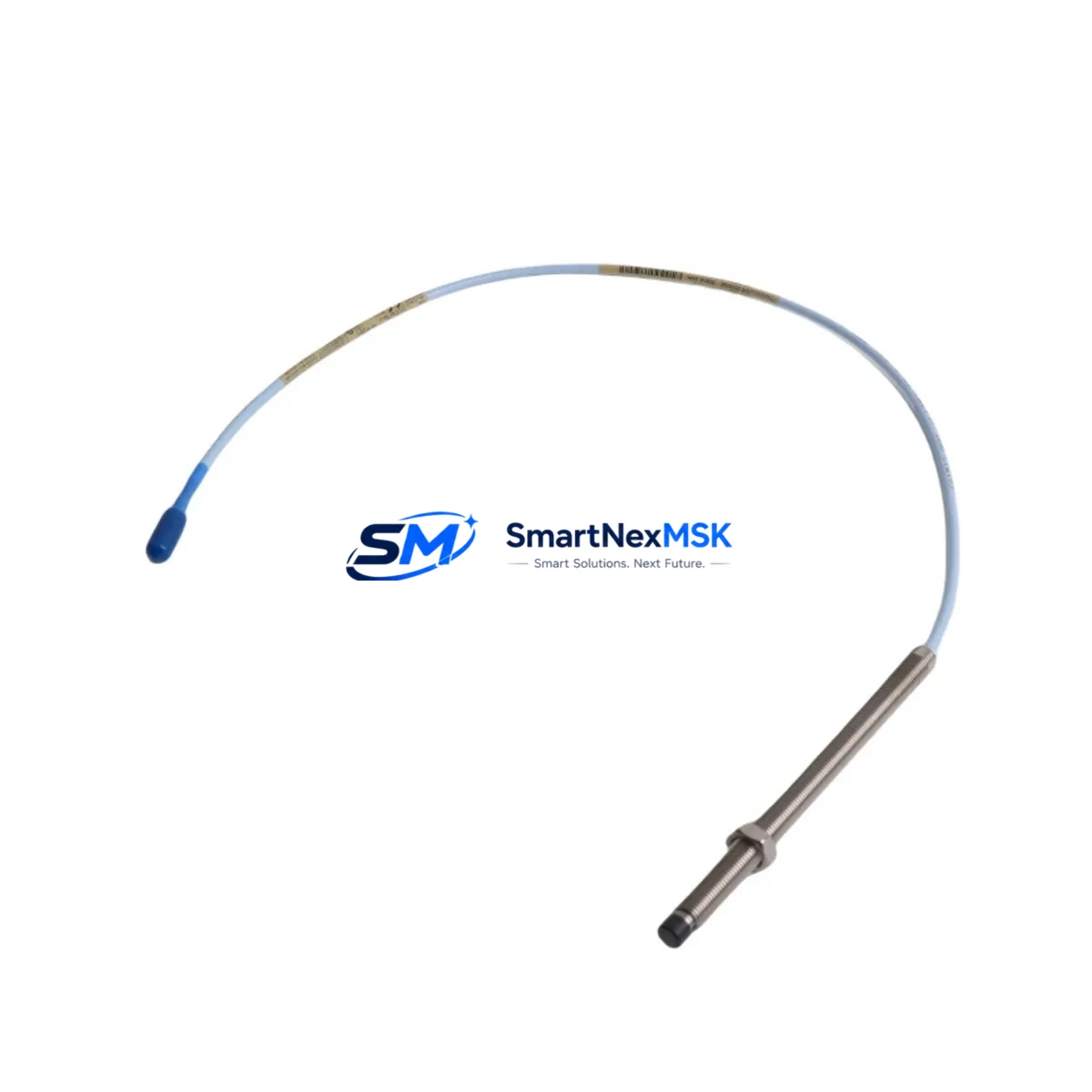

The Bently Nevada 330101-00-55-20-12-05 is an original 8mm proximity probe designed for the 3300 XL Series continuous vibration monitoring system. This component is a critical field-replaceable unit in rotating machinery protection systems — including steam turbines, gas compressors, centrifugal pumps, and large induction motors. When this probe fails or degrades, the entire vibration channel goes offline, triggering false trips or — more dangerously — leaving rotating equipment unprotected. Maintaining a verified spare on the shelf is the single most effective way to eliminate unplanned downtime caused by probe degradation, cable damage, or connector corrosion.

This listing provides a tested, original-specification 330101-00-55-20-12-05 probe, shipped with full dimensional and electrical verification, backed by a 12-month warranty from date of delivery. Each unit is inspected for tip condition, cable jacket integrity, connector seating, and coil impedance before dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or reliability engineer schedules replacement of the 330101-00-55-20-12-05 proximity probe, the replacement scope should never be limited to the probe alone. The 3300 XL vibration monitoring channel is a system — and each component in the signal chain must be evaluated during the same work order to prevent repeat failures and ensure measurement accuracy after recommissioning.

Begin with the 3300 XL 8mm Proximitor driver module (typically 330180-X1-05 or equivalent). The Proximitor converts the probe’s oscillator signal into a DC voltage proportional to gap distance. If the probe has been operating in a high-temperature or high-vibration zone, the Proximitor’s internal calibration may have drifted — verify output voltage at the nominal gap before closing the work order. Keep a spare Proximitor in the cabinet alongside the probe.

Next, inspect the extension cable assembly (3300 XL series, 5m or 9m depending on installation geometry). Extension cables are a frequent failure point: connector corrosion, jacket cracking from thermal cycling, and mechanical fatigue at the conduit entry are all common. Replace the extension cable whenever the probe is replaced in harsh environments.

At the terminal cabinet level, check the 3300/16 or 3500/42 monitor card input terminals and signal conditioning board. Loose terminal block connections cause intermittent channel faults that are often misdiagnosed as probe failures. Torque all terminals to specification and inspect for oxidation. If the installation uses a 3500 Series rack, verify the 3500/22M transient data interface and the 3500/92 communication gateway are functioning correctly — a faulty gateway can mask real vibration alarms at the DCS level.

For installations where the vibration signal feeds into a DCS I/O module (such as a Honeywell C300 or Emerson DeltaV MD Plus), confirm the analog input channel scaling matches the Proximitor output range. Signal isolators or galvanic isolation barriers between the Proximitor output and the DCS analog input card should be tested for drift — a degraded isolator introduces a DC offset that shifts the vibration baseline reading.

Finally, review the power supply rail feeding the Proximitor. The 3300 XL system requires a stable -24 VDC supply. Use a calibrated multimeter to verify supply voltage under load. If the cabinet uses a shared DC bus, check for ripple caused by adjacent relay coils or solenoid switching — excessive ripple degrades Proximitor output linearity. Spare 24V DIN-rail power supply modules and fuse holders with spare fuses (typically 0.5A slow-blow) should be stocked alongside the probe spare.

Site Replacement Workflow

Step 1 — Pre-replacement verification: Before removing the installed probe, record the current gap voltage at the Proximitor output (nominal: -10.0 VDC at mid-range gap). Document the physical gap measurement using a feeler gauge or dial indicator. This baseline is required for post-installation calibration verification.

Step 2 — Isolation and lockout: Isolate the -24 VDC supply to the Proximitor. Do not simply disconnect the probe cable — the Proximitor must be de-energized to prevent false trip signals to the monitor card during probe removal.

Step 3 — Probe removal: Unscrew the probe from the bracket using the correct spanner (M10 x 1.0 thread). Inspect the bracket threads and locking nut for wear. Replace the locking nut if thread engagement is less than 5 full turns. Clean the bracket bore before installing the new probe.

Step 4 — New probe installation: Install the 330101-00-55-20-12-05 replacement probe. Set the initial gap to the manufacturer’s recommended starting point (typically 1.0 mm / 40 mil). Reconnect the extension cable — ensure the connector is fully seated and the locking sleeve is engaged.

Step 5 — Recommissioning: Re-energize the Proximitor. Verify output voltage matches the expected value for the set gap. Fine-adjust the probe gap until the output voltage matches the pre-removal baseline. Confirm the monitor card clears the channel fault and displays a valid vibration reading. Log the final gap setting and output voltage in the maintenance record.

Step 6 — System-level confirmation: Verify that the DCS historian is receiving a valid vibration trend from the channel. Check that alarm setpoints are active and that the trip relay is armed. This step is critical — a channel that reads correctly at the monitor card but has a broken 4–20 mA output to the DCS will leave the machine unprotected at the control system level.

Spare Parts Support FAQ

Q1: Is the 330101-00-55-20-12-05 a direct drop-in replacement for older 3300 series probes?
The 330101-00-55-20-12-05 is designed for the 3300 XL 8mm system and is mechanically and electrically compatible with standard 3300 XL Proximitor drivers. It is not directly interchangeable with the earlier 3300/55 series probes without verifying Proximitor compatibility. Always confirm the installed Proximitor model number before ordering. If you are replacing a legacy 3300/55 probe, contact us with the full system configuration for compatibility confirmation before dispatch.

Q2: What is included in the 12-month warranty and what does pre-shipment testing cover?
Every 330101-00-55-20-12-05 unit is tested for coil impedance, tip-to-cable continuity, connector integrity, and output linearity across the specified linear range before shipment. The 12-month warranty covers manufacturing defects and electrical failure under normal operating conditions. It does not cover physical damage from improper installation, over-gap operation, or chemical exposure beyond the rated environment. A test report is available on request.

Q3: How should this spare be stored in a maintenance inventory?
Store the probe in its original packaging or an anti-static, padded case in a dry environment between -20°C and +60°C. Avoid storing near strong magnetic fields or in areas with high humidity. The probe tip is sensitive to mechanical impact — do not stack heavy items on top of the storage case. Recommended shelf life before installation is 5 years from manufacture date when stored correctly. Inspect the connector and cable jacket annually during shelf storage.

Q4: Can you supply multiple units for a planned outage or long-term spare parts contract?
Yes. We maintain stock of the 330101-00-55-20-12-05 and related 3300 XL components to support planned outage kits and annual maintenance contracts. Bulk orders of 3 or more units are eligible for priority allocation and consolidated shipping. For long-term supply agreements covering multiple SKUs across a 3300 XL or 3500 Series installation, contact our sales team to discuss a dedicated spare parts program with guaranteed lead times.
