Bently Nevada 330101-00-63-20-12-05 3300 XL Spare: Precision Proximity Probe for Industrial Vibration Monitoring

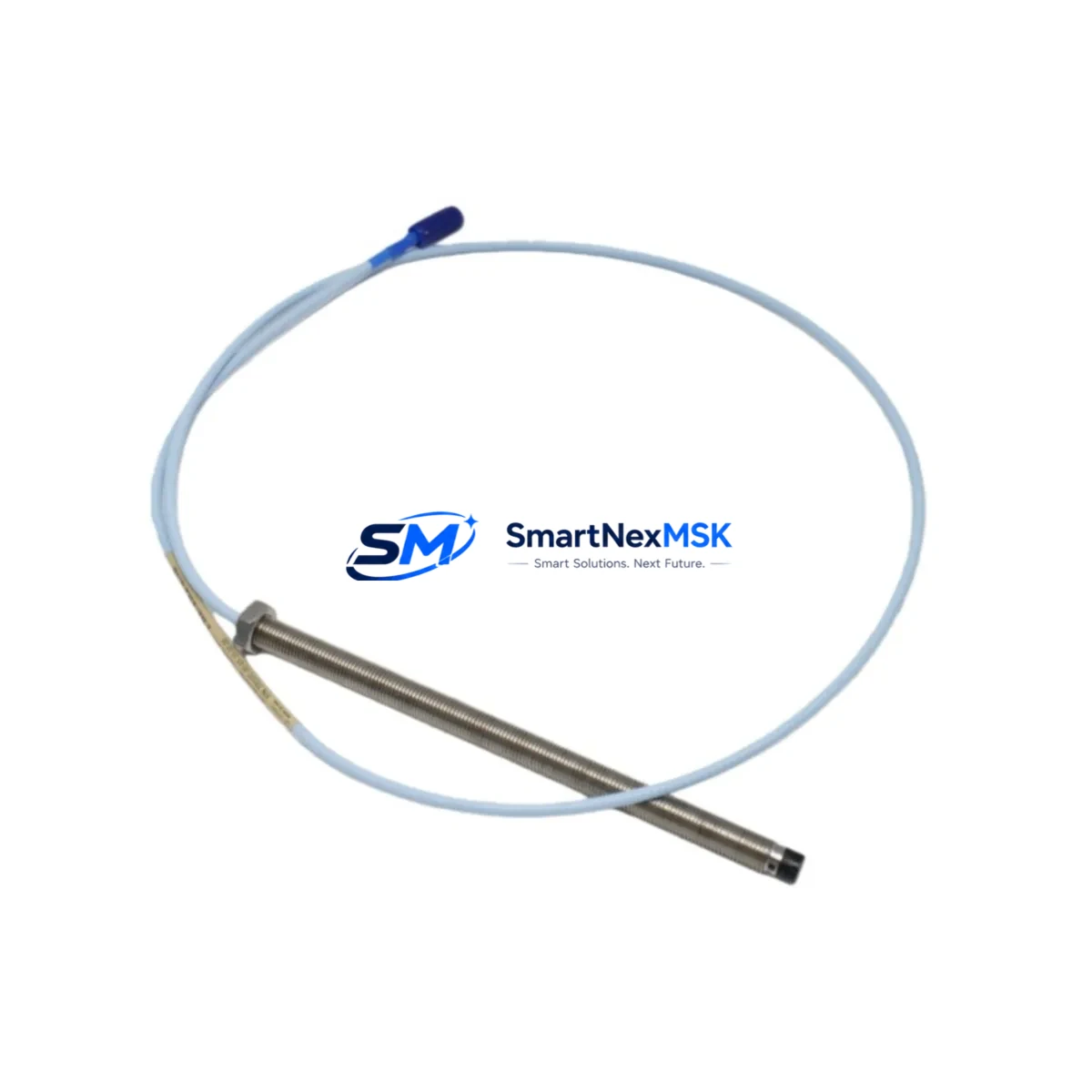

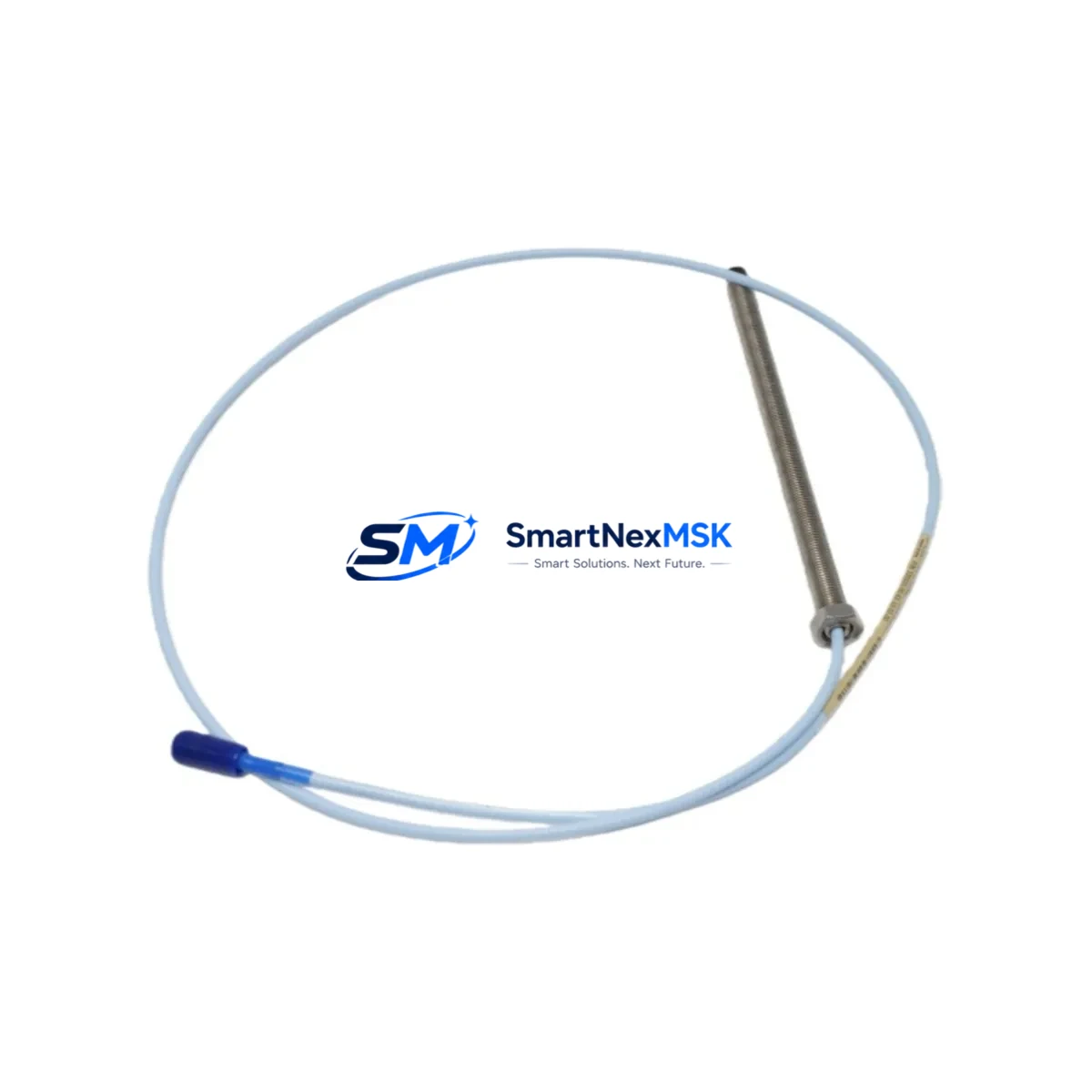

The Bently Nevada 330101-00-63-20-12-05 is an 8mm eddy current proximity probe engineered for continuous shaft vibration and position monitoring in rotating machinery. As a maintenance-ready spare for the 3300 XL Series, this probe supports uninterrupted operation of turbines, compressors, pumps, and other critical rotating assets where vibration data is essential for condition-based maintenance and API 670 compliance.
Sourced as an original spare, each unit is inspected and function-tested prior to shipment. With a 12-month warranty and long-term supply commitment, this probe is a reliable addition to any planned maintenance inventory or emergency replacement kit.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| Part Number | 330101-00-63-20-12-05 |
| Brand | Bently Nevada |
| Series | 3300 XL |
| Probe Type | 8mm Eddy Current Proximity Probe |
| Cable Length | 5m (standard; other lengths available) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0.25 mm – 2.26 mm (10–89 mil) |
| Temperature Range | -35°C to +177°C |
| Compatibility | 3300 XL Proximitor Sensor, 3500 Series monitors |
| Application | Radial vibration, axial position, differential expansion |
| Mounting | M10 x 1 thread, locknut included |
| Origin | USA |
| Warranty | 12 Months |
| Condition | Original spare, tested before shipment |
Maintenance Planning for Continuous Operation
When replacing the 330101-00-63-20-12-05 proximity probe during scheduled or corrective maintenance, a thorough inspection of the surrounding measurement chain is essential to prevent repeat failures and ensure data integrity. Maintenance engineers should simultaneously verify the condition of the 330180-91-05 extension cable connecting the probe to the Proximitor, as cable damage or connector corrosion is a common root cause of signal dropout that mimics probe failure.
The 330730-040-00-00 3300 XL Proximitor Sensor should be checked for output voltage drift and housing integrity. If the Proximitor is beyond its calibration interval or shows signs of moisture ingress, replacement alongside the probe is strongly recommended to maintain system accuracy. In the same cabinet inspection, engineers should audit the 3500/42M Proximitor I/O Module for proper channel assignment and alarm setpoint configuration.
Power supply integrity is critical: the 3500/15 Power Supply Module should be verified for stable ±24 VDC output, as voltage fluctuations directly affect probe gap voltage and can trigger false alarms. Terminal blocks and field wiring within the junction box should be inspected for loose connections, oxidation, or insulation breakdown, particularly in high-vibration or high-temperature environments.
For plants running integrated protection systems, the 3500/22M Transient Data Interface and 3500/32 4-Channel Relay Module should be confirmed as operational, since a probe replacement that restores signal integrity may unmask pre-existing relay or communication faults. Where the 3300 XL system interfaces with a DCS or safety system via 3500/92 Communication Gateway, verify Modbus or OPC-DA connectivity after probe replacement to confirm alarm data is correctly transmitted upstream.
Facilities maintaining older 3300 Series installations alongside newer 3500 Series monitors should keep both probe generations in their spare parts inventory. Cross-referencing the 330101-00-63-20-12-00 (standard cable) and 330101-00-63-20-12-05 variants ensures the correct cable length is available for each machine train without delay during emergency callouts.
Site Replacement Workflow
Step 1 – Pre-replacement verification: Confirm the replacement probe part number matches the installed probe exactly, including cable length suffix. Verify the Proximitor model is compatible with the 8mm probe standard (3300 XL Proximitor or equivalent).
Step 2 – Safe isolation: Follow site LOTO procedures. De-energize the Proximitor channel at the 3500 rack before disconnecting the probe. Do not disconnect the extension cable under power, as this can damage the Proximitor input circuit.
Step 3 – Physical removal and installation: Remove the locknut and unthread the probe from the bracket. Install the replacement probe, set the gap to the manufacturer-specified linear range midpoint (approximately 1.27 mm / 50 mil), and secure with the locknut. Reconnect the extension cable, ensuring the connector is fully seated and the locking collar is engaged.
Step 4 – Signal verification: Re-energize the channel and measure the Proximitor output voltage at the recommended gap. Confirm the reading falls within the linear range (typically -10 VDC ±0.5 VDC at the nominal gap). Check the 3500 monitor for cleared fault indicators and valid vibration readings.
Step 5 – System handback: Document the replacement in the maintenance management system, update the spare parts inventory, and confirm alarm setpoints are active before returning the machine to service.
This workflow minimizes downtime, preserves system compatibility, and ensures the replacement probe is correctly commissioned before the machine is restarted — reducing the risk of a second unplanned outage.
Spare Parts Support FAQ
Q: Is the 330101-00-63-20-12-05 compatible with both 3300 XL and 3500 Series monitors?
A: Yes. The 330101-00-63-20-12-05 8mm probe is designed for use with the 3300 XL Proximitor Sensor and is also compatible with 3500 Series monitoring systems when paired with the correct Proximitor. Always verify the Proximitor model and channel configuration before installation.
Q: How is each probe tested before shipment?
A: Every unit undergoes functional verification including output voltage check at nominal gap, cable continuity test, and connector integrity inspection. A test report is available upon request. Units that do not meet original specification are not shipped.
Q: What is the recommended spare parts stocking strategy for 3300 XL proximity systems?
A: For critical rotating machinery, we recommend maintaining a minimum of one probe, one extension cable, and one Proximitor sensor per monitored machine train. For plants with multiple identical trains, a pooled inventory of 2–3 probe assemblies per probe model reduces emergency lead times and supports planned outage schedules.
Q: What does the 12-month warranty cover?
A: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. Warranty claims are supported with replacement or full refund, subject to return inspection.
