Bently Nevada 330101-00-64-10-12-05 3300 XL Proximity Sensor: Retrofit-Ready Upgrade for Legacy Vibration Monitoring Systems

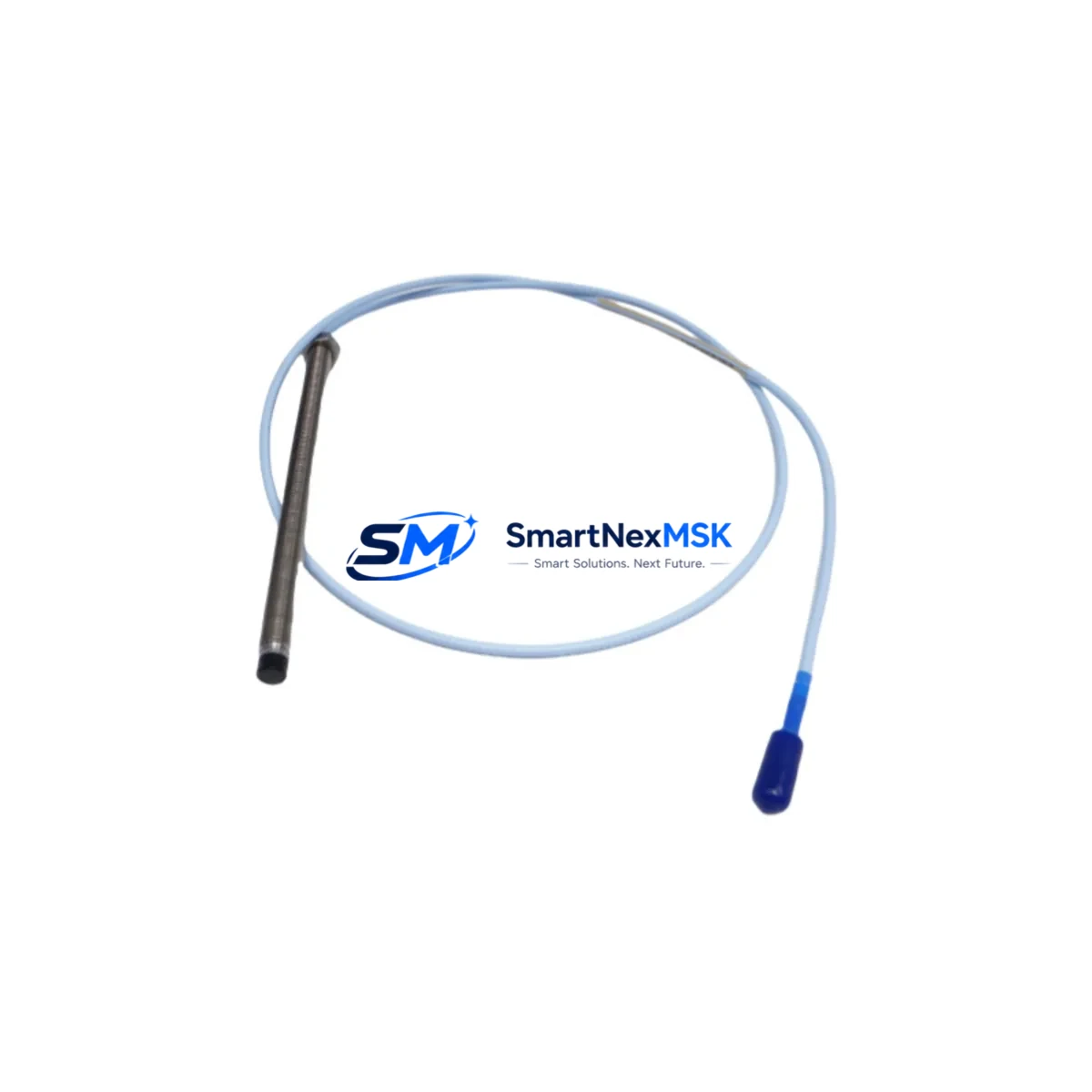

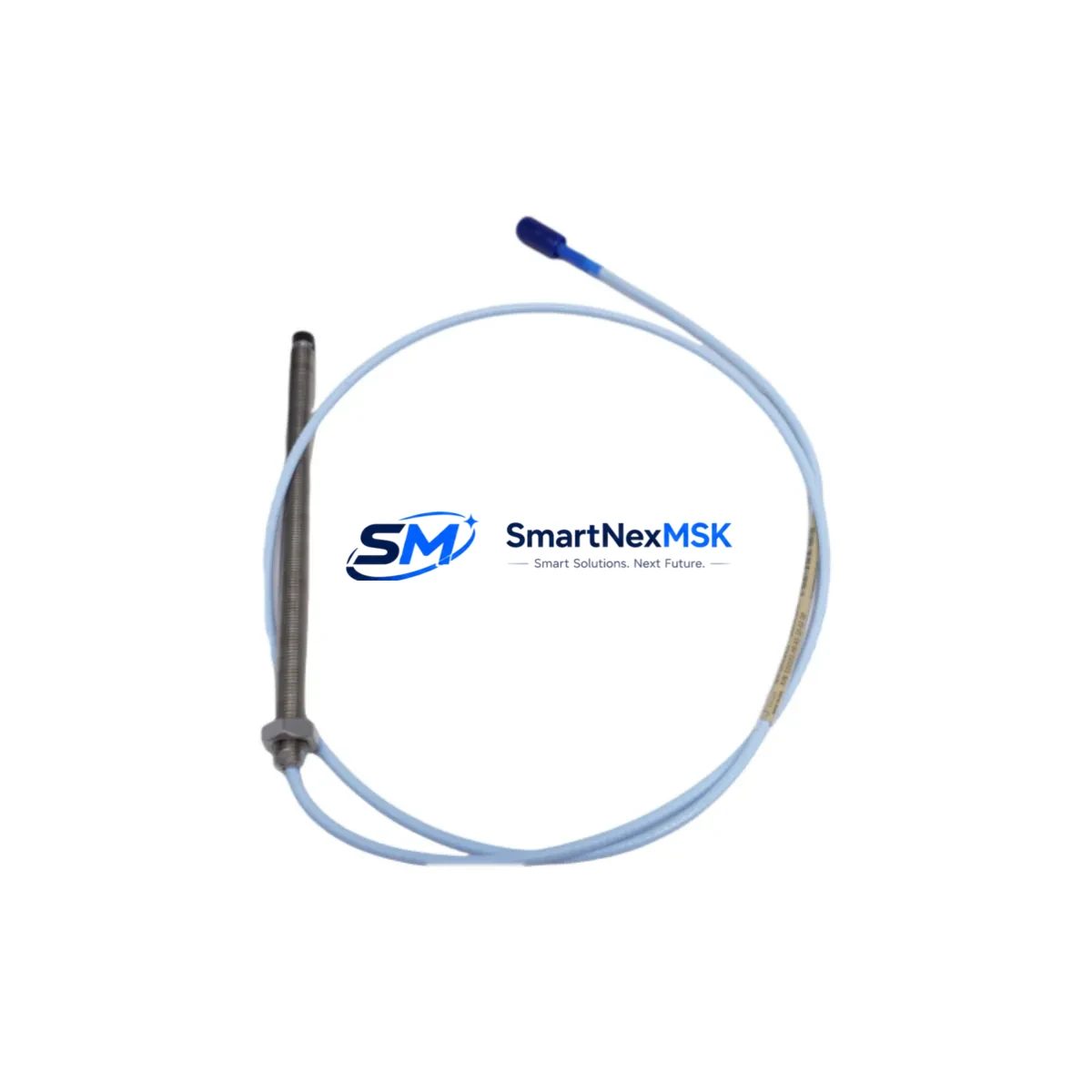

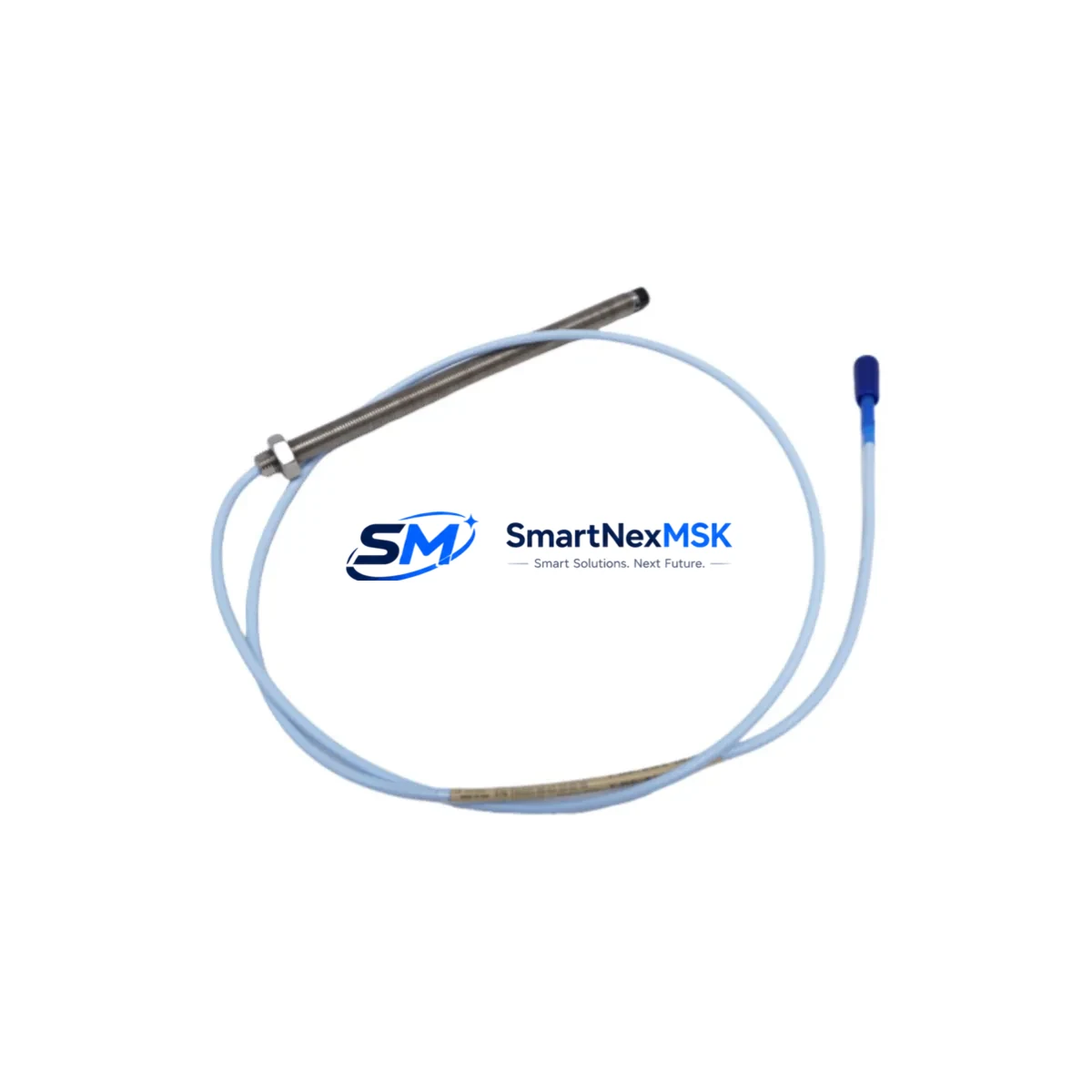

The Bently Nevada 330101-00-64-10-12-05 is a 5mm eddy current proximity sensor engineered for the 3300 XL Series vibration monitoring platform. As legacy 3300 Series installations approach end-of-service milestones, this module serves as the primary retrofit solution for facilities seeking to modernize their machinery protection infrastructure without replacing the entire monitoring rack. Whether you are migrating from an older 3300/05 system, upgrading a turbine control cabinet, or restoring a decommissioned monitoring loop, the 330101-00-64-10-12-05 delivers verified compatibility with existing field wiring, extension cables, and signal conditioning hardware.
This sensor is designed for non-contact radial vibration and position measurement on rotating machinery including steam turbines, gas compressors, centrifugal pumps, and gearboxes. It operates within the standard Bently Nevada -24 VDC bias voltage range and produces a linear output signal compatible with 3300 XL proximitor/seismometer modules such as the 330180-91-00 and 330130-040-01-00. When replacing a failed or discontinued sensor in an existing installation, the 330101-00-64-10-12-05 eliminates the need to recalibrate the full channel or remap I/O assignments in the monitoring rack.
Upgrade Compatibility Table
| Parameter | 330101-00-64-10-12-05 | Retrofit Notes |
|---|---|---|
| Sensor Type | Eddy Current Proximity | Drop-in for 3300 XL channel |
| Tip Diameter | 5mm | Verify target gap per OEM spec |
| Cable Length | 5m integral cable | Pair with 330130 extension cable if needed |
| Bias Voltage | -24 VDC nominal | Confirm proximitor supply rail |
| Output Range | -2 to -18 VDC | Compatible with 3300 XL signal conditioners |
| Connector Type | Coaxial BNC | Match to existing field junction box |
| Communication | Analog (4–20 mA / voltage) | No protocol migration required |
| Mounting Thread | M8 x 1.0 | Verify bracket and lock nut compatibility |
| Installation Requirement | Static gap set at commissioning | Use gap voltage meter during setup |
| Warranty | 12 Months | Covered from date of shipment |
Retrofit Planning for Existing Automation Systems
Successful integration of the 330101-00-64-10-12-05 into a running plant requires a structured pre-installation review. Begin by auditing the existing 3300 XL rack configuration: confirm the proximitor module type (typically a 330180 or 330100 series), verify the channel assignment in the System 1 or rack-mounted display, and document the current gap voltage reading at the affected measurement point. If the original sensor used a 330130-040-01-00 extension cable, inspect the cable for continuity and shield integrity before reuse — a degraded extension cable is a common source of noise after sensor replacement.
For installations where the 3300 XL rack interfaces with a DCS or safety system via a 3500/22M transient data interface or a 3500/42M proximitor monitor, confirm that the new sensor’s scale factor (typically 7.87 V/mm for 5mm sensors) matches the configured value in the monitor. Mismatched scale factors will produce incorrect vibration amplitude readings and may trigger spurious alarms or trips. If the plant uses a Bently Nevada 3500 Series rack alongside the 3300 XL system, cross-check the I/O mapping in the 3500 rack manager software before going live.
In control cabinets where the 330101-00-64-10-12-05 feeds into a PLC-based safety interlock — for example, a Rockwell Automation ControlLogix or Siemens S7-400 with analog input modules — verify that the analog input card’s voltage range is configured to accept the -2 to -18 VDC output. Some older analog input modules may require a signal conditioner or range converter. Document all terminal block assignments and update the as-built wiring diagram before energizing the new sensor loop. For systems using a Bently Nevada 3300/16 power supply module, confirm that the supply rail can support the additional sensor load without exceeding its rated output current.
Where the plant’s HMI displays vibration trend data sourced from the 3300 XL rack, coordinate with the controls engineer to verify that the tag name, engineering unit scaling, and alarm setpoints remain valid after sensor replacement. In most cases, no HMI screen changes are required if the replacement sensor is a direct model-for-model substitution. However, if the original sensor was a different tip diameter or cable length variant, re-validate the gap voltage at the HMI trend display after installation.
Downtime Control During System Migration
Minimizing unplanned downtime during proximity sensor replacement requires pre-staging all components before the maintenance window opens. Confirm that the 330101-00-64-10-12-05 has been bench-tested for output linearity and bias voltage prior to arrival on site. Prepare a spare 330130 extension cable, a calibrated gap voltage meter, and the OEM installation drawing for the specific measurement point. If the machine cannot be taken offline for sensor replacement, coordinate with the operations team to implement a temporary bypass in the monitoring rack — most 3300 XL monitors support a channel inhibit function that suppresses alarms without disabling the rack.
During the swap, record the final gap voltage reading with the new sensor installed and compare it against the OEM-specified linear range. Restore the channel from inhibit only after confirming that the gap voltage is within the acceptable window and that the vibration trend on the System 1 display or DCS historian is tracking correctly. For critical machinery where continuous monitoring is mandatory, consider installing a temporary portable vibration analyzer on the bearing housing during the sensor replacement interval to maintain measurement coverage. All replacement sensors shipped by SMARTNEXMSK are pre-tested and include a 12-month warranty from the date of shipment, reducing the risk of repeat downtime from early-life failures.
Retrofit Support FAQ
Q: Is the 330101-00-64-10-12-05 a direct replacement for the 330101-00-64-10-02-05?
A: The two part numbers differ in the connector and cable configuration suffix. Verify the connector type and cable length against your existing installation before ordering. In most 3300 XL applications, the -12- suffix denotes a specific cable jacket material suited for high-temperature environments. Contact our technical team with your existing part number for a confirmed cross-reference.
Q: Do I need to reconfigure the 3300 XL monitor after replacing the sensor?
A: If the replacement sensor is the same model with the same scale factor, no monitor reconfiguration is required. If the scale factor differs, update the configured value in the monitor’s channel setup and re-verify alarm setpoints. Always perform a static calibration check after installation.
Q: What wiring changes are needed when retrofitting from an older 3300/05 sensor?
A: The 330101-00-64-10-12-05 uses a standard coaxial BNC output compatible with 3300 XL proximitor inputs. If the existing field wiring uses a different connector, a BNC adapter or short pigtail may be required at the junction box. No changes to the monitor rack terminal blocks are typically needed.
Q: What does the 12-month warranty cover?
A: All units are covered for manufacturing defects and functional failures under normal operating conditions for 12 months from the date of shipment. Each sensor is tested for output linearity and bias voltage compliance before dispatch. Warranty claims are processed directly through SMARTNEXMSK with replacement or refund options.
