Bently Nevada 330101-00-71-05-01-05 Maintenance-Ready Spare for 3300 XL Automation

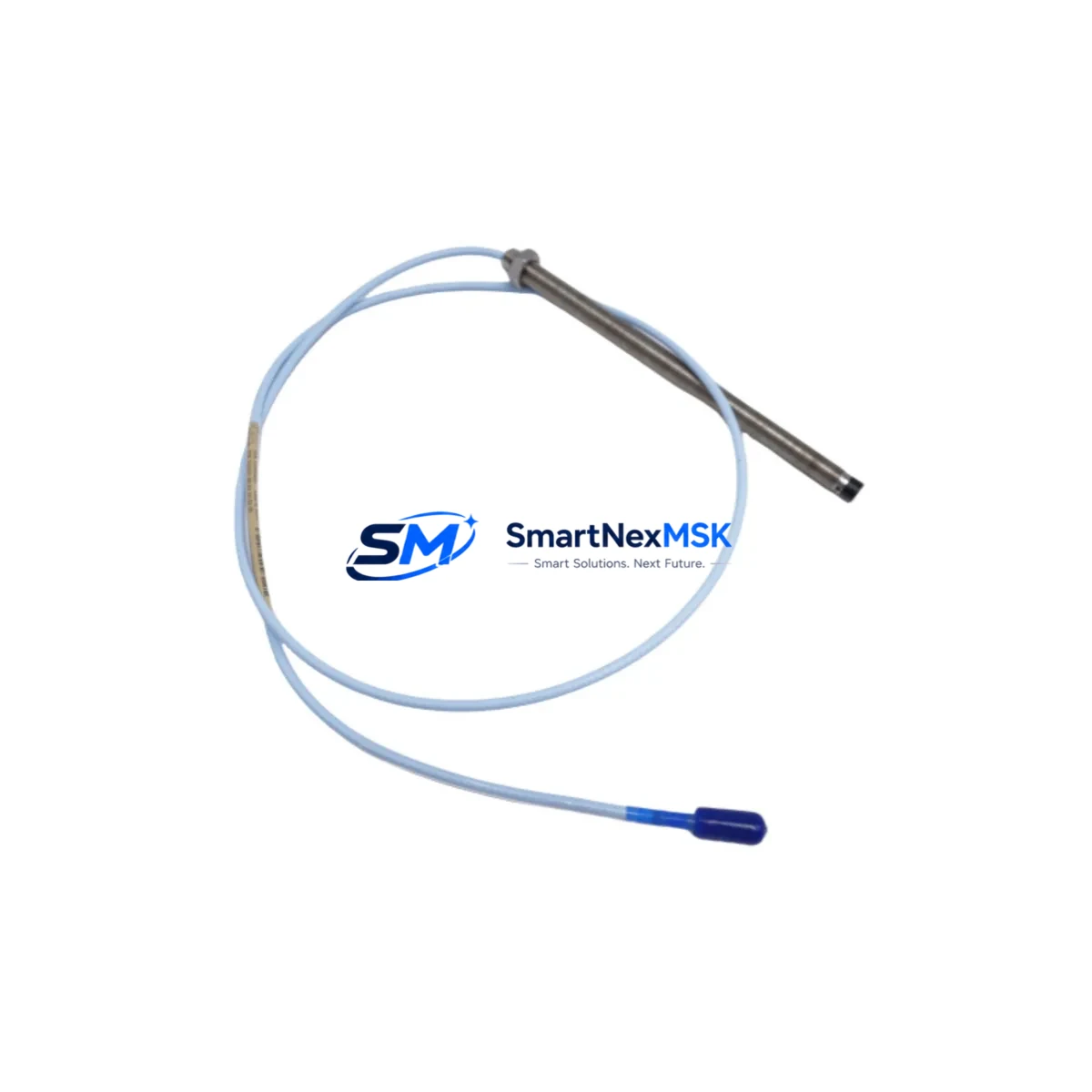

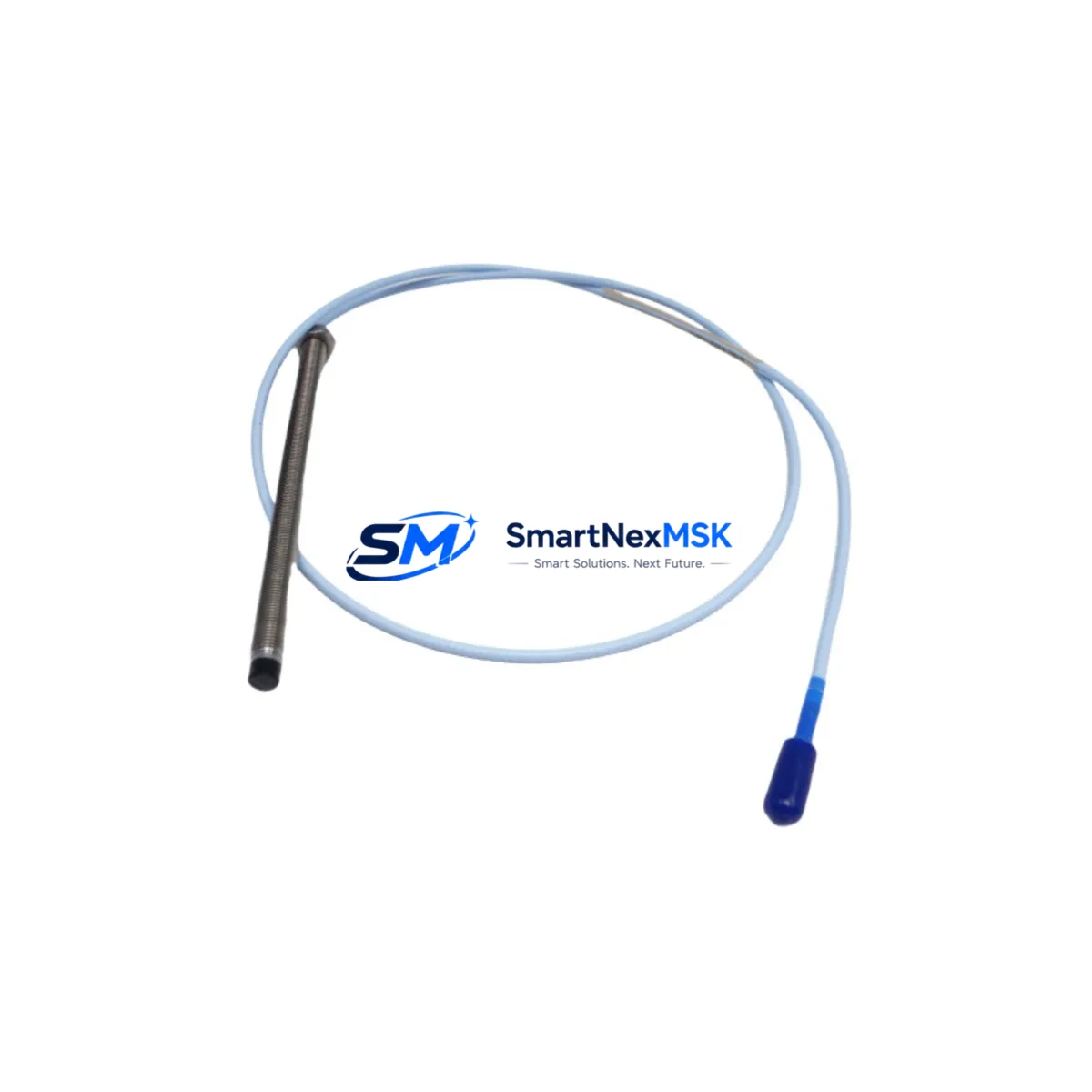

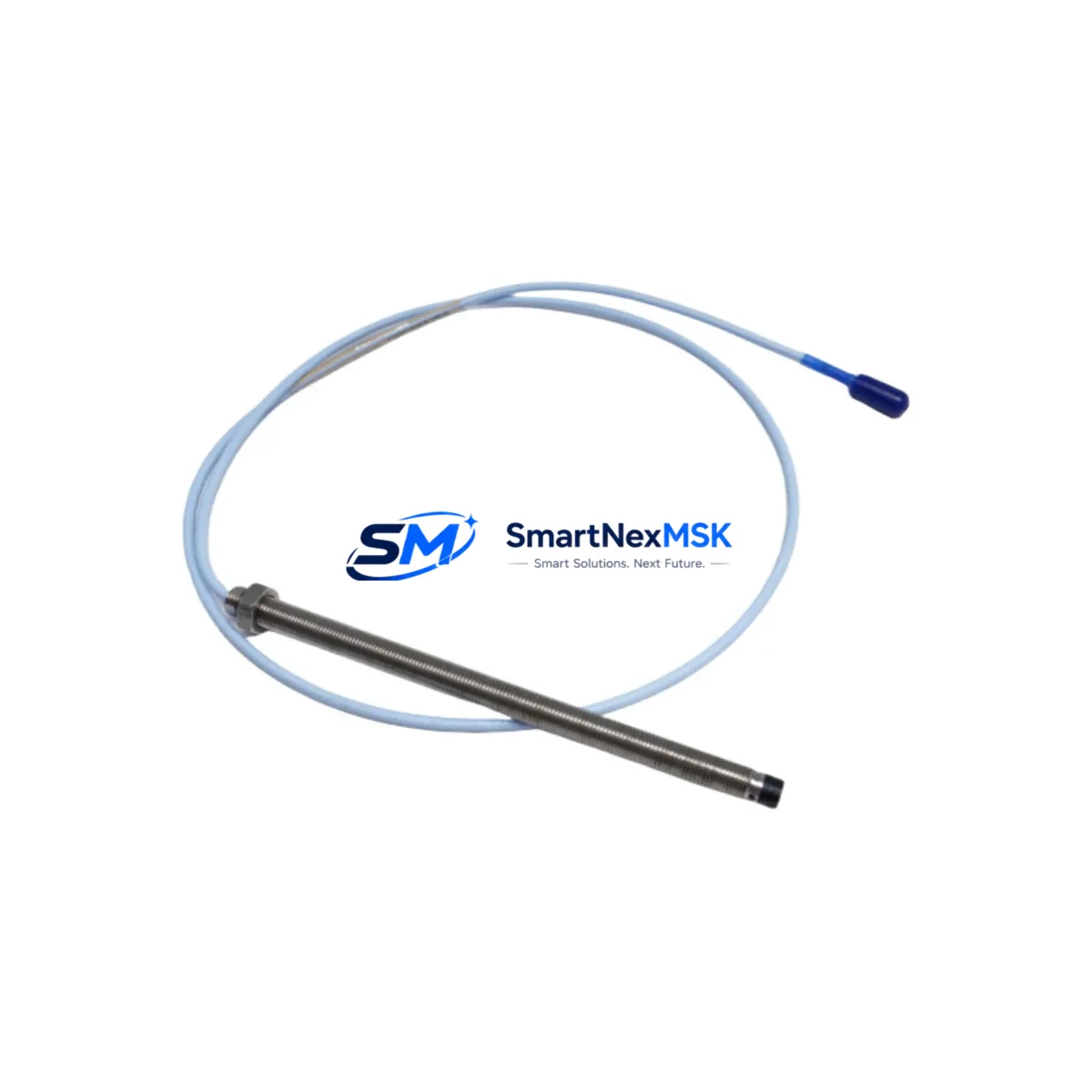

The Bently Nevada 330101-00-71-05-01-05 is an original proximity transducer engineered for the 3300 XL Series continuous vibration monitoring system. Designed for rotating machinery protection in power generation, oil & gas, petrochemical, and heavy industrial environments, this transducer delivers precise non-contact displacement measurement critical to turbine, compressor, and pump shaft monitoring. For maintenance engineers managing aging DCS or PLC-integrated monitoring architectures, having a verified, tested spare of this SKU on hand is the single most effective strategy to eliminate unplanned downtime caused by transducer degradation or cable fault.
Whether you are executing a planned turnaround, responding to a vibration alarm, or conducting a routine control cabinet inspection, the 330101-00-71-05-01-05 is a direct field replacement that preserves system calibration and signal integrity without requiring reconfiguration of the 3300 XL monitor rack. Its 5-metre armoured extension cable and standard 8 mm tip diameter ensure compatibility with existing probe holders and conduit runs, minimising installation time during emergency shutdowns.
Spare Maintenance Table
| Parameter | Specification |
|---|---|
| SKU / Part Number | 330101-00-71-05-01-05 |
| Brand | Bently Nevada |
| Series | 3300 XL |
| Product Type | Proximity Transducer (Eddy-Current) |
| Tip Diameter | 8 mm |
| Cable Length | 5 m (Extension Cable Included) |
| Sensitivity | 7.87 V/mm (200 mV/mil) |
| Linear Range | 0.25 – 2.54 mm (10 – 100 mil) |
| Supply Voltage | –24 VDC (nominal) |
| Operating Temperature | –35 °C to +177 °C |
| Compatibility | 3300 XL Monitor, 3300/16 Rack, 3500 Series (with driver) |
| Origin | United States |
| Installation | Direct probe-holder mount; standard conduit entry |
| Application Environment | Turbines, compressors, pumps, gearboxes — Class I Div 2 rated |
| Maintenance Recommendation | Replace at first sign of gap voltage drift (>±0.5 V from baseline) or cable insulation damage |
| Warranty | 12 Months from date of shipment |
Maintenance Planning for Continuous Operation
When a 330101-00-71-05-01-05 transducer is flagged during a vibration survey or gap voltage audit, experienced maintenance engineers know that the transducer itself is rarely the only component requiring attention. A thorough inspection of the associated signal chain and control cabinet is essential before returning the machine to service.
Begin by verifying the 3300 XL proximitor / driver module (typically a 330180 series driver) — gap voltage drift often originates at the driver rather than the probe tip. Inspect the 330130 extension cable for insulation cracking, connector corrosion, or continuity loss, particularly in high-temperature or high-vibration zones. Check the 3300/16 monitor card for alarm setpoint integrity and confirm that the OK relay output is functioning correctly.
At the rack level, audit the 3300 XL power supply module for stable –24 VDC output; a sagging supply rail is a common root cause of false OK trips across multiple channels simultaneously. If the machine is integrated into a Bently Nevada 3500 Series rack via a transient data interface, verify the TDI module firmware and channel mapping. For older installations using a 3300/55 dual-channel monitor, confirm that both channels share the same calibration revision to avoid asymmetric alarm thresholds.
On the I/O side, trace the 4–20 mA or voltage output wiring to the DCS analogue input card — terminal block corrosion and loose ferrules at the marshalling cabinet are frequent sources of intermittent signal loss. Where signal runs exceed 30 metres, inspect any installed signal isolators or barriers for correct loop impedance. If the plant uses a safety instrumented system (SIS) with a voted 2oo3 vibration trip, confirm that all three transducer channels are replaced or re-gapped simultaneously to maintain voting integrity.
Finally, update the CMMS spare parts record and reorder a replacement 330101-00-71-05-01-05 immediately after installation to restore buffer stock. Best practice for critical rotating machinery is to maintain a minimum of two transducer assemblies per monitored shaft, alongside one spare driver module and one spare extension cable set per machine train.
Site Replacement Workflow
Step 1 — Isolation & Permit: Obtain a hot-work or cold-work permit as applicable. De-energise the –24 VDC supply to the affected proximitor channel at the rack power distribution terminal. Do not remove the probe under live supply — eddy-current probes are not inherently safe under powered conditions in all zone classifications.
Step 2 — Gap Measurement & Documentation: Before removal, record the existing gap voltage (typically –10 V ± 0.5 V at nominal gap) from the monitor front panel or DCS historian. This baseline is required to validate the replacement installation.
Step 3 — Probe Removal: Loosen the probe lock nut and back the probe out of the holder. Inspect the probe tip for mechanical damage, shaft contact marks, or contamination. Inspect the probe holder bore for wear or eccentricity.
Step 4 — New Probe Installation: Thread the 330101-00-71-05-01-05 into the holder and set the gap to the documented baseline (typically 1.0–1.5 mm / 40–60 mil for most shaft diameters). Torque the lock nut to specification. Route the extension cable clear of heat sources and vibrating structures.
Step 5 — Re-energise & Verify: Restore –24 VDC supply. Confirm gap voltage at the monitor is within ±0.25 V of the pre-removal baseline. Verify OK LED status and confirm no alarms are active. Log the replacement in the CMMS with the new serial number and installation date.
Step 6 — Functional Test: Where possible, perform a static calibration check using a calibrated gap tool or feeler gauge set. Confirm that the monitor channel responds correctly to simulated gap changes before releasing the machine to operations.
This workflow is compatible with direct replacement of legacy 330101-00-xx-xx-xx variants within the 3300 XL family, reducing re-engineering time and preserving existing cable routing and conduit infrastructure.
Spare Parts Support FAQ
Q1: Is the 330101-00-71-05-01-05 compatible with both the 3300 XL and 3500 Series monitor racks?
The 330101-00-71-05-01-05 is natively designed for the 3300 XL monitor system. It can be used with the 3500 Series rack when paired with the appropriate 3500/42 or 3500/45 monitor module and a compatible driver. Always verify the driver part number and sensitivity setting before cross-series installation.
Q2: What is the recommended spare parts inventory strategy for this transducer?
For critical rotating machinery (turbines, compressors), maintain a minimum of two 330101-00-71-05-01-05 assemblies per machine train in bonded warehouse stock. Pair each transducer spare with one 330130 extension cable and one 330180 driver module. Review stock levels at each planned turnaround and reorder immediately after any unplanned replacement.
Q3: How is each unit tested before shipment?
Every 330101-00-71-05-01-05 unit supplied by SMARTNEXMSK undergoes pre-shipment functional verification including gap voltage output check, cable continuity and insulation resistance test, and connector integrity inspection. Units are shipped with a test report and are covered by a 12-month warranty from the date of shipment.
Q4: Can this transducer replace older 330101 variants with different suffix codes?
The suffix codes in the 330101 part number encode cable length, connector type, and temperature rating. The -00-71-05-01-05 variant (5 m cable, standard connector, standard temperature) is directly interchangeable with other -05 cable-length variants in the same installation class. For variants with different cable lengths or high-temperature ratings, confirm compatibility with the existing extension cable and driver before installation. SMARTNEXMSK technical support can assist with cross-reference validation prior to order.
