Bently Nevada 330101-00-71-10-02-05 3300 XL Spare: Precision Replacement for Industrial Vibration Monitoring

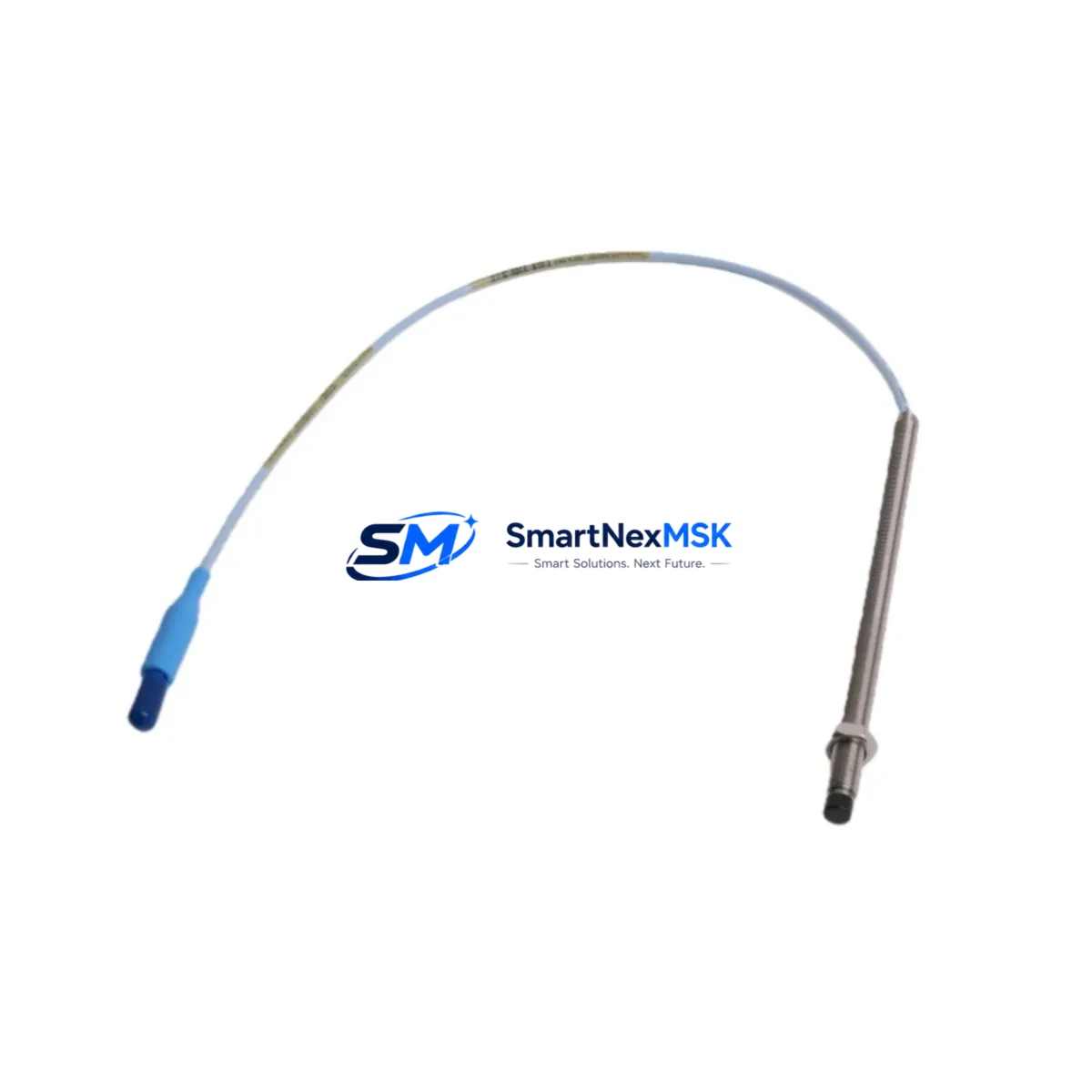

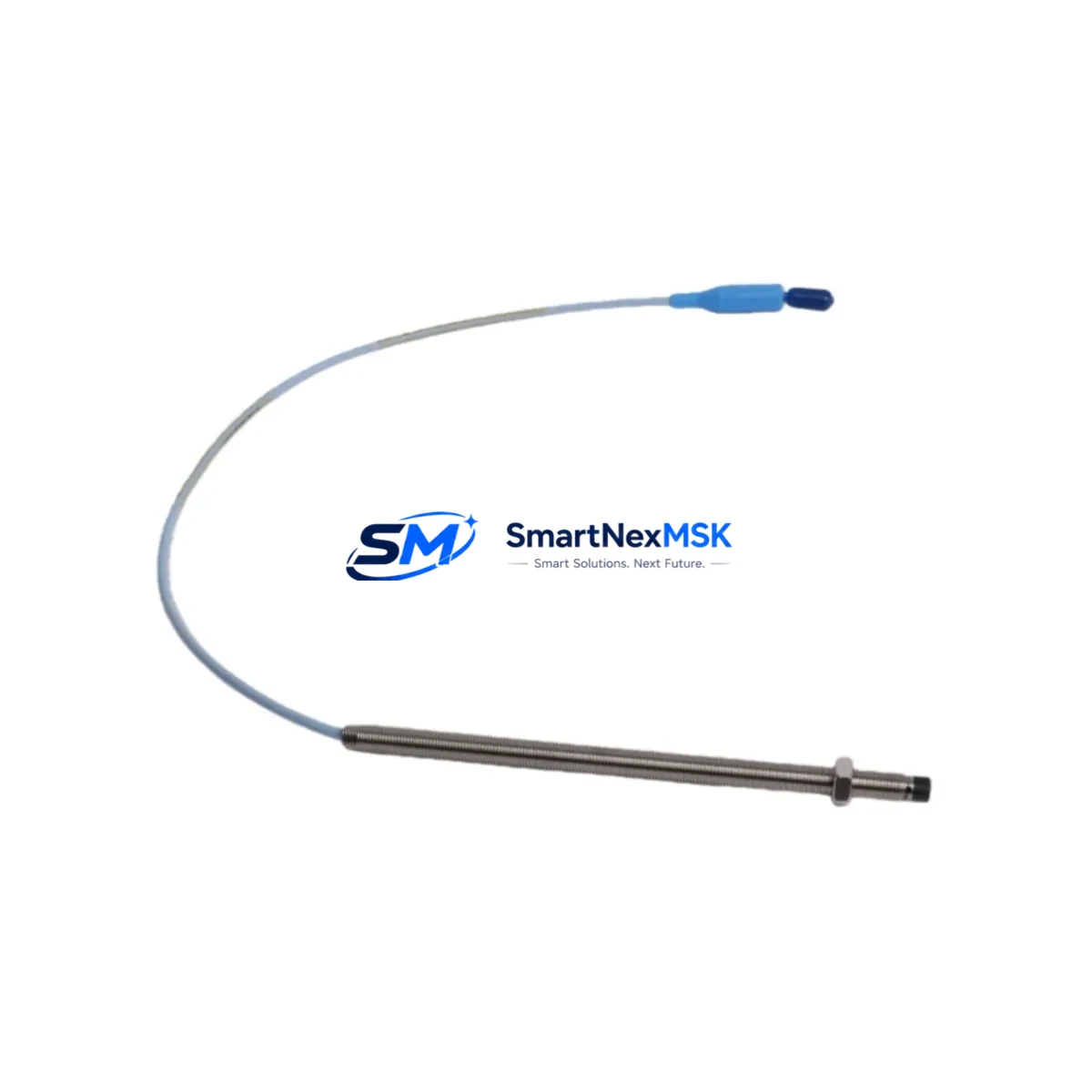

The Bently Nevada 330101-00-71-10-02-05 is an original 8mm eddy current proximity probe engineered for the 3300 XL Proximitor System — one of the most widely deployed vibration and position monitoring platforms in rotating machinery applications. For maintenance engineers managing turbines, compressors, pumps, and generators, this probe is a critical front-line component in continuous condition monitoring. When a probe fails or degrades, the entire vibration channel goes offline, triggering alarms, forcing manual inspection, and — in worst-case scenarios — causing unplanned shutdowns that cost thousands of dollars per hour.

Stocking a verified original spare of the 330101-00-71-10-02-05 is not optional for facilities running 3300 XL-based protection systems. It is a fundamental element of any responsible predictive maintenance (PdM) or reliability-centered maintenance (RCM) program. This listing provides a factory-specification replacement with full compatibility confirmation, pre-shipment functional testing, and a 12-month warranty — ensuring your team can restore vibration monitoring within hours, not days.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330101-00-71-10-02-05 probe in the field is rarely an isolated task. Experienced maintenance engineers know that a probe failure often signals broader wear or environmental stress across the entire measurement chain. Before returning the vibration channel to service, a thorough inspection of the connected components is essential to prevent repeat failures and ensure measurement accuracy.

Start with the 330130 series extension cable — the coaxial cable linking the probe to the Proximitor. Inspect for jacket cracking, connector corrosion, and continuity. A degraded extension cable will produce erratic gap voltage readings even with a new probe installed. Next, verify the 330180 series 3300 XL 8mm Proximitor module itself: check the output voltage at the recommended gap (typically –10.0 VDC ± 0.5 V) and confirm the module’s LED status indicators are normal.

At the panel level, inspect the 3300/16 or 3300/20 monitor module receiving the Proximitor signal. Loose terminal connections, oxidized contacts, or firmware drift can cause false alarms even after a probe replacement. If the machine has been running in a high-temperature or high-vibration environment, also check the 3300 XL rack power supply — typically a 24 VDC supply module — for output stability and ripple.

For facilities using the System 1 condition monitoring software, recalibrate the channel after probe replacement and verify that the new probe’s scale factor is correctly entered. Mismatched scale factors are a common source of post-maintenance alarm nuisance. If the machine uses a Keyphasor transducer (such as the 330980 series) for phase reference, inspect it simultaneously — Keyphasor signal loss will affect all dynamic measurements on that shaft.

In control cabinets housing multiple 3300 XL racks, also inspect terminal blocks and DIN rail connections for tightness and corrosion, particularly in humid or chemically aggressive environments. Signal isolation barriers or galvanic isolators in the measurement loop should be tested for proper isolation resistance. If the facility uses a DCS or safety PLC receiving 4–20 mA or relay outputs from the 3300 XL monitor, verify that the output signals are within expected range after the probe is replaced and the channel is re-gapped.

Procurement engineers should note that the 330101-00-71-10-02-05 is part of a matched system: probe, extension cable, and Proximitor must be ordered and stored as a set to ensure interchangeability during emergency shutdowns. Maintaining at least one complete spare set per critical machine train is the industry-standard recommendation for API 670-compliant installations.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. De-energize the Proximitor supply and confirm zero voltage at the probe connector before disconnecting.

Step 2 — Remove the Old Probe: Unscrew the probe from the bracket using the M10 thread. Note the installed gap distance (typically measured with a feeler gauge or by recording the gap voltage before removal).

Step 3 — Inspect the Probe Mount: Check the probe bracket, lock nut, and target surface for wear, runout, or contamination. A damaged target surface will invalidate the new probe’s calibration.

Step 4 — Install the 330101-00-71-10-02-05: Thread the new probe into the bracket. Set the gap to the manufacturer-specified distance (typically 1.0 mm for radial vibration applications). Secure the lock nut to the specified torque.

Step 5 — Reconnect and Verify: Reconnect the extension cable. Power up the Proximitor and measure the gap voltage at the monitor or at the Proximitor output connector. Confirm the reading is within the linear range (–10.0 VDC ± 0.5 V at nominal gap).

Step 6 — System Confirmation: Clear alarms in the 3300 XL monitor and System 1 software. Perform a slow-roll check if the machine can be safely rotated. Confirm vibration readings are stable and within baseline before returning the machine to full load.

This workflow minimizes downtime and ensures the replacement probe is correctly commissioned — reducing the risk of a second unplanned outage caused by installation error.

Spare Parts Support FAQ

Q1: Is the 330101-00-71-10-02-05 compatible with all 3300 XL Proximitor modules?
Yes. The 330101-00-71-10-02-05 is designed for use with the 3300 XL 8mm Proximitor (330180 series) and the corresponding 330130 series extension cables. It is not interchangeable with 5mm or 14mm probe systems. Always confirm the Proximitor model number before ordering.

Q2: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. Each unit is tested for output voltage and linearity before shipment. Warranty claims require the original order reference and a description of the failure mode.

Q3: Can this probe replace legacy Bently Nevada 330101 variants with different suffix codes?
Suffix codes encode cable length, connector type, and temperature rating. The -00-71-10-02-05 suffix specifies a 1.0 m integral cable, standard connector, and extended temperature rating. Substitution with a different suffix is possible in some cases but must be verified against the Proximitor system documentation and site installation drawings before installation.

Q4: What is the recommended spare parts inventory strategy for 3300 XL probe systems?
For API 670-compliant installations, maintain a minimum of one complete matched set (probe + extension cable + Proximitor) per critical machine train. For facilities with 10 or more monitored machines, a pooled inventory of 3–5 probe sets is recommended. Rotate stock annually and inspect stored probes for connector oxidation and cable jacket integrity before deployment.
