Bently Nevada 330101-00-96-20-02-CN 3300 XL Retrofit Probe

Bently Nevada 330101-00-96-20-02-CN 3300 XL Retrofit Probe: Compatible Modernization & Smooth Legacy System Upgrade

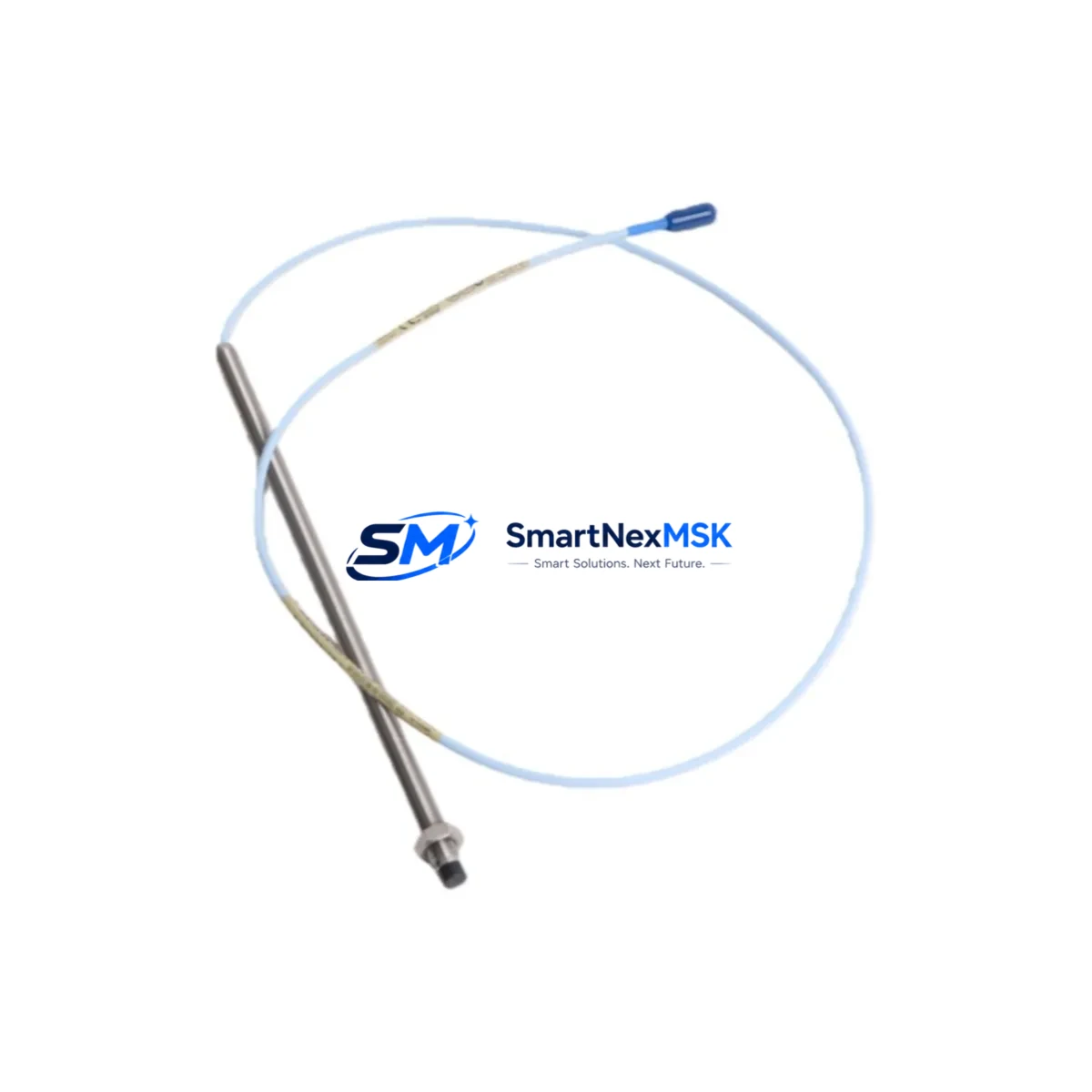

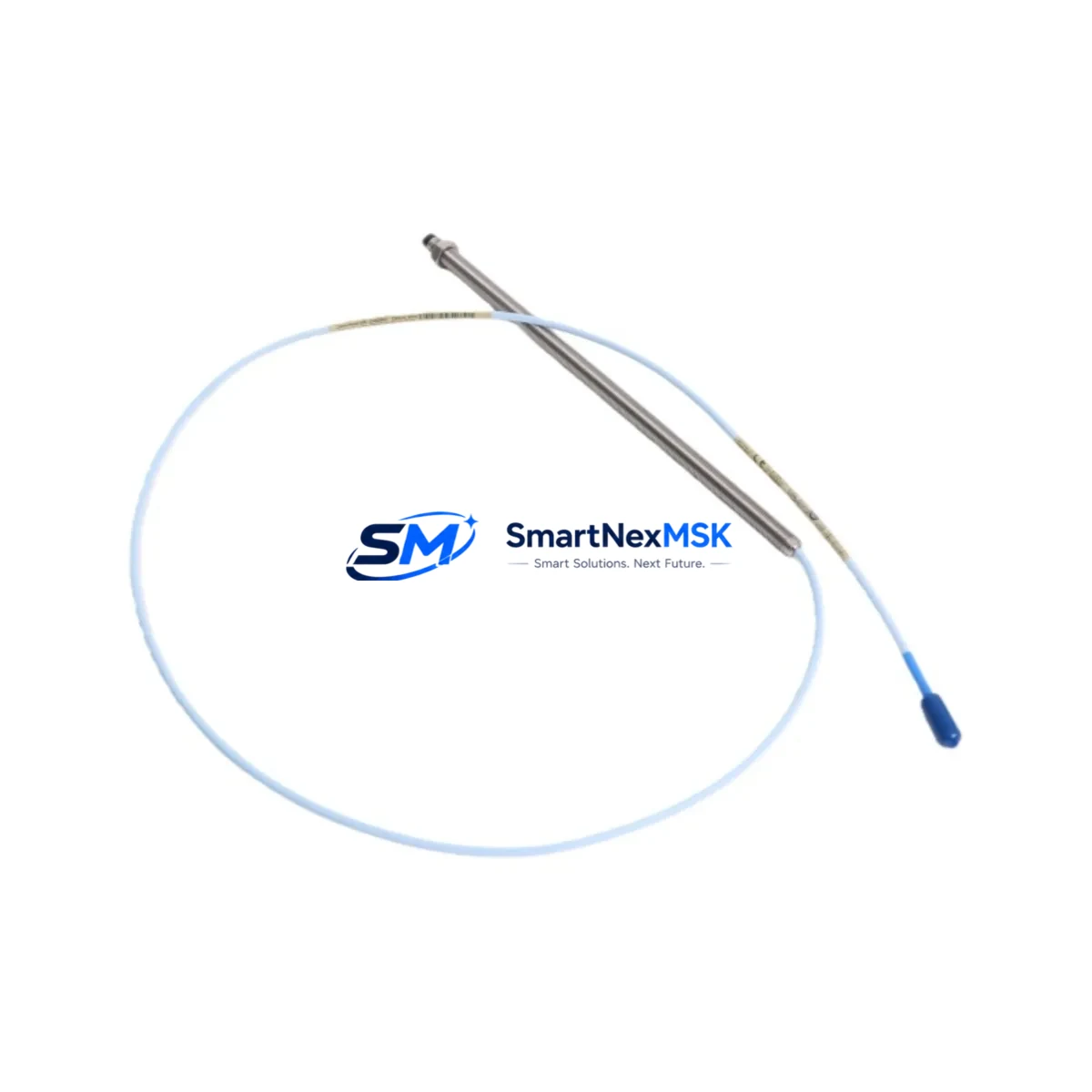

The Bently Nevada 330101-00-96-20-02-CN is an 8mm CNEX-rated eddy current proximity probe engineered for the 3300 XL Series machinery protection system. As original 3300 XL installations age and OEM spare parts become increasingly difficult to source, this probe serves as a verified retrofit-ready replacement for facilities managing turbine, compressor, pump, and generator monitoring systems. Whether you are replacing a failed probe in an emergency shutdown scenario or executing a planned upgrade of an aging vibration monitoring loop, the 330101-00-96-20-02-CN delivers the dimensional accuracy, sensitivity, and signal integrity required for seamless integration into existing 3300 XL monitor racks.

This probe interfaces directly with the Bently Nevada 3300 XL proximitor/extension cable system, including the 330130 series extension cables and 330180 series proximitor sensors. The 3300 XL architecture relies on a matched probe-cable-proximitor set, and the 330101-00-96-20-02-CN is factory-calibrated to maintain the correct gap voltage output — typically –10 VDC at 2.0 mm gap — required by downstream 3300/16 or 3300/20 monitor modules housed in the 3300 rack system. Customers replacing probes in existing installations should verify that the replacement probe, extension cable, and proximitor are all matched to the same series to avoid calibration drift or false alarm conditions.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the 330101-00-96-20-02-CN into an operating machinery protection system requires careful pre-installation planning. Before removing the failed or end-of-life probe, maintenance engineers should document the existing gap voltage reading at the monitor channel input — typically recorded via the front-panel meter of the 3300/16 Dual Vibration Monitor or the 3300/20 Radial Vibration Monitor. This baseline reading allows technicians to verify that the replacement probe achieves the same gap voltage after installation, confirming correct probe-to-shaft clearance and eliminating the risk of nuisance trips after the swap.

The 3300 XL system uses a three-component measurement chain: the proximity probe, the extension cable, and the proximitor. When replacing only the probe, the existing 330130 extension cable must be inspected for connector corrosion, jacket damage, and continuity before reuse. If the extension cable shows degradation, it is advisable to replace it simultaneously with the probe to avoid introducing a new failure point into the repaired loop. Similarly, the 330180 proximitor sensor should be bench-tested for correct output voltage before the system is returned to service. A proximitor that has been exposed to moisture ingress or vibration fatigue may produce erratic output even when paired with a new probe.

For facilities upgrading from older Bently Nevada 7200 Series or legacy 3300 (non-XL) Series probes, the 330101-00-96-20-02-CN is not a direct drop-in without additional verification. The 7200 Series uses a different sensitivity specification (200 mV/mil vs. 100 mV/mil for 3300 XL), and the monitor channel sensitivity setting must be reconfigured in the 3300 rack system if migrating between series. In such cases, the associated 3300/55 Keyphasor Module and any 3500/42M Proximitor I/O Module — if the facility is partially migrated to the 3500 platform — must also be reviewed for compatibility before the new probe is energized.

Wiring termination at the junction box and monitor rack should follow the original Bently Nevada field wiring diagram. The probe cable shield must be grounded at one end only — typically at the proximitor housing — to prevent ground loop interference that can mask real vibration signals or generate false alarms. Technicians should also confirm that the 3300 rack power supply module provides stable –24 VDC bias voltage to the proximitor before energizing the measurement loop. An unstable bias supply is a common root cause of erratic vibration readings after probe replacement and is frequently overlooked during post-installation troubleshooting.

If the facility uses System 1 Condition Monitoring Software for asset health trending, the probe replacement should be logged in the asset database with the new serial number and installation date. This ensures trend data continuity and prevents alarm setpoints from being inadvertently reset during the configuration update. For sites using third-party DCS integration via Modbus RTU or FOUNDATION Fieldbus through a 3500/92 Communication Gateway, no protocol reconfiguration is required when replacing a probe within the same 3300 XL series — the gateway configuration and tag mapping remain unchanged.

Downtime Control During System Migration

Minimizing unplanned downtime during probe replacement is a primary concern for rotating equipment engineers. The 330101-00-96-20-02-CN is stocked and available for prompt dispatch, reducing the lead time risk that is common with OEM procurement channels for legacy Bently Nevada components. For critical machinery such as steam turbines, gas compressors, or boiler feed pumps, a pre-staged spare probe stored in the control room or maintenance workshop eliminates the procurement delay entirely and allows the maintenance team to execute the swap within a single planned maintenance window.

During the physical swap, the monitor channel associated with the failed probe should be placed in bypass mode using the front-panel bypass switch on the 3300/16 or 3300/20 monitor before disconnecting the probe cable. This prevents a spurious trip signal from propagating to the machinery protection relay output and causing an unintended machine shutdown. The bypass condition must be logged in the site permit-to-work system and communicated to the control room operator before work begins. For sites with a 3300/25 Overspeed Detection Module in the same rack, confirm that the bypass of the vibration channel does not affect the overspeed protection logic before proceeding.

After installing the replacement probe and reconnecting the extension cable and proximitor, the gap voltage should be set to the target value — typically –10.0 VDC ± 0.5 VDC for an 8mm probe at 2.0 mm gap — using a non-metallic gap-setting tool. The monitor channel should then be taken out of bypass and the vibration reading verified against the adjacent channel or a portable vibration analyzer to confirm signal plausibility before the bypass is removed. This two-step verification process protects against returning a misconfigured channel to service and is consistent with Bently Nevada commissioning best practices. All commissioning readings should be recorded in the site maintenance log to support future trend analysis in System 1 or equivalent condition monitoring platforms.

For facilities with redundant probe installations — X-Y probe pairs monitoring radial vibration on both axes — the replacement can often be performed on one axis while the machine remains in service, provided the protection system is configured to tolerate a single-channel bypass without reducing the overall protection level below the site’s minimum acceptable standard. This approach eliminates the need for a full machine shutdown and is the preferred strategy for high-availability rotating equipment in continuous process industries.

Retrofit Support FAQ

Q1: Is the 330101-00-96-20-02-CN a direct replacement for the standard 330101-00-96-20-02 (non-CN) probe?
The CN suffix designates CNEX hazardous area certification for the Chinese market. The mechanical dimensions, sensitivity, and electrical interface are identical to the non-CN variant. For installations outside China, confirm that CNEX certification is accepted by the local regulatory authority before installation. In most cases, the probe can be used as a functional replacement pending formal certification review, and our technical team can provide the relevant certification documentation upon request.

Q2: What pre-shipment testing is performed on this probe?
Each unit undergoes output voltage linearity testing across the full measurement range before dispatch. Gap voltage at the nominal 2.0 mm setpoint is verified against the 3300 XL calibration standard. A test certificate is available upon request. The probe is shipped in anti-static packaging with connector caps installed to protect the cable termination from transit damage. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can this probe be used with a Bently Nevada 3500 Series monitor rack?
The 330101-00-96-20-02-CN is designed for the 3300 XL system. It can be used with a 3500 Series rack only if the associated 3500/42M Proximitor I/O Module is configured for 3300 XL probe compatibility mode. Consult the 3500/42M configuration manual and verify the probe type selection in the rack configuration software before installation. If you are migrating from a 3300 XL rack to a full 3500 platform, contact our technical team for a migration checklist covering I/O mapping, alarm setpoint transfer, and HMI screen updates.

Q4: What does the 12-month warranty cover, and how are claims processed?
The 12-month warranty covers manufacturing defects, signal output non-conformance, and connector integrity failures under normal operating conditions. It does not cover damage resulting from incorrect installation, gap voltage misconfiguration, mechanical impact, or exposure to conditions outside the probe’s rated environmental specification. Warranty claims are processed within 5 business days of receipt of the returned unit, and a replacement unit is dispatched upon confirmation of the defect. Contact our team at sales@smartnexmsk.com to initiate a warranty claim.
