Bently Nevada 330101-02-12-15-02-00 Retrofit-Ready 8mm Proximity Probe for 3300 XL

Bently Nevada 330101-02-12-15-02-00 Retrofit-Ready 8mm Proximity Probe for 3300 XL Control Systems

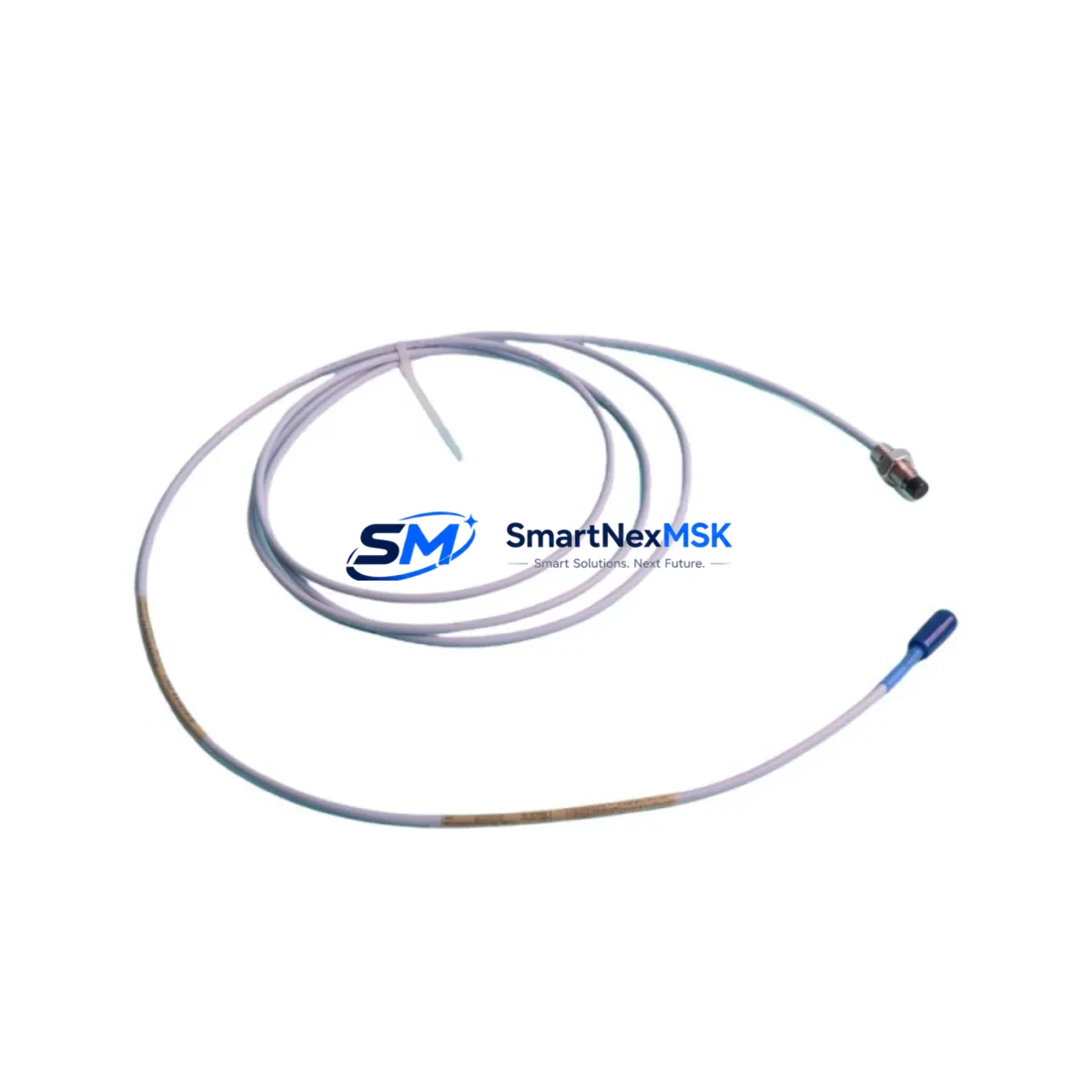

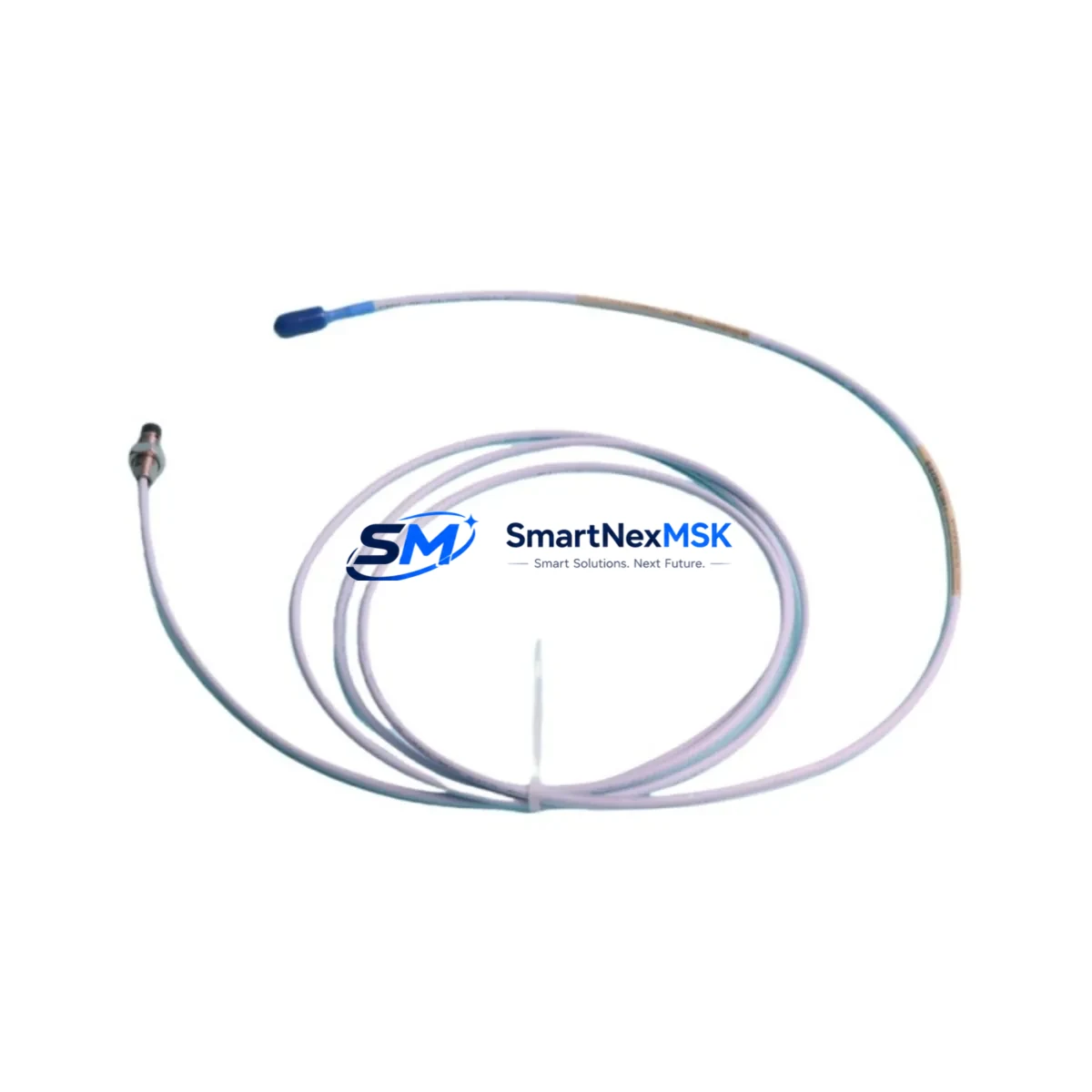

The Bently Nevada 330101-02-12-15-02-00 is an 8mm eddy-current proximity probe engineered for continuous shaft vibration and position monitoring in rotating machinery. As legacy 3300 XL monitoring systems approach end-of-support milestones, this probe remains one of the most frequently specified components in retrofit, upgrade, and emergency replacement projects across turbine, compressor, pump, and motor-driven train applications. SMARTNEXMSK maintains verified stock of the 330101-02-12-15-02-00 with full functional testing, a 12-month warranty, and rapid global dispatch to minimize unplanned downtime.

Whether you are executing a planned control system modernization or responding to an urgent field failure, the 330101-02-12-15-02-00 integrates directly into existing 3300 XL monitor racks without requiring firmware changes or re-ranging of the monitor card. Its 5-metre integral cable and standard TNC connector are dimensionally and electrically compatible with the 3300 XL proximitor/extension cable assemblies already installed in most control cabinets, making it the preferred choice for maintenance teams that need to restore machine protection coverage quickly and confidently.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful 3300 XL probe replacement begins well before the maintenance window opens. Field engineers should first audit the existing proximitor — typically a 330180-X1-05 or 330180-X1-10 unit — to confirm it is within calibration and that its output voltage at the nominal air gap falls within the –10 VDC to –18 VDC linear range. If the proximitor itself shows drift or housing damage, replacing it alongside the 330101-02-12-15-02-00 probe eliminates a second unplanned outage.

Extension cable integrity is the next checkpoint. The 330130-045-00-00 armoured extension cable is the standard 4.5-metre companion for this probe family; inspect the TNC connectors at both ends for corrosion or mechanical damage before reusing them. In high-vibration environments, cable clamp spacing should be verified against the 3300 XL installation manual to prevent fatigue cracking at the probe body junction.

Inside the control cabinet, the 3300/16 or 3300/20 monitor card should be inspected for alarm relay contact wear and channel configuration. If the plant is simultaneously upgrading from a 3300 XL rack to a System 1 Evolution platform or a third-party condition monitoring solution, the analogue 4–20 mA or voltage outputs from the existing monitor cards can often be retained as interim signals during the transition, preserving HMI display continuity on the DCS or SCADA layer without requiring immediate changes to the operator graphics.

For plants running a Bently Nevada 3500 series rack in parallel with legacy 3300 XL hardware, the 330101-02-12-15-02-00 probe is also compatible with 3500/42M and 3500/45 monitor modules when used with the appropriate 3500 series proximitor, making it a versatile stock item that bridges both generations of the platform. Maintenance planners should also account for the 3300 XL power supply module — typically a 3300/05 or 3300/10 unit — and verify that the rack’s DC bus voltage is stable before energising a newly installed probe channel, as supply ripple can cause false OK relay dropout during commissioning.

Where the retrofit scope extends to I/O expansion — for example, adding radial vibration channels to a previously unmonitored bearing — the 3300/16 monitor card’s spare channel capacity should be mapped before ordering additional probe assemblies. In multi-train installations, the Keyphasor signal from a 330980 or 330905 Keyphasor probe must remain phase-coherent with all radial and axial channels; confirm Keyphasor cable routing and proximitor power sharing before closing the cabinet.

Downtime Control During System Migration

Minimising production loss during a probe replacement or partial rack upgrade requires a structured pre-outage preparation protocol. Before the machine is taken offline, download and archive the current 3300 XL monitor configuration using the System 1 software or the rack’s front-panel display, capturing all alarm setpoints, time delays, and relay assignments. This configuration file becomes the baseline for post-installation verification and protects against accidental setpoint loss if a monitor card is swapped during the same window.

During the outage, follow a parallel-commissioning sequence: install the 330101-02-12-15-02-00 probe and set the mechanical air gap to the OEM-specified nominal value (typically 1.0 mm for 8mm probes on AISI 4140 targets), then measure the proximitor output voltage with a calibrated multimeter before connecting to the monitor card. This step isolates probe and proximitor performance from the monitor card and prevents a wiring fault from masking a hardware defect. Once the gap voltage is confirmed, connect to the monitor card, verify the channel OK LED, and confirm that the dynamic vibration reading is within expected baseline limits before releasing the machine to operations.

For facilities with redundant machine trains, a rolling replacement strategy — replacing one train while the parallel train carries load — eliminates production impact entirely. SMARTNEXMSK can pre-stage kitted replacement sets including the 330101-02-12-15-02-00 probe, extension cable, and proximitor to a single part number for simplified stores management and faster kitting at the point of use.

Retrofit Support FAQ

Q1: Is the 330101-02-12-15-02-00 a direct drop-in replacement for earlier 330101 series probes?
Yes. The 330101-02-12-15-02-00 is dimensionally and electrically compatible with earlier 330101 variants used in 3300 XL 8mm systems. The suffix digits encode cable length, connector type, and temperature rating; confirm your existing suffix against the 3300 XL probe selection guide to ensure the replacement matches your installation environment. No monitor card re-ranging is required for like-for-like suffix substitution.

Q2: What commissioning checks are required after installation?
After mechanical installation and gap setting, measure the proximitor DC output voltage (target: –10 VDC to –18 VDC at nominal gap), confirm the monitor channel OK relay is energised, verify that the vibration reading is within the machine’s normal baseline band, and check that all alarm and danger relay assignments match the archived configuration. Document the as-found gap voltage and as-left gap voltage in the maintenance record.

Q3: Can this probe be used with a Bently Nevada 3500 series rack?
Yes, with the correct 3500 series proximitor. The 330101-02-12-15-02-00 probe is compatible with 3500/42M and 3500/45 monitor modules when paired with a 3500-series 8mm proximitor. Confirm the proximitor part number and scale factor setting on the 3500 monitor card before commissioning.

Q4: What does the 12-month warranty cover, and is a test report included?
The 12-month warranty covers manufacturing defects and functional performance to OEM specification. Every unit shipped by SMARTNEXMSK includes a pre-shipment functional test report confirming gap voltage linearity and cable continuity. Warranty claims are processed within 5 business days of receipt of the returned unit.
