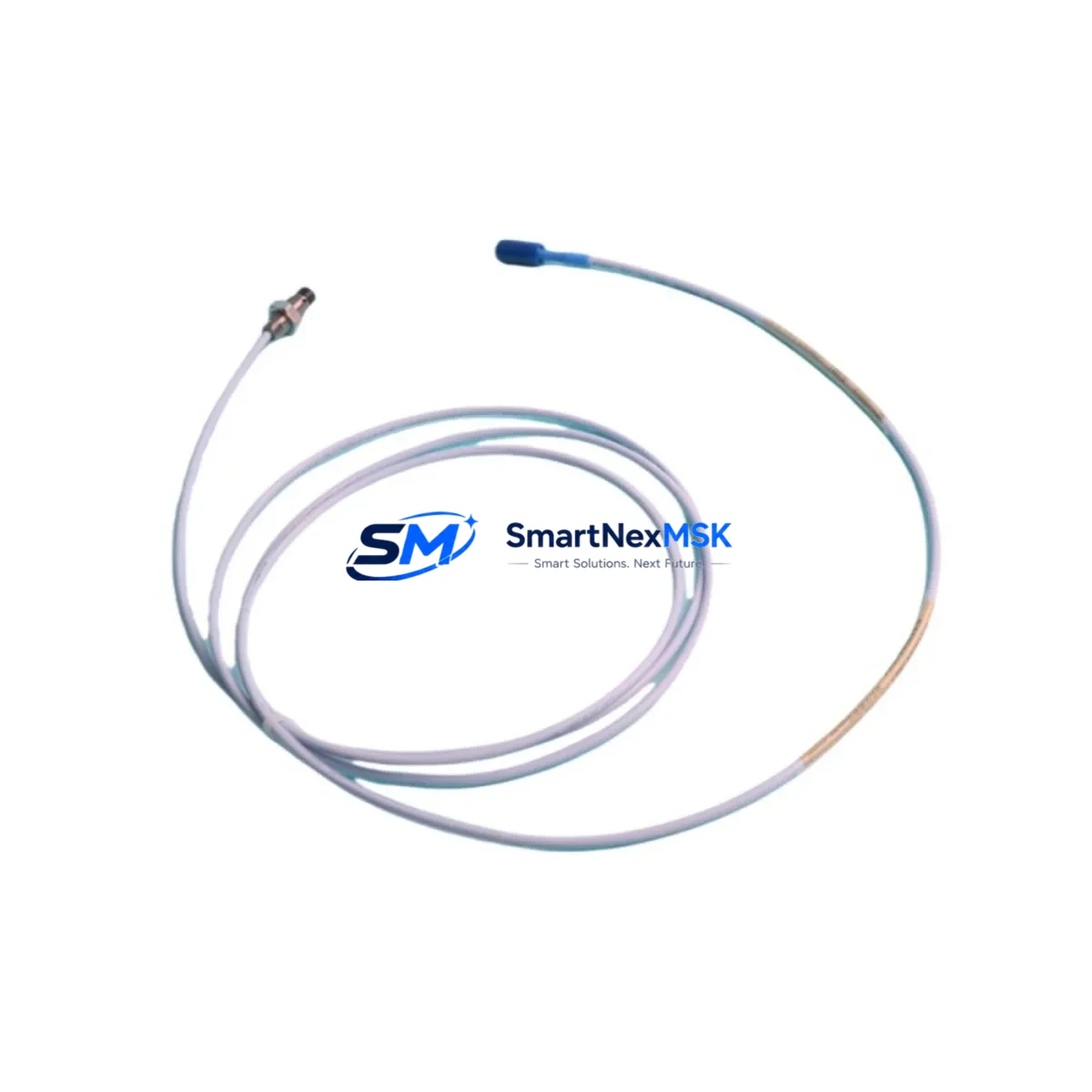

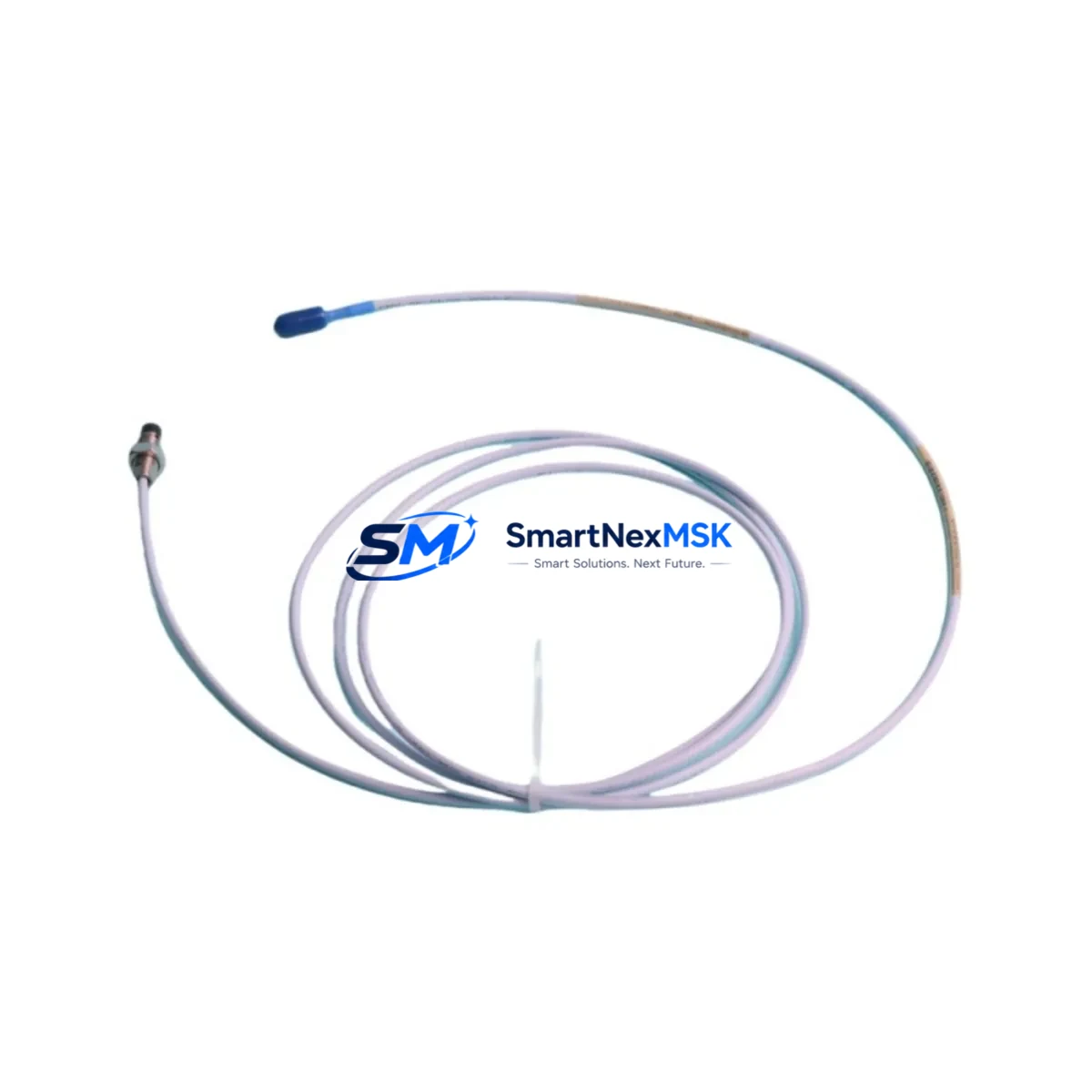

Bently Nevada 330101-08-20-10-02-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems
The Bently Nevada 330101-08-20-10-02-00 is an 8mm eddy-current proximity probe engineered for continuous shaft vibration and position monitoring in rotating machinery. As legacy 3300 XL Series installations age and original spare inventories deplete, this retrofit-ready replacement provides a verified drop-in solution that preserves existing wiring, connector pinouts, and system calibration — eliminating the need for panel redesign or software reconfiguration during planned or emergency maintenance windows.
Designed for direct compatibility with the Bently Nevada 3300 XL proximitor/driver system, the 330101-08-20-10-02-00 maintains the standard -24 VDC supply requirement and delivers the nominal scale factor of 200 mV/mil (7.87 V/mm) expected by downstream monitors. Engineers replacing worn or damaged probes on turbines, compressors, pumps, and gearboxes can install this unit without modifying the 3300 XL monitor rack, reconfiguring channel parameters, or re-entering alarm setpoints — a critical advantage when minimizing unplanned downtime is the primary objective.
When planning a retrofit or upgrade around this probe, the surrounding system architecture must be carefully evaluated. The probe connects to a matching Bently Nevada 3300 XL 8mm Proximitor Sensor (driver), which conditions the raw eddy-current signal before it reaches the monitor. Verifying that the installed proximitor driver is rated for the correct probe series and cable length is the first step in any replacement workflow. Cable extension assemblies — typically the Bently Nevada 330130 series armored extension cables — must also be inspected for continuity and insulation integrity, as degraded cable shielding is a common source of noise that can mask genuine vibration readings after a probe swap.
At the monitor level, the 3300 XL Dual Voting Machine (DVM) or standard vibration monitor card must be confirmed compatible with the probe’s output range. If the existing rack includes a Bently Nevada 3500/42M Proximitor/Seismic Monitor or a 3500/40M Proximitor Monitor, the channel configuration file should be reviewed to ensure the scale factor and OK limit voltage windows match the replacement probe’s specifications. Mismatched OK limits are a frequent cause of nuisance trips immediately following a probe replacement, and correcting them requires access to the Bently Nevada System 1 configuration software or the rack’s front-panel keypad interface.
For facilities undertaking a broader control system modernization — migrating from a legacy 3300 XL rack to a current-generation Bently Nevada 3500 Series rack — the 330101-08-20-10-02-00 remains compatible with 3500-series proximitor drivers, provided the correct driver module is selected. This cross-series compatibility simplifies phased upgrades where field wiring and probe installations are retained while the monitor rack is replaced. In such projects, the Bently Nevada 3500/20 Rack Interface Module and 3500/22M Transient Data Interface are typically added to the new rack to restore System 1 connectivity and historical data capture.
Terminal wiring for the 330101-08-20-10-02-00 follows the standard Bently Nevada three-conductor arrangement: power, signal (output), and shield/common. Before disconnecting the existing probe, technicians should document the terminal block assignments on the proximitor driver and verify that the replacement probe’s connector orientation matches the installed cable assembly. On installations where the probe is mounted in a tight bearing housing or through a threaded boss, the 8mm thread pitch and probe body length must be confirmed against the original installation drawing to ensure correct gap setting — typically 1.0 mm to 1.5 mm from the probe tip to the shaft surface, corresponding to a DC gap voltage of approximately -10 VDC to -12 VDC.
Upgrade Compatibility Table
| Parameter | 330101-08-20-10-02-00 (This Unit) | Notes / Retrofit Guidance |
|---|---|---|
| Probe Diameter | 8 mm | Direct fit for existing 8mm threaded boss installations |
| Cable Length | 2.0 m (integral) | Extend with 330130 series extension cable as required |
| Supply Voltage | -24 VDC nominal | Compatible with 3300 XL and 3500 Series proximitor drivers |
| Scale Factor | 200 mV/mil (7.87 V/mm) | Matches 3300 XL monitor channel default configuration |
| OK Voltage Range | -2 VDC to -18 VDC | Verify OK limits in monitor channel configuration before restart |
| Thread | M8 x 1.0 | Confirm thread pitch against original installation drawing |
| Connector | Standard BN coaxial | Mates directly with 330130 extension cable connector |
| Cross-Series Compatibility | 3300 XL, 3500 Series | Select correct 3500-series proximitor driver for cross-rack migration |
| Installation Gap | 1.0-1.5 mm (-10 to -12 VDC) | Set and verify with calibrated gap tool before commissioning |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment functional test |
Retrofit Planning for Existing Automation Systems
A successful retrofit begins well before the maintenance window opens. For sites running Bently Nevada 3300 XL racks, the bill of materials for a complete probe replacement typically includes the 330101-08-20-10-02-00 probe, the corresponding 3300 XL 8mm Proximitor Sensor driver module, and the appropriate length of Bently Nevada 330130 armored extension cable. If the proximitor driver shows signs of drift or the OK relay is intermittently dropping, replacing the driver alongside the probe eliminates a second maintenance event within the same outage period.
On larger turbine-generator trains where multiple measurement planes are monitored, the 3300 XL rack may house a combination of radial vibration channels, axial position channels, and speed/phase reference channels. The Bently Nevada 330180 Velomitor Piezo-Velocity Sensor and 330500 Accelerometer are often installed in adjacent positions on the same bearing housing, and their signal cables share the same conduit runs as the proximity probe cables. During a probe retrofit, these adjacent sensors and their associated 3300 XL monitor cards — including the 3300/16 Dual Vibration Monitor and 3300/46 Dual Voting Machine — should be inspected for connector integrity and cable insulation condition.
For facilities that have already migrated their DCS backbone to a modern platform such as the Emerson DeltaV or Honeywell Experion PKS, the 3300 XL rack typically interfaces via a Modbus RTU or OPC DA gateway. Confirming that the gateway configuration correctly maps the replacement probe’s channel address to the existing DCS tag database is essential before returning the machine to service. Tag mismatches between the field device address and the DCS historian can result in silent data loss that goes undetected until the next scheduled audit.
Where the control cabinet also houses a Bently Nevada 3500/32 4-Channel Relay Module for alarm and trip output wiring, the relay setpoints and voting logic should be reviewed as part of the retrofit documentation package. Any change to probe sensitivity or OK limit configuration at the monitor level can affect the relay output behavior, and the relay module’s configuration should be re-verified against the machine protection philosophy document before the unit is restarted.
Downtime Control During System Migration
Minimizing downtime during a proximity probe replacement requires a structured pre-outage preparation protocol. Before the machine is taken offline, the replacement 330101-08-20-10-02-00 probe should be bench-tested against a known-good proximitor driver to confirm the output voltage at a calibrated gap distance. This pre-shipment functional verification — which is included with every unit supplied by SMARTNEXMSK — confirms that the probe meets Bently Nevada factory specifications before it reaches the installation site, eliminating the risk of discovering a defective replacement after the machine has already been shut down.
During the outage, the original probe’s gap voltage should be recorded before disconnection. This baseline reading allows the technician to set the replacement probe to the same gap distance without requiring a full vibration calibration run, which is particularly valuable on machines where access to the bearing housing is restricted. Once the replacement probe is installed and gapped, the proximitor driver output should be verified at the monitor terminal block before the rack is returned to service. If the 3300 XL monitor displays an OK status and the gap voltage is within the expected range, the channel can be re-enabled and the machine brought back online without a full system restart.
For sites where the 3300 XL rack is integrated with a Bently Nevada System 1 condition monitoring platform, the replacement event should be logged in the System 1 asset database with the new probe serial number, installation date, and gap voltage reading. This documentation supports warranty claims, audit compliance, and future maintenance planning. The 12-month warranty provided with the 330101-08-20-10-02-00 covers manufacturing defects and is supported by SMARTNEXMSK’s post-sale technical assistance, ensuring that any field issues identified during commissioning can be resolved without additional procurement delays.
Retrofit Support FAQ
Q: Is the 330101-08-20-10-02-00 a direct drop-in replacement for the original Bently Nevada part?
A: Yes. This unit replicates the original Bently Nevada 330101-08-20-10-02-00 specifications including probe diameter, cable length, connector type, scale factor, and supply voltage. It is designed for direct installation into existing 3300 XL Series proximitor driver systems without modification to wiring, terminal assignments, or monitor channel configuration.
Q: What commissioning steps are required after installation?
A: After mechanical installation, set the probe gap to achieve a DC output voltage of -10 VDC to -12 VDC at the proximitor driver output terminal. Verify the 3300 XL monitor displays an OK status and that the gap voltage is within the configured OK limit window. Record the gap voltage and probe serial number in the maintenance log. No software reconfiguration is required if the replacement probe matches the original part number.
Q: Can this probe be used with a Bently Nevada 3500 Series rack during a phased migration?
A: Yes, provided the correct 3500-series 8mm proximitor driver module is selected. The probe’s electrical characteristics are compatible with both 3300 XL and 3500 Series driver modules. During a phased rack migration, the field probe and extension cable can be retained while the monitor rack is upgraded, reducing the scope and cost of the migration outage.
Q: What does the 12-month warranty cover, and how is it supported?
A: The 12-month warranty covers manufacturing defects in materials and workmanship. Every unit undergoes a pre-shipment functional test before dispatch. Warranty support is provided directly by SMARTNEXMSK — contact sales@smartnexmsk.com or +86 18259474341 for technical assistance, replacement authorization, or post-installation troubleshooting.
