Bently Nevada 330101-25-44-10-02-05 Spare 3300 XL

Bently Nevada 330101-25-44-10-02-05 Spare 3300 XL: Precision Spare Part for Industrial Downtime Control

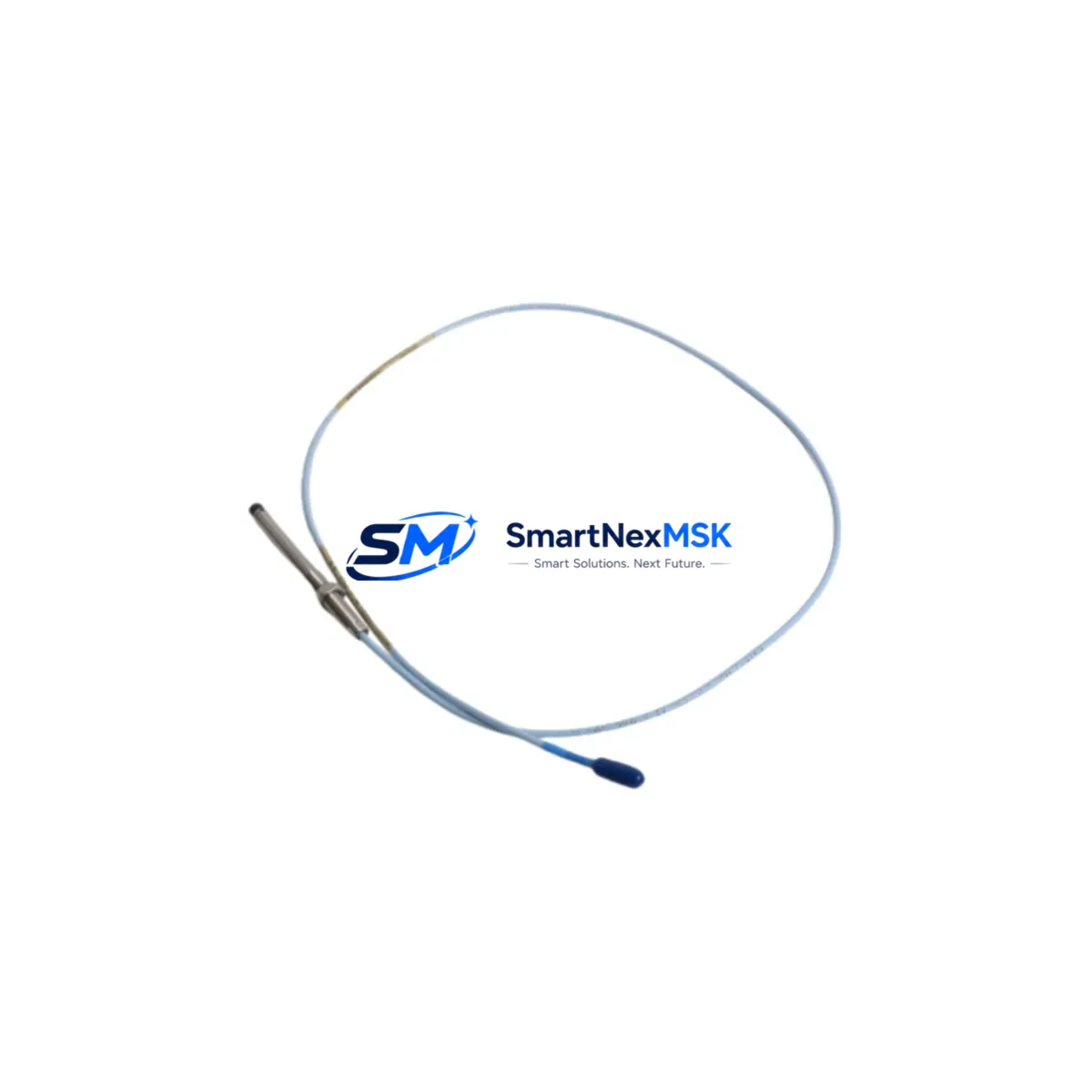

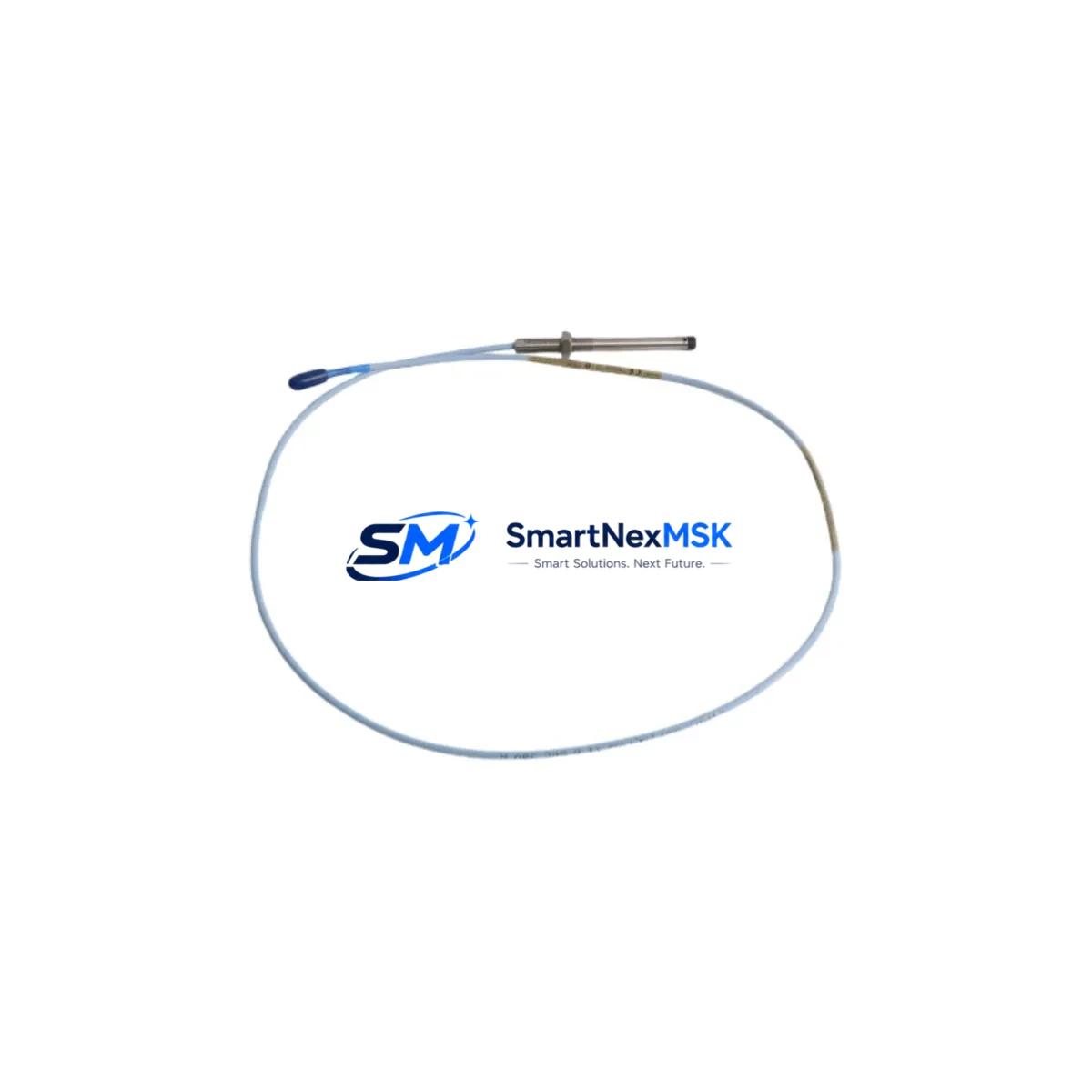

The Bently Nevada 330101-25-44-10-02-05 is an original eddy-current proximity transducer engineered for the 3300 XL Series vibration monitoring system. In rotating machinery environments — turbines, compressors, pumps, and gearboxes — this transducer serves as the primary sensing element for shaft displacement, radial vibration, and axial position measurement. When this component degrades or fails, the entire protection loop is compromised, leaving critical rotating assets unprotected and exposing the facility to unplanned shutdown risk.

Sourced as an original spare, the 330101-25-44-10-02-05 is verified against Bently Nevada’s 3300 XL system architecture. It is compatible with standard 3300 XL extension cables, proximitor/oscillator modules, and the associated rack-mounted signal conditioning hardware. Maintenance engineers and procurement teams can rely on this part to restore full system functionality without recalibration of the entire monitoring loop, provided the replacement follows the correct gap-setting and cable-length matching procedures.

At SMARTNEXMSK, every unit is inspected and function-tested prior to dispatch. Orders are fulfilled with a 12-month warranty covering manufacturing defects and performance conformance to original Bently Nevada specifications.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330101-25-44-10-02-05 transducer is rarely an isolated task. A disciplined maintenance engineer will treat this replacement as an opportunity to audit the entire vibration monitoring loop and adjacent control cabinet components. The 3300 XL system relies on a matched set of transducer, extension cable, and proximitor module — if the transducer is being replaced due to signal drift or open-circuit fault, the 3300 XL Extension Cable (e.g., 330130 series) should be inspected for jacket damage, connector corrosion, and continuity, as cable degradation is a common co-failure mode.

The 3300 XL Proximitor/Oscillator module (such as the 330180 or 330190 series) should be verified for correct bias voltage output and sensitivity calibration. A worn transducer can mask a failing proximitor, so both should be checked during the same maintenance window. If the machine train includes axial position monitoring, the paired 330101 axial transducer on the thrust bearing should also be inspected for gap and signal integrity.

Within the control cabinet, maintenance teams should verify the 3500 Series rack power supply or equivalent 3300 system power conditioner for stable DC output, as voltage fluctuations directly affect transducer linearity. Terminal blocks and field wiring connecting the proximitor output to the 3500/3300 monitor card should be checked for loose terminations and insulation breakdown — a common source of intermittent alarms in older installations.

For facilities running integrated protection systems, the 3500/42M Proximitor Monitor or 3300/20 Monitor card should be reviewed for alarm setpoint integrity and OK relay status. If the system interfaces with a DCS or safety PLC via 4–20 mA output modules or relay output cards, verify that the signal chain remains intact after transducer replacement. Signal isolators between the monitor output and DCS analog input cards should be tested for zero/span accuracy.

In older installations where the 3300 XL system is approaching end-of-life, this replacement is also an appropriate time to assess whether 3500 Series migration components or System 1 software integration upgrades are warranted to extend the useful life of the overall machinery protection architecture. Stocking a matched spare set — transducer, extension cable, and proximitor — is strongly recommended for critical rotating assets to minimize mean time to repair (MTTR) during unplanned outages.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. De-energize the proximitor module at the rack before disconnecting the transducer. Note the existing gap voltage (typically -10 VDC ±0.5 V for mid-range) as a reference for the replacement setup.

Step 2 — Transducer Removal: Disconnect the integral cable at the junction box or extension cable connector. Unthread the transducer from the bracket, noting the number of turns for reference. Inspect the bracket, lock nut, and mounting surface for wear or corrosion.

Step 3 — Replacement Installation: Install the 330101-25-44-10-02-05 into the bracket. Set the gap per Bently Nevada’s calibration curve for the target material — typically 50 mils (1.27 mm) for a -10 VDC output on steel targets. Secure the lock nut to the specified torque.

Step 4 — Cable Connection and System Verification: Connect the extension cable or route the integral cable to the proximitor. Re-energize the proximitor and verify bias voltage at the monitor input. Confirm the OK LED status and check that vibration and position readings are within expected baseline values before returning the machine to service.

Step 5 — Documentation: Record the replacement date, gap setting, bias voltage, and cable serial number in the maintenance management system (CMMS). Update the spare parts inventory to trigger reorder of the consumed unit.

This workflow is applicable to both planned outage replacements and emergency corrective maintenance scenarios. The 330101-25-44-10-02-05 is a direct form-fit-function replacement for earlier 330101 variants within the 3300 XL calibration range, reducing the risk of compatibility issues during emergency substitution.

Spare Parts Support FAQ

Q1: What is the shelf life and storage recommendation for the 330101-25-44-10-02-05?
Eddy-current proximity transducers have no active components subject to calendar aging, but the integral cable and connector are susceptible to environmental degradation. Store in a dry, temperature-controlled environment (0–40°C) in the original packaging. Inspect the connector and cable jacket before installation if the unit has been in storage for more than 24 months. SMARTNEXMSK recommends a maximum storage period of 5 years before functional re-verification.

Q2: How do I confirm compatibility with my existing 3300 XL proximitor module before installation?
Compatibility is determined by three parameters: transducer range (25 mil), cable length (44 inches), and connector type (02). These must match the calibration record of the installed proximitor module. Cross-reference the proximitor model number against Bently Nevada’s system compatibility matrix. If the proximitor was calibrated for a different cable length or range, recalibration is required. Contact SMARTNEXMSK with your proximitor model number for pre-purchase compatibility confirmation.

Q3: What pre-shipment testing is performed on this unit?
Each 330101-25-44-10-02-05 unit undergoes electrical continuity verification, coil impedance measurement, and functional output linearity check against a reference target prior to dispatch. Units that do not meet Bently Nevada’s original performance specifications are rejected. A test report is available upon request for critical applications.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and failure to meet original Bently Nevada performance specifications under normal operating conditions. It does not cover damage resulting from incorrect installation, gap setting errors, electrical overstress, or mechanical impact. To initiate a warranty claim, contact sales@smartnexmsk.com with the order number, installation date, and a description of the observed fault. SMARTNEXMSK will arrange return, inspection, and replacement or credit within 10 business days of receipt.
