Bently Nevada 330101-30-62-05-01-00 Spare 3300 XL Automation: Precision Spare for Industrial Vibration Monitoring

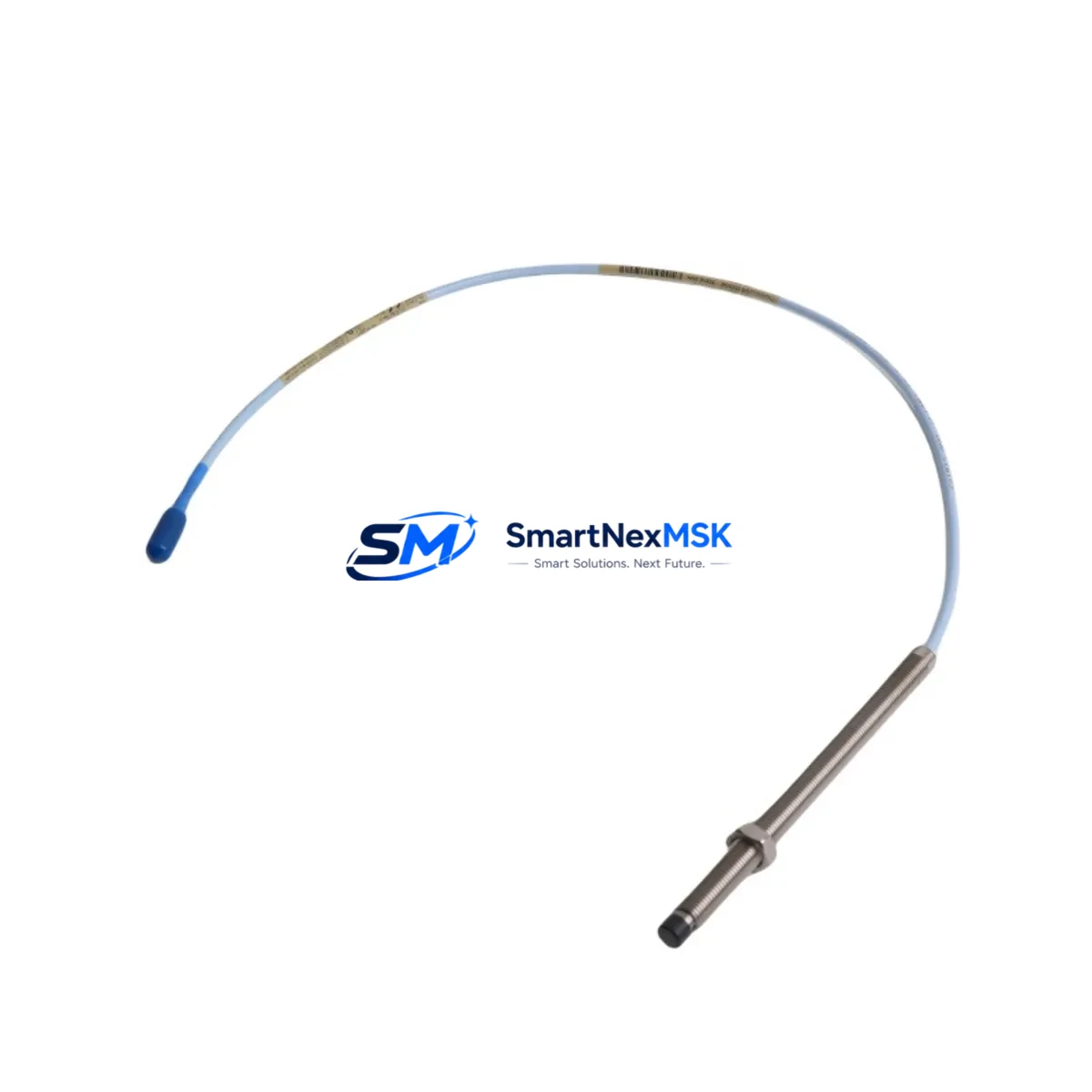

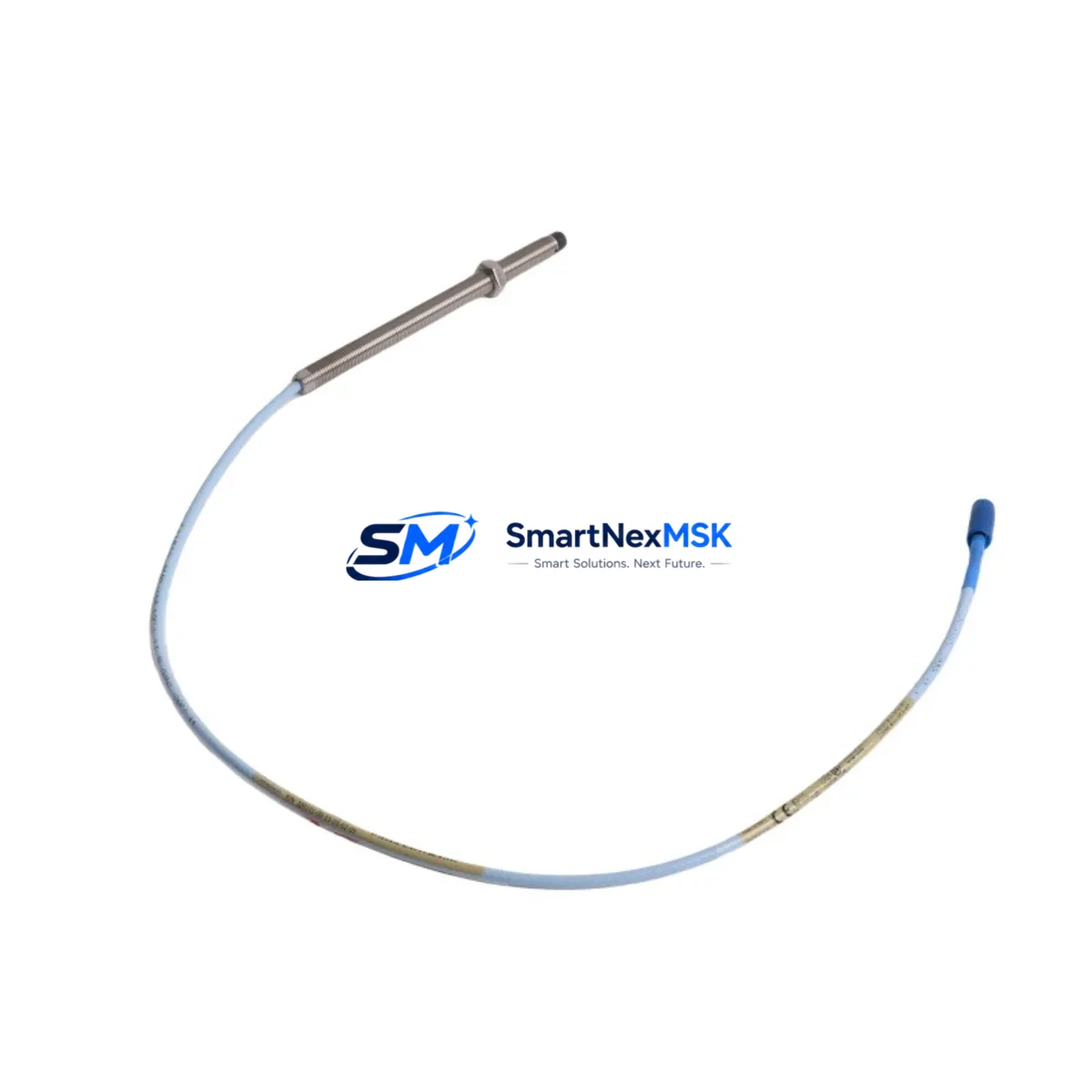

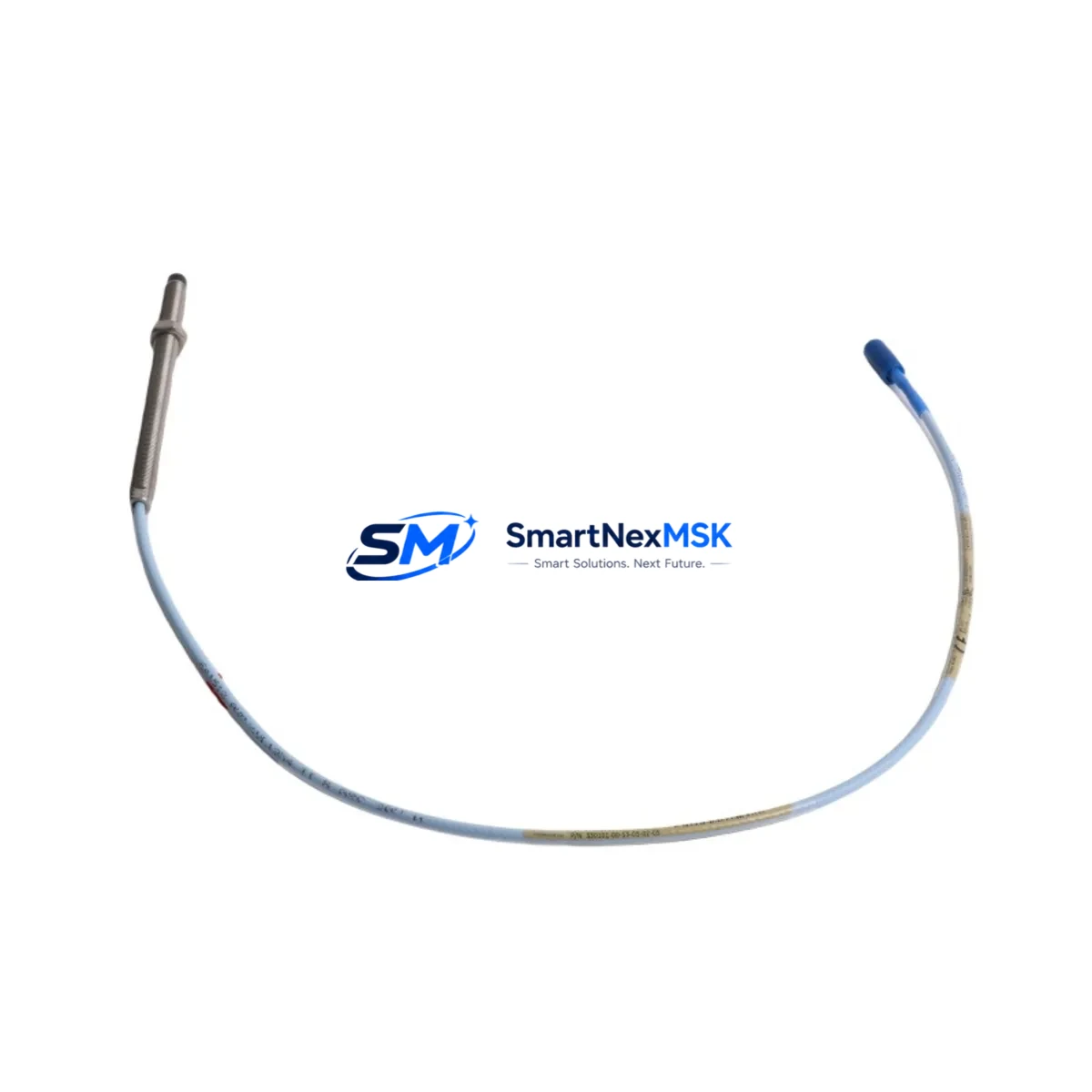

The Bently Nevada 330101-30-62-05-01-00 is an 8mm eddy current proximity probe engineered for the 3300 XL Series vibration monitoring system — one of the most widely deployed machinery protection platforms in rotating equipment applications worldwide. Whether you are managing a planned turnaround, responding to an unplanned trip, or building a strategic spare parts inventory for a critical asset, this probe represents a direct, original-specification replacement that eliminates the guesswork from field substitution.

For maintenance engineers and reliability teams operating turbines, compressors, pumps, and gearboxes, the proximity probe is the first line of defense in shaft vibration and position measurement. A failed or degraded probe can mask developing faults, trigger nuisance trips, or — in the worst case — allow a genuine machinery event to go undetected. Keeping a verified, tested spare of the 330101-30-62-05-01-00 on the shelf is not optional in high-availability plants; it is standard practice.

This unit ships fully tested, with a 12-month warranty covering manufacturing defects and performance conformance to Bently Nevada 3300 XL system specifications. Each probe is inspected for tip condition, cable integrity, connector seating, and sensitivity output prior to dispatch.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a 330101-30-62-05-01-00 probe is flagged for replacement during a machinery inspection or following a vibration channel fault alarm, experienced maintenance engineers know that the probe itself is rarely the only component that warrants attention. A thorough replacement workflow should encompass the entire measurement chain to prevent repeat failures and ensure the monitoring system is restored to full accuracy.

Begin with the 3300 XL extension cable (typically a 330130-series cable matched to the probe’s integral cable length). Extension cables are subject to mechanical fatigue at conduit entry points and connector corrosion in humid or chemically aggressive environments — both of which degrade the signal before it reaches the Proximitor. Inspect the cable jacket, check connector resistance, and replace if any intermittent continuity is detected.

The 3300 XL 8mm Proximitor® Sensor (330180-series) should be verified for correct bias voltage output — typically –10.0 VDC at the nominal 1.0 mm gap. A Proximitor that has drifted outside its calibration window will produce erroneous vibration readings even with a new probe installed. If the Proximitor has not been replaced within its recommended service interval, this is the appropriate time to do so.

At the I/O module and rack level, confirm that the vibration input channel on the 3500 Series rack (if integrated into a 3500/42M or 3500/45 monitor) is reading correctly after probe replacement. Check the channel configuration for gap voltage setpoints, alert and danger thresholds, and OK relay logic. A misconfigured channel can mask a genuine machinery fault or generate nuisance trips immediately after maintenance.

For plants running System 1 condition monitoring software, verify that the new probe’s serial number and calibration data are updated in the asset database. Failure to update this record can cause trend discontinuities that complicate future fault analysis.

In control cabinets housing Bently Nevada 3500 Series rack power supplies, inspect the –24 VDC supply rail voltage under load. A sagging supply voltage directly affects Proximitor output and can simulate a probe fault. Terminal blocks and field wiring connections at the rack’s I/O termination board should be torqued to specification and inspected for oxidation.

Where the vibration monitoring system interfaces with a DCS or safety instrumented system (SIS) via 4–20 mA or relay outputs, confirm that the output signals are within range after probe replacement and that the SIS logic solver has not latched a fault condition that requires manual reset. Signal isolators in the loop — particularly older galvanic isolators — should be checked for output accuracy if the channel has been in alarm for an extended period.

Finally, for assets where the 330101-30-62-05-01-00 probe monitors axial position in addition to radial vibration, verify the thrust bearing clearance and confirm that the gap voltage corresponds to the correct mechanical position. Axial position probes are safety-critical; any ambiguity in the gap reading after replacement must be resolved before the machine is returned to service.

Site Replacement Workflow

Step 1 — Isolation and Lockout: Follow site LOTO procedures. De-energize the Proximitor supply at the rack or junction box before disconnecting the probe. Note the existing gap voltage reading from the monitor display or System 1 trend for reference.

Step 2 — Probe Removal: Using the correct spanner, unthread the probe from the bracket. Inspect the bracket threads and mounting boss for damage. Clean the target area and measure shaft runout if accessible.

Step 3 — New Probe Installation: Thread the 330101-30-62-05-01-00 into the bracket. Set the initial gap to the nominal value specified in the machine’s vibration monitoring datasheet (typically 1.0 mm for 8mm probes). Secure the locknut to the specified torque.

Step 4 — Cable Routing and Connection: Route the integral cable to the extension cable junction point, avoiding sharp bends and heat sources. Connect the extension cable and verify connector seating. Restore power to the Proximitor.

Step 5 — Verification: Confirm bias voltage at the Proximitor output connector. Verify the monitor channel reads OK status. Check gap voltage against the reference value noted in Step 1. If the reading differs by more than ±0.5 VDC, re-check the gap setting before proceeding.

Step 6 — System Restoration: Reset any latched alarms at the monitor rack and DCS. Confirm OK relay status. Update the maintenance management system (CMMS) with the replacement record, including the new probe serial number and gap voltage as-found/as-left values.

This workflow is applicable whether the 330101-30-62-05-01-00 is replacing a like-for-like unit or substituting an older 7200 Series probe that has been superseded. The 3300 XL system’s backward-compatible Proximitor design allows direct substitution in most installations, significantly reducing downtime compared to full system upgrades.

Spare Parts Support FAQ

Q1: Is the 330101-30-62-05-01-00 a direct replacement for older Bently Nevada 7200 Series probes?
In most installations, yes. The 3300 XL 8mm probe is designed to be compatible with 3300 XL Proximitor sensors and can replace 7200 Series probes where the Proximitor has also been upgraded to the 3300 XL platform. If the existing Proximitor is still a 7200 Series unit, both the probe and Proximitor should be replaced together to ensure system compatibility. Always verify the Proximitor model number before ordering.

Q2: How do you verify probe performance before installation?
Each 330101-30-62-05-01-00 unit we supply is bench-tested prior to shipment using a calibrated Proximitor and a standard AISI 4140 steel target. The test confirms output sensitivity within the Bently Nevada specification of –200 mV/mil ±10%. A test report is available upon request. On-site, verify bias voltage at the Proximitor output after installation as described in the replacement workflow above.

Q3: What is the recommended spare parts inventory strategy for this probe?
For critical rotating assets (turbines, compressors, main pumps), industry best practice is to hold a minimum of one spare probe per monitored shaft, plus one spare extension cable and one spare Proximitor per rack. For plants with multiple identical machines, a pooled inventory of 2–3 probes per probe model is typically sufficient. Probes should be stored in their original packaging in a dry, temperature-controlled environment and inspected annually for connector condition.

Q4: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and performance non-conformance to Bently Nevada 3300 XL specifications under normal operating conditions. It does not cover damage resulting from incorrect installation, mechanical impact, or operation outside the specified environmental limits. To initiate a warranty claim, contact our technical support team with the order reference, installation date, and a description of the observed fault. We will arrange return shipping and either repair or replace the unit within 10 business days of receipt.
