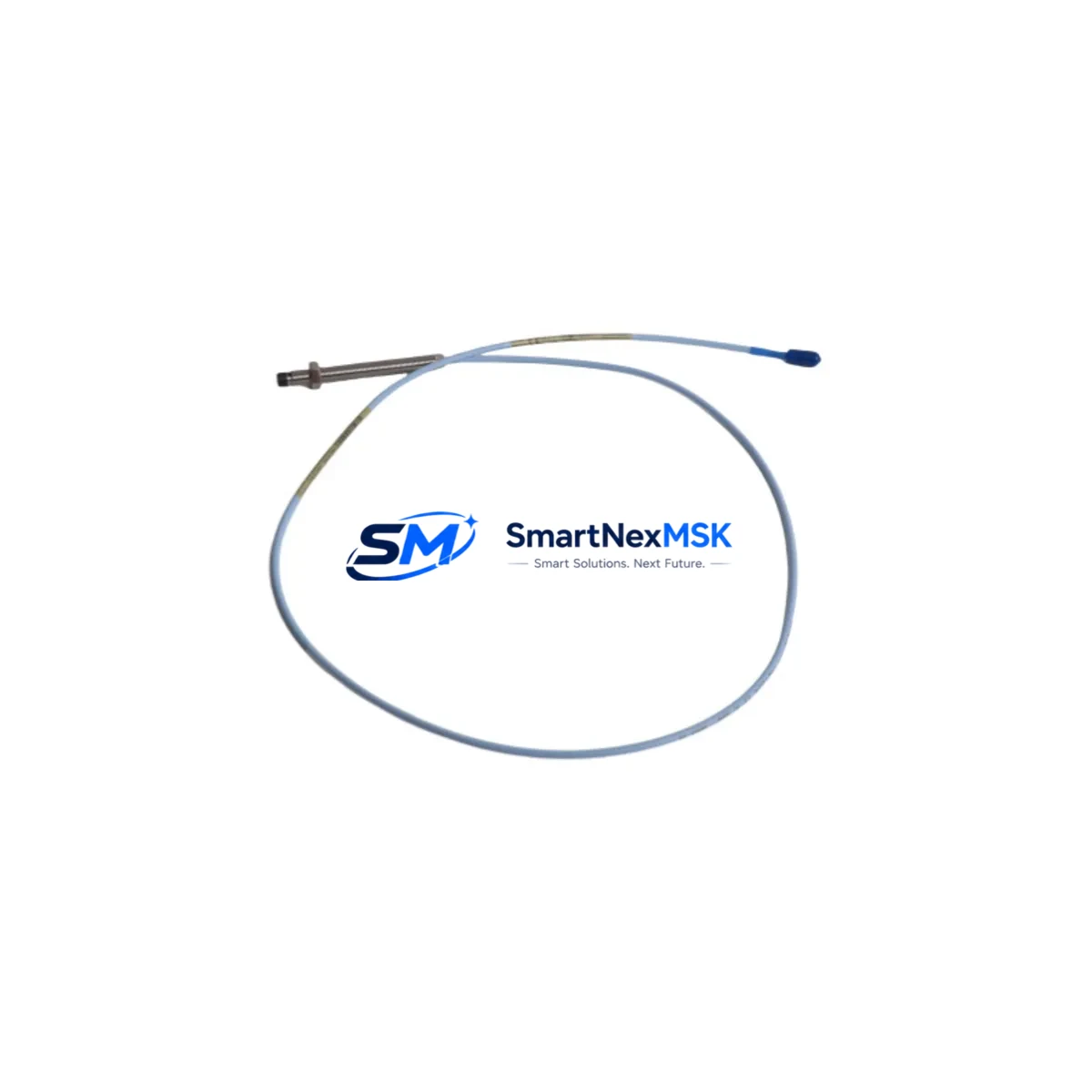

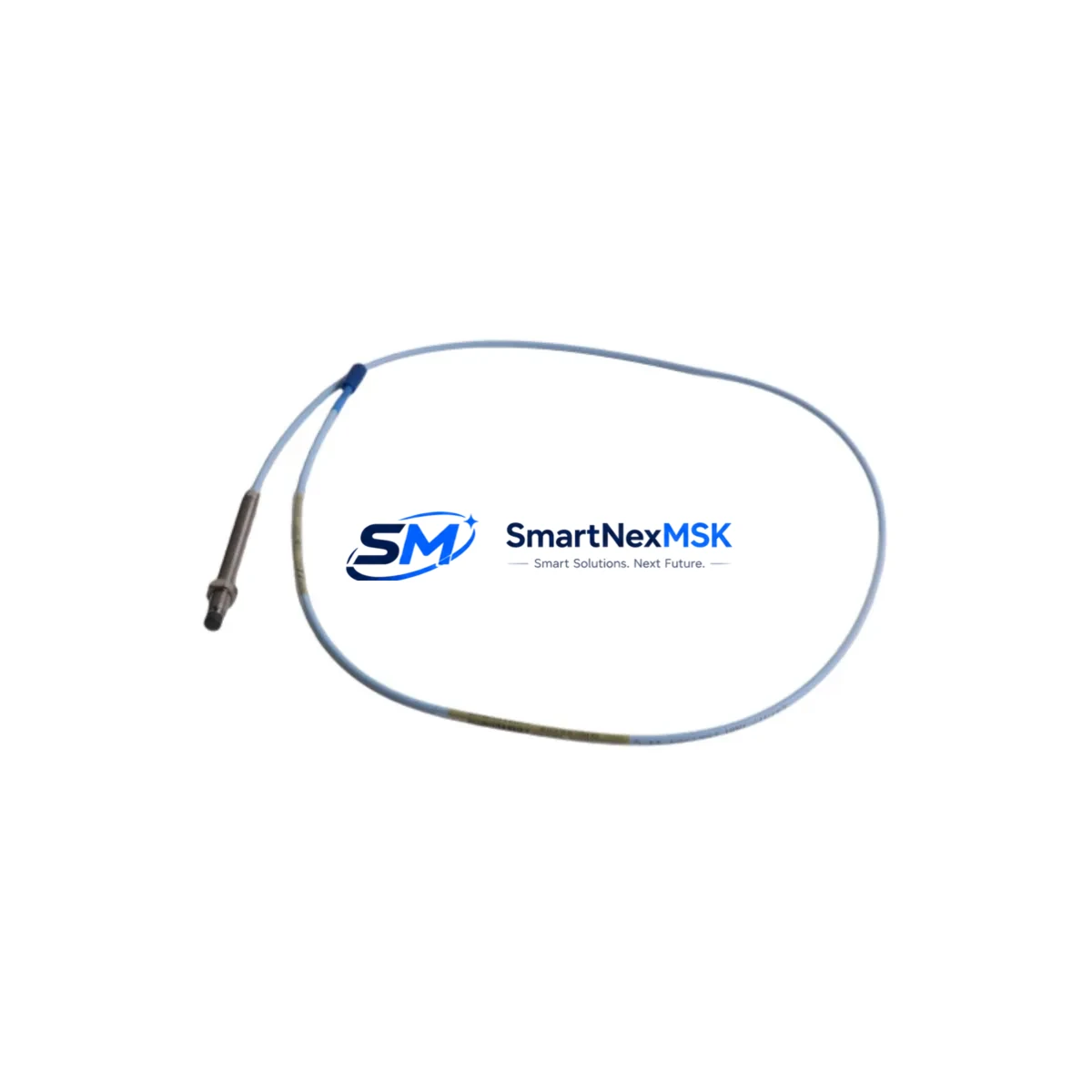

Bently Nevada 330101-32-70-05-12-05 Retrofit-Ready Proximity Transducer for 3300 XL Control Systems
The Bently Nevada 330101-32-70-05-12-05 is an 8mm eddy-current proximity transducer engineered for the 3300 XL Series continuous machinery monitoring platform. Designed as a direct retrofit replacement for legacy 3300 Series sensors, this unit delivers a smooth migration path for facilities operating aging vibration monitoring infrastructure without requiring rack redesign, cable re-routing, or software reconfiguration. Whether you are replacing a failed sensor on a critical rotating machine or executing a planned upgrade of an entire monitoring loop, the 330101-32-70-05-12-05 provides the dimensional compatibility, signal linearity, and environmental robustness demanded by turbine, compressor, and pump protection systems.
Upgrade Compatibility Table
| Parameter | Details |
|---|---|
| SKU / Part Number | 330101-32-70-05-12-05 |
| Series Compatibility | Bently Nevada 3300 XL, 3300 Series |
| Sensor Type | 8mm Eddy-Current Proximity Transducer |
| Cable Length | 5m (extension cable) + 5m (armored) |
| Thread / Mounting | M10 × 1 threaded body, standard 3300 XL bracket compatible |
| Output Signal | –24 VDC bias, linear voltage output per API 670 standard |
| Communication Compatibility | Analog 4–20 mA loop / direct monitor input |
| Replacement Recommendation | Direct drop-in for 330101-xx-xx-xx-xx-xx legacy variants |
| Commissioning Notes | Verify gap voltage (–10 to –18 VDC), confirm polarity at 3300 XL monitor input |
| Warranty | 12 Months from date of shipment |
Retrofit Planning for Existing Automation Systems
Replacing a proximity transducer in a live machinery protection loop requires careful coordination across multiple system layers. Before removing the 330101-32-70-05-12-05’s predecessor, engineers should document the existing gap voltage reading at the Bently Nevada 3300 XL monitor — typically a 3300/16-channel or 3300/20 rack-mounted monitor card — and record the baseline vibration amplitude and phase reference values stored in the System 1 condition monitoring software.
The extension cable paired with this transducer must be verified for impedance matching. The Bently Nevada 330130 series extension cables are the standard companion for 8mm probes in this family; substituting a non-matched cable will shift the scale factor and introduce measurement error. Similarly, the proximitor or oscillator-demodulator — such as the Bently Nevada 3300 XL 8mm proximitor (part family 330180) — must be confirmed as compatible before installation. In many retrofit scenarios, the proximitor is replaced simultaneously with the probe to eliminate accumulated drift from aging electronics.
For facilities running a full 3300 XL rack, the retrofit may also involve inspecting the 3300/05 power supply module to confirm it can sustain the additional current draw if multiple sensors are being replaced in the same maintenance window. The rack backplane connectors should be cleaned and inspected for corrosion, particularly in humid or offshore environments. If the installation includes a Keyphasor transducer — such as the Bently Nevada 330980 series — its gap and signal should be re-verified after any mechanical disturbance to the shaft proximity loop.
In control cabinets where the 3300 XL monitors interface with a DCS or safety instrumented system via a Bently Nevada 3500 gateway or a third-party Modbus/HART converter, the I/O mapping and alarm setpoints should be reviewed in the DCS engineering station before returning the machine to service. HMI faceplate displays tied to the vibration channel should be checked to confirm the tag reference and engineering unit scaling remain correct after the sensor swap. If the plant uses OSIsoft PI or a similar historian, the PI tag associated with the proximity channel should be validated against the new sensor’s output range.
All replacement units are pre-tested against Bently Nevada factory calibration standards prior to shipment. Each 330101-32-70-05-12-05 is supplied with a calibration certificate and is packaged to prevent electrostatic discharge damage during transit. Stock is maintained for immediate dispatch, supporting both emergency breakdown replacements and scheduled turnaround maintenance programs.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity transducer replacement begins with pre-staging all components before the machine is taken offline. Have the replacement 330101-32-70-05-12-05, the matched extension cable, and the proximitor ready at the work site. If the 3300 XL monitor supports channel bypass or inhibit mode, activate it before disconnecting the existing probe to prevent spurious trips from propagating to the safety shutdown system or the DCS interlock logic.
Once the new transducer is installed and the gap is set to the manufacturer-specified voltage (typically –10.0 VDC ± 0.5 VDC for an 8mm probe at the nominal gap), restore the channel from inhibit and observe the live vibration reading for a minimum of 15 minutes at operating speed before clearing the bypass. Compare the new baseline against the historical trend stored in System 1 or the plant DCS historian to confirm the replacement has not introduced any offset. Original PLC ladder logic or function block programs controlling machine permissives based on vibration status do not require modification when a like-for-like 330101 series replacement is used, preserving program integrity and eliminating the risk of inadvertent logic changes during the maintenance event.
Retrofit Support FAQ
Q: Is the 330101-32-70-05-12-05 a direct replacement for other 330101 suffix variants?
A: Yes. The 330101 family shares a common 8mm probe body and M10 thread. Suffix differences relate to cable length and armor configuration. Confirm total cable length matches your installation before ordering.
Q: What commissioning checks are required after installation?
A: Set the probe gap to achieve –10 to –18 VDC at the proximitor output. Verify the 3300 XL monitor displays a valid vibration reading within the expected baseline range. Check that no fault or not-OK indicators are active on the monitor front panel.
Q: Will this transducer work with non-Bently Nevada monitors?
A: The 330101-32-70-05-12-05 is optimized for use with Bently Nevada 3300 XL and 3500 series monitors. Use with third-party monitors requires verification of scale factor, bias voltage, and input impedance compatibility.
Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. Each unit is tested before dispatch. Contact sales@smartnexmsk.com to initiate a warranty claim.
