Bently Nevada 330101-39-67-10-12-05 Retrofit-Ready Proximity Probe for 3300 XL

Bently Nevada 330101-39-67-10-12-05 Retrofit-Ready Proximity Probe for 3300 XL Control Systems

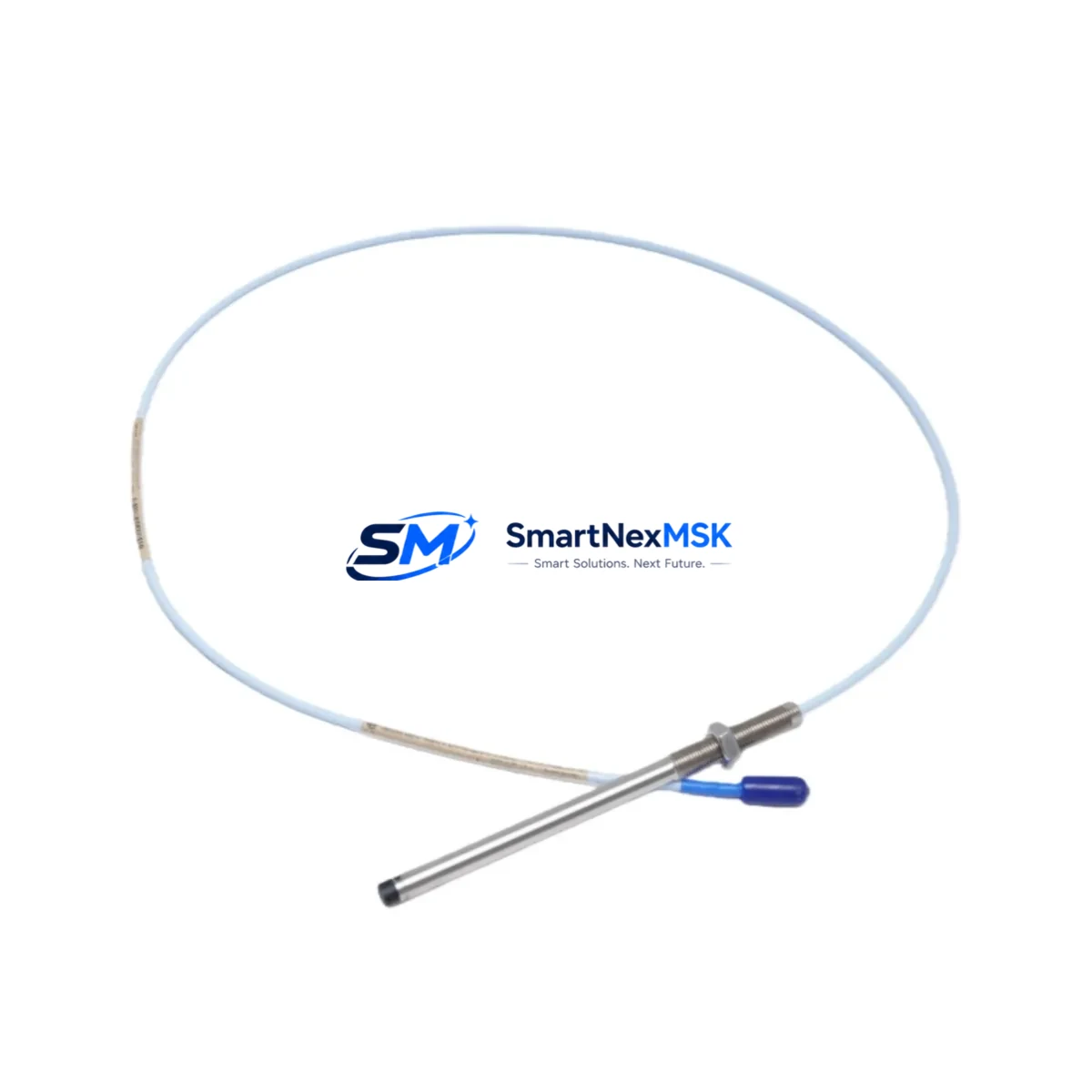

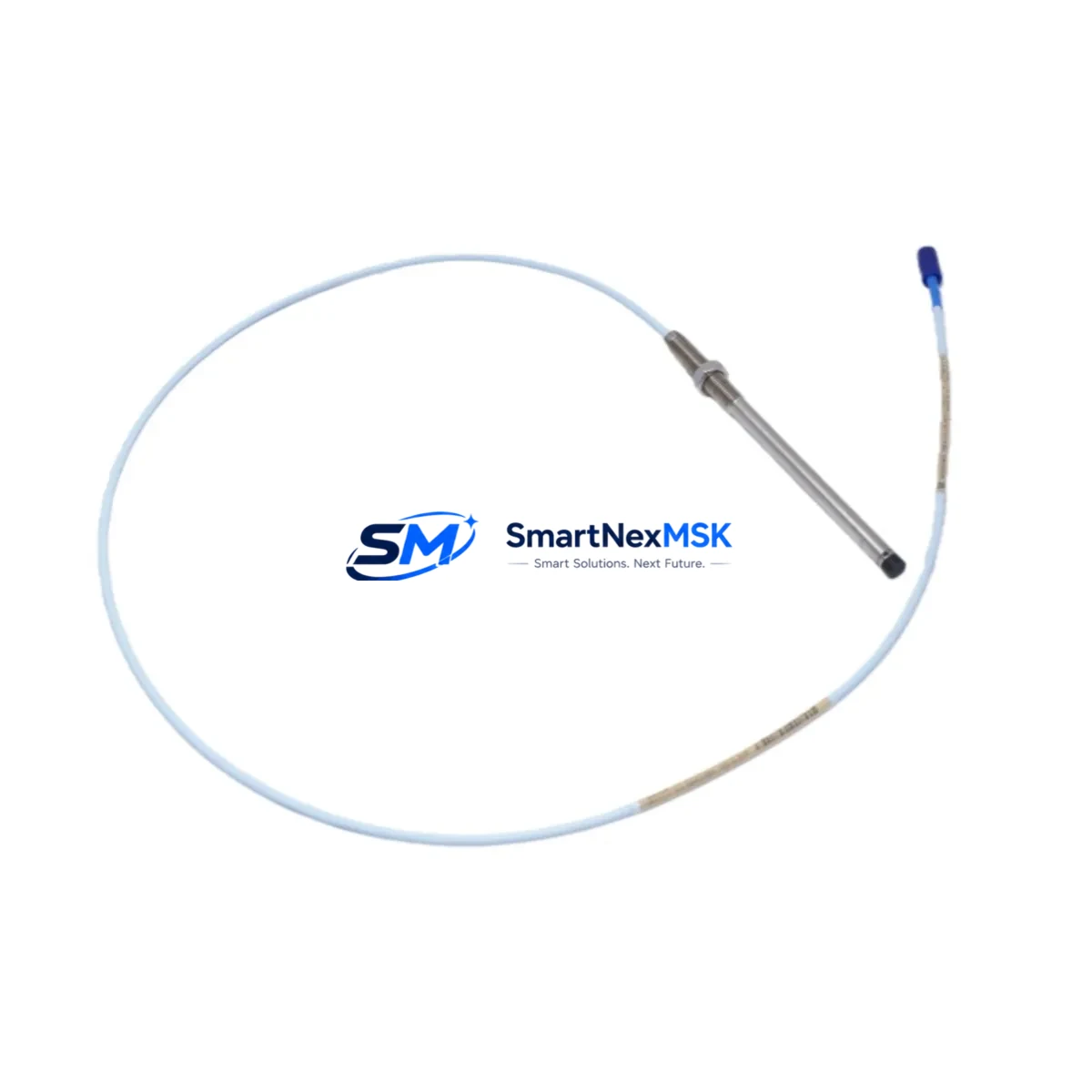

The Bently Nevada 330101-39-67-10-12-05 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series vibration monitoring platform. Widely deployed in rotating machinery protection systems across power generation, oil & gas, petrochemical, and heavy industrial facilities, this probe has become a critical component in both active installations and legacy retrofit projects. As original equipment ages and OEM support windows close, the 330101-39-67-10-12-05 remains one of the most requested drop-in replacements for discontinued 3300 Series probes, offering a verified upgrade path without requiring rack-level redesign or software reconfiguration.

Whether you are replacing a failed probe on a running turbine train, upgrading a legacy 3300 Series rack to 3300 XL specification, or restoring a mothballed compressor line, the 330101-39-67-10-12-05 is designed to integrate directly into existing Bently Nevada field wiring, extension cable assemblies, and proximitor/driver housings. The probe ships pre-tested and gap-calibrated, reducing on-site commissioning time and minimizing the risk of measurement error during reinstallation.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Retrofitting a Bently Nevada 3300 XL vibration monitoring system requires careful coordination across multiple hardware layers. The 330101-39-67-10-12-05 probe is typically the starting point, but a complete retrofit plan must account for the full signal chain from the probe tip to the monitor rack output.

Begin by auditing the existing 330130 Series extension cable. If the cable jacket shows thermal degradation or the connector pins are corroded, replace the extension cable simultaneously with the probe to avoid introducing a new fault source. The 330180 Series 8mm Proximitor must also be inspected — its internal oscillator circuit is calibrated to the 8mm probe geometry, and substituting a 5mm or 11mm Proximitor will produce incorrect gap voltage readings and may trigger nuisance trips on the 3300 XL monitor card.

At the rack level, confirm that the 3300 XL monitor card slot assignment matches the channel address programmed in the System 1 or Rack Configuration Software. If the original probe was mapped to a specific I/O channel on a 3500/42M Proximitor I/O Module or a 3300 XL dual-channel monitor, the replacement probe must be installed in the same physical position to preserve channel-to-machine-train mapping without requiring a software re-tag. For facilities running older 3300 Series racks being upgraded to 3300 XL specification, note that the backplane connector pinout is compatible, but the rack power supply — typically a 3300/20 Power Supply — should be load-tested before commissioning the new probe to ensure it can sustain the additional proximitor current draw.

HMI screens connected via Modbus RTU or OPC-DA to the 3300 XL rack will display the probe gap voltage and vibration amplitude on existing trend displays without modification, provided the channel tag names are preserved. If the site uses a DCS integration — for example, a Honeywell Experion or Emerson DeltaV system receiving 4–20 mA outputs from the 3300 XL — verify that the analog output scaling has not drifted during the outage period. A 3300 XL Transient Data Interface (TDI) card, if installed, should also be checked for firmware compatibility with the replacement probe’s signal bandwidth.

For facilities performing a broader control cabinet upgrade alongside the probe replacement, the 330101-39-67-10-12-05 is commonly installed in parallel with other Bently Nevada components including the 3300 XL 16-channel I/O rack, 330850 Velomitor CT accelerometers for high-frequency bearing monitoring, 3500/22M Transient Data Interface modules, and 3300/55 Keyphasor modules used for phase reference in rotor dynamic analysis. Coordinating the installation sequence of these components reduces total outage duration and allows a single loop check to validate the entire signal chain before returning the machine to service.

Downtime Control During System Migration

Minimizing downtime during a proximity probe replacement on a live rotating machine train requires pre-staging all replacement components, tools, and calibration equipment before the maintenance window opens. The 330101-39-67-10-12-05 should be pre-gapped on the bench using a non-conductive gap-setting tool and a calibrated digital voltmeter connected to the 330180 Proximitor output before the machine is taken offline. This allows the field technician to confirm the probe-proximitor pair is functional and within specification before breaking into the existing installation.

During the swap, tag and photograph the existing terminal wiring at the junction box and at the 3300 XL rack terminal block before disconnecting any conductors. The 330101-39-67-10-12-05 uses a standard two-conductor shielded cable interface; however, shield grounding practice — single-point grounding at the rack end — must be maintained to prevent ground loop noise from appearing as false vibration on the monitor channel. After reinstallation, perform a static gap check with the machine at rest, then a dynamic check at operating speed to confirm that the 1X and 2X vibration vectors are within historical baseline limits before releasing the machine to operations.

For sites where continuous operation is required, a hot-swap procedure using a spare 3300 XL monitor card pre-loaded with the existing configuration file can reduce channel downtime to under 15 minutes. The original program logic, alarm setpoints, and danger thresholds stored in the 3300 XL configuration are preserved in the card’s non-volatile memory and do not require re-entry after the probe replacement, provided the card firmware version is compatible with the site’s System 1 software revision.

Retrofit Support FAQ

Q: Is the 330101-39-67-10-12-05 a direct replacement for the 330101-39-67-10-12-00?
A: Yes. The -05 suffix denotes a connector configuration update. The probe body, thread specification, cable length, and electrical characteristics are identical to the -00 variant. No re-gapping or Proximitor recalibration is required beyond standard installation verification.

Q: What commissioning steps are required after installation?
A: Set the probe gap to achieve -10 VDC ±0.2 VDC at the Proximitor output using a calibrated voltmeter. Verify the signal at the 3300 XL monitor card input terminal. Confirm alarm and danger setpoints are active and that the System 1 trend display shows a stable gap voltage before returning the machine to service.

Q: Can this probe be used with a 3500 Series rack instead of a 3300 XL rack?
A: The 330101-39-67-10-12-05 is compatible with any Bently Nevada rack that accepts 8mm proximity probe inputs via a 330180 Series Proximitor. This includes 3500 Series racks using 3500/42M Proximitor I/O Modules. Confirm the Proximitor part number and gap voltage specification before installation.

Q: What does the 12-month warranty cover?
A: All units ship with a 12-month warranty from the date of shipment covering manufacturing defects and electrical performance to published specification. Each unit undergoes pre-shipment functional testing including gap voltage verification and insulation resistance check. Warranty claims are supported by SMARTNEXMSK with replacement or full refund at our discretion.
