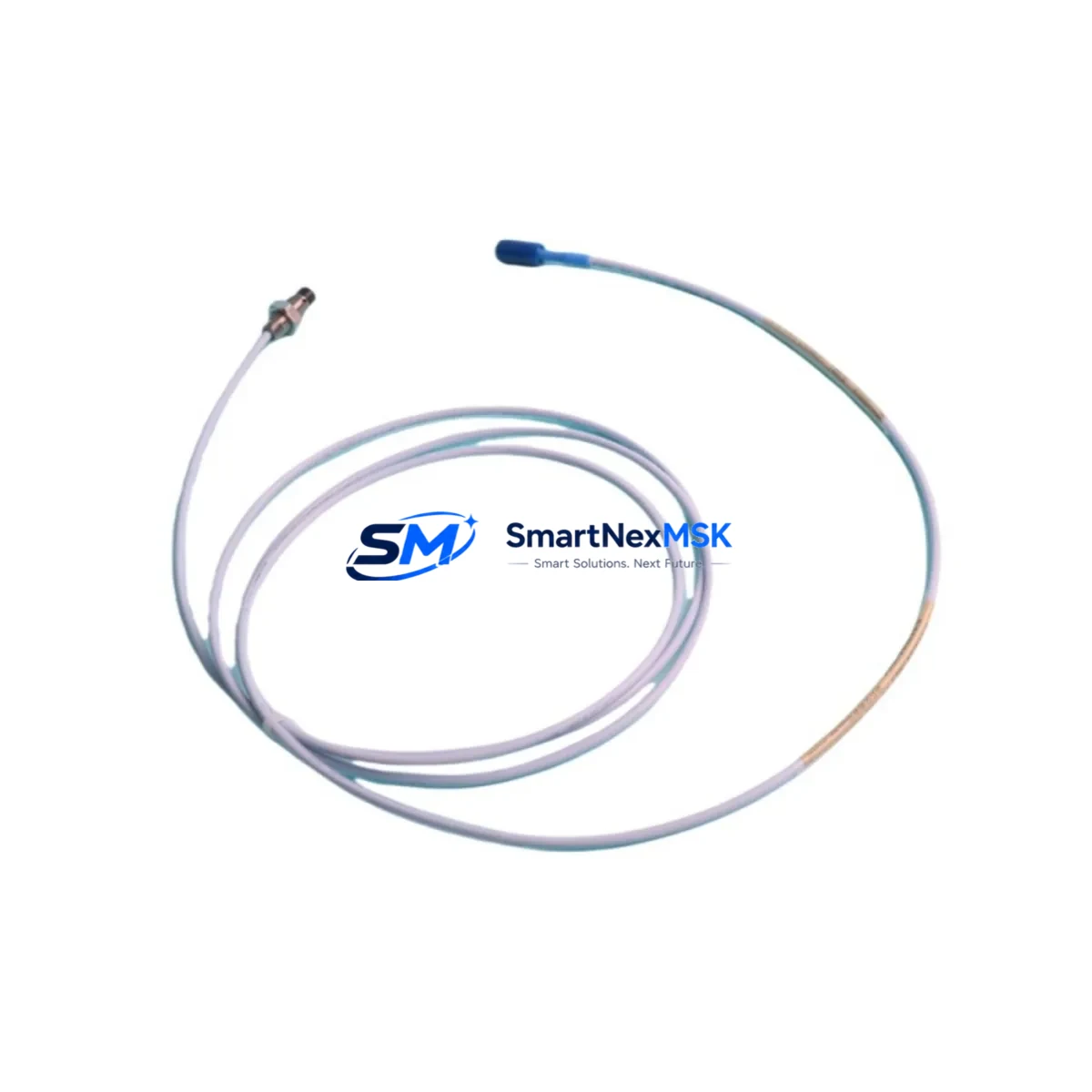

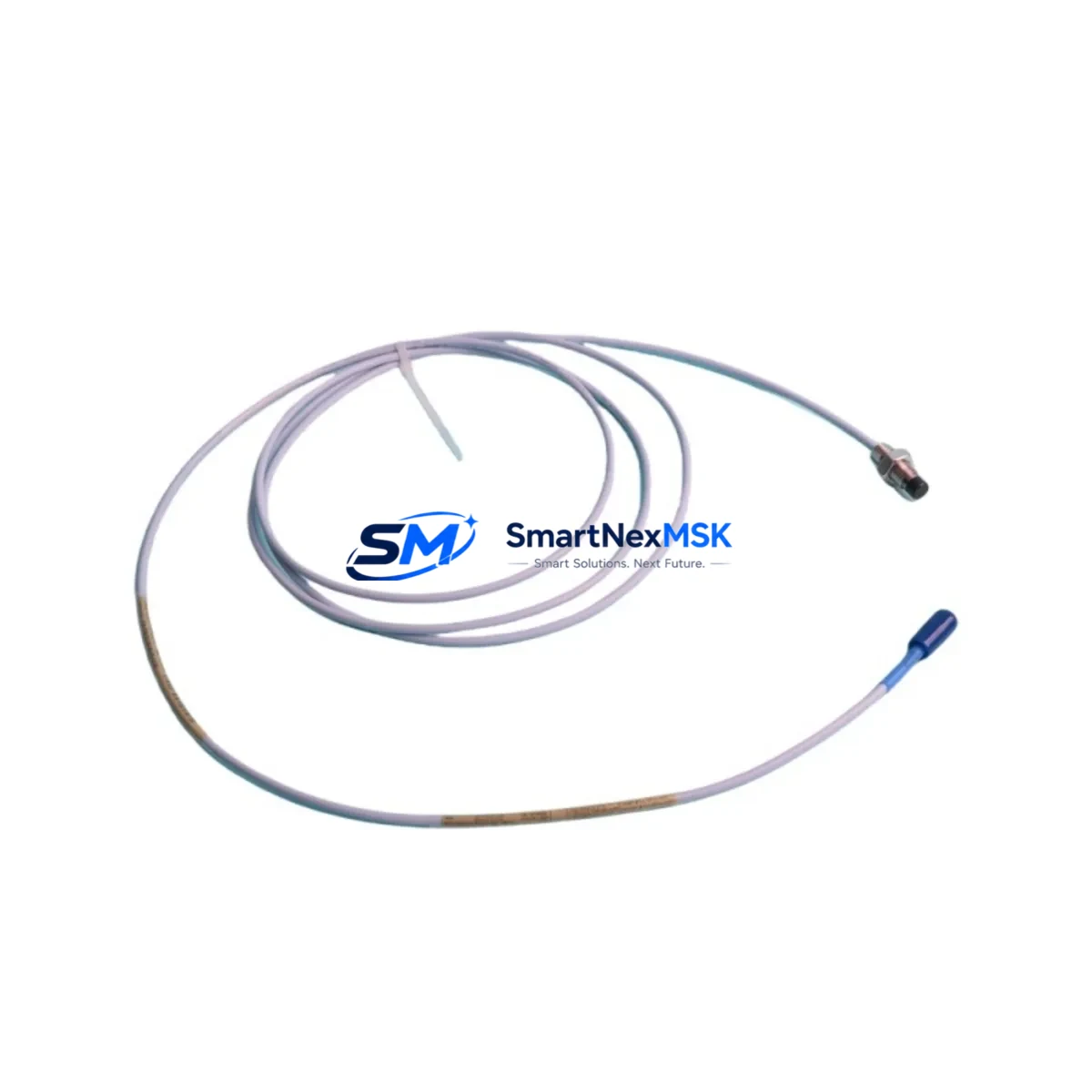

Bently Nevada 330101-43-63-90-02-00 Retrofit-Ready Proximity Probe for 3300 XL Control Systems
The Bently Nevada 330101-43-63-90-02-00 is an 8mm eddy-current proximity probe engineered for seamless integration into existing 3300 XL vibration monitoring systems. As legacy machinery protection platforms approach end-of-life or face discontinued spare-parts availability, this probe serves as a verified drop-in replacement that preserves original signal chain integrity without requiring reprogramming of the host monitor or reconfiguration of the 3300 XL rack architecture. For maintenance engineers managing aging turbomachinery, compressor trains, or pump skids, sourcing a functionally equivalent probe with documented compatibility is the single most critical step in any unplanned or scheduled retrofit.
The 330101-43-63-90-02-00 operates within the standard Bently Nevada proximity system, pairing directly with the 330130 extension cable and the 330180 proximitor/oscillator driver. This three-component probe system — probe, extension cable, and proximitor — must be treated as a matched set during any replacement. Substituting only the probe while retaining an aged or mismatched extension cable can introduce gap voltage errors that trigger false alerts or mask genuine shaft displacement events. Engineers should verify the total system length (probe + extension cable) matches the original calibrated configuration before commissioning.
Upgrade Compatibility Table
| Parameter | 330101-43-63-90-02-00 Specification | Retrofit Notes |
|---|---|---|
| Probe Diameter | 8 mm | Direct fit for existing 3300 XL probe holders; no machining required |
| Probe Length | 43 mm | Confirm clearance in bearing housing before installation |
| Cable Length | 90 cm integral cable | Pair with 330130-090-00-00 extension cable for standard 5m system |
| Proximitor Compatibility | 330180 Series | Verify proximitor firmware version if system was previously upgraded |
| Gap Voltage Range | −10 VDC nominal at 1.0 mm gap | Re-gap after installation; target −10.0 ± 0.5 VDC |
| Communication Protocol | Analog 4–20 mA / voltage output | No protocol migration required; compatible with existing 3500 rack I/O cards |
| Mounting Thread | M10 × 1.0 | Inspect probe holder threads; replace holder if worn |
| Warranty | 12 Months | Covers manufacturing defects; includes pre-shipment functional test report |
Retrofit Planning for Existing Automation Systems
A successful retrofit of the 330101-43-63-90-02-00 into a running plant begins well before the maintenance window opens. The first step is a full audit of the existing 3300 XL rack, identifying the monitor module type — typically a 3300/16 or 3300/20 dual-channel vibration monitor — and confirming that the channel configuration stored in the System 1 condition monitoring software matches the probe’s sensitivity curve. If the plant has migrated to a 3500 Series rack as part of a broader platform upgrade, the 330101-43-63-90-02-00 remains compatible with 3500/42M position monitor cards, provided the I/O module wiring is adapted to the new terminal block layout.
During pre-outage planning, engineers should pull the existing 3300 XL power supply module — commonly a 3300/05 or 3300/10 — and verify that available current headroom supports the replacement probe’s draw without affecting adjacent channels. The 3300 XL backplane distributes power across all installed modules, and adding a new probe to a heavily loaded rack can cause marginal voltage conditions that affect measurement accuracy across the entire chassis.
Wiring adaptation is straightforward: the 330101-43-63-90-02-00 uses a standard coaxial termination at the proximitor input. Technicians should inspect the existing junction box for corrosion on the BNC or MIL-C connector, replace any degraded conduit seals, and confirm that the shield drain wire is grounded at one end only to prevent ground loop interference. If the plant uses a Modbus RTU or PROFIBUS DP gateway to relay vibration data to a DCS or SCADA platform, no changes to the communication layer are required — the analog output from the 330180 proximitor feeds directly into the existing I/O termination assembly.
For sites running an HMI built on iFIX, Wonderware, or a Bently Nevada System 1 workstation, the channel tag mapping does not change when replacing a like-for-like probe. However, if the retrofit is part of a broader migration from a 3300 XL to a 3500 rack, the System 1 database must be updated to reflect the new rack address and channel assignments before the HMI operator screens will display correct values. Coordinate with the DCS engineer to freeze the affected trend displays during the cutover window to avoid alarming the control room on stale data.
Downtime Control During System Migration
Minimizing unplanned downtime during a proximity probe replacement requires a structured hot-swap protocol. Where the process permits, place the affected machine in a monitored bypass state within the 3300 XL or 3500 rack before disconnecting the probe. This prevents the monitor from issuing a spurious trip signal to the emergency shutdown system during the physical swap. Document the existing gap voltage reading — typically recorded from the OK/Not OK relay output or the System 1 trend — before removing the probe, and use this value as the baseline for post-installation verification.
Once the 330101-43-63-90-02-00 is installed and the extension cable reconnected to the 330180 proximitor, allow a 15-minute thermal stabilization period before taking the final gap voltage reading. Adjust the probe axial position using the locknut until the gap voltage returns to within ±0.2 VDC of the original baseline. Re-enable the monitor channel, confirm the OK relay energizes, and verify that the System 1 trend resumes updating before releasing the bypass. Total field time for an experienced technician is typically under two hours, keeping the machine protection gap within acceptable plant risk tolerance.
All units are pre-tested prior to shipment, with a functional test report included in the packaging. In-stock units ship within 24 hours of order confirmation, supporting urgent maintenance schedules where procurement lead time is the primary downtime driver.
Retrofit Support FAQ
Q: Is the 330101-43-63-90-02-00 a direct replacement for the original Bently Nevada part, or does it require recalibration?
A: It is a direct functional replacement. The probe sensitivity, gap voltage characteristics, and mechanical dimensions match the original specification. A field gap voltage check is recommended after installation, but no factory recalibration is required.
Q: Can this probe be used with a 3500 Series rack if we are migrating away from the 3300 XL platform?
A: Yes. The 330101-43-63-90-02-00 is compatible with 3500/42M position monitor inputs when paired with the appropriate I/O module. Confirm the channel configuration in the 3500 rack software matches the probe’s sensitivity curve before enabling the channel.
Q: What wiring changes are needed when replacing the probe in an existing installation?
A: No wiring changes are required for a like-for-like replacement within the same 3300 XL system. The coaxial connection at the 330180 proximitor and the terminal block wiring in the junction box remain unchanged. Inspect connectors for corrosion and replace any degraded seals during the maintenance window.
Q: What does the 12-month warranty cover, and is a test report included?
A: The warranty covers manufacturing defects and functional failures under normal operating conditions for 12 months from the date of shipment. Each unit ships with a pre-shipment functional test report confirming gap voltage output, OK relay operation, and cable continuity.
