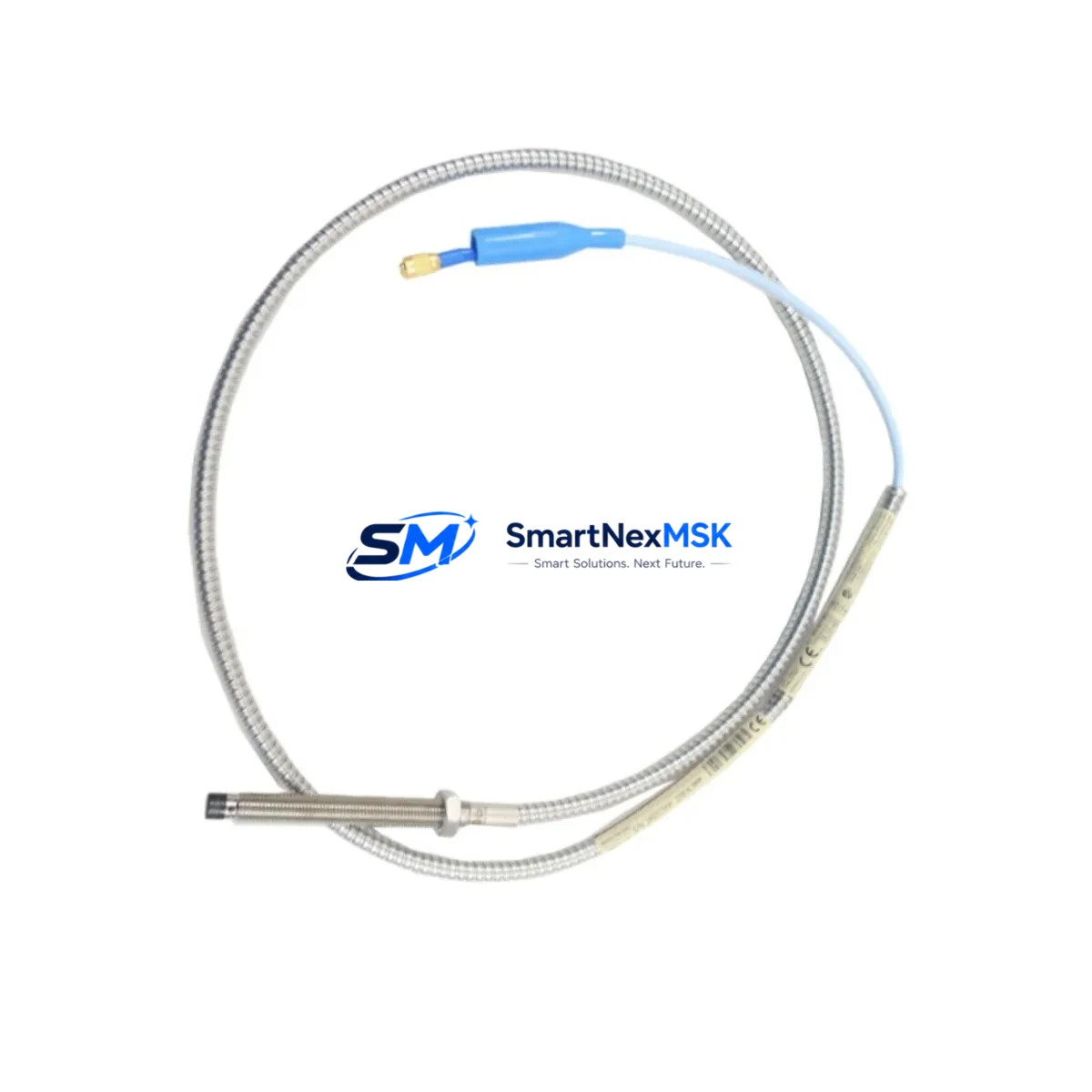

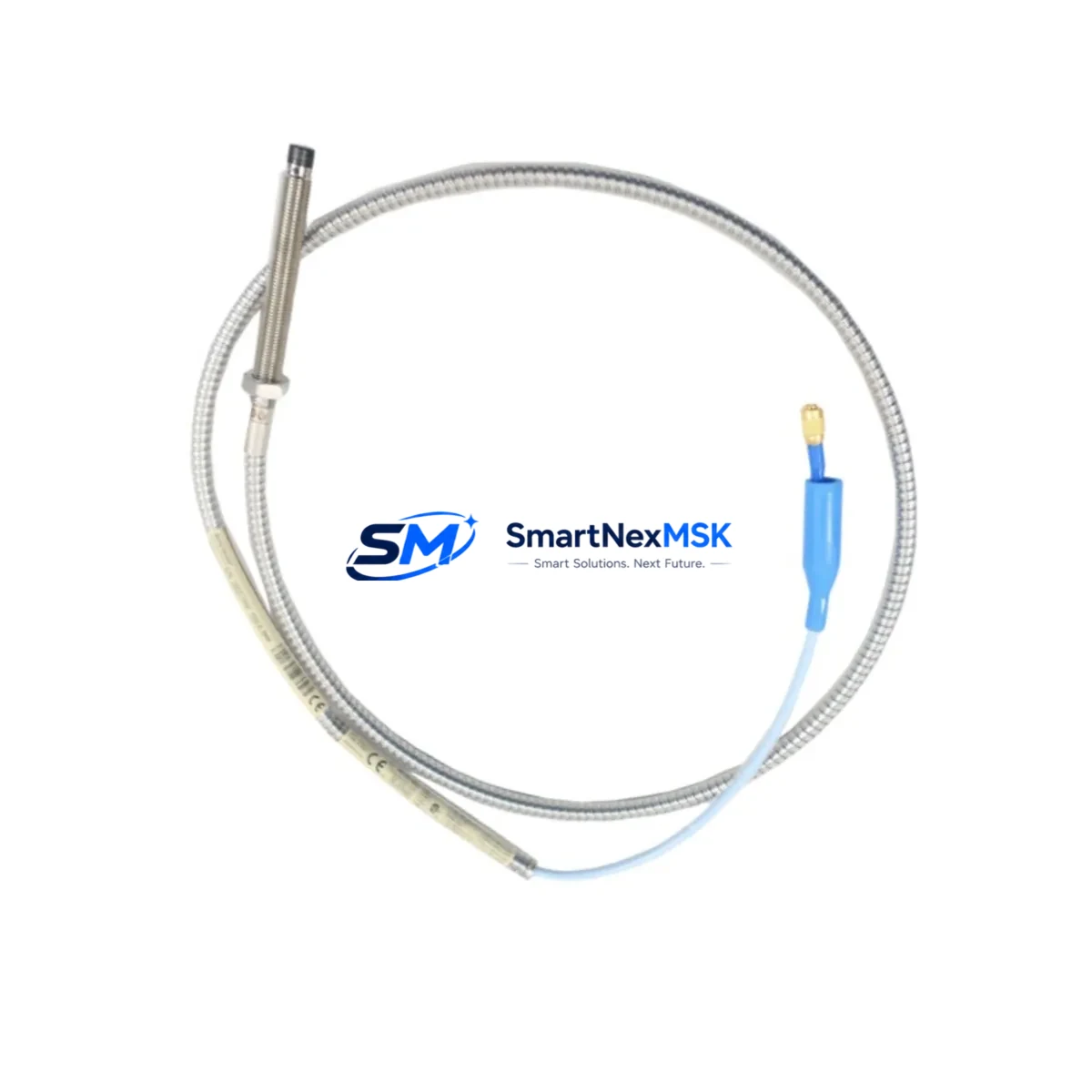

The Bently Nevada 330102-00-18-90-02-00 is an 8mm eddy-current proximity probe engineered for the 3300 XL Series continuous machinery monitoring system. As a maintenance-ready original spare, this probe is a critical component in vibration and position measurement circuits used across rotating machinery — including turbines, compressors, pumps, and gearboxes — in oil & gas, power generation, petrochemical, and heavy industrial facilities.

When a proximity probe fails or drifts out of calibration, the entire vibration monitoring loop is compromised. Unplanned downtime in these environments can cost tens of thousands of dollars per hour. Stocking a verified replacement of the 330102-00-18-90-02-00 is not optional — it is a fundamental element of any serious predictive maintenance and spare parts strategy.

This unit ships fully tested, with original packaging where available, and is backed by a 12-month warranty covering manufacturing defects and functional performance. Each unit undergoes pre-shipment inspection to confirm probe tip integrity, cable continuity, connector condition, and dimensional compliance with 3300 XL system specifications.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the 330102-00-18-90-02-00 in the field is rarely an isolated task. Maintenance engineers performing a scheduled or emergency probe replacement should treat the event as an opportunity to inspect the entire vibration monitoring loop and adjacent control cabinet components.

Begin with the 3300 XL Proximitor Sensor (driver unit), which conditions the probe signal and must be verified for correct gap voltage output after probe replacement. If the Proximitor shows drift or abnormal DC output, it should be replaced concurrently. Next, inspect the extension cable assembly — the 330130 series extension cables are the most common failure point in probe systems due to mechanical stress, connector corrosion, and shield degradation. A new probe paired with a degraded extension cable will not restore system accuracy.

At the terminal cabinet level, check the 3500/42M Proximitor Monitor or equivalent rack-mounted monitor card for alarm setpoint integrity and channel health. Verify that the 3500 Rack Power Supply is delivering stable ±24 VDC to the monitoring system — power fluctuations are a leading cause of false trips and probe signal noise. If the cabinet includes a 3500/20 Rack Interface Module, confirm communication status with the DCS or safety system.

For facilities running older 3300 Series (non-XL) infrastructure, this is also an appropriate time to assess whether the 3300/16 Monitor or 3300/55 Dual Voting Trip modules require recalibration or replacement as part of a broader system life-extension program. Aging relay output modules and 3300 Series barrier isolators should be inspected for contact wear and insulation resistance.

Where the monitoring system interfaces with a DCS or safety instrumented system (SIS), verify that signal isolators and Zener barriers in the intrinsically safe circuit are within specification. A faulty isolator can mask a genuine probe fault or generate nuisance alarms. Finally, review the terminal block assemblies and field wiring for corrosion, loose terminations, and correct shielding grounding — these are frequently overlooked during probe-only replacements and can introduce ground loops that corrupt vibration readings.

Site Replacement Workflow

The 330102-00-18-90-02-00 is a direct replacement for earlier 8mm probe variants used in 3300 XL monitoring loops. Before installation, confirm the target gap range with the machine OEM documentation and set the probe gap to achieve the nominal -10 VDC output from the Proximitor Sensor at the specified operating clearance.

Step 1 — Isolation: Coordinate with operations to place the affected monitoring channel in bypass mode at the 3500 rack or DCS. Do not remove the probe under live vibration alarm conditions without bypass confirmation.

Step 2 — Removal: Disconnect the extension cable at the field junction box. Remove the probe from the probe holder, noting the installed gap measurement for reference. Inspect the probe holder threads and target area for damage or contamination.

Step 3 — Installation: Thread the replacement 330102-00-18-90-02-00 into the probe holder. Set the gap using a non-ferrous feeler gauge or gap-setting tool to the OEM-specified clearance (typically 1.0–1.5 mm for most 8mm applications). Reconnect the extension cable and verify connector seating.

Step 4 — Verification: With the Proximitor powered, measure the DC gap voltage at the monitor input. Confirm the reading falls within the linear range. Check for noise on the AC vibration signal using a portable oscilloscope or the monitor’s diagnostic output.

Step 5 — Return to Service: Remove the bypass, confirm alarm setpoints are active, and document the replacement in the maintenance management system (CMMS). Log the as-found gap and as-left gap for trend analysis.

This workflow minimizes downtime, ensures system compatibility, and provides a documented audit trail for reliability and compliance purposes.

Spare Parts Support FAQ

Q1: Is the 330102-00-18-90-02-00 compatible with both 3300 XL and 3500 Series monitoring systems?
The 330102-00-18-90-02-00 is designed for the 3300 XL 8mm monitoring system. It is compatible with 3300 XL Proximitor Sensors and 3500 Series rack monitors when used with the correct extension cable and within the specified gap range. Always verify the Proximitor part number and system configuration before installation.

Q2: What is your recommended spare parts stocking strategy for this probe?
For critical rotating machinery, we recommend maintaining a minimum of two units on-site per monitored machine train, plus one unit in the central spare parts store. Probes in continuous service should be inspected annually and replaced on a 3–5 year cycle or immediately upon any indication of signal drift, physical damage, or gap voltage anomaly.

Q3: How is each unit tested before shipment?
Every 330102-00-18-90-02-00 unit undergoes pre-shipment inspection covering probe tip condition, cable continuity, connector integrity, and dimensional verification. Units are packaged to prevent transit damage and shipped with documentation confirming inspection status. The 12-month warranty covers functional performance from the date of receipt.

Q4: Can this probe replace older 330102 series variants in legacy 3300 (non-XL) systems?
The 330102-00-18-90-02-00 is an XL-series part. Compatibility with legacy 3300 (non-XL) Proximitor Sensors depends on the specific driver model and gap voltage calibration. We recommend confirming the Proximitor part number and system documentation before cross-application. Our technical team can assist with compatibility verification prior to order.
