Bently Nevada 330102-00-30-10-02-00 Retrofit-Ready Proximity Transducer for 3300 XL

Bently Nevada 330102-00-30-10-02-00 Retrofit-Ready Proximity Transducer for 3300 XL Control Systems

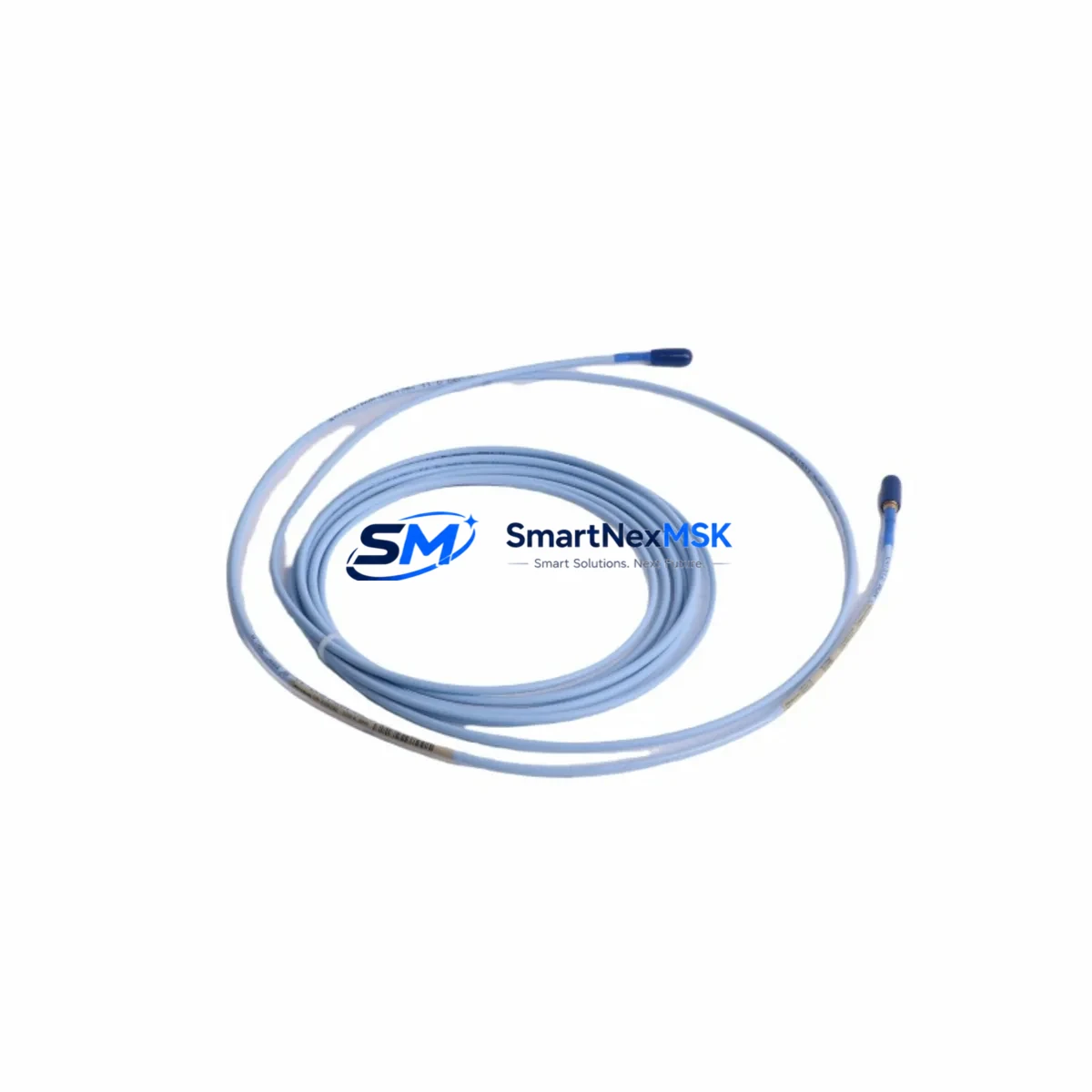

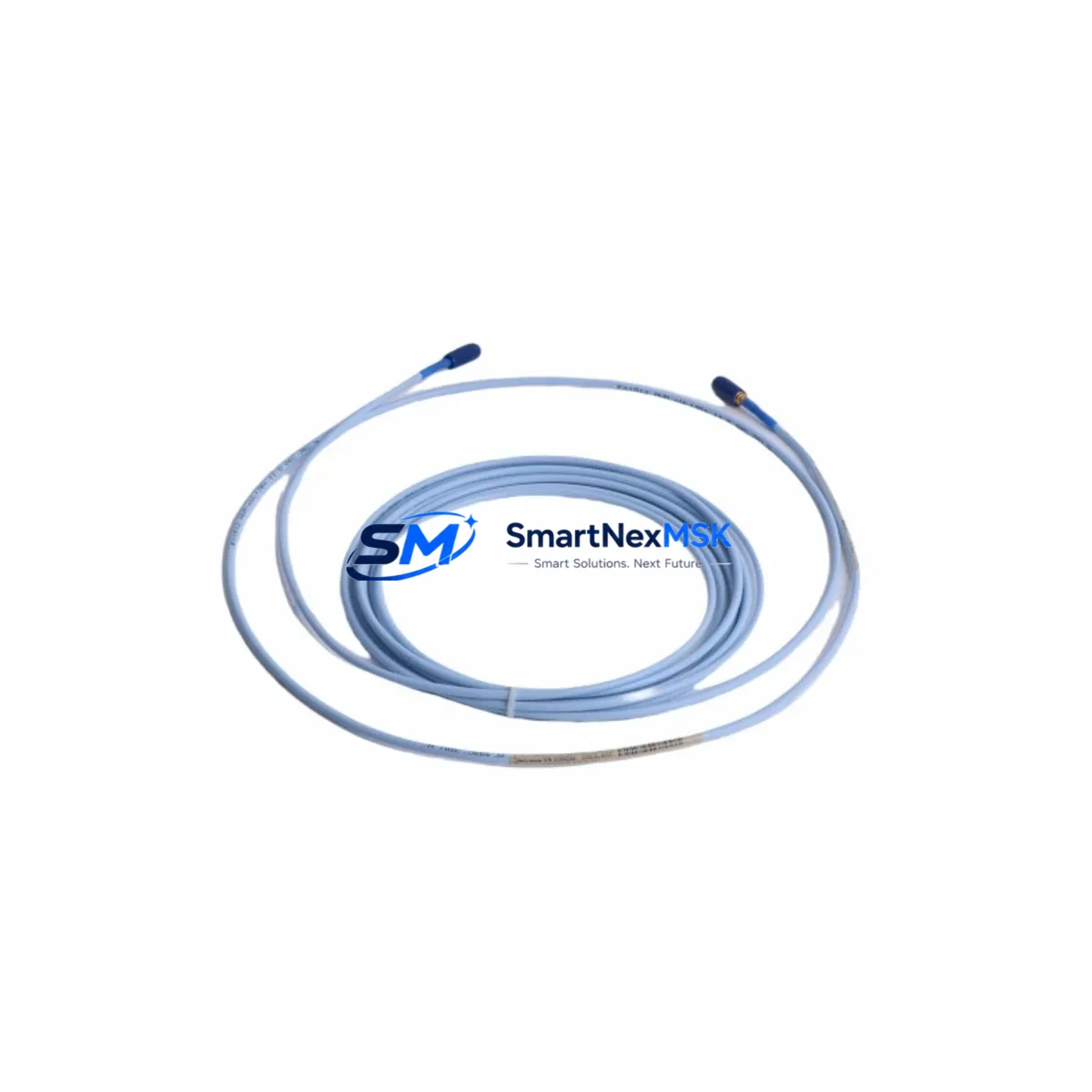

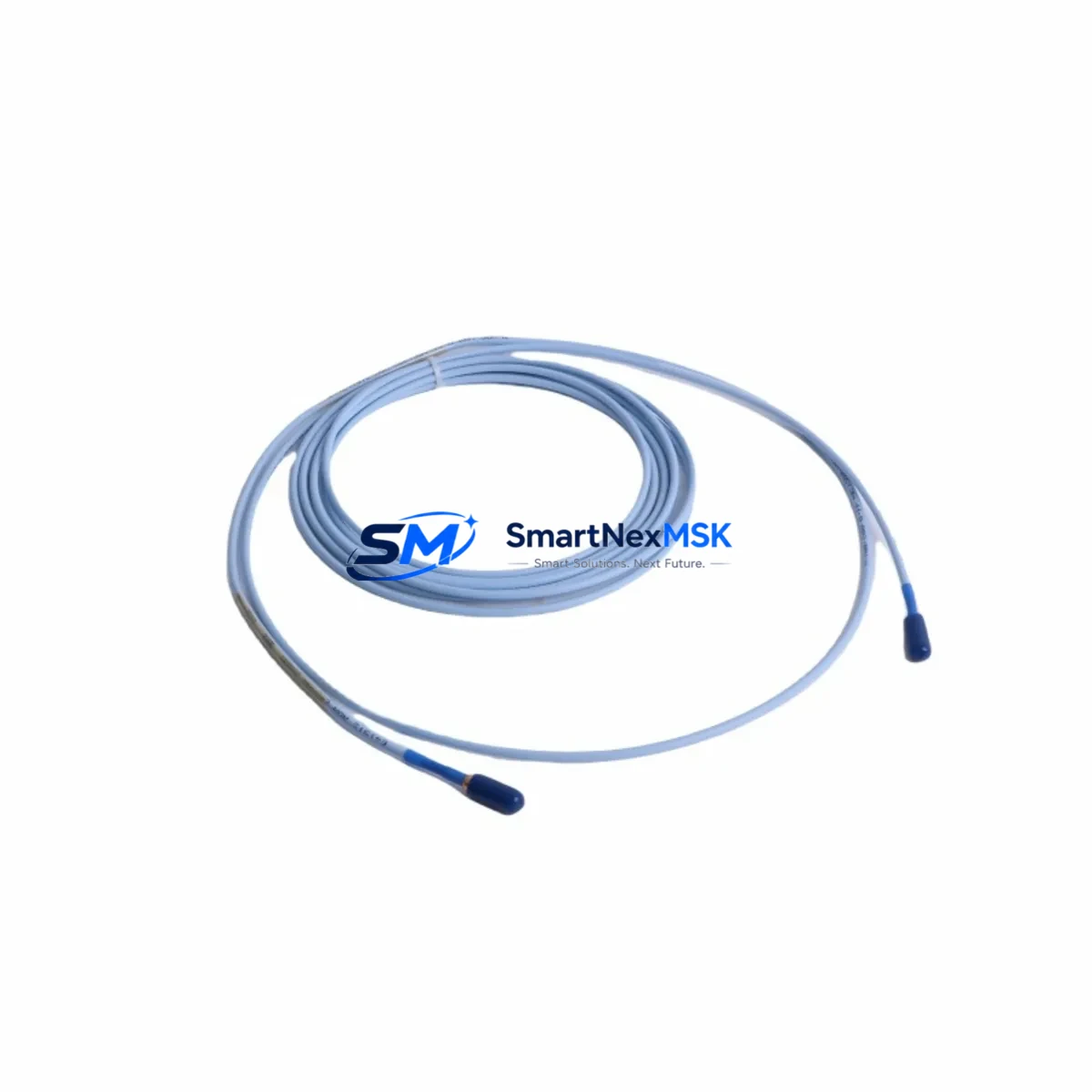

The Bently Nevada 330102-00-30-10-02-00 is an 8mm eddy-current proximity transducer engineered for the 3300 XL Series continuous machinery monitoring platform. As legacy vibration monitoring systems age and OEM support windows close, this transducer has become one of the most sought-after retrofit components for plants operating turbines, compressors, pumps, and gearboxes under API 670-compliant monitoring architectures. Whether you are replacing a failed unit on a running train, upgrading a brownfield control cabinet, or restoring a mothballed machine line, the 330102-00-30-10-02-00 provides a verified drop-in solution with no firmware changes required on the 3300 XL monitor rack.

This transducer operates within the standard Bently Nevada TK3 driver system, making it directly compatible with the 330180-X1-05 extension cable and the 330130-040-00-00 proximitor/driver assembly. When planning a retrofit, engineers should confirm the existing cable length matches the ordered extension cable to maintain the calibrated gap voltage range of -10 VDC at the nominal 1.0 mm gap. Incorrect cable substitution — for example, swapping a 5-metre extension for a 9-metre run — will shift the scale factor and require recalibration of the 3300 XL monitor card, typically the 3300/16 or 3300/20 dual-channel vibration monitor module.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the 330102-00-30-10-02-00 into an aging control architecture requires a structured pre-retrofit checklist. Begin by auditing the existing 3300 XL rack configuration: identify the populated monitor slots, confirm the rack power supply module (typically the 3300/05 or 3300/10 power supply) is delivering stable ±24 VDC, and document the current channel assignments in the System 1 condition monitoring software or equivalent historian.

Next, inspect the terminal block wiring at the I/O junction box. The 330102-00-30-10-02-00 uses a standard three-wire connection (positive supply, negative supply, and signal output). Verify that the existing field wiring gauge is 18–22 AWG shielded twisted pair, and that the shield drain is terminated at one end only to prevent ground loops — a common source of noise in older installations where the original wiring was installed without strict EMC discipline.

For plants migrating from an older Bently Nevada 7200 Series or 3300/05 non-XL rack to the current 3300 XL platform, the transducer itself is mechanically identical, but the proximitor driver must be updated to the 330130 series. In these migration projects, it is common to simultaneously replace the 3300/16 vibration monitor cards, the 3300/46 keyphasor module, and the rack backplane interconnect cables. If the plant is also upgrading the HMI layer — for example, moving from a legacy Wonderware InTouch panel to a modern System Platform or Ignition SCADA — the 4–20 mA analog outputs from the 3300 XL rack can be mapped directly to the new DCS analog input cards without signal conditioning changes, preserving the existing alarm setpoints and trend historian tags.

I/O expansion during a retrofit is another common requirement. Plants adding new measurement points — such as axial position monitoring on a compressor thrust bearing — will need additional 3300/25 position monitor cards and corresponding 330500-series thrust transducer assemblies. These can be installed in open rack slots without disrupting the existing vibration channels, provided the rack power budget is recalculated to confirm the 3300/05 power supply can support the additional load.

Programming compatibility is generally not a concern for a like-for-like transducer swap, but engineers should verify that the System 1 software database reflects the correct transducer serial number and calibration data after replacement. For plants using a Rockwell Automation ControlLogix or Siemens S7-300/S7-400 PLC as the primary safety interlock controller, the 3300 XL relay output contacts (from the 3300/32 relay output module) should be tested end-to-end after the swap to confirm that the vibration high-high trip logic still drives the PLC digital input correctly.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern for any maintenance team executing a proximity transducer replacement on a running production asset. The 330102-00-30-10-02-00 is stocked for same-day dispatch, which supports just-in-time replacement strategies for plants operating under tight turnaround schedules.

For planned shutdowns, the recommended sequence is: (1) isolate the affected 3300 XL monitor channel using the channel bypass function available in the 3300/16 or 3300/20 monitor card — this suppresses the alarm output without removing the card from service; (2) disconnect the extension cable at the junction box terminal block, noting the existing gap voltage reading for reference; (3) remove the transducer from the probe holder, clean the probe bore, and install the replacement 330102-00-30-10-02-00; (4) reconnect the 330180 extension cable and verify the gap voltage returns to the nominal −10 VDC ± 0.5 VDC window; (5) remove the channel bypass and confirm the System 1 historian resumes trending without alarm state.

For emergency replacements during an unplanned trip, the same sequence applies but with the added step of documenting the pre-failure gap voltage from the historian trend to determine whether the failure was a gradual drift (indicating probe contamination or cable degradation) or a sudden open-circuit event (indicating cable damage or connector failure). This distinction informs the root-cause entry in the maintenance management system and helps justify the inventory stocking level for future spare parts planning.

Throughout the replacement process, the original PLC ladder logic and DCS control narrative remain untouched. The 330102-00-30-10-02-00 is a passive analog sensor; it does not require firmware updates, IP address assignment, or fieldbus commissioning. This makes it one of the lowest-risk components to replace in a 3300 XL-based machinery protection system, even under time pressure.

Retrofit Support FAQ

Q1: Is the 330102-00-30-10-02-00 a direct drop-in replacement for the original Bently Nevada unit?
Yes. The 330102-00-30-10-02-00 is manufactured to the original Bently Nevada specification and is a direct mechanical and electrical replacement. No modifications to the probe holder, extension cable connector, or monitor card configuration are required for a like-for-like swap in a 3300 XL system.

Q2: What pre-shipment testing is performed on each unit?
Each 330102-00-30-10-02-00 undergoes a functional gap voltage calibration test prior to dispatch. A test report confirming the scale factor (7.87 V/mm) and nominal gap voltage (−10 VDC at 1.0 mm) is available upon request. The 12-month warranty covers all manufacturing defects identified after installation.

Q3: Can this transducer be used with a non-Bently Nevada proximitor driver?
The 330102-00-30-10-02-00 is optimized for use with the Bently Nevada 330130-series proximitor driver. Use with third-party drivers is possible in principle, but the scale factor and gap voltage calibration must be independently verified, as non-OEM drivers may have different input impedance characteristics that affect measurement accuracy.

Q4: What is the lead time and warranty coverage?
Units are available from stock with same-day dispatch for orders confirmed before the daily cut-off. The 12-month warranty begins from the date of shipment and covers defects in materials and workmanship. Warranty claims are supported by the pre-shipment test report and require return of the defective unit for inspection.
